13 kontaktų vilkimo kablio laidų rinkinys

Trumpai apie prekę

Prekė: 13 kontaktų vilkimo kablio laidų rinkinys. Kategorija: Laidai ir lizdai.

• Gamintojas: no brand

The electric kit has the ability to connect an additional module that allows you to charge the battery in the campsite or trailer and properly control this charging.

link to our TCBM-SENDER module:

https://allegro.pl/modul-wiazka-ladowania-akumulatora-kemping-do-hak-i6063427955.html

Electronic 13-pin towing hook module, is designed for 12V electrical installation, for connecting 13 pin socket, hook installation in cars, in which computer on-board lighting control are used, used for:

-Power supply and diagnostics of bulbs in lamps

-control of LED lamps

- PWM power supply (single-fiber bulbs, implementation of functions: STOP/POSITION and POSITION/FOG)

Required if the car has a light failure indicator or so many lamps in LED technology.

• Manufacturer:
• Trailer socket: 13 PIN
• Fog Lights: Yes
• Reversing Lights: Yes
• Brake Lights STOP: Yes
• Position Lights: Yes
• Indicators: Yes
• Trailer Module: Yes
• LED Light Support: Yes
• CAN BUS: Yes
• Works with reversing/pairing sensors: NO
• Approval:
• possibility of connecting an additional module enabling charging the battery in the campsite or trailer

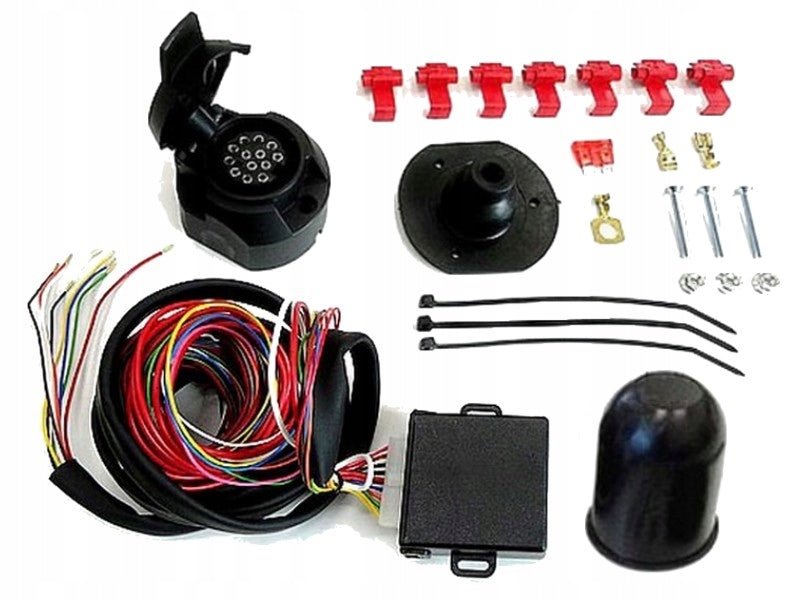

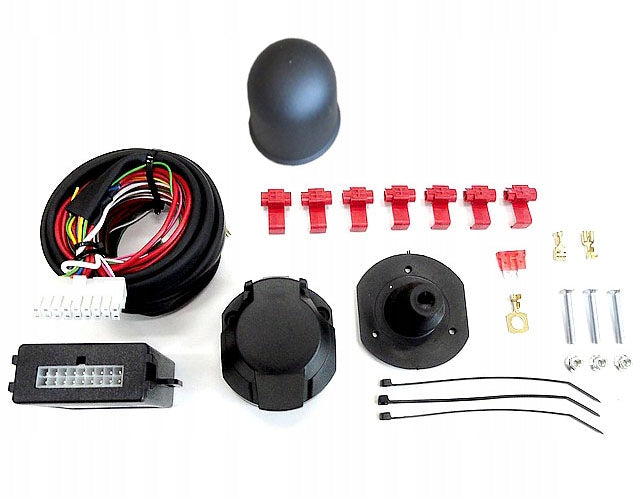

• Electronic module - 12VDC control unit
• Main beam
• 13 pole socket with gasket
• Clamp band and quick release
• Accessories needed for assembly
• Instruction in Polish
• Tow hook ball cover FREE

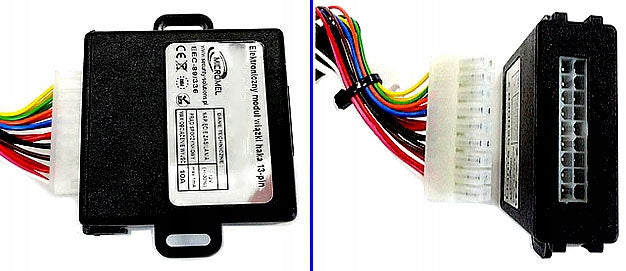

The electronic module is designed to connect the hook electrical system in cars where there are computer lighting control systems. In such cars, direct connection to the rear lamps of the 13-pin trailer socket may result in damage to the on-board computer. The use of the module does not constitute additional loads for the installation of the car because each module input is characterized by a very low current consumption of 1 mA. Each module output is protected against possible short circuits from the side of the trailer electrical system.

-for towing cargo trailers

-for towing car tow trucks

-to operate bicycle rack lighting

The module can cooperate with installations in which some car lighting circuits are implemented on a single-fiber bulb, where different lighting intensity is obtained by PWM control (variable fill factor).

This allows you to operate different trailer or trunk electrics packages.

Certainty that there will be no accessibility issue in the future. The adapter, i.e. the adapter, is cheap and thanks to it we will connect any trailer or trunk plug.

MODULE TRANSMITS THE SIGNAL OF LIGHTS FROM THE REAR LAMPS TO THE TRAILER SO THAT IT DOES NOT DAZZLE IN THE MIRRORS

SAMPLE LIST OF CAR MODELS TO WHICH OUR MODULE FITS

IF YOUR CAR IS NOT ON THE LIST

OUR TECHNICAL SUPPORT TEAM WILL BE HAPPY TO ASSIST YOU

147 2004›

159 2005›

Brera 2005›

GT 2004›

166 2005›

A2 2004›

A3 2004›

A4/S4 2005›

A4 2008›

A5 2007›

A6/S6 2005›

A8/S8 2005›

TT 2005›

Q5›

Q7 2005›

1 2004›

3 2005›

X3 2005›

5 2004›

X5 2004›

6 2005›

X6 2008›

7 2005›

Z4 2005›

Sebring 2005›

PT Cruiser 2004›

300 C 2004›

Voyager 2004›

Crossfire 2004›

CITROEN

C1 2004›

C2 2004›

C3 2005›

C4 2005›

C5 2003›

C6 2005›

C8 2005›

Xsara 2005›

Jumper 2005›

C-CROSSER 2007›

Panda 2004›

Punto II 2003›

Grande Punto 2005›

Idea 2005›

Stilo 2005›

Sedici 2006›

Doblo 2005›

Multipla II 2005›

Croma 2005›

Linea 2007›

Strada 2006›

Albea 2005›

Palio 2005›

Ulysse 2005›

Focus II 2005›

Fiesta 2005›

Transit Courier 2005›

Mondeo 2004›

C-MAX 2005›

S-MAX 2005›

Galaxy 2005›

Ranger 2005›

Explorer 2005›

Maverick 2005›

Transit Tourneo 2005›

Kuga 2008›

CR-V 2002›

FR-V 2004›

Civic 2001›

Jazz 2003›

Accord 2004›

Legend 2006›

FX3 5/FX 45 2005›

G 35 2005›

M 35/ M 45 2005›

Q 45 2006›

Wrangler 2005›

Cherokee 2005›

Grand Cherokee 2005›

Commander 2005›

Carens 2000›

Carnival 2002›

Sorento 2005›

Joice 2000›

Sportage 2005›

Rio 2000›

Magentis 2001›

Mentor 2001›

Pregio 2002›

Cee'd 2008›

Lybra 1999›

Thesis 2002›

Ypsilon 2003›

Musa 2004›

IS 2005›

GS 2006›

ES 2006›

LS 2005›

SC 2005›

RX 300/RX 400 2005›

GX 2006›

LX 2006›

Pajero 2000›

Pinin 1999›

L200 2005›

Outlander 2003›

Lancer 2003›

Grandis 2004›

Colt 2004›

A 2005›

B 2005›

C 2004›

CL 2005›

CLK 2005›

CLS 2005›

E 2004›

GL 2006›

ML 2005›

R 2005›

S 2006›

SL 2005›

SLR 2005›

SLK 2005›

Sprinter 2005›

Vito 2005›

Vaneo 2003›

Viano 2005›

Maxima 2000›

Note 2005›

Primera 2002›

Almera 2003›

X-Trail 2001›

Patrol 2002›

Pathfinder 2005›

Murano 2005›

Navara 2005›

Primastar 2005›

Interstar 2005›

Astra III 2005›

Vectra C 2004›

Signum 2004›

Sintra 2003›

Meriva 2004›

Movano 2004›

Zafira 2004›

Vivaro 2004›

Antara 2006›

Corsa 2006›

Tigra 2005›

Cayenne 2004›

107 2005›

207 2006›

307 2005›

407 2004›

607 2005›

807 2005›

1007 2005›

Partner/New Partner 2005›

Boxer 2005›

4007 2007›

Clio 2005›

Modus 2005›

Trafic 2005›

Megane 2005›

Scenic 2005›

Laguna 2005›

Espace 2005›

Vel Satis 2005›

Master 2006›

Land Rover

Freelander 2005›

Discovery 2005›

Range Rover Sport 2005›

Range Rover 2005›

Fabia 2004›

Roomster 2006›

Octavia 2005›

Superb 2005›

SSANG YOUNG

Rexton 2005›

Rodius 2005›

Kyron 2005›

9,3 2005›

9,5 2005›

Alhambra 2005›

Altea 2005›

Ibiza/Cordoba 2005›

Leo 2005›

Toledo 2004›

Swift 2005›

Splash 2007›

SX4 2006›

Grand Vitara 2005›

Grand Vitara XL-7 2005›

Yaris 2006›

Corolla/Corolla Verso 2006›

Prius 2005›

Matrix 2006›

Hilux 2005›

Avensis 2005›

Camry Solara 2006›

Avalon 2006›

RAV4 2005›

FJ Cruiser 2006›

Tacoma 2006›

Tundra 2006›

Sequoia 2006›

Highlander 2007›

Land Cruiser 2005›

Polo 2005›

Golf 2005›

Beetle 2004›

Jetta 2005›

Touran 2004›

Eos 2005›

Passat 2004›

Tiguan 2007›

Touareg 2004›

Caddy 2005›

Sharan 2005›

Multivan 2005›

Crafter 2005›

Phaeton 2005›

S40 2004›

S60 2004›

S80 2004›

V50 2004›

V70 2004›

C70 2004›

XC70 2004›

XC90 2004›

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	13 PIN
Parametry	EAN (GTIN)	5905768146975
Parametry	Manufacturer	no brand
