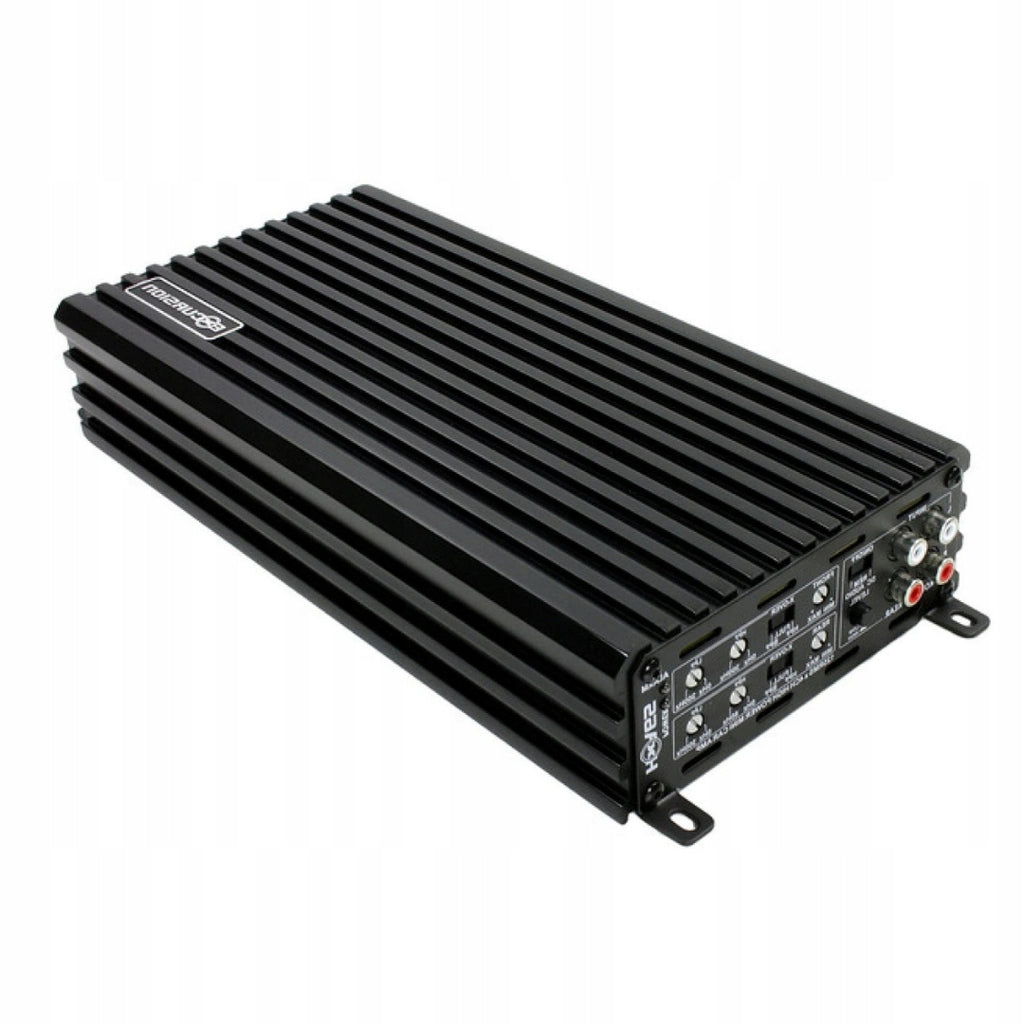

4 kanalų stiprintuvas 4x100 W RMS Excursion HXA-65, AB klasė

Trumpai apie prekę

Prekė: 4 kanalų stiprintuvas 4x100 W RMS Excursion HXA-65, AB klasė. Kategorija: Stiprintuvai.

• Gamintojas: Excursion
• Modelis: HXA-65

⭐ ANALOG CLASS AB AND FULL FLEXIBILITY OF CAR AUDIO SYSTEM

The Excursion HXA-65 is a high-end 4-channel AB class car amplifier designed for those who want a natural, dynamic and detailed sound. With 4×100W of power, the RMS is ideal for powering the front and rear systems, and the bridging capability also allows you to power subwoofers or powerful separate sets.

The advanced Full MOSFET design and SMD technology guarantee high performance, reliability and stability even under long-term load.

✅ Analog Class AB

✅ Power 4×100W RMS at 4 Ω

✅ Power 4×125W RMS at 2 Ω

✅ Ability to work in bridge 2×250 W RMS

✅ Stability at load 2 Ω

✅ RCA and High-Level Inputs

✅ HPF, LPF and BPF filters

✅ Bass Boost Function

✅ Intelligent Auto Turn On/Off

✅ Three activation modes: REM/DC/AUDIO

✅ SMD technology and Full MOSFET chip

⭐ FULL TECHNICAL SPECIFICATION

Power level

✅ Model: HXA-65

✅ Type: 4-Channel Car Amplifier

✅ Working class: AB (analog)

✅ RMS power at 4 Ω: 4 × 100 W

✅ RMS power at 2 Ω: 4 × 125 W

✅ RMS power in bridge at 4 Ω: 2 × 250 W

Audio parameters

✅ Frequency Response: 15 Hz – 25 kHz

✅ THD: < 0,05%

✅ Signal/Noise Ratio: >80 dB

✅ RCA input sensitivity: 0,2 – 5,0 V

✅ High-Level Input Sensitivity: 0,6 – 15 V

Filters and regulation

✅ LPF Front/Rear low-pass filter: 0 – 300 Hz

✅ HPF Front High Pass Filter: 0 – 300 Hz

✅ HPF Rear High Pass Filter: 0 – 80 Hz

✅ Filter operating modes: FULL / HPF / BPF

✅ Bass Boost: Yes

Power supply

✅ Operating voltage: 10 – 15 V

✅ Efficiency at 4 Ω: >60%

✅ Recommended external fuse: 60 A

Security

✅ Overload protection

✅ Short-circuit protection

✅ Thermal protection

✅ Protection against low voltage

✅ Protection activation temperature: about 80°C

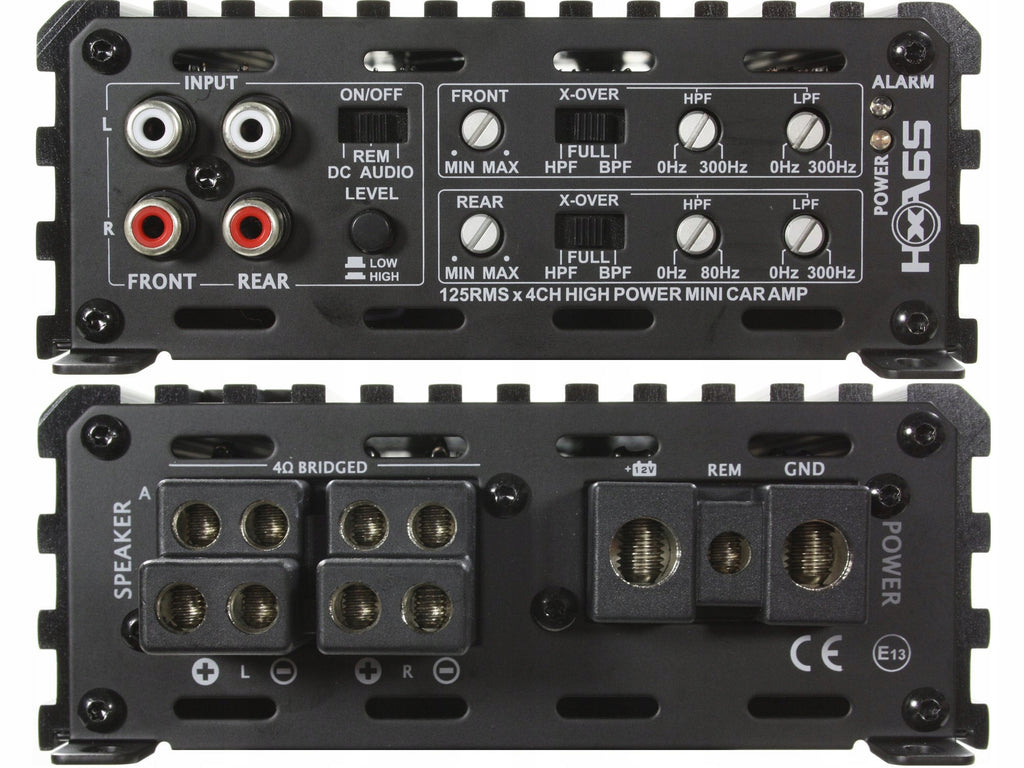

Inputs and control

✅ Signal Inputs: 4 × RCA

✅ High-Level Inputs: Yes

✅ Auto Turn On/Off: Yes

✅ Enablement Modes:

• REM (+12 V)
• DC (Voltage Detection on Speaker Wires)
• Audio (Audio Signal Detection)

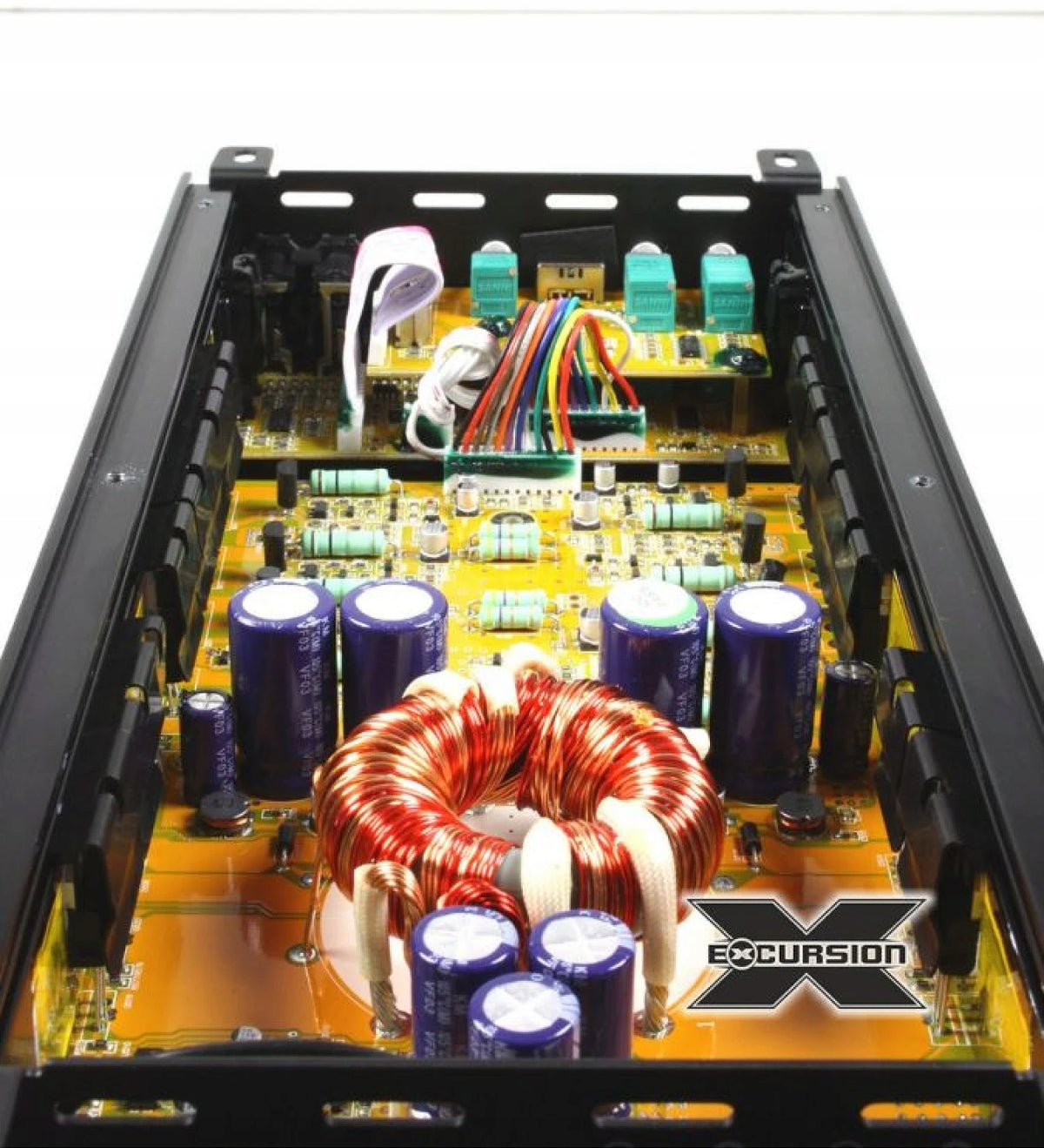

Construction

✅ SMD mounting technology

✅ Full MOSFET

Dimensions

✅ 140 × 54 × 280 mm

⭐ FREQUENTLY ASKED QUESTIONS AND SET CONTENTS

❓ Is the amplifier stable at 2 Ω?

Yes. The HXA-65 operates stably at a load of 2 Ω on each channel.

❓ Can it be powered by a subwoofer?

Yes. After bridging two channels, the amplifier gives 2 × 250 W RMS at 4 Ω.

❓ Can it be connected to factory radio?

Yes. Thanks to the High-Level inputs and Auto Turn On function, the amplifier works perfectly with factory audio systems.

❓ Is it a digital amplifier?

No. It is an analog class AB amplifier, providing a natural and dynamic sound.

⭐ CONTENTS OF THE SET

✅ Excursion HXA-65 amplifier

✅ Manufacturer's manual

✅ Mounting hardware

✅ Original manufacturer packaging

✅ Brand new product
