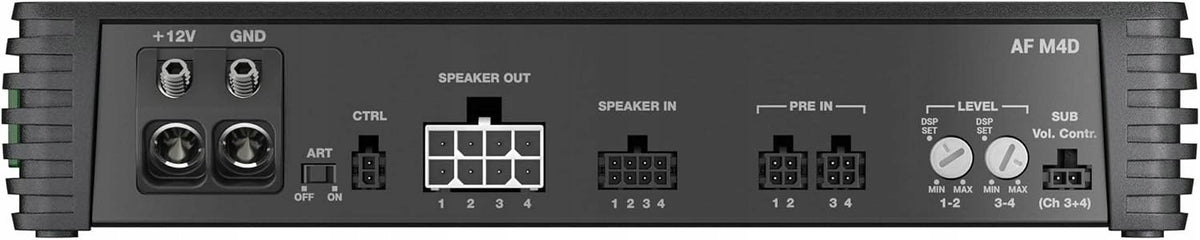

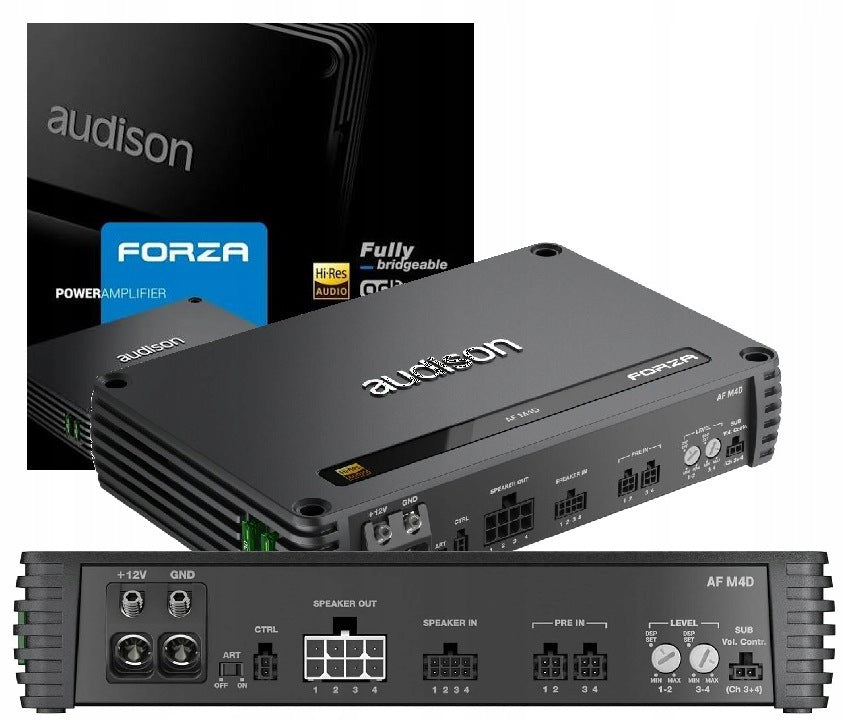

4 kanālu pastiprinātājs AUDISON AF M4D, 4x160W, 1040W, 4 Ω

Trumpai apie prekę

Prekė: 4 kanalų stiprintuvas AUDISON AF M4D, 4x160W, 1040W, 4 Ω. Kategorija: Stiprintuvai.

• Gamintojas: Audison
• Modelis: AF M4D

CAR AMPLIFIER

CLASS : D

4 x 160 W 4 Ω

4 x 260 W 2 Ω

2 x 520 W 4 Ω

POSSIBILITY OF BRIDGING

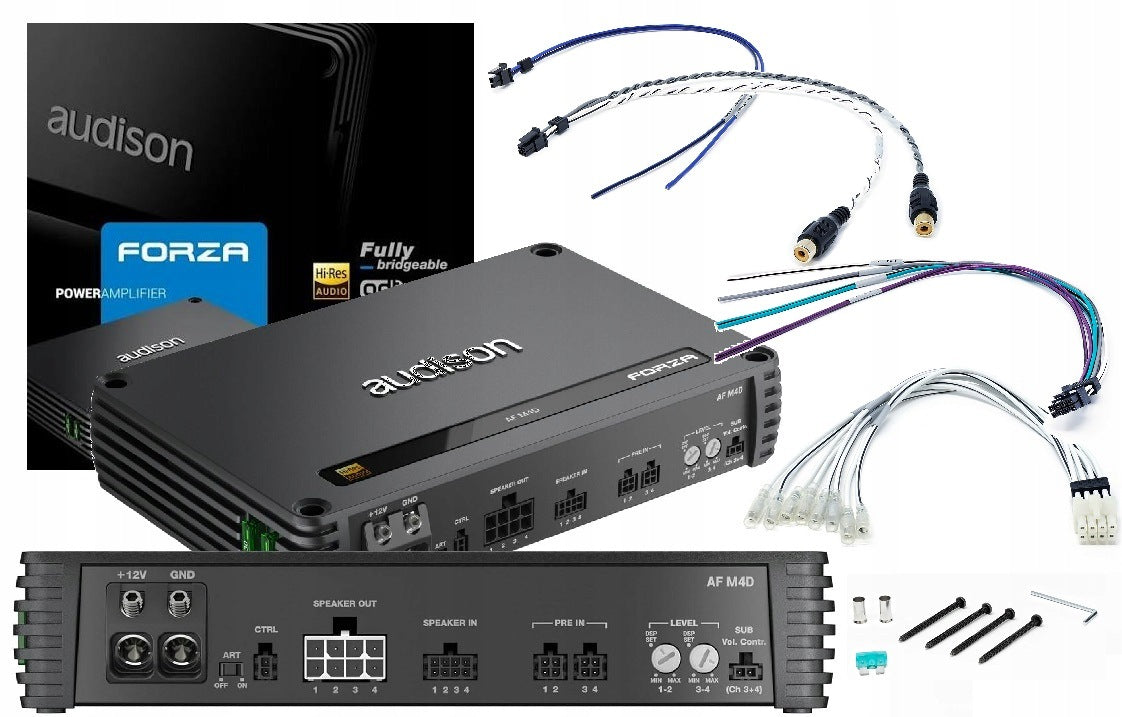

AF Series complementary amplifiers are designed to add additional powerful gain channels to amplifiers with a signal processor (“AF bit” type). The set includes a plug-and-play signal beam, which makes it much easier to connect to AF bit amplifiers. These amplifiers are also perfect for systems controlled by a standalone signal processor, such as the One HD Virtuoso bit. AF models are distinguished by a “straight wire” architecture (without analog preamplifier functions such as crossovers) and are designed to work with external sound processors. The AF M4D offers four high-fidelity amplification channels (160 W x 4 at 4 Ω* and 260 W x 4 at 2 Ω*),providing audiophile sound quality characteristic of the latest generation of Audison class D technology. Higher switching frequencies,steeper filter slopes and components with higher precision allow you to achieve sound that exceeds typical expectations for Class D amplifiers – all in an extremely compact housing! The frequency response has been extended to 40 kHz, which allowed to obtain the prestigious High-Resolution Audio certificate. Bridged channel pairs achieve 520W x 2 power at 4Ω*, guaranteeing flexibility and impressive performance. *Continuous power output (RMS) at 14,4V DC, 1% THD, all channels driven.

Amplifier technical data

Number of channels 4

Class D

Efficiency 83%

High-level entrance (Hi-Level) Yes

Low-Level Input (Low-Level) Yes

Digital Input No

Supply voltage / fuse 11 ÷ 15 V DC

Operating voltage range 6,5 ÷ 17,5 V DC

Power consumption at rest 1,2 A

Current consumption after switching off 0,006 mA

Current consumption (14,4 V DC, 2 Ω, max. musical power) 47 A

Control output (Remote OUT) 6,5 ÷ 15 V DC (150 mA)

Control input (Remote IN) 4 ÷ 15 V DC (1 mA) ART – automatic switching on/off with signal from BTL speaker outputs (selectable function) 1,5 V DC

Amplifier section

Distortion – THD at 100 Hz, 4 Ω, 70% rated power: 0,05%

Frequency Response (-3 dB, 2 V RMS, 4 Ω): 10 Hz ÷ 42 kHz

Signal/noise ratio (weighted by A curve at 1 V): 103 dBA

Pre-In Input Sensitivity: 0,6 ÷ 6 V RMS

Speaker-In Input Sensitivity: 2,2 ÷ 22 V RMS Total RMS Power: 1040 W

Minimum load impedance: 4 channels – 2 Ω 2 channels – (bridge) 4 Ω

Output power (RMS) at 14,4 V DC, 1% THD – 4 channels

at 4 Ω: 160 W x 4 4 channels

at 2 Ω: 260 W x 4 2 channels (bridge 1/2; 3/4)

at 4 Ω: 520 W x 2

Adjustable crossover: No

Entrances

Pre-In/Speaker-In Input Type

Subwoofer volume control ±12 dB

Other

Fuse 2 x 30 A

Weight 2,04 kg

Dimension A 240 mm

Dimension B 156 mm

Dimension C 47 mm

Specifications
