Apraksts
Trumpai apie prekę
Prekė: 4 vaizdo kamerų rinkinys 8MP, 4K kokybė, be HDD, peržiūra internetu. Kategorija: Rinkiniai.
- Gamintojas: Protec
- Modelis: kamery - ESBR-8084P
1x Multifunctional 4-channel digital recorder
- Support up to 4 cameras at the same time
- Online preview on mobile devices
- Displaying images via HDMI or VGA
4x 8MPX IR 20m horn camera
- high resolution 8Mpx (3840x2160 pixels)
- Built-in infrared reflector (night vision up to 20m)
- hermetic housing (can be mounted outdoors)
Set without hard drive
A set of all necessary plugs and fittings
Efficient power supply with splitter voltage for cameras
20m concentric cable with power supply
Software for computer and mobile device set
Polish manual to the registrar in pdf
Instructions for assembly step by step in pdf
⚠ Set without hard drive
This kit does not include a hard drive.
To start recording, you need to purchase a compatible HDD designed for 24/7 continuous operation. The recorder allows you to view the live image also without a mounted disk.
4K resolution is up to 4 TIMES MORE than the classic FullHD quality, making it a standard that is certainly worth deciding on. Modern monitoring in this resolution perfectly fulfills its function, and in addition, the entire monitoring set offers many additional options such as online preview, 24/7 loop recording or privacy zones.
AHD (Analog High Definition) monitoring is a system that combines the advantages of analog and IP monitoring. The ultra-high resolution image is transmitted via a reliable coaxial cable. AHD is a system with excellent operating parameters, and its main advantages include:
- reduction of installation costs – AHD technology uses the same cables as classic analogue monitoring. By replacing the existing analogue monitoring system with an AHD system, you can use the existing wiring installation on both sides. Thanks to this, when modernizing monitoring, only the devices themselves should be replaced!
- direct connection with a coaxial cable – many devices that burden this system work in corporate and private computer networks. Image transmission in the AHD system is not transmitted over computer networks, and thus – the existing network is not exposed to overloads.
- real-time image – it is widely known that all devices operating in the network that transmit large data streams have the so-called. "delay." This is also the case with megapixel cameras in the IP system. In contrast, the AHD system transmits mega-writer images smoothly and in real time.
- the ability to transmit images over long distances – the AHD system has excellent quality interference elimination, thanks to which the transmitted image can be transmitted over a distance of up to 200m.
4x Professional 8MPX surveillance camera allows you to record the observed area in very high resolution while maintaining a wide viewing angle.
Most important features:
- Camera resolution - 8Mpx. The camera operates at a very high resolution of 3840x2160 pixels, so you will see much more details.
- Infrared radiator up to 20m. Very powerful infrared heater allows you to see in total darkness up to 20m

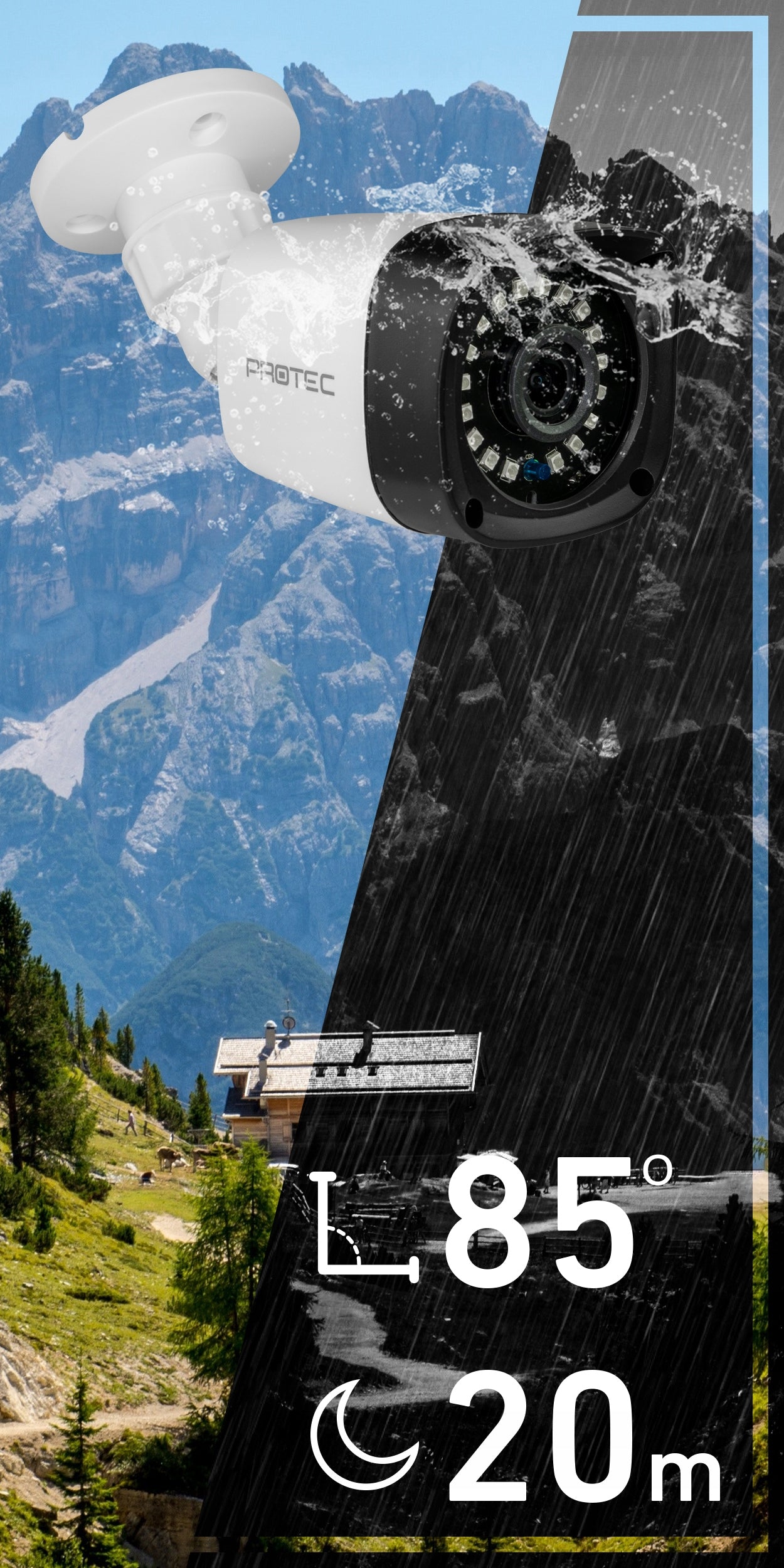

- Specific housing with IP66 class. Rain and snow are not an obstacle. The camera is weatherproof and can be mounted outdoors with confidence.
- Fixed-focal lens 3,6mm. The camera is factory sharpened. The wide 3,6mm lens gives a very sharp image without the effect of distorting the frame.
Additional camera features:
- Automatic adjustment of digital functions: BLC (background lighting compensation), AGC (automatic gain control)
- Automatic white balance
- Electronic noise reduction
- Convenient vertical or horizontal installation
- Low power consumption
- Operating temperature from -30°C to +50°C

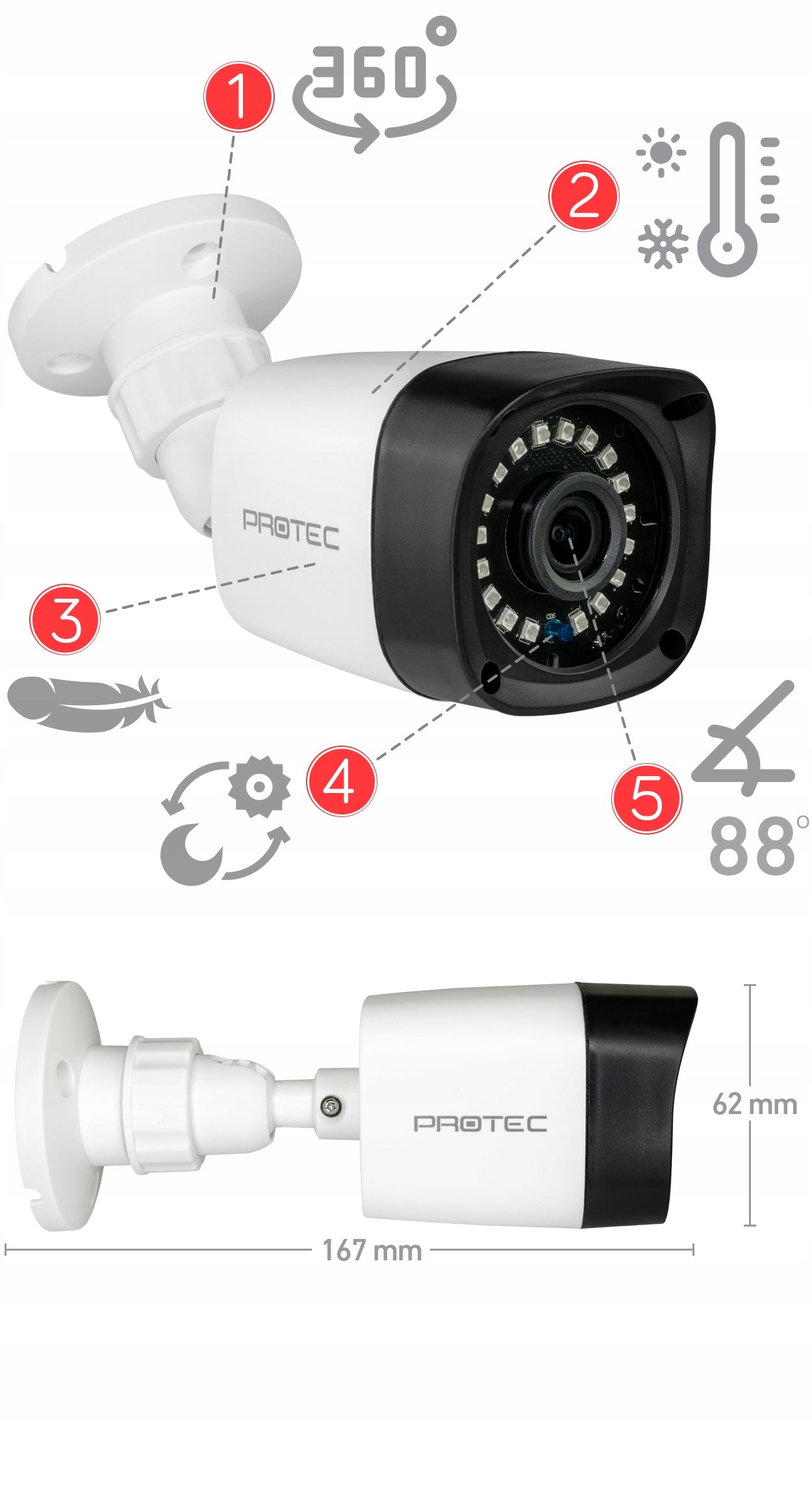

1. The cameras have a convenient mounting bracket thanks to which you can point the camera in the right direction. Such a mount allows you to freely mount the camera in the most convenient place, both on the wall and under the ceiling.
2. Thanks to its tight housing with IP66 class, the camera is resistant to weather conditions. Not terrible rain, snow, high or low temperatures. It is completely dust-resistant and protected from even strong water jets.
3. Durable camera in a lightweight plastic case! The camera is extremely light so that it can be attached very quickly, e.g. under the suspended ceiling.
4. Infrared radiator of the camera will start automatically in too low light and will allow effective observation even without additional light sources. Infrared light is invisible to the human eye, while cameras have an appropriate filter that allows observation in such conditions. Thanks to this, the camera can work effectively all day and night.
5. The camera has a factory sharpened 3,6mm lens, which provides a sharp image and a wide viewing angle of 85° horizontally. The parameters of the lens will also allow you to work in difficult lighting conditions.
Key features:
- Recording according to the created schedule (on appropriate days and hours) and using selected analytical functions (motion detection in the image)
- Playback of camera recordings on connected displays (monitor or TV with VGA or HDMI input)
- Backup and rip to portable memory (USB memory)
- Online preview on computers and mobile devices (e.g. smartphone) using a dedicated application
The recorder supports up to 4 8MPX cameras from different manufacturers. It allows recording in high resolution 8Mpx-lite (8M-n). After connecting the cameras, the recorder will immediately display them on the connected screen.
For all connected cameras, you will run motion detection, masking, etc.
Efficient H.265 image compression - saves storage space and longer write time
Connect your monitor or TV to the DVR via the built-in HDMI and VGA connectors, and get a constant On-line preview on mobile devices (smartphone)
You can get an ON-LINE preview on any device running Windows, Android, iOS (PC, laptop, tablet, smartphone). Each system user can have a different type of access to the cameras. Example: the administrator may have access to all cameras, and the specified user will only have access to camera 1 and 2, without the possibility of editing settings.
Rear panel of the recorder:
- Emergency Inputs and Outputs
- Audio output - connecting the speaker via cinch output
- Video output - connect monitor or TV
- Video inputs – for connecting cameras
- Audio input - microphone connection via cinch input
- HDMI output - connect monitor or TV
- USB sockets - connection of mouse or USB stick (pendrive)
- RJ-45 socket - connection to the Internet
- RS socket – for controlling PTZ cameras
- Power socket (dedicated power supply is included with the recorder)
- VGA output - connect monitor or TV
USB sockets will allow you to conveniently connect the mouse to control the recorder (mouse under USB included), as well as simultaneously connect a portable memory to rip recordings from cameras.
The recorder has HDMI and VGA output. When you connect the DVR to a monitor or TV, all connected cameras will be displayed immediately. This configuration will allow for convenient system management.
As with computer operation, you will also have access to all functions with the mouse in the DVR. After the system starts, all you have to do is connect the mouse from the set to the USB port and press the right mouse button, and the selectable menu of the device will be displayed.
You can get preview from the cameras simultaneously on the connected monitor and on mobile devices!
You can conveniently mount the drive inside the recorder.
Disk mounting is simple and intuitive. Simply unscrew the top cover of the recorder, attach the disc to the base and connect with two wires.
The drive is not part of this set
You will gain access to the DVR through a dedicated application for phones and mobile devices V247. After connecting the DVR to the Internet and a short configuration, you will have access to the image anywhere.
For each user of the registrar, you can assign functions and accesses, e.g. The user "employee" will be able to see the image only from camera number one after logging in, and you in the administrator account will see all the cameras, as well as review the recordings, etc.
- motion detection - allows you to record images from cameras only after there is movement in the camera frame. It is a convenient feature that saves disk space and works best in enclosed spaces
- image loss - the recorder after losing the signal from the camera will allow you to associate the event with other functions, e.g. by e-mail notification
- masking - as in the case of the 'image loss' function, the recorder after detecting that the camera is something obscured will allow you to associate the event with other functions, e.g. e-mail notification.
When we do not want the selected fragment of the frame to be on the recordings, the selected part can be covered with an electronically generated privacy zone. Thanks to this, you can limit the recording zone and the monitoring will work in accordance with the GDPR.
When the disk is full, the recorder will run in a loop. This means that it will automatically delete the oldest record and continue working without the need to interfere with the operation of the device
The work of the monitoring system can be planned according to your needs, e.g. continuous recording from 8-16 from Monday to Friday, and in other hours only for motion detection
In order to get an image from the DVR, you need to know the username and password. Without this knowledge, no outsider will be able to even look at the recordings.

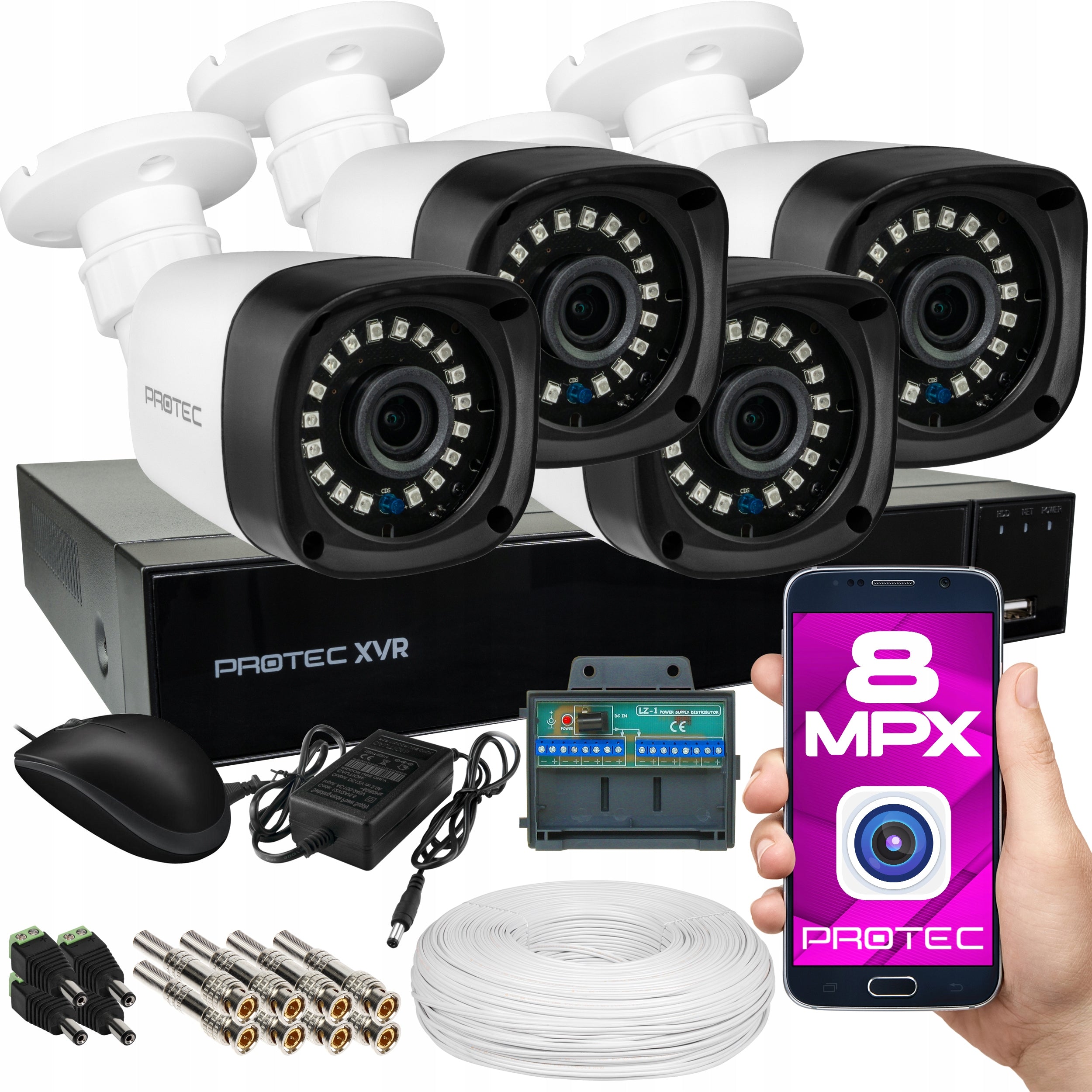

All the necessary plugs and accessories to start the monitoring system!
- 1x Dedicated, efficient power supply 12V 2A for cameras
- 1x Voltage splitter for cameras LZ-1
- Sticker "Note Object monitored"
- 20m cable concentrate + power supply
- Mouse to operate the recorder
- 8x coaxial cable plug for conducting signal from cameras
- 4x DCM power plug for powering cameras
1x Multifunctional 4-channel digital recorder
- Support up to 4 cameras at the same time
- Online preview on mobile devices
- Displaying images via HDMI or VGA
4x 8MPX IR 20m horn camera
- high resolution 8Mpx (3840x2160 pixels)
- Built-in infrared reflector (night vision up to 20m)
- hermetic housing (can be mounted outdoors)
Set without hard drive
A set of all necessary plugs and fittings
Efficient power supply with voltage splitter for cameras
20m coaxial cable with power supply
Download:
- Software for computers and mobile devices
- Polish manual for the registrar
- Step-by-step assembly instructions
The set will allow security of the building 4. cameras and includes everything needed to run. Cameras can be mounted both inside rooms, but also perfectly suited for outdoor use. The sealed housing with class IP66 will withstand all weather conditions. You will have access to the cameras locally via TV or monitor, as well as via local network and remotely on mobile devices. You can start and configure the entire monitoring system without any specialized knowledge or tools.
CAMERA:
Standard: AHD, HD-CVI, HD-TVI, PAL
Sensor: Progressive Scan CMOS
Sensor Size: 8 Mpx
Resolution: 8Mpx @ 15 fps; 2592 x 1944 - 5 Mpx @ 12.5 or 20 fps; 2560 x 1440 - 3.7 Mpx @ 25 fps; 1920 x 1080 - 1080p @ 25 fps; 960 x 576 - 960H, PAL
IR Illuminator Range: 20 m
Lens: Fixed 3.6 mm
Field of View: 85°
Signal-to-Noise Ratio (S/N): > 62 dB
Video Output: 1 Vpp / 75 Ω - AHD / HD-CVI / HD-TVI / PAL, BNC Connector
Selected Features
- DNR - Digital Noise Reduction
- AGC - Automatic Gain Control
- BLC - Backlight Compensation
- ICR - Mechanical Infrared Cut Filter
- Auto White Balance
- Sharpness - Image Contour Enhancement
OSD Menu: OSD Menu accessible via DVR
Power Supply: 12 V DC / 300 mA
Power Consumption: 5 W
Housing: Plastic
IP Rating: IP66
Operating Temperature: -40 °C ~ 60 °C
Weight: 0.28 kg
Dimensions: 167 x 62 x 62 mm
Registrar:
Standard: AHD, HD-CVI, HD-TVI, CVBS
Video inputs: 4 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS
Video outputs: 1 unit HDMI; 1 pc. VGA
Audio inputs: 2 pcs. CINCH
Audio outputs: 1 unit CINCH
Image compression method: H.264 / H.265
Resolutions of the saved image
- AHD: 8M-n/5M/4M/1080p/720p
- CVBS: 960H
Write speed control
- 8M-n @ 1 ... 8kl/s
- 5M @ 1 ... 6fps
- 4M @ 1 ... 8 fps
- 1080p @ 1 ... 15 fps
- 960H @ 1 ... 25 fps
Working modes: 4 x HD-TVI / AHD / HD-CVI / CVBS
Supported hard drives: 1 x 8 TB SATA
Archiving on external media: Archiving on USB drive (pendrive)
Access from mobile phone:
- Access via cloud (P2P)
- Android: Free app V247
- iOS (iPhone): Free app V247
USB: 2 units USB 2.0
Power supply: 12 V DC (power supply included)
Weight: 0.76 kg
Dimensions: 260 x 210 x 45
1. How many meters of wire is included?
The amount of coaxial and power cord is specified in the set composition. Additional cable can be found in our other offers.
2. What can be the maximum distance between the recorder and the camera?
The signal can be conducted up to 100m. For 12VDC power supply, we recommend shorter sections.
3. How to connect the DVR to the Internet?
The recorder must be connected wired to a router that has access to the Internet. Alternatively, you can connect an access point device to the DVR that will connect to your local Wi-Fi network [not included].
4. Can I have a preview on my phone?
Yes, you can. The recorder must first be connected to the Internet and configured.
5. How to connect the drive to the recorder?
Remove the top cover of the recorder, connect with two wires (SATA + power supply), and then attach with screws to the base of the recorder. The set is without a hard drive
6. How to get an image from the DVR?
The recorder must be connected to a TV or monitor via VGA or HDMI. After connecting, the screen should immediately display the DVR menu.
6a. Can I connect the DVR to my laptop with VGA/HDMI cable?
No, laptops have an output, not a video input. This prevents you from getting the image this way.
7. How much is the disk from the set enough?
The set is without a hard drive
8. Can the cameras be mounted outside?
Yes, the cameras have a sealed housing with IP66 rating and can be mounted outdoors. When installing, we recommend properly securing the cable and plugs.
9. What happens in the event of a power outage?
The device will shut down. When the voltage appears, it will automatically restart.
PRXVR04T8PHBD
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | PRXVR04T8PHBD |
| Parametry | Model | kamery - ESBR-8084P |
| Parametry | Brand | Protec |
| Parametry | Product width | 30 cm |
| Parametry | Product height | 30 cm |
| Parametry | Product depth | 30 cm |
| Parametry | Number of supported cameras | 4 |
| Parametry | Lens | fixed-focus |
| Parametry | Infrared range | 30 m |
| Parametry | Camera waterproof rating | IP66 |
| Parametry | Installed disk capacity | 0 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 6 TB |
| Parametry | Video compression | H.265 |
| Parametry | Number of USB ports | 2 |
| Parametry | Other ports | 1x RJ-45 |
| Parametry | EAN (GTIN) | 5904473552576 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
| Parametry | Technology | AHD,ANALOG,CVBS,HD-CVI,HD-TVI |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Functions | phone app,motion detection,advanced search,digital zoom |
| Parametry | Certificates of conformity | CE,WEEE |
