6 kanalų DIN bėgio Wi-Fi relė su antena (IN/OUT)

Trumpai apie prekę

Prekė: 6 kanalų DIN bėgio Wi-Fi relė su antena (IN/OUT). Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: SB1224

Our 6-channel Wi-Fi relay, DIN rail mountable, allows for remote control of up to six independent electrical circuits. Use the Tuya Smart app, voice assistants (Amazon Alexa, Google Assistant), or classic wall switches to control lighting, outlets, blinds, gates, and much more. Create schedules, scenes, and automations to make your home work exactly how you want it to.

The included antenna solves the problem of potential Wi-Fi signal interference, especially when installed in metal electrical cabinets. Extending the antenna outside ensures a strong and stable signal range.

6-channel WIFI relay Key information:

• 6 Independent Channels: Control up to six separate electrical devices or circuits.
• Free Tuya / Smart Life App
• Remote Control: Turn devices on and off from anywhere in the world (Internet access required).
• Communication: Wi-Fi 2,4GHz
• Voice Control: Works with Amazon Alexa and Google Assistant.
• Schedules: Set automatic on/off at specific times and days of the week.
• Create smart scenes for multiple devices (e.g. "Home cinema" - turning off the light, sliding the blinds).
• Works with MONOSTABLE and BISTABLE connectors
• Assembly: For DIN rail – standard installation in electrical switchgears.
• Dimensions: 106 mm x 86 mm x 56 mm.
• Input Voltage: AC 100-250V
• Maximum load per channel: 16A
• Module power supply: Flexible AC 100-250V (via L and N terminals) OR 12V DC (via 12V and GND terminals)

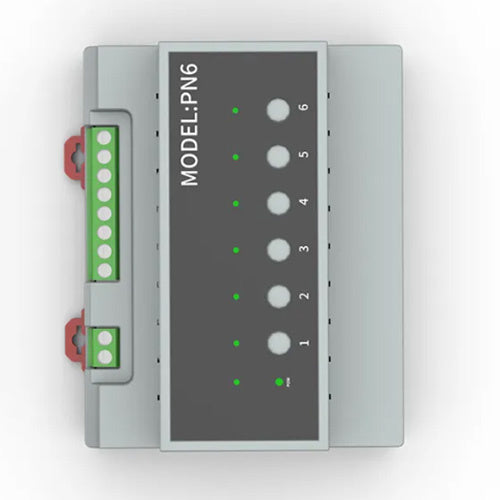

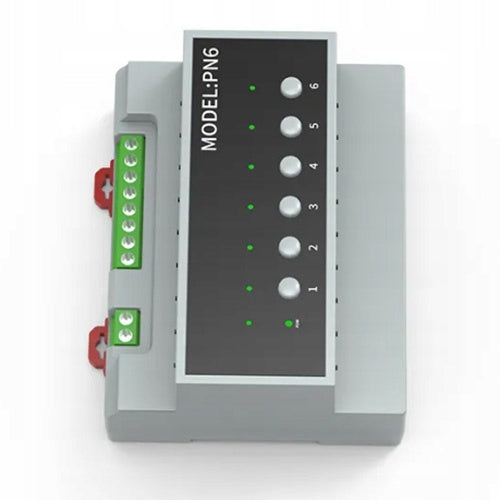

• LED indicators on the housing showing the status of each channel.
• Physical buttons on the module panel for manual control of each channel.
• Settings Memory: Preserve settings and status after power loss.
• Easy pairing with Tuya app.
• Antenna Increasing Range: Cable length: 121 cm, antenna height: 22 cm. Key for a stable connection, especially when installed in metal switchgears.

Assembly and dimensions

The relay is mounted on a standard DIN rail in your electrical switchgear. It is a simple and quick way to install. Remember that the relay must be connected to an electrical system protected by an overcurrent circuit breaker and a residual current circuit breaker.

Relay dimensions:

• Width: 106 mm
• Length: 86 mm
• Height: 56 mm

Antenna dimensions:

• Cable length: 121cm
• Antenna height: 22 cm.

Each of the six input channels (K1–K6) is permanently assigned to the corresponding output channel (L1–L6). This means that:

• K1 is connected to L1
• K2 is connected to L2
• K3 is connected to L3
• K4 is connected to L4
• K5 is connected to L5
• K6 is connected to L6

It is not possible to change this assignment – each output channel controls only its dedicated input channel. This ensures that the installation is transparent and provides stable performance.

Connection diagram voltage 100-250V

12V DC Connection Scheme

The most popular applications:

• Remotely turn lights on/off in individual rooms (e.g. living room, kitchen, bedroom, garden).
• Remotely turn on/off devices connected to outlets (e.g. lamps, fans, radiators, iron).
• Remote control of blinds/louvers/curtains (e.g. opening at sunrise, closing at dusk).
• Remotely open/close the gate using a smartphone or voice assistant
• Automatically turn on/off your garden sprinklers according to your schedule.
• Remote control of irrigation.
• Pump control (e.g. in the aquarium, pond).

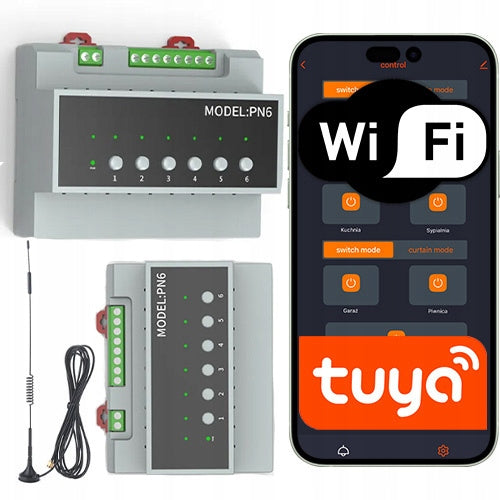

Quick view and control

All six channels of the relay are visible on the main screen of the Tuya Smart app. Keach channel is a readable button with an icon, the name (which you can edit yourself, e.g. "Garden", "Living room", "Kitchen") and the possibility of on/off. The channel status (ON/OFF) is indicated by illumination. This gives you complete overview and control of all your connected devices from one place. One touch is enough to turn the light on or off, start the fan or lower the blinds.



In addition, above each channel there is a mode switch: "switch mode" and "curtain mode". In "curtain mode", two adjacent channels act as a pair controlling the roller shutter, blind or curtain (one channel for lifting, the other for lowering). The "switch all" button at the bottom of the screen allows you to turn all channels on or off at the same time

Scenes - Intelligent automation.

Scenes in the Tuya Smart app is a tool for automating your home. They allow you to combine the operation of multiple devices into a single, consistent action, called with a single touch or automatically, according to a set schedule, or after meeting a specific condition (e.g. switching on another device).

Most popular scenes:

• Morning / Good morning: Turn on the lighting, open the blinds, start the coffee maker.
• Exit from the House: Turn off all lights and devices, close the blinds.
• Back to Home: Turn on the lighting in the hallway and living room, start heating/air conditioning.
• Good night: Turn off all lights (except e.g. night light), closing of roller shutters.
• Event: Starting lighting in event mode.
• Holiday: Enables lighting to simulate the presence of household members.

Relay Configuration: Status Memory and Button Type

State memory after power loss: The relay is equipped with a state memory function. This means that when the power is lost and restored, the relay will automatically restore the state of each channel (on/off) to the state it was in before the failure. This is a very useful feature that prevents unexpected situations (e.g. turning off the lighting after a short power outage).

Selection of Button Type (Wall Switch): The Tuya Smart app allows you to adjust the relay operation to the type of wall switches connected. You can choose one of the following types:

• rturn1: For monostable switches (instantaneous, bell-shaped) or short-circuit switches.
• rturn2: For switches where input short circuit indicates attached state (e.g. bistable switches in which short circuit = switch on).
• sensor: For monostable switches (instantaneous, bell-shaped) or short circuits.

Important: The selected button type applies to all relay channels. You cannot set different button types for individual channels.

Included:

• 6 channel relay (IN/OUT)
• Antenna

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

And above all, intuitive operation and simple installation

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	control panel
Parametry	Series	Przekaźnik 6 kanałowy WiFi Tuya
Parametry	Power supply	mains
Parametry	Communication	WiFi
Parametry	Brand	Sone
Parametry	Number of communication channels	6
Parametry	Additional features	WiFi connection
Parametry	Product weight with unit packaging	0.3 kg
Parametry	Manufacturer code	SB1224
Parametry	EAN (GTIN)	5906952652760
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
