7 kontaktų lenkiškas VISA modulis visiems automobiliams, priekabos jungtis

Trumpai apie prekę

Prekė: 7 kontaktų lenkiškas VISA modulis visiems automobiliams, priekabos jungtis. Kategorija: Laidai ir lizdai.

• Gamintojas: Micromel

BEAM + MODULE | 7PIN socket | UNIVERSAL

🚀 Smart solution for your car

📦 Are you looking for a reliable way to securely connect your trailer or trunk? Universal electronic module 7-PIN by Micromel is a professional, advanced device used in cars equipped with advanced computer systems, where direct connection to the rear lamps is impossible and dangerous. This module is the perfect solution!

🔒 100% Safety for car electronics The module acts as an advanced filter (so-called. by-pass). It takes only a minimal information signal from the car installation (approx. 1 mA), completely relieving the on-board computer of the vehicle. The correct power supply to the trailer lighting is directed directly from the battery via a built-in fuse. Thanks to this, you can be sure that the installation of the hook will not cause failure of expensive drivers.

📊 DETAILED TECHNICAL DATA

Manufacturer: Micromel (reputable polish manufacturer of automotive electronics)

🔌 Socket type: 7-PIN (supports light trailers up to 750 kg, concrete mixers, garden tow trucks and older types of luggage racks)

⚡ Operating voltage: 12V

💡 Supported lighting: LED and traditional incandescent bulbs

🎛 Load of signal inputs: ? 1mA (completely unnoticeable for car computer)

📜 Certificates: e20, CE approval, full compliance with European safety standards

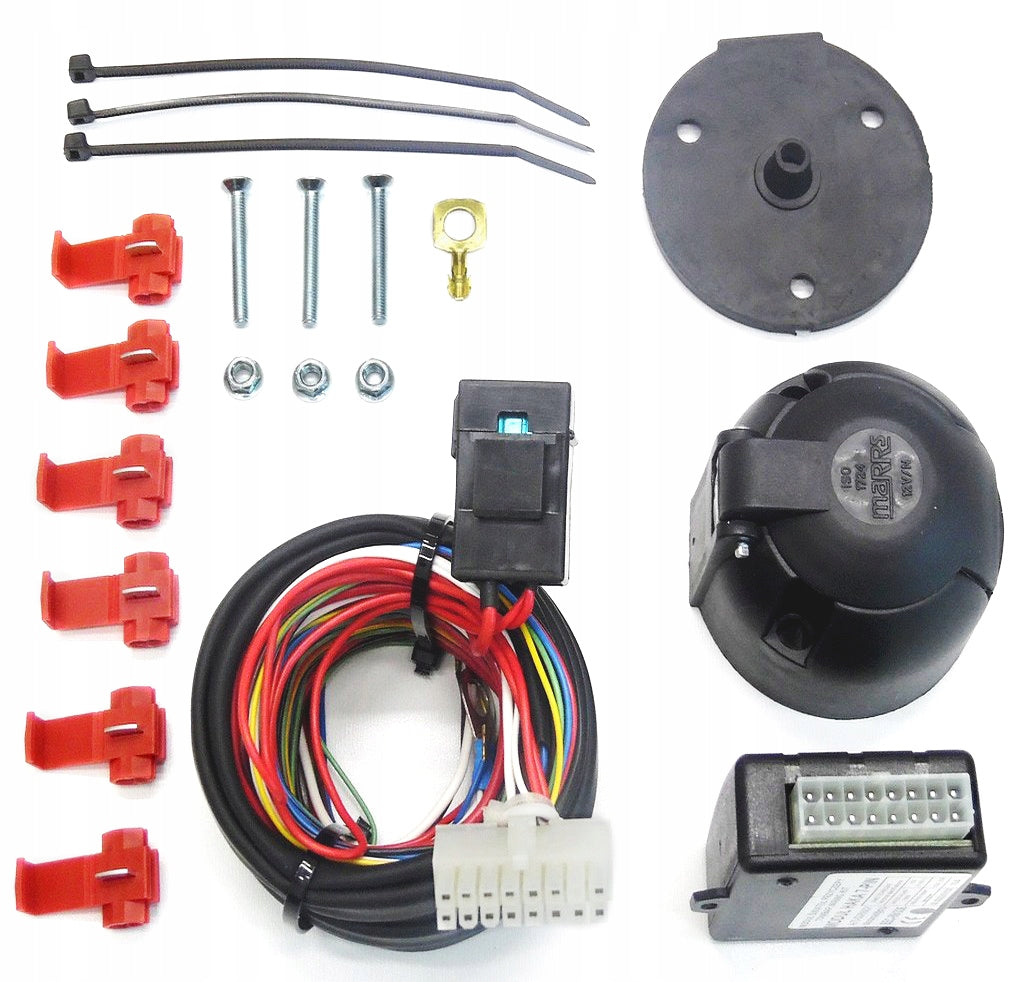

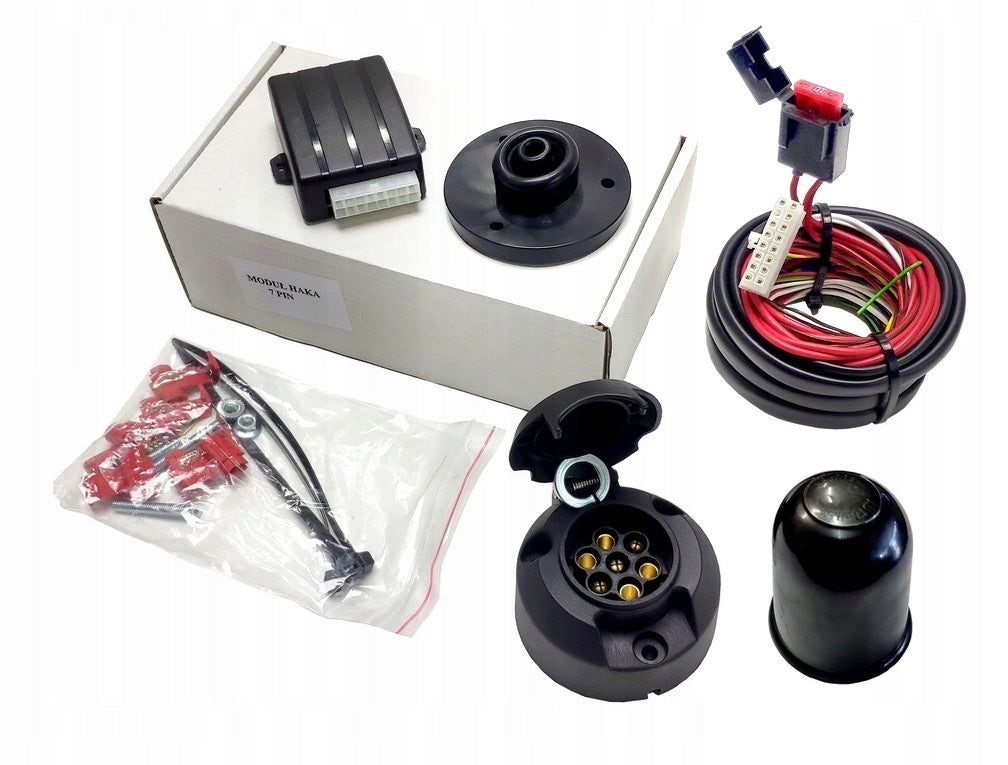

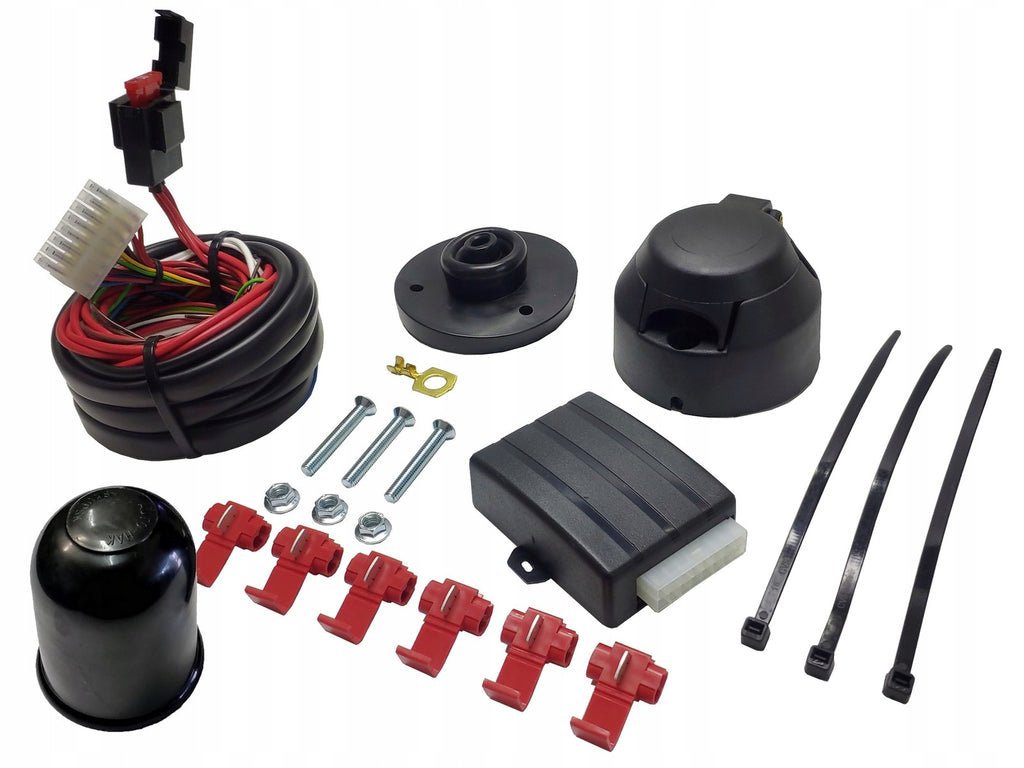

🎁 SET CONTENTS – You are buying a complete product for assembly!

In the package you get a full, brand new set. You do not need to buy any additional cables or connectors:

1. 🎛 Control panel (Micromel module) – advanced current management system.
2. 🔌 7-PIN socket – solid, made of UV and frost resistant plastic.
3. 🌧 Rubber sealing pad – protects the back of the socket from water and mud from under the wheels.
4. 🧵 Complete cable harness – with colored wires compliant with the automotive standard.
5. ⚡ Fuse socket with fuse – for complete safety.
6. 🛠 Set of mounting accessories: quick couplers for connection to the installation, socket fixing screws, clamps.
7. 📖 Step-by-step assembly instructions – clear graphic diagram in Polish.

🌟 KEY FEATURES AND BENEFITS – Why choose Micromel?

🛑 No more dashboard errors: The module effectively works with Check-Control systems (burnt bulb signaling) and the CAN-Bus digital data bus. The on-board computer of the vehicle does not see the additional load and works fully correctly.

💡 Full support for LED and traditional lighting: The device seamlessly powers both classic incandescent bulbs and modern LED lamps (LED) in trailers or bicycle platforms – no "burning" effect or blinking diodes.

⚡ Support for PWM systems (Multiplex): Perfectly supports vehicles where one single-fiber bulb performs two voltage functions (e.g. position and stop light on one cable), which is standard in newer cars.

🛠 Universality and easy installation: Fits cars with 12V installation, regardless of body version (Sedan, Kombi, Hatchback, SUV, Delivery). The cable lengths have been precisely optimized for comfortable positioning in the rear belt of the vehicle.

🛡 Integrated short-circuit protection: Each module is equipped with a fuse socket. If there is a short circuit in the trailer (e.g. due to moisture), only the fuse of the module will burn out, protecting the entire installation of the car.

 COMPATIBILITY LIST – WHICH CARS FIT THIS MODULE?

The offered module is a universal 12V device. This means it fits 99% of cars manufactured for the European market. Below is a list of the most popular models where this module is essential for proper lighting operation:

 Audi: 80, 100, A1, A2, A3, A4, A5, A6, A7, A8, Q2, Q3, Q4, Q5, Q7, Q8, TT

 BMW: 1 Series, 2 Series, 3 Series, 4 Series, 5 Series, 6 Series, 7 Series, X1, X2, X3, X4, X5, X6, X7

 Citroen: Berlingo, C-Elysee, C1, C2, C3, C4, C4 Picasso, C5, C6, C8, DS3, DS4, DS5, Jumper, Jumpy, Nemo, Saxo, Xsara Picasso, Spacetourer

 Dacia: Dokker, Duster, Jogger, Lodgy, Logan, Sandero, Spring

 Fiat: 500, 500X, 500L, Albea, Brava, Bravo, Croma, Doblo, Ducato, Fiorino, Freemont, Grande Punto, Idea, Linea, Marea, Multipla, Panda, Punto, Qubo, Scudo, Stilo, Talento, Tipo, Ulysse

 Ford: B-Max, C-Max, Edge, EcoSport, Escort, Fiesta, Focus, Fusion, Galaxy, Ka, Kuga, Mondeo, Mustang, Puma, S-Max, Ranger, Transit, Transit Custom, Tourneo Connect, Tourneo Custom

 Honda: Accord, Civic, CR-V, FR-V, HR-V, Jazz, Insight

 Hyundai: Accent, Bayon, Elantra, Getz, i10, i20, i30, i40, ix20, ix35, ix55, Matrix, Kona, Santa Fe, Sonata, Terracan, Tucson, Veloster

 Kia: Carens, Carnival, Ceed, Cerato, Magentis, Niro, Optima, Picanto, ProCeed, Rio, Sorento, Soul, Sportage, Stinger, Stonic, Venga, XCeed

 Mazda: 2, 3, 5, 6, 323, 626, MPV, Premacy, CX-3, CX-30, CX-5, CX-7, CX-9, CX-60

 Mercedes-Benz: A-Class, B-Class, C-Class, CL, CLA, CLK, CLS, E-Class, G-Class, GL, GLA, GLB, GLC, GLE, GLK, GLS, ML, R-Class, S-Class, SLK, V-Class, Citan, Sprinter, Vaneo, Viano, Vito

 Mitsubishi: ASX, Carisma, Colt, Eclipse Cross, L200, Lancer, Outlander, Pajero, Space Star

 Nissan: Almera, Interstar, Juke, Kubistar, Leaf, Micra, Murano, Navara, Note, NV200, NV300, NV400, Pathfinder, Patrol, Primastar, Primera, Pulsar, Qashqai, X-Trail

 Opel: Agila, Antara, Astra (G, H, J, K, L), Cascada, Combo, Corsa (C, D, E, F), Crossland, Frontera, Grandland, Insignia, Karl, Meriva, Mokka, Movano, Omega, Signum, Tigra, Vectra (B, C), Vivaro, Zafira (A, B, C, Tourer)

 Peugeot: 107, 108, 206, 207, 208, 301, 307, 308, 406, 407, 408, 508, 607, 807, 1007, 2008, 3008, 4007, 5008, Bipper, Boxer, Expert, Partner, Rifter

 Renault: Arkana, Austral, Captur, Clio, Espace, Fluence, Grand Scenic, Kadjar, Kangoo, Koleos, Laguna, Master, Megane, Modus, Scenic, Thalia, Talisman, Twingo, Trafic, Vel Satis

 Seat: Alhambra, Altea, Arona, Ateca, Cordoba, Exeo, Ibiza, Inca, Leon, Toledo, Tarraco

 Skoda: Citigo, Fabia, Kamiq, Karoq, Kodiaq, Octavia, Rapid, Roomster, Scala, Superb, Yeti

 Suzuki: Alto, Baleno, Grand Vitara, Ignis, Jimny, Liana, Splash, Swift, SX4, SX4 S-Cross, Vitara, Wagon R+

 Toyota: Auris, Avensis, Aygo, C-HR, Camry, Corolla, Corolla Verso, Highlander, Hilux, Land Cruiser, Prius, PROACE, PROACE City, RAV4, Verso, Yaris

 Volkswagen (VW): Amarok, Arteon, Beetle, Bora, Caddy, Crafter, EOS, Fox, Golf (IV, V, VI, VII, VIII, Plus, Sportsvan), ID.3, ID.4, ID.5, Jetta, Lupo, Passat (B5, B6, B7, B8, B9, CC), Phaeton, Polo, Sharan, Scirocco, T-Cross, T-Roc, Taigo, Tiguan, Touareg, Touran, Transporter (T4, T5, T6, T7), Up!

 Volvo: C30, C70, S40, S60, S80, S90, V40, V50, V60, V70, V90, XC40, XC60, XC70, XC90

ℹ️ Your car is not on the list? No worries! If you have a car with a traditional 12V electrical system (both older models and the newest ones straight from the dealership), this module will be 100% compatible with it.

M7P+K

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	7 PIN
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5904959084775
Parametry	Manufacturer	Micromel
