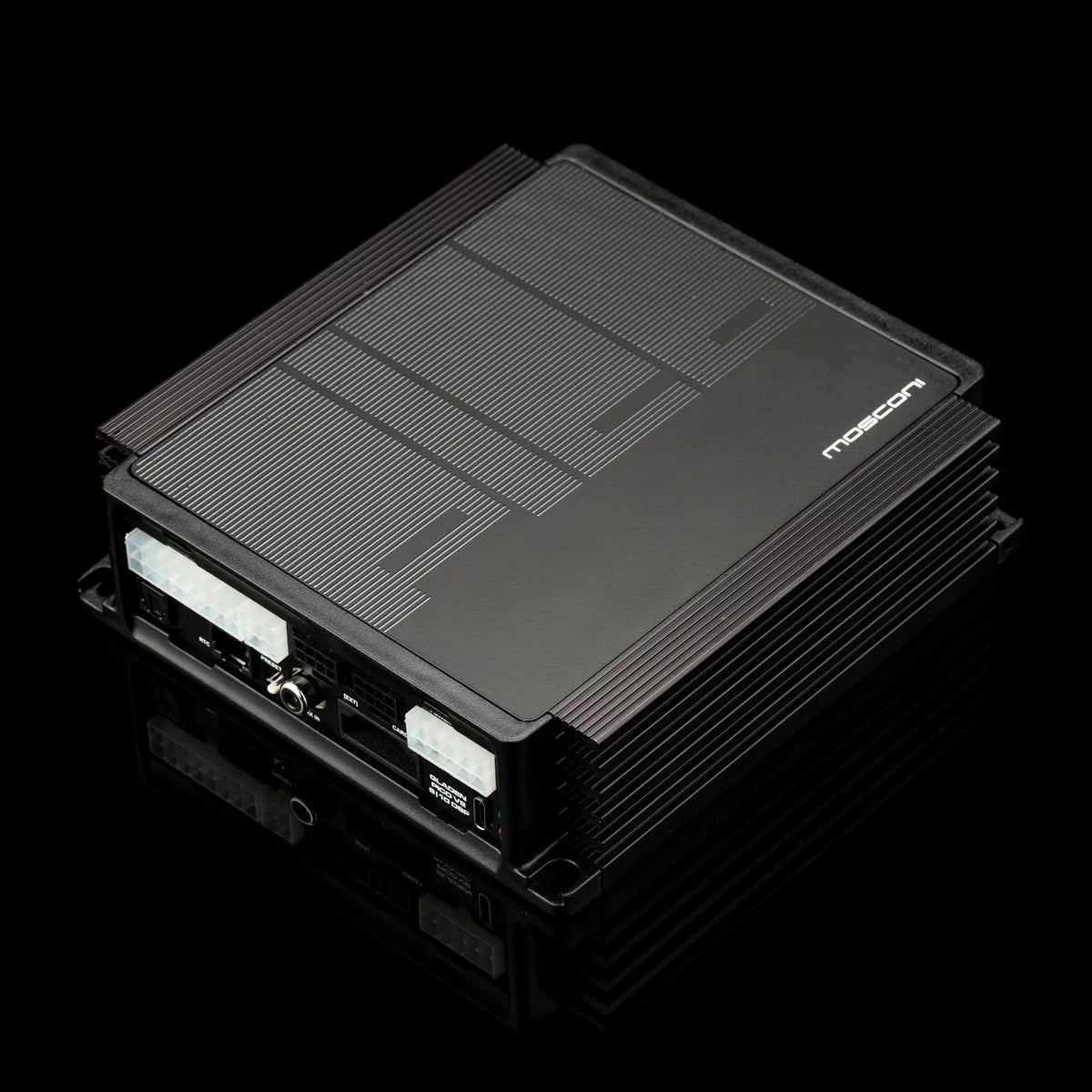

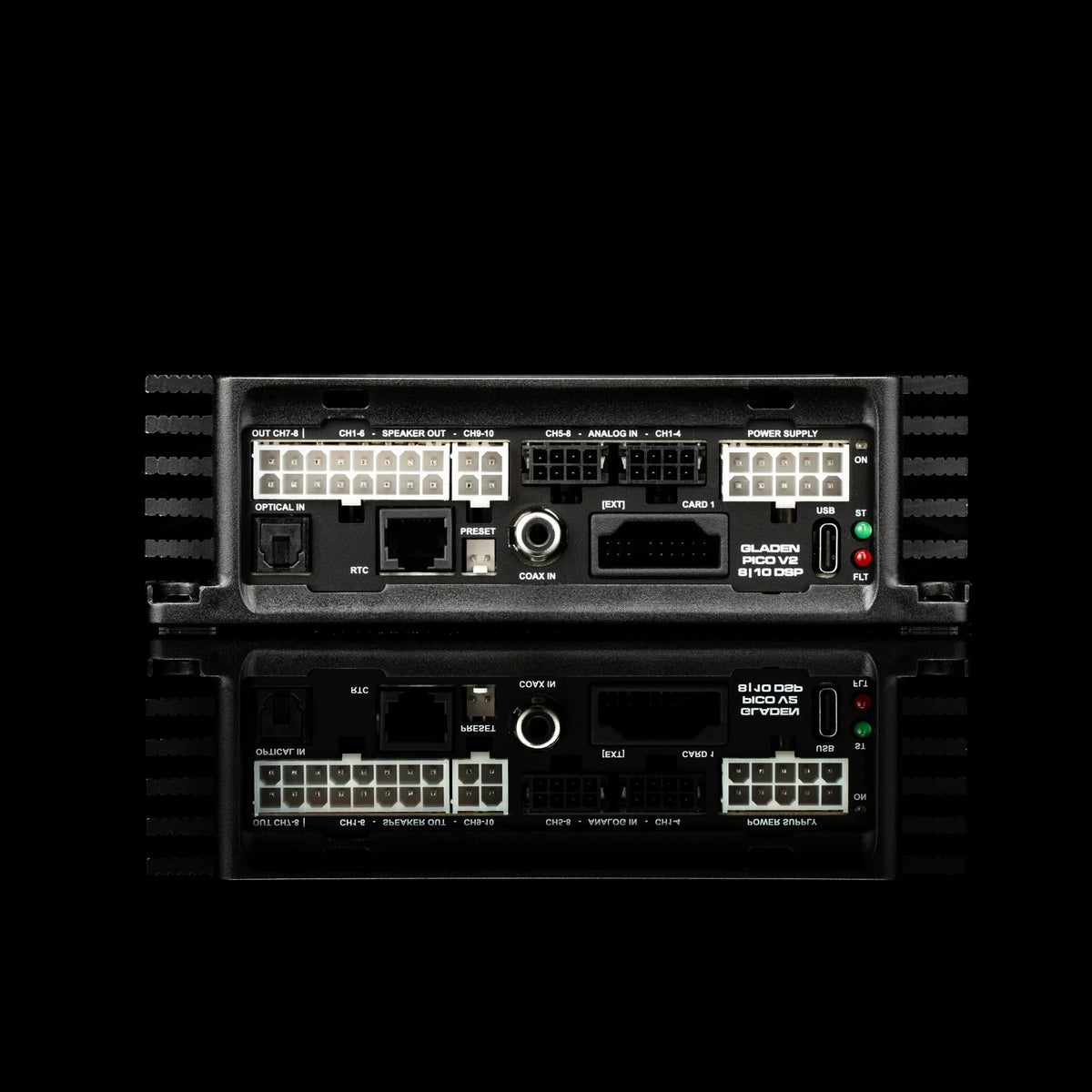

8 kanālu pastiprinātājs Mosconi PICO-V2 8|10 DSP

Trumpai apie prekę

Prekė: 8 kanalų stiprintuvas Mosconi PICO-V2 8|10 DSP. Kategorija: Stiprintuvai.

• Gamintojas: Mosconi
• Modelis: PICO 8|10 DSP_V2

The Warsaw store Gladen and Mosconi offers the latest 8-channel car amplifier with DSP!!

8-Channel DSP Power Amplifier with 10-Channel DSP - The Solution for All OEM Applications

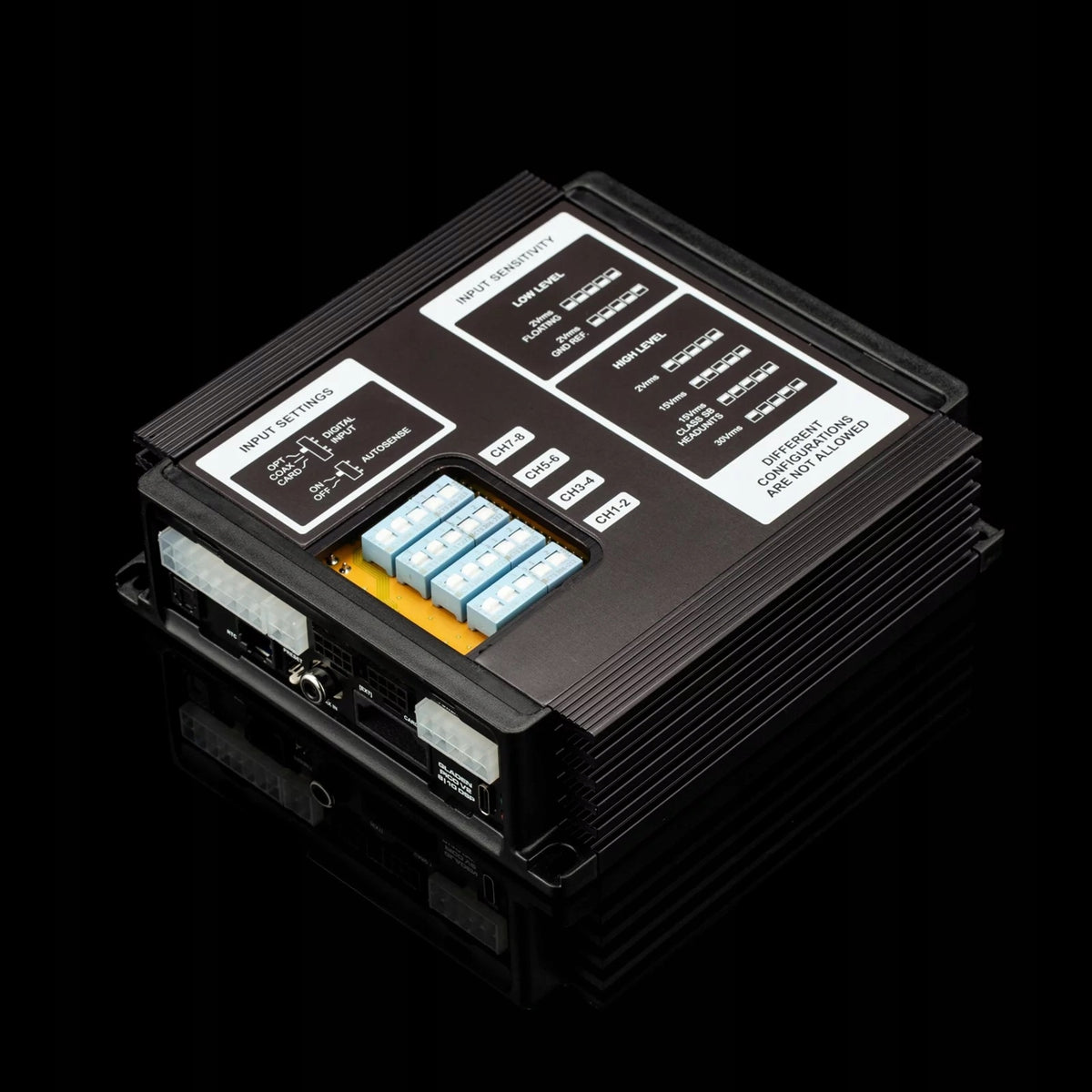

PICO V2 8|10 DSP from MOSCONI means increased sound quality and improved efficiency. All connections are now located on one side, and all the necessary setting switches required to work in modern vehicles are located under the magnetic housing cover. Moreover, all inputs now support high and low levels. All desired DSP settings can now be made via USB-C connection. Excellent OEM integration: Powerful DSP amplifier optimized for use in factory radio. Six analog inputs up to 30 V, flexible routing, 3 x input equalizer and delay. With 4 x 50W + 4 x 80W, ideal for active and semi-active systems, as well as classic front + rear + sub applications. With three digital inputs (SP-DIF, TOSLINK and BT+) and two processed line outputs ready for the future. High-speed PWM power amplifiers: High-performance PWM output stages with the world’s fastest carrier frequency (> 2 MHz). Modulation is carried out without a DAC directly from the 48 kHz TDM signal with DSP, so that the noise level drops to zero, and THD+N ~ 0,02% / 1 W.

• 4 x 80 W RMS (4 or 2 Ohms) plus 4 x 50 W RMS (4 Ohms) or 2x 210 W RMS (4 Ohms) BTL plus 4 x 45 W RMS (4 Ohms)
• 10 Channel DSP
• 8 Channels Line In (1-6 High Level/ Low Level)
• Optical Input (Toslink)
• 2 Channels Line Out (Freely Customizable)
• You can use Pico Plug&Play bundles
• The latest Mosconi software, which offers a very wide range of settings
• Can be connected to a computer via USB or Bluetooth (mos BT3.0 option)
• Very compact dimensions 150 x 160 x 46 mm
• Power consumption up to 30A

Possibility to buy RTC2 driver, which makes it easy to control the volume (Volume) or bass level (Sub level) - available at our other auction.

Possibility to buy BLUETOOTH module with LDAC which offers the highest quality of sound from the phone (BTS-LD4C mos) - available at our other auction.

SOFTWARE:

• 3 x 9 band parametric input EQ (de-equalizing)
• 8 x input delay 0 - 3 ms / 0.01 ms (de-delay)
• 10 x input level control digital (signal conditioning)
• Flexible mixer for signal routing

  (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)

• 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ

  (parametric, relative phase remains stable)

• 8 x 10 band output filters
• Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)
• 8 x speaker-delay 0 - 12ms, 0,02ms
• 8 x speaker phase switch

Specifications
