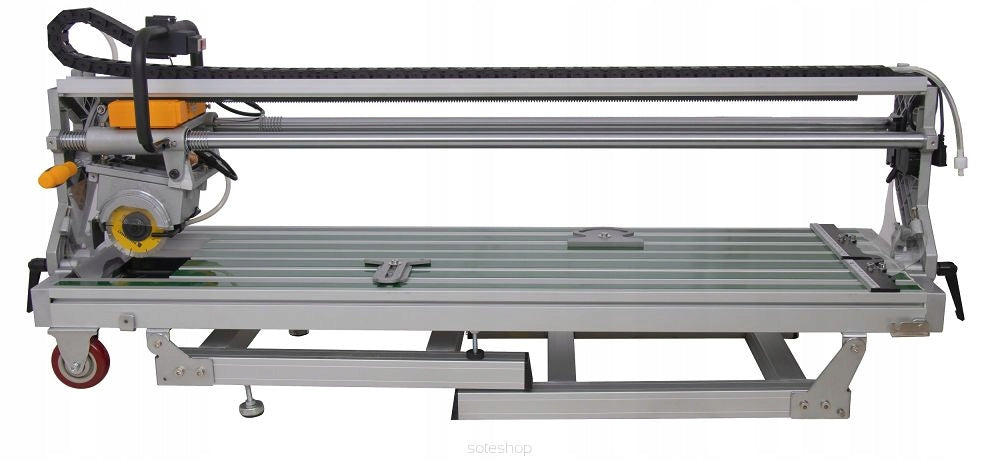

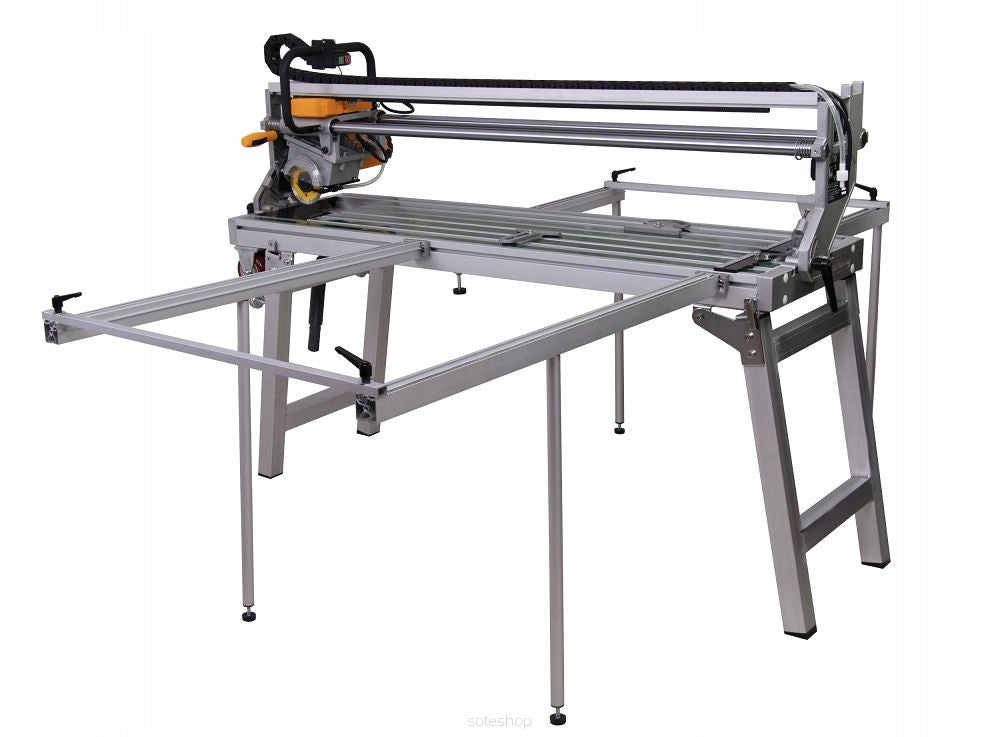

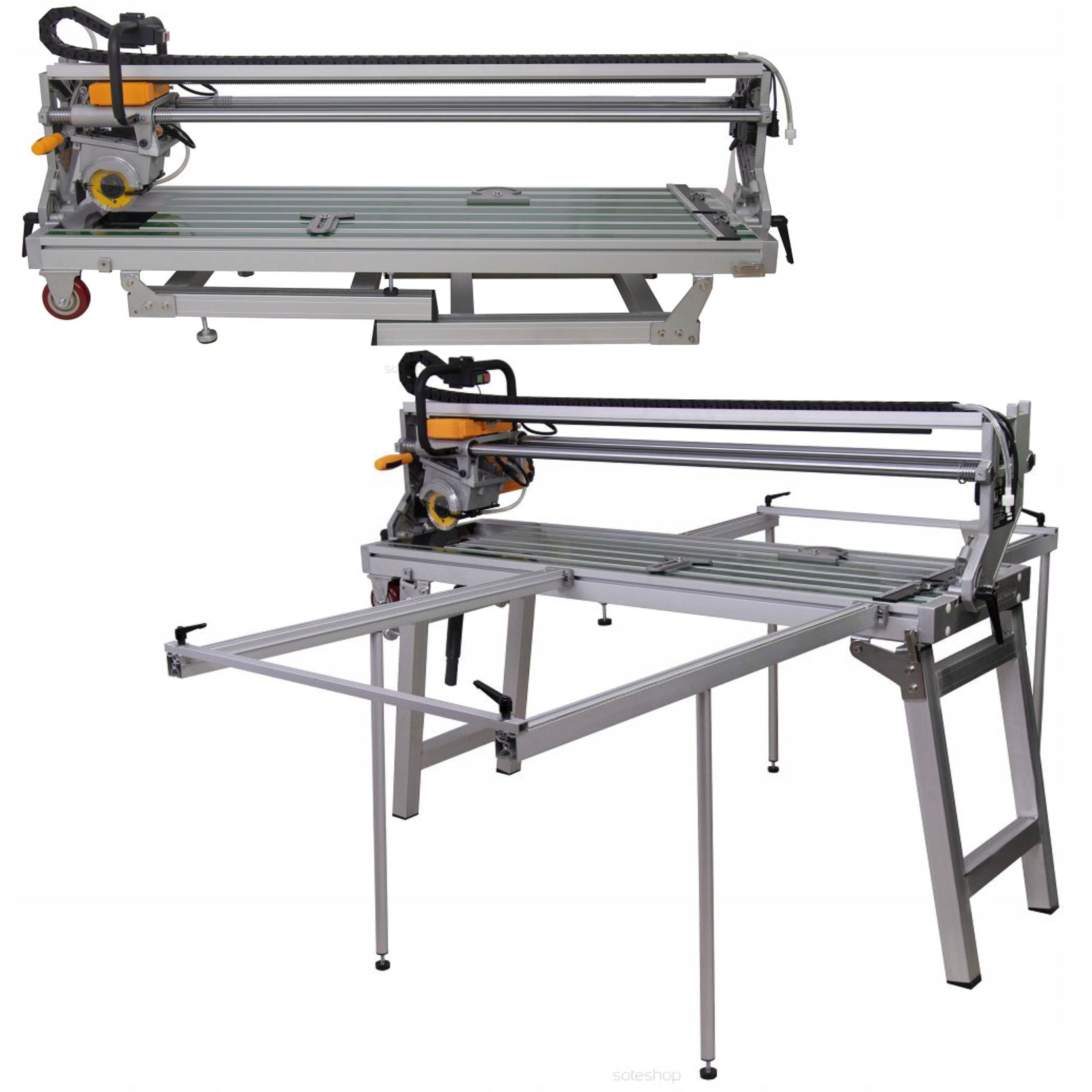

Akmens masės plytelių pjaustymo staklės 2300W, automatinės, 1200 mm

Trumpai apie prekę

Prekė: Akmens masės plytelių pjaustymo staklės 2300W, automatinės, 1200 mm. Kategorija: Plytelių pjaustytuvai.

• Gamintojas: Powermat
• Modelis: PM-PDG-2300M / PM1264
• Galia: 2300 W

POWERMAT PM-PDG-2300M / PM1264

TABLE CUTTER FOR STONEWARE TILES - LARGE SET (SEMI-AUTOMATIC) 1200mm

⚙ TECHNICAL DATA

• Power supply: 230 V / 50 Hz
• Maximum power: 2300 W
• Rotation: 13000/min
• Maximum cutting length: 1200 mm (with small stock)
• Disc dimensions: 120 mm
• Lifting capacity: up to 190 kg
• Disc hole diameter: 20 mm
• Disc kerf width: 1,8 mm
• Disc segment height: 10 mm
• Disc feed speed adjustment: yes
• Water pump: DC 12V/20W (max. Height: 6m - max. Flow rate: 9l/min)
• Maximum cutting depth: 45° - 17 mm / 90° - 25 mm
• Working height 75cm
• Net weight: 75 kg
• Weight with transport box: 90 kg

✅CONTENT OF THE SET

• Semi-automatic cutter (automatic feed in 1 direction)
• 2x shield 120x1,8x20H
• 12V water pump with voltage converter
• Differential and current protection in the power cord
• Battery Charger
• Cell charging adapter 18650
• 18650 / 2000mAh battery
• Sponge (diamond cube) for stoneware
• Sampler for lossless cutting at an angle of 45 degrees
• 2x angle sampler (adjustable)
• 2x straight sampler
• 2x rail for mounting samplers
• 4x Table Extension Sampler Clamp Butterflies (Additional Lines)
• 2x long extension ruler
• 2x short expansion ruler
• End position rail of the disc
• 4x material backrest surface line extension feet
• 2x material backrest surface extension sampler
• Water hose (ø 10mm , length approx. ~3m )
• Flexible pipe (extended) for cooling liquid tank (ø 3cm, length approx. 80cm - unfolded, about 35cm folded)
• A set of keys to operate the tool
• Spare carbon brushes
• Spare V-belt
• Powerful suitcase with accessories
• Transport box
• User manual in Polish

⭐HIGH QUALITY WORKMANSHIP

The cutter is made of the highest quality components. The housing is made of aluminum profiles significantly reducing weight and facilitating transport.

. It is reliability and resistance to mechanical damage. The table is made of solid cast aluminum and non-slip surface of the strips and is resistant to deformation and mechanical damage. . stable cutting and easy handling of the cutter over the cut material.

The cutter has been adapted to work under heavy loads, it uses a very efficient heat dissipation system as well as a water cooling system on both sides of the disc.

⭐FLEXIBILITY AND RELIABILITY

The ability to calibrate and adjust yourself in minutes, directly on the construction site, requiring only the keys from the set!

All discs from angle grinders with a diameter of 125 mm for dry cutting fit into the cutter. E.g. If the pump fails and you are waiting for a new one, you will always be able to finish your work!

⭐ ADJUSTABLE CUTTING DEPTH

The cutter is equipped with the ability to adjust the depth of cutting up-down.

So we have the possibility of both shallow and deep cutting.

⭐MOBILITY AND DURABILITY OF CONSTRUCTION

• Robust, stable high-quality aluminum construction, protects against rusting and . durability and service life of the cutter throughout its service life.
• The weight and mobility of the cutter is one of the key advantages. With its lightweight aluminum construction, this machine is easy to carry by up to one person.
• Small dimensions make it easy to use in tight spaces and on balconies or terraces. Mobility, easy folding and unfolding and equipped with wheels on bearings and no accumulation of water gives the opportunity to easily move on the construction site during operation.
• The revolutionary design of the guide in the razor is a real breakthrough. The aluminum rail contains bearing steel rods on which four bearing steel rollers mounted on bearings roll. This system is protected by a special film from the inside (from the table), which prevents dirt on the guide rollers. Combination of this solution with a small, rigid shield. extremely precise cutting both in a straight line and at an angle.

⭐DIAMOND DISC FOR TILES

A professional diamond blade with a specially custom reduced diameter has been made to make cutting more even and accurate.

Thanks to the shorter diameter of 120mm, the disc does not vibrate unlike larger discs, which ensures no tearing of the workpiece.

A larger number of segments significantly reduces the heating temperature of the disc in the case of water cooling.

⭐Precision laser

Setting the laser with the keys included in the set is very simple and does not require much skill, but good eyesight and reading one fragment of the instructions. Very simple calibration of the laser once in a longer period gives the processing parameters an even cutting line using the Powermat 120mm disc and full freedom of action by laying the tiles without any fear of tearing (chipping) the material.

⭐CLAMP CLAMPS FOR TILTING THE DISC

The transport-safe ordinary screws can be replaced with large clamping buckles on both sides of the table, which provides convenience and quick tool-free adjustment of the disc tilt angle up to 45 degrees.

⭐COMFORT AND EASE OF USE

The cooling system on both sides of the diamond disc with water protects the disc from overheating and increases its service life.

The wet glaze cutter allows you to cut with less resistance and dust-free, resulting in better results and convenience.

Intuitive control and cutting depth adjustment make the cutter easy to operate even for those with less experience.

The work table with a width of 450 mm and a length of 1200 (+) mm provides comfort of work and precise cutting of tiles up to 1200 mm in length.

⭐WATER COOLING SYSTEM

The PM-PDG-2300M is additionally equipped with a bathtub that collects excess dust together with water, so that it will not spill on the sides of the table and will be brought through the channel and drain pipe to the water tank, which can be placed next to the table.

The possibility of simple folding of legs with adjustable spacers and the possibility of transport on wheels.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Series	POWERMAT
Parametry	Kind	table cutter
Parametry	Maximum tile cutting thickness at 90 degrees	25 mm
Parametry	Maximum tile cutting thickness at 45 degrees	17 mm
Parametry	Maximum cutting length	1200 mm
Parametry	Power	2300 W
Parametry	Rotational speed	13000 RPM
Parametry	Disc bore diameter (mm)	22,2 mm
Parametry	Disc diameter (mm)	125 mm
Parametry	Device weight	75 kg
Parametry	Manufacturer code	PM-PDG-2300M / PM1264
Parametry	EAN (GTIN)	5904067443549
Parametry	Product weight with unit packaging	90 kg
