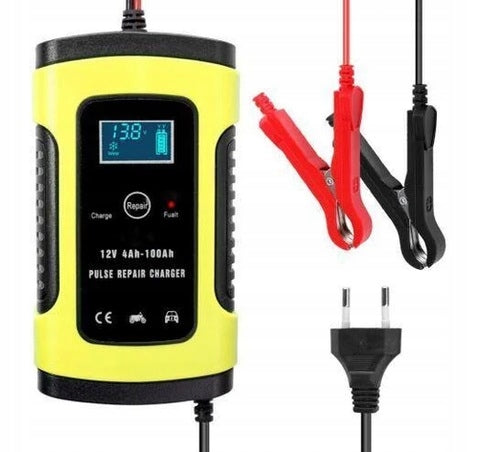

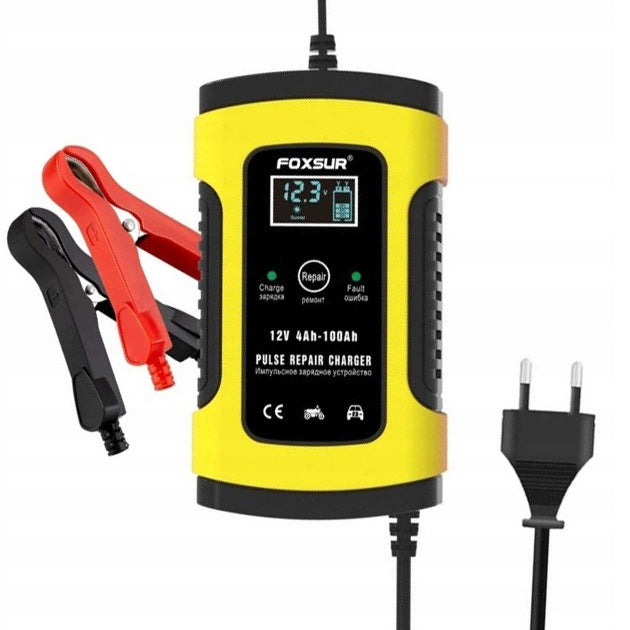

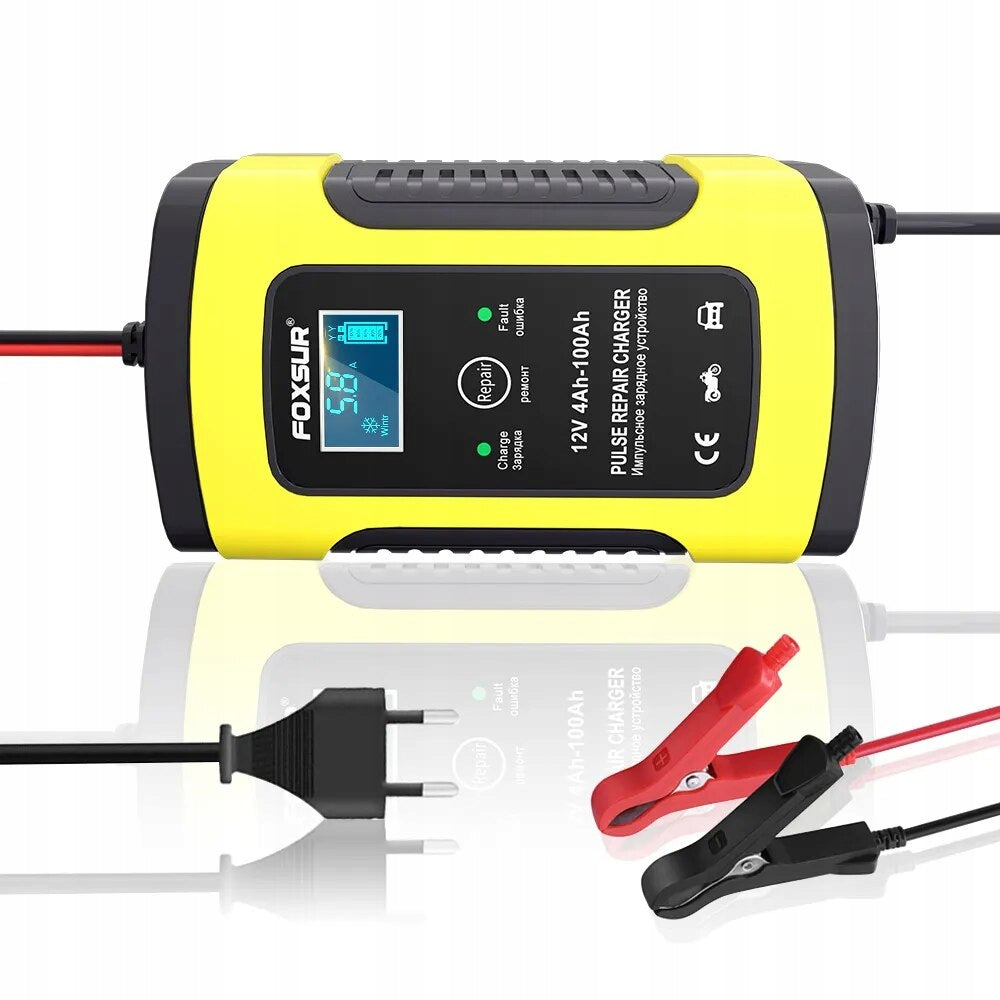

Akumuliatoriaus įkroviklis 12V, LCD, 5A

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis 12V, LCD, 5A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Anytech
• Modelis: FOXSUR FBC 1205D Mikroprocesorowy prostownik

Features and Functions:

• Microprocessor Control: The advanced microprocessor automatically manages the charging process, which ensures safety and efficiency. The rectifier automatically turns off when the battery is fully charged, keeping it on standby.

• Universality: The rectifier supports lead-acid batteries with a voltage of 12V and a capacity of 4Ah to 100Ah. It is suitable for various types of batteries, including AGM, GEL, SLA, WET, VRLA, and EFB, making it an ideal solution for passenger cars, motorcycles, boats, lawn mowers, and other vehicles.

• LCD display: The large, easy-to-read LCD display provides full control over the charging process, displaying information such as charging voltage, charging current, battery charge status, as well as operating mode (summer, winter, repair).

• Repair Function: The special repair function uses high and low frequency pulse technology, which allows the regeneration of heavily discharged batteries. It is an ideal solution for batteries that have been unused for a long time or are very heavily discharged.

• Automatic Voltage Adjustment: The rectifier automatically adjusts the charging voltage depending on the ambient temperature, which ensures optimal charging conditions in both summer and winter mode.

• Security: The device is equipped with a number of protections, including protection against reverse polarity, surges, short circuits, overheating and excessive current, which guarantees safe use.

• Compact and Lightweight: With its compact dimensions and light weight, the rectifier is easy to carry and store, making it ideal for both home and travel use.

The FOXSUR FBC 1205D car battery charger is a technologically advanced device that ensures fast, safe, and efficient battery charging.

Thanks to microprocessor control, the device automatically adjusts the charging mode to the battery's condition and type, ensuring optimal charging conditions and extending its lifespan.

Technical data:

• Model: FOXSUR FBC 1205D
• Output Voltage: 12V
• Charging Current: 5A
• Supported Batteries: 4Ah - 100Ah
• Dimensions: 15 x 8,5 x 6 cm
• Weight: 380 g
• Output cable length: 65 cm
• Input cable length: 90 cm
• Power Supply: AC 110-220V (50-60Hz)
• Protection: Protection against reverse polarity, short circuit, overheating, overcurrent
• Display: LCD with the function of displaying voltage, current, operating mode and other parameters
• Color: Yellow

The rectifier has

multiple safeguards.

Made of high quality ABS plastic, IP65 waterproof.

The battery charger provides protection against reverse polarity, short circuit, overvoltage, low voltage, overcurrent and overheating, feedback, against electric shock (fully wrapped crocodile clamps are robust and safe to use).

It has the function of maintaining a constant pulse current, stops when fully charged and prevents overcharging and discharge.

The device has a fireproof coating

The equipment has an aluminum heat sink, and a quiet, very powerful fan for heat dissipation, which significantly extends the life of the charger and protects the equipment from overheating. , before electric shock (fully wrapped crocodile clamps are sturdy and safe to use).

The device has a very thick wire of pure copper.

Crocodiles are fully secured

Full load testing and Burn-In-Tests confirm high reliability, stable performance and longer service life.

Charging mode selector button

The microprocessor rectifier is controlled with one button. The right operating mode shows us the LED light

CAR/TRUCK - microprocessor controlled battery charging program

MOTORCYCLE - program designed for charging small batteries, current load

REPAIR - program "repair of batteries discharged to zero". The device uses high and low frequency pulse technology in this mode, it has a good effect of repairing and activating a very heavily discharged battery. We use this function when charging batteries that are completely discharged or have been idle for a long time and cannot be charged with other rectifiers.

Very large and easy to read display

On which all information regarding the operation of the rectifier and the state of charge of the battery are very clearly given.

• charging voltages
• charging current
• internal temperature
• full battery
• summer mode
• winter mode
• battery repair mode

Very wide application

• passenger cars and trucks
• motorcycles
• yachts
• agricultural and construction machinery
• Golf carts
• mowers
• quads
• Snowmobiles
• Forklifts
• tractors

Connection instructions

1. Connect the red crocodile to the electrode +

2. Connect the black crocodile to the electrode -

3. After properly connecting the rectifier - the battery parameters will appear on the display.

4. In case of incorrect connection, the following inscription will appear on the display: reverse conection - then you need to change the crocodile connections

5. Insert plug into 220 V power supply

6. Select the MODE type of rectifier operation

7. When charging is finished on the display, the battery is full 100%.

8. For better charging, you can leave the battery connected to the charger for another hour

9. We disconnect the device in reverse order: first we pull the plug from the contact, then we disconnect the black crocodile, and finally the red one.

The device automatically detects

ambient temperature.

• above 28°C - summer mode is activated,
• below 10°C - winter mode is activated.

Depending on the detected temperature, an appropriate icon will be highlighted on the screen and the rectifier will automatically switch to mode depending on the ambient temperature. If the ambient temperature exceeds +28℃, the charging voltage will be automatically reduced. If the ambient temperature is lower than -10 °C, the charging voltage is increased accordingly.

Device detects incorrect

connecting crocodiles to the battery,

This signals on the display

Very efficient cooling.

There is no chance of the rectifier overheating

Device packed

in an elegant box

ideal for a gift

Why should I buy this product?

FOXSUR FBC1205D is a rectifier that combines intelligent microprocessor charging with complete safety and ease of use. Perfect for both everyday use and emergency charging on the go. With its compact size, automatic adjustment and repair function, it provides longer battery life and full vehicle readiness at any time of the year.

Take care of your vehicle’s battery – choose the FOXSUR FBC1205D, which charges, protects and regenerates the battery, saving you time and money.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	FOXSUR FBC 1205D Mikroprocesorowy prostownik
Parametry	Brand	Anytech
Parametry	Maximum amperage	5 A
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5904310265164
Parametry	Batteries included	no
