Akumuliatoriaus įkroviklis Blue Smart IP65 12V 25A su DC jungtimi

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Blue Smart IP65 12V 25A su DC jungtimi. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: BPC122531064

Charger Victron Energy Blue Smart IP65

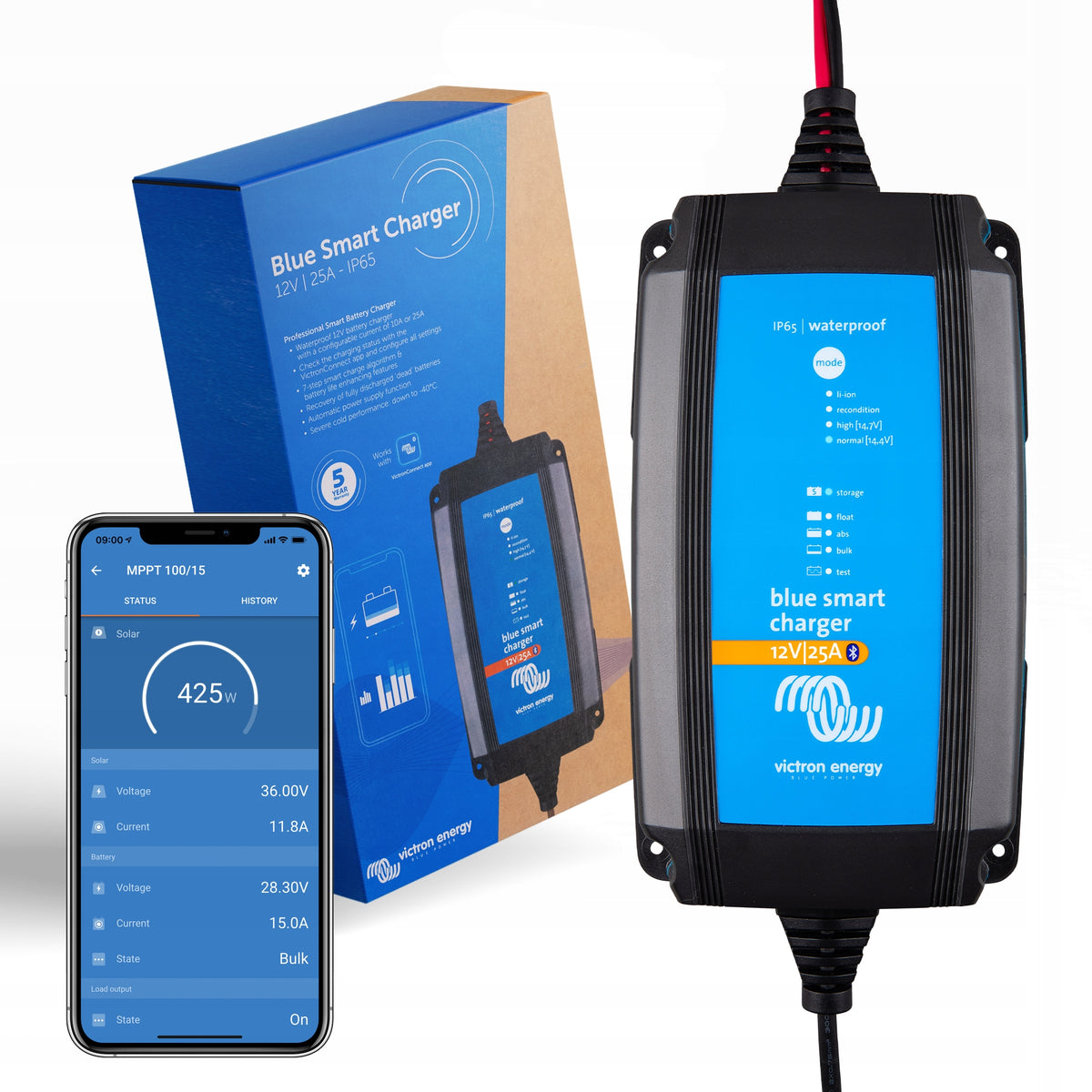

The 12V/25A is an advanced battery charging device that provides maximum performance while being easy to use. With its built-in Bluetooth interface, you can remotely monitor and manage the charging process using the Victron Connect app. This modern solution is perfect for motor vehicles, workshops, and boats, ensuring reliable performance in a variety of conditions.

Intelligent charging system

The Blue Smart IP65 charger uses a seven-stage charging algorithm that automatically adjusts charging parameters to optimize battery performance. This algorithm ensures a longer battery life, keeping it in perfect working condition for extended periods of time.

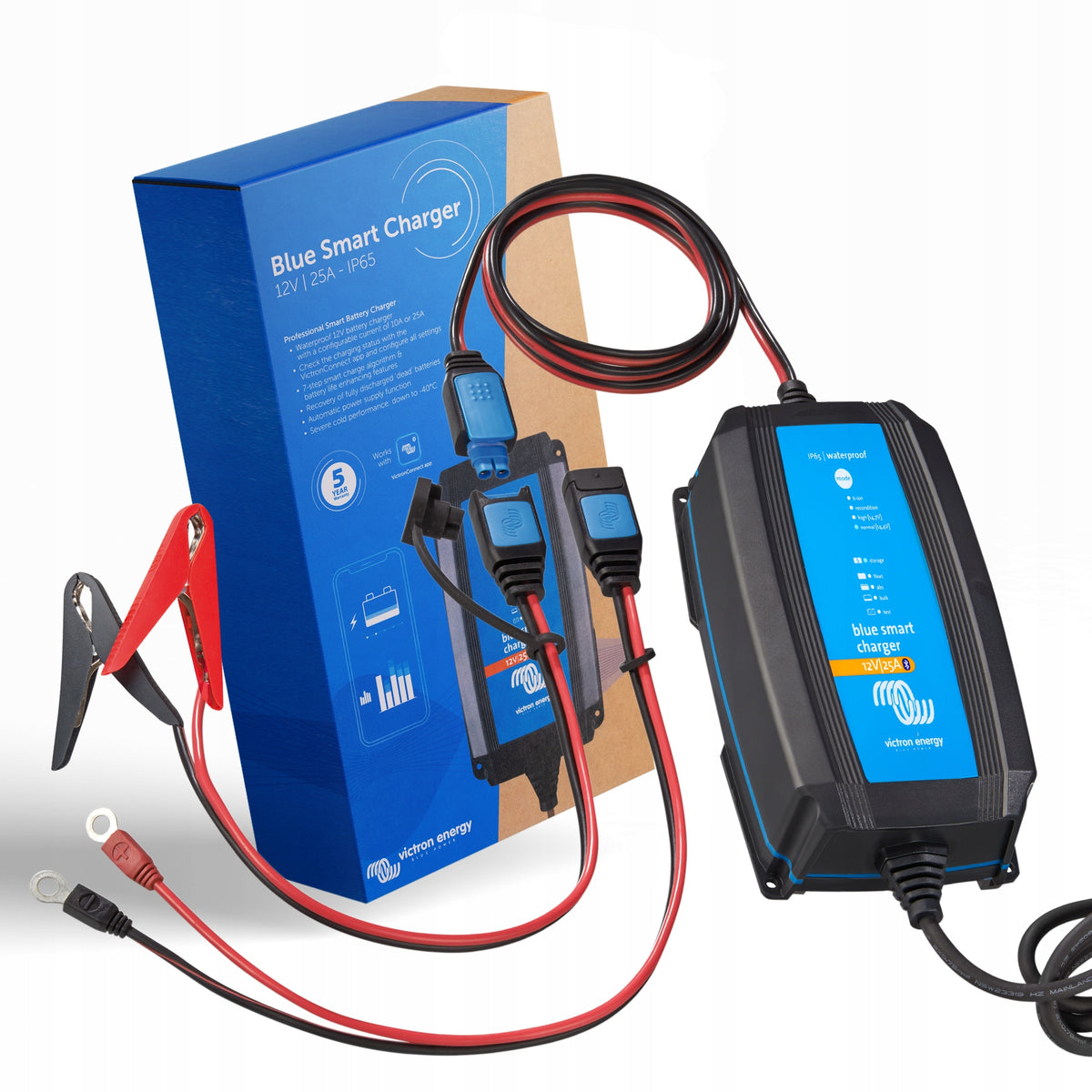

Crocodile connectors and eye tips M8

With the included crocodile clamps and M8 eyelet tips, connecting the charger to the battery is quick and easy. The battery can also remain permanently connected, which is useful for long-term use in workshops or other environments.

Storage mode

The charger automatically goes into storage mode after 24 hours of inactivity, which minimizes the risk of battery plate corrosion and sulphation. Once a week there is an increase in voltage to the level of absorption, which protects the battery from electrolyte delamination, extending its durability.

Compatibility with LiFePO4 batteries

Support for lithium iron phosphate (LiFePO4) batteries enables widespread use of the charger in various scenarios. Just use the button on the housing to select the appropriate operating mode for this type of battery.

Recovery function of deeply discharged batteries

Blue Smart IP65 allows you to restore batteries that have been deeply discharged. Many other chargers would not be able to cope with such situations, while this charger tries to recover them thanks to a precisely controlled charging process.

Protection against overheating

The high temperature does not turn off the device – instead, the charger automatically reduces the output current to avoid damage. This solution ensures longer operation without the risk of overheating and damage to components.

Technical specification:

Model: Blue Smart Charger 12V/25A

• Input voltage range and frequency: 230 VACPerformance: 94%
• Standby power consumption: 0,5 W
• Minimum battery voltage: Starts charging at voltage dropping to 0 V
• Charging voltage "absorption": Normal: 14,4 V High: 14,7 V Li-ion: 14,2 V
• Caching voltage: Normal: 13,8 V High: 13,8 V Li-ion: 13,5 V
• Storage charging voltage: Normal: 13,2 V High: 13,2 V Li-ion: 13,5 V
• Charging current: 25 Low current atryb: 10 A
• Temperature compensation: 16 mV/ºC (dot. only lead-acid batteries)
• Power supply mode: Yes
• Reverse current discharge: 0,7 Ah/month (1 mA)
• Protection: Reverse polarity, short circuit at the output, excessive temperature
• Working temperature range: From -40°C to +60°C (full capacity up to 30°C, flexibility of cables at low temperatures)
• Moisture (without condensation): Max. 95%
• Charging algorithm: Smart 7-stepBluetooth: -4 dBm, 2402 – 2480 MHz
• Battery connection: Black and red cable with a length of 1,5 meters
• Power connection 230 VAC: 1,5 meter long cable with CE 7/16, CE 7/17, BS 1363 (UK) or AS/NZS 3112 plug
• Protection category: IP65 (splashproof and dustproof)
• Weight: 1,9 kg
• Dimensions: 75 x 140 x 240 mm
