Akumuliatoriaus įkroviklis Ideal PRAKTIK CHARGER 25 LCD 12/24V

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Ideal PRAKTIK CHARGER 25 LCD 12/24V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: PCHARGE25

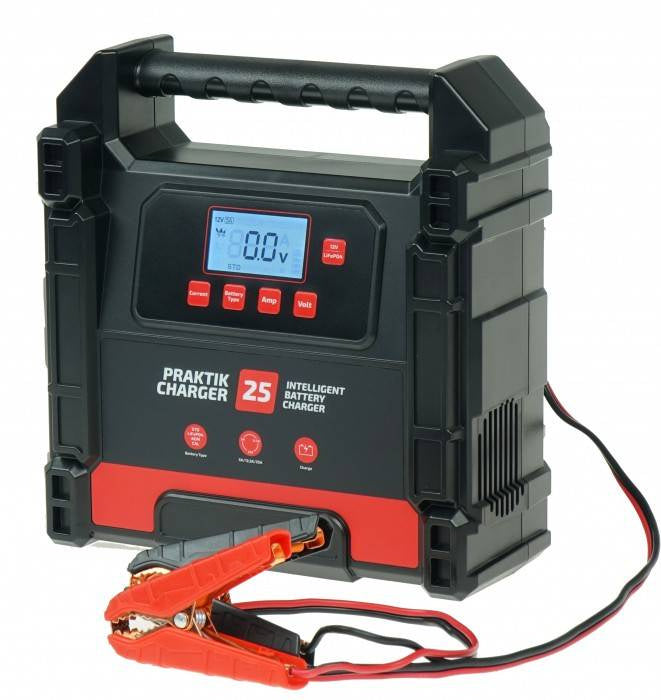

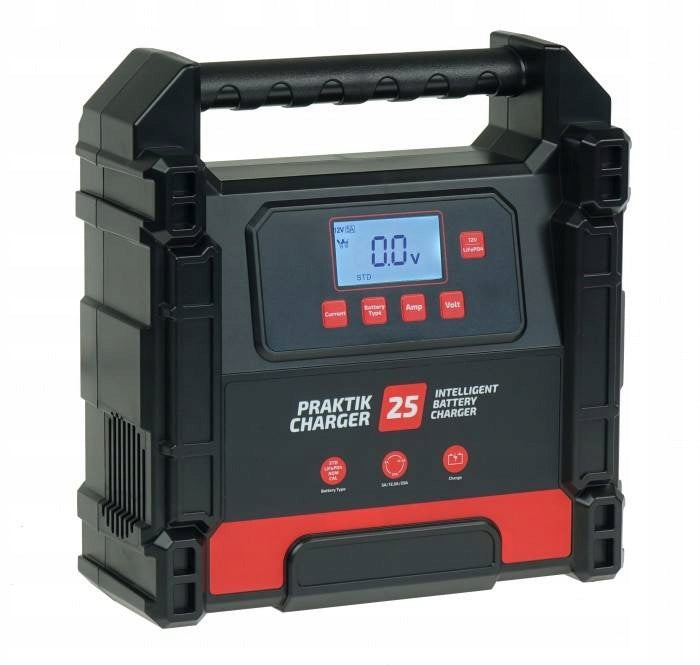

Rectifier Ideal PRAKTIK CHARGER 25 LCD 12/24V

Ideal

PRAKTIK CHARGER 25 is an electronic rectifier for charging 12 and 24 volt acid batteries:

• WET (liquid - acidic)
• GEL (gel)
• MF (maintenance-free)
• AGM (with fiberglass mat)
• EFB (for vehicles with Start-Stop system)

and 12V lithium batteries

• Li (LiFePO4)

The rectifier has a microprocessor control system, provides automatic shutdown when the required voltage is reached on the battery and automatic resumption of charging after the voltage drops on the battery.

With each switch on, the rectifier automatically sets the last remembered parameters (helpful for repeated use and power grid failures).

Charging process

The 9-step charging process ensures optimal battery charging conditions. The automatic control system will adjust each of the 9 charging stages to properly charge the battery:

• STAGE 1 - DIAGNOSTIC - analyzes the battery and checks whether it can accept charging current; prevents charging the damaged battery.
• STAGE 2 - RECOVERY CHARGE – Low voltage batteries are pre-charged with low current but with increased voltage; very discharged batteries can be restored to a usable state and this ensures a longer battery life, the stage is skipped if the battery is minimally discharged and in good condition.
• STAGE 3 - SOFT START - the rectifier gradually increases the charging current to reach the set charging current.
• STAGE 4 - PULSE CHARGE - the battery is charged with pulse current (pulse fluctuations take place in the DC current range).
• STAGE 5 - RECONDITIONING – preparation stage for charging in the bulk charge stage.
• STAGE 6 - BULK CHARGE – charging with a constant current value to the previously set voltage (14.4÷14.7V).
• STAGE 7 - ABSORPTION CHARGE – after reaching the required degree of battery charge, there will be a change to constant voltage (CV) charging and the charging process will be completed.
• STAGE 8 - EVALUATION DIAGNOSTIC – automatic monitoring of battery voltage after charging.
• STAGE 9 - MAINTENANCE CHARGE – stage supporting the battery (float) and monitoring its condition; resumes charging with reduced current if necessary.



Selection of functions

Charging Current Selection: 5A/15A/25A

Choosing the type of battery being charged:

STD/AGM/INCH

Indicates the intensity value on the display

Indicates the voltage value on the display

Selection of charging mode for 15A lithium batteries (for 12V)

LCD display

Depending on the choice of functions, the LCD display indicates the operating status of the rectifier:

Charging in 12V mode : 5A / 14.4V

Charging in 12V mode: 15A

only for lithium batteries (LIFeP04)

Charging in 12V mode : 25A / 14.4V

Charging in 24V mode : 12.5A / 28.8V

Battery charge level

Information:

- about the lack of connection of terminals

- about incorrect connection of pole terminals

Information:

- about poor battery condition

- about an incorrectly selected charging function (e.g. 6V battery charging with 12V mode)

Information about the elevated temperature of the rectifier



• Power supply voltage [V]: 230
• Battery voltage [V]: 12 / 24
• Charging current [A]: 5/15/25
• Battery capacity [Ah]: 10—500Ah (12V), 75—250Ah (24V) / 45—300Ah (Li-Ion)
• Weight [kg]: 1280g
• Charging Modes:: Intelligent|Automatic

Intelligent, portable rectifier for charging 12V/24V volt acid, gel, AGM, MF batteries. Power supply 230V, charging voltage 12V/24V, charging current 5/15/25A.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	PCHARGE25
Parametry	Brand	IDEAL
Parametry	Maximum amperage	25 A
Parametry	EAN (GTIN)	5903991108302
