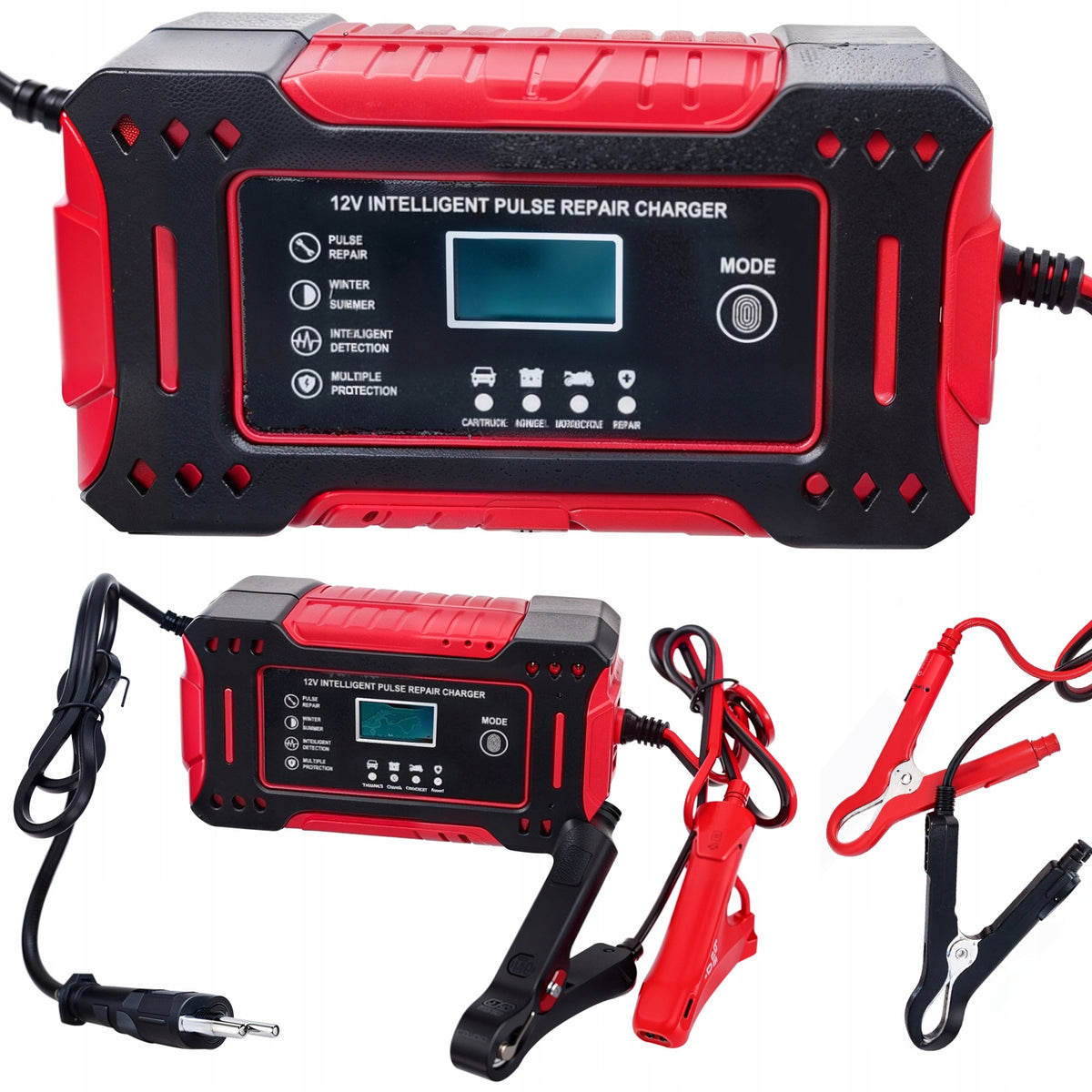

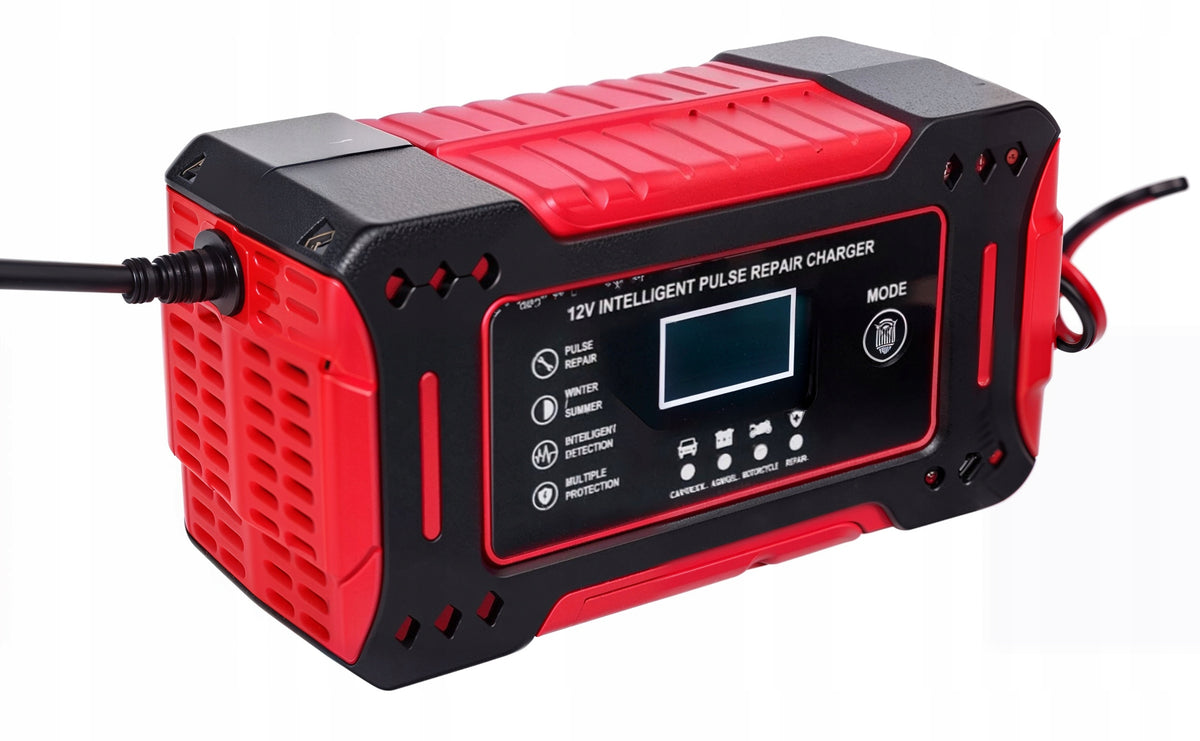

Akumuliatoriaus įkroviklis Ondragon 12V 6A su mikroprocesoriumi

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis Ondragon 12V 6A su mikroprocesoriumi. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Ondragon
• Modelis: od2212

• Rated voltage: 230V / 50Hz
• Charging current: 12V [0 - 6A / 8 - 15 V]
• Battery capacity: 12V: 4 - 100 [Ah]
• Charging current voltage: 12V (pulse dynamic)
• Charging process: 10 - gradual (automatic)
• Operating temperature: -20°C - 40°C
• Efficiency: 98%
• Waterproof class: IP 65
• Length of cables type "clamp": 60 cm
• Power cord length: 80 cm

• 1x Rectifier
• Cables with terminals "-" ; "+"
• Box
• User manual in Polish and English

• Polarity reversal protection: Automatically block the transmission of energy to the output wires, if reverse pole connection is detected, ensures the safety of use.
• Short-circuit protection: Block the transmission of energy to the output wires when a short-circuit is detected, preventing damage to the device and battery.
• Surge protection: The protection system activates when the charging voltage differs from the detected parameters, protecting the battery from damage.
• Overheating protection: In case of overheating, the rectifier will automatically reduce the charging intensity or turn off completely. After cooling, the device will resume operation without user intervention.

10-STEP AUTOMATIC CHARGING

The 10-step charging process guarantees optimal conditions for a full battery charge. The automatic control system adjusts each stage to ensure the correct charging process.

The rectifier supports 12 V batteries with capacities from 4 to 100 Ah, also allowing maintenance charging.

CHARGING MODES

• 12V STD - up to 14,5V (charging standard 12V lead-acid battery)
• 12V AGM/C - up to 15V (battery charging 12V AGM or winter mode at temperatures from -20 to +5 degrees Celsius)
• 12V GEL - up to 14,3V (12V gel battery charging)
• 12V LFP - up to 14,6V (12V lithium battery charge)
• Pulse reconditioning "PUL" (restoring battery health through pulsed charging)

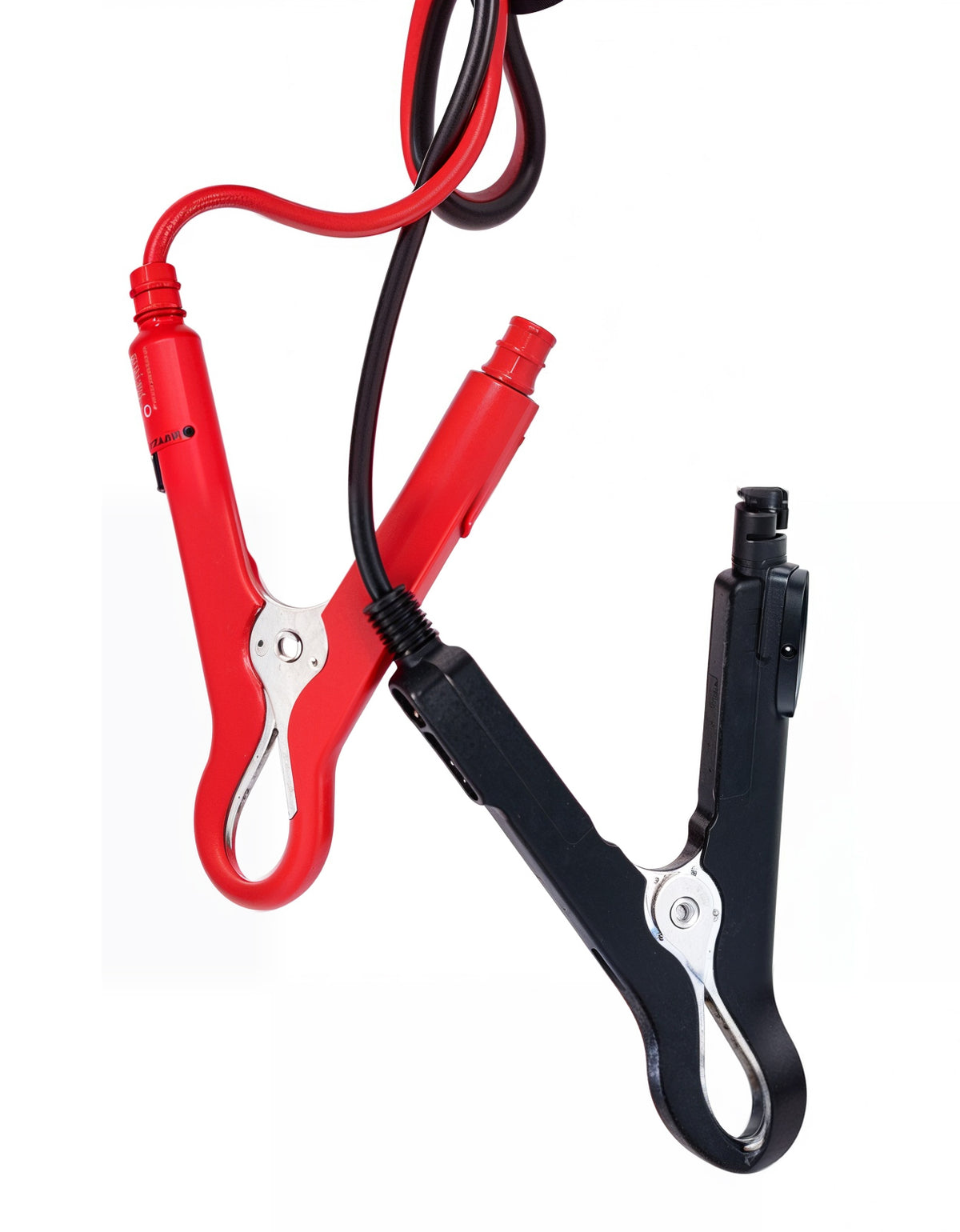

The core of the cable made of copper and fully rubber-coated clamps "crocodiles" ensure full operational safety and protection against frost.

Fully secured "crocodiles"

Durable and durable, safe to use.

Wire core made of copper

The use of copper wire can guarantee stable current performance. Charging cables are viable and do not produce heat.

• CHARGER CAN BE USED FOR:

  Battery compatibility:

  The rectifier housing is IP 65 rated, which means it is splash-proof and dustproof.

  Modern PWM charging technology controlled by MCU (microcontroller) ensures precise and automatic charging. High-quality microprocessor battery rectifier RTPM0074 works well both in professional car services and workshops, as well as in home garages. The device allows charging batteries with a voltage of 12V.

• AGM batteries
• Gel batteries
• Lead-acid batteries (SLA)
• Liquid electrolyte batteries
• Passenger cars
• Quadricycles
• Motorcycles
• Mower
• Snowmobiles and water scooters
• Boats
• Forklifts
• Tractors

Specifications
