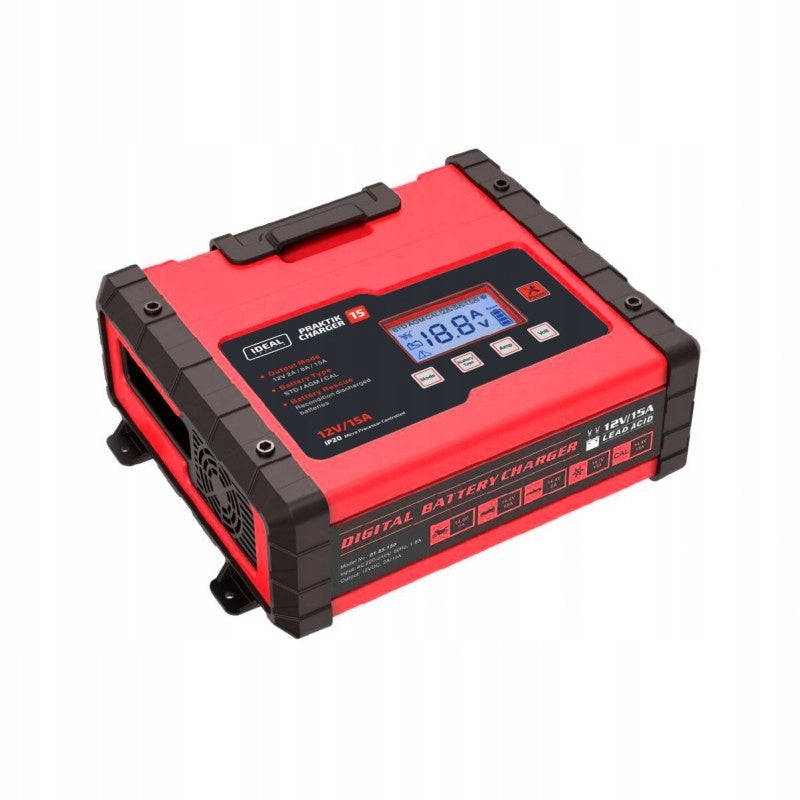

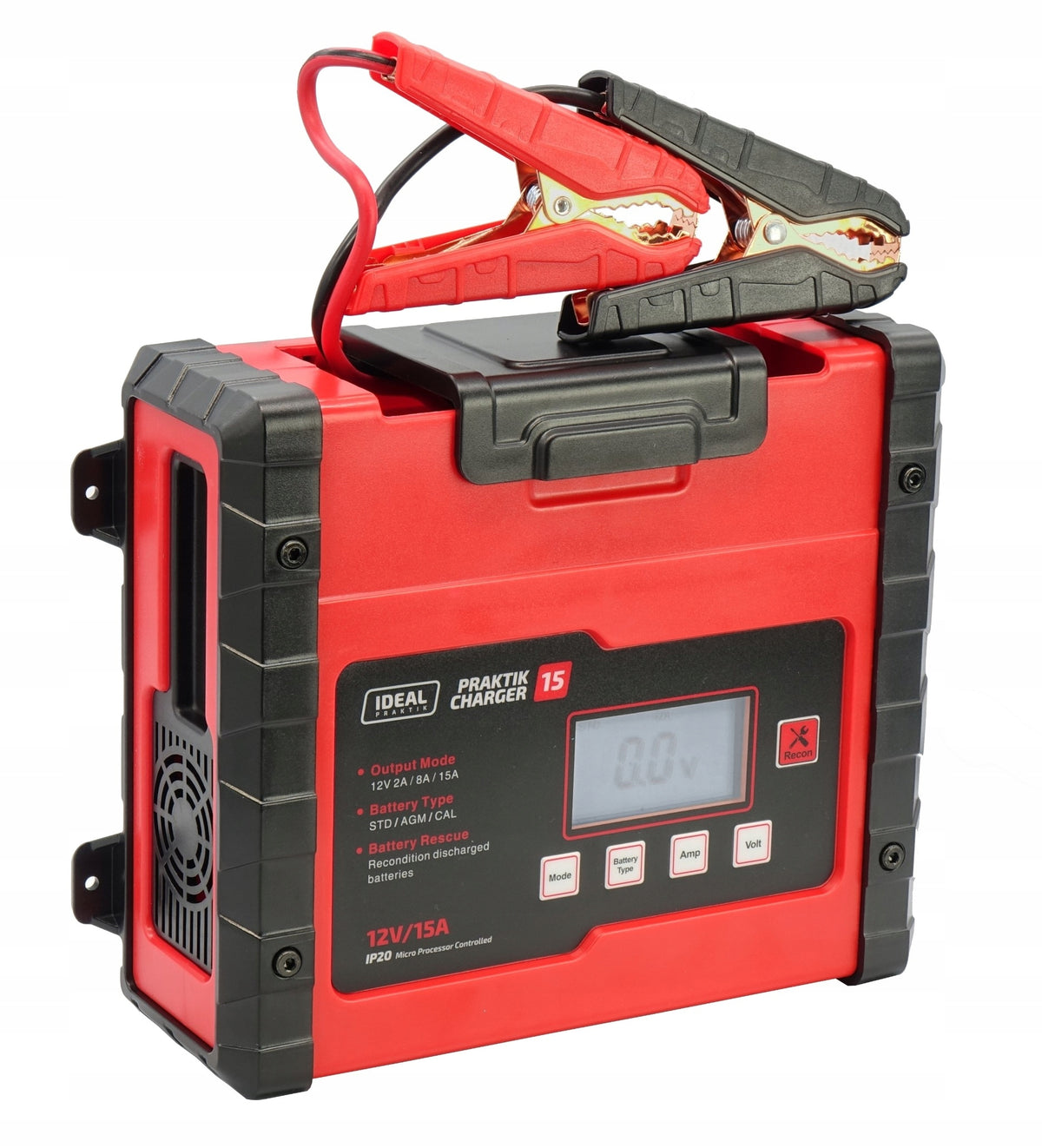

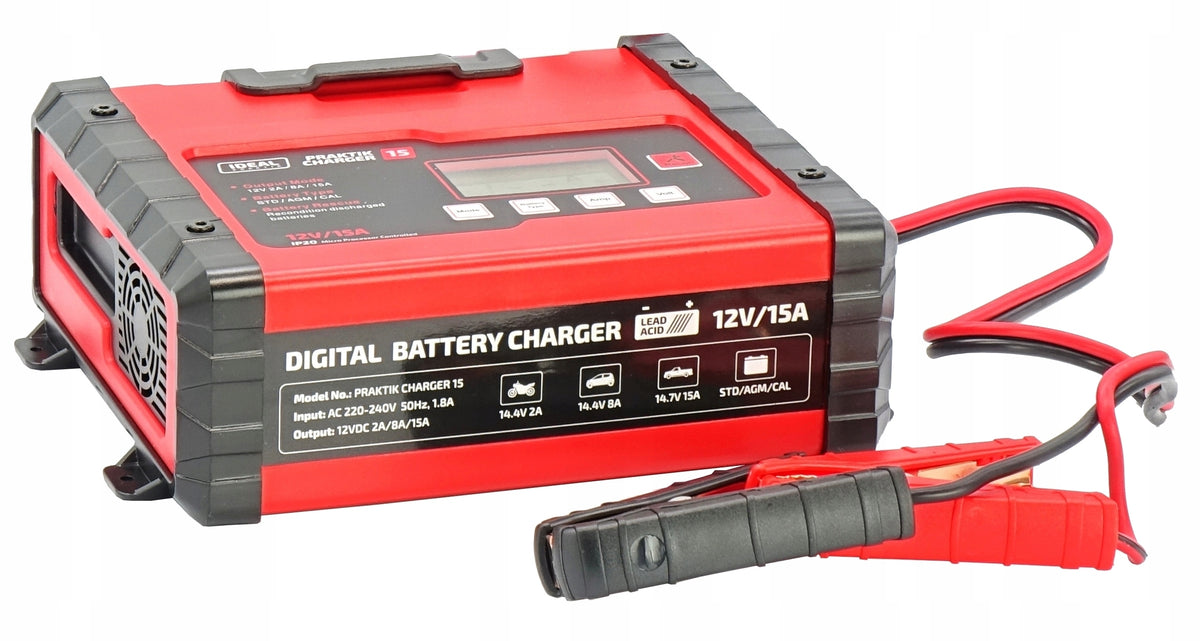

Akumuliatoriaus įkroviklis PRAKTIK CHARGER 15 LCD 12V IDEAL

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis PRAKTIK CHARGER 15 LCD 12V IDEAL. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: Praktik Charger 15

PRAKTIK CHARGER is an electronic rectifier for charging 12 volt acid batteries:

WET (liquid - acidic)

GEL (gel)

MF (maintenance-free)

AGM (with fiberglass mat)

EFB (for vehicles with Start-Stop system)

The rectifier has a microprocessor control system, provides automatic shutdown when the required voltage is reached on the battery and automatic resumption of charging after the voltage drops on the battery.

With each switch on, the rectifier automatically sets the last remembered parameters (helpful for repeated use and power grid failures).

Charging function of cold batteries: optimizes charging at very low temperatures (low temperatures can adversely affect the chemical structure of battery components).

The 9-step charging process ensures optimal battery charging conditions. The automatic control system will adjust each of the 9 charging stages to properly charge the battery:

STEP 1 - DIAGNOSTIC (Diagnostics) – analyzes the battery and checks whether it can accept charging current; prevents charging the damaged battery.

STEP 2 - RECOVERY CHARGE (Pre-charging) – low voltage batteries are pre-charged with low current but with increased voltage; highly discharged batteries can be restored to their useful state and this ensures longer battery life, the stage is skipped if the battery is minimally discharged and in good condition.

STEP 3 - SOFT START - the rectifier gradually increases the charging current to reach the set charging current.

STEP 4 - PULSE CHARGE – the battery is charged with pulsed current (pulse fluctuations take place in the DC current range).

STEP 5 - RECONDITIONING – preparation stage for bulk charge.

STEP 6 - BULK CHARGE – charging with a constant current value to the previously set voltage (14.4÷14.7V).

STEP 7 - ABSORPTION CHARGE – after reaching the required battery charge level, there will be a change to constant voltage (CV) charging and the charging process will be completed.

STEP 8 - EVALUATION DIAGNOSTIC – automatic monitoring of battery voltage after charging.

STEP 9 - MAINTENANCE CHARGE – stage supporting the battery (float) and monitoring its condition; resumes charging with reduced current if necessary.

PHYSICAL PARAMETERS

• Degree of protection: IP20
• Weight: 1280g
• Overall dimensions L x W x H: 215x185x75 mm

CHARGING PARAMETERS

• Charging voltage: 12 V
• Charging current: 2A / 8A / 15A (12V)
• Nominal battery capacity Ah 15h (min/max): 10—300Ah (12V), maintenance charging up to 300Ah

POWER SUPPLY PARAMETERS

• Rated supply voltage: 230V; 50Hz (1ph)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	Praktik Charger 15
Parametry	Brand	IDEAL
Parametry	Maximum amperage	15 A
Parametry	Product weight with unit packaging	1.3 kg
Parametry	EAN (GTIN)	5903991103451
