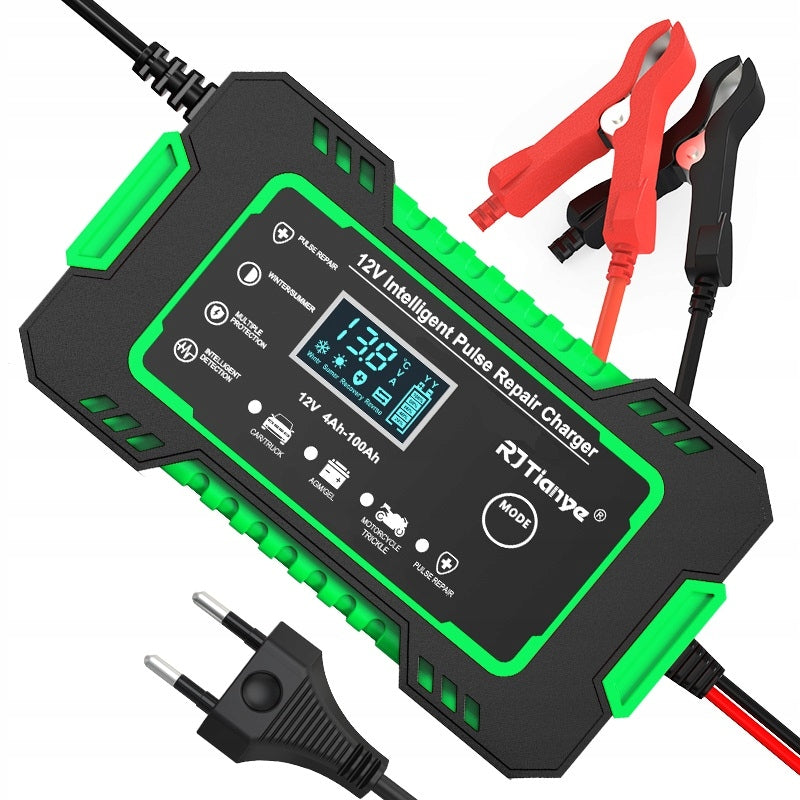

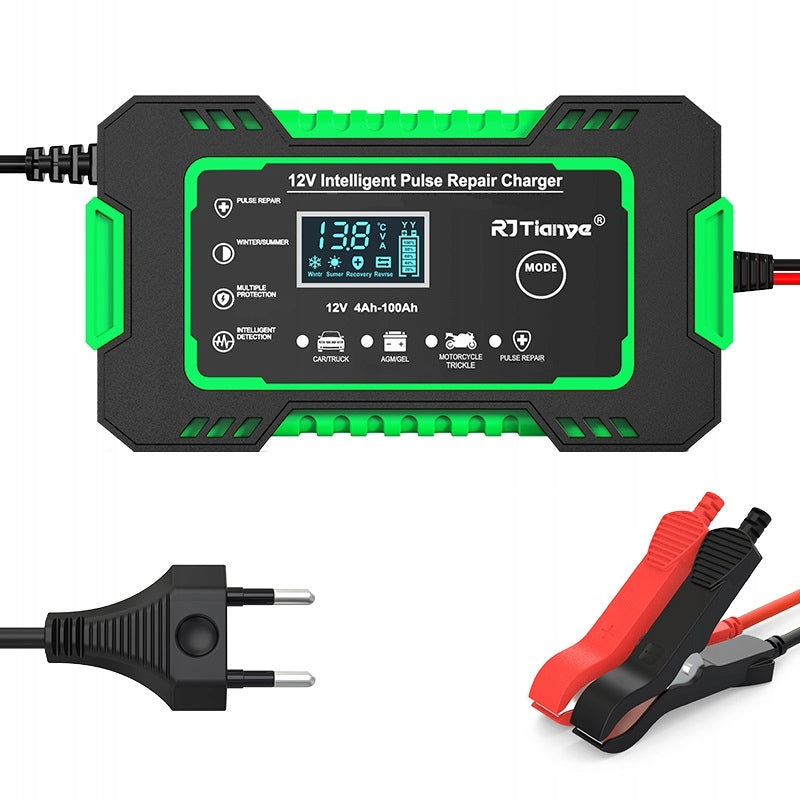

Akumuliatoriaus įkroviklis su LCD, 12V 6A

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis su LCD, 12V 6A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Ningbo
• Modelis: PROSTOWNIK ŁADOWARKA DO AKUMULATORA LCD 12V 6A

• Charger made using the latest technology and has microprocessor control.
• The device automatically selects the optimal charging parameters.
• The rectifier adjusts to the temperature, ensuring optimal charging in summer or winter mode.
• It has a mode of restoring old, unused for a long time batteries or accumulators that can not be charged with an ordinary charger.
• The charger only charges lead-acid and gel batteries. Not suitable for Li-ion (lithium-ion) batteries.
• The device has intuitive control with the only Mode button.

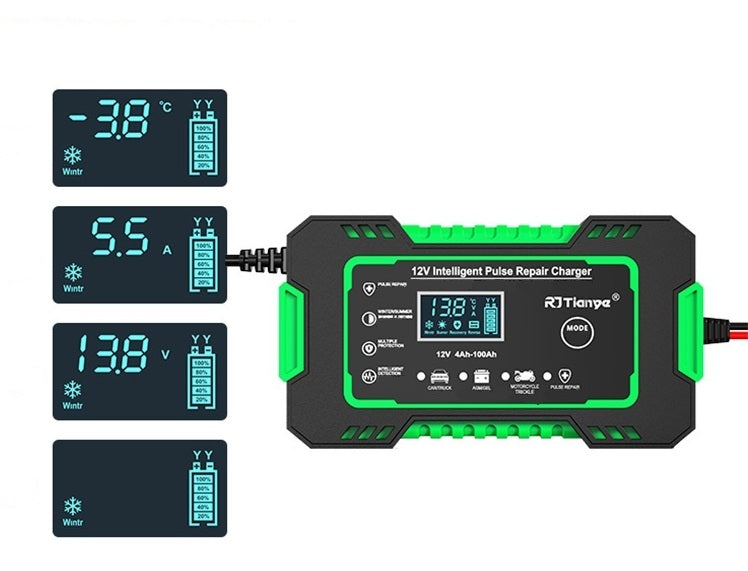

• The easy-to-read LCD display provides information about the charging process, voltage and temperature.
• For batteries from 2Ah to 100Ah

Specification

• Input Voltage: AC110-220V (50-60Hz)
• Output Voltage: 12V
• Output cable length: 65 cm
• Input cable length: 90 cm
• Output Current: 6A (Max)
• Easy-to-read LCD display with backlight
• Built-in fan
• Product Size: 150*85*62 mm
• Net weight: 400g
• Color: Green

Preparing for work

• Make sure that the settings of the charged battery match the specification of the charger.
• Never touch the wires and battery with wet hands.
• Connect the red clamp to the positive pole of the battery, and the black clamp to the negative pole.
• After connecting the red and black terminals to the battery, the LCD screen will turn on, on which the battery voltage and ambient temperature will be displayed alternately.
• In case of incorrect connection (confusion of red and black terminals), the display will flash the words "Reverse connection" and "EI-I-".

Order of work

• Connect the power cable to a 220 V outlet and the charging process will start automatically. The display will alternately show the output voltage, output current and temperature of the external air.
• Select the charging mode appropriate for the type of battery being charged (details in the mode selection section).
• When the charging process is complete, the charge level indicator will be full (100%) and the display will display "FUL1". For the best effect, it is recommended to continue the process for 1 hour.
• After that, it is recommended to first disconnect the network cable, and only then disconnect the terminals with the battery clam.
