Akumuliatoriaus, įkrovimo ir užvedimo testeris DBT-12+

Trumpai apie prekę

Prekė: Akumuliatoriaus, įkrovimo ir užvedimo testeris DBT-12+. Kategorija: Baterijų testeriai.

• Gamintojas: DeltaTech Electronics
• Modelis: DBT-12+

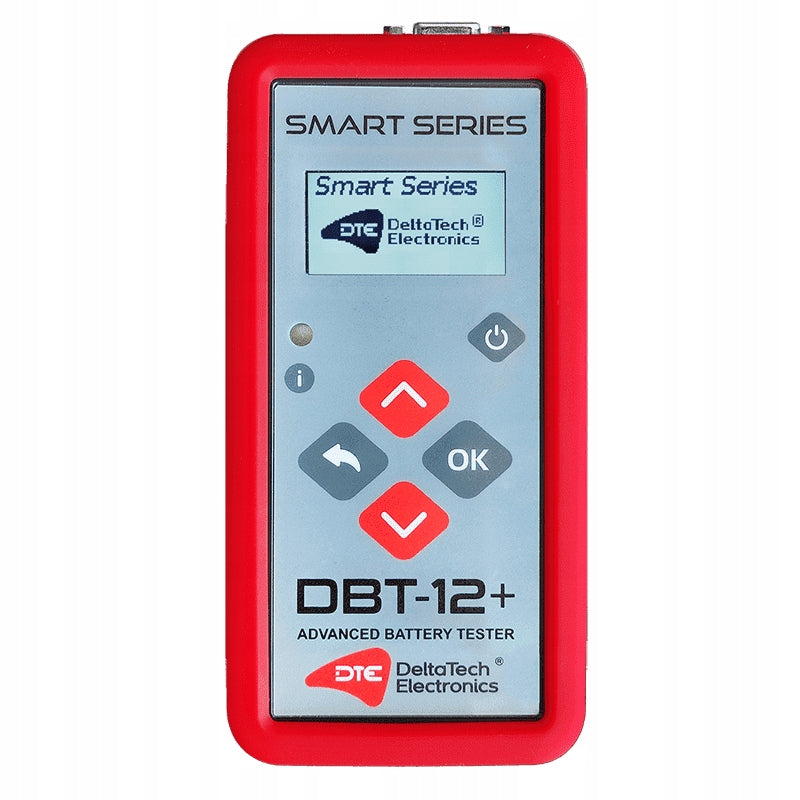

DBT-12+ Battery Tester

DBT-12+ is an advanced battery and vehicle electrical system tester. It allows you to measure the voltage, inrush current, charge status and consumption rate of 6 V and 12 V batteries and diagnose the start-up and charging system in 6 V, 12 V and 24 V vehicles. Power supply from the built-in battery also allows you to test deeply discharged batteries.

The ideal solution for:

• battery dealers
• importers and distributors of batteries
• car workshops
• car dealerships
• service centres for battery-powered vehicles

Features and Capabilities:

• Battery diagnostics 6 V and 12 V
• current voltage measurement
• determination of inrush current
• assessment of charge status
• assessment of the degree of wear
• proposal recommendations to charge, replace, urgently replace
• Vehicle installation test
• diagnostics of the start-up system
• diagnostics of the charging system
• 6 V, 12 V and 24 V installation support
• Work as an independent voltmeter
• built-in battery power tester
• possibility of controlling discharged batteries
• Voltage measurement in vehicle installations
• Registration and presentation of measurements
• graphs of voltage waveforms over time
• record the results with date and time
• possibility of assigning a vehicle registration number
• memory of many hundreds of measurements
• results visible on the display and in the computer application

Types of battery tests:

• current voltage measurement
• measurement of inrush current
• graphical summary of the percentage of battery status and degree of charge
• automatic recommendations for further operation with the battery

Supported battery types:

• EFB reinforced
• AGM and VRLA maintenance-free
• SLI classic lead acid

Inrush current standards:

• EN 40 A to 2000 A
• SAE from 40 A to 2000 A
• DIN from 30 A to 1200 A
• IEC 30 A to 1200 A
• CCA 40 A to 2000 A

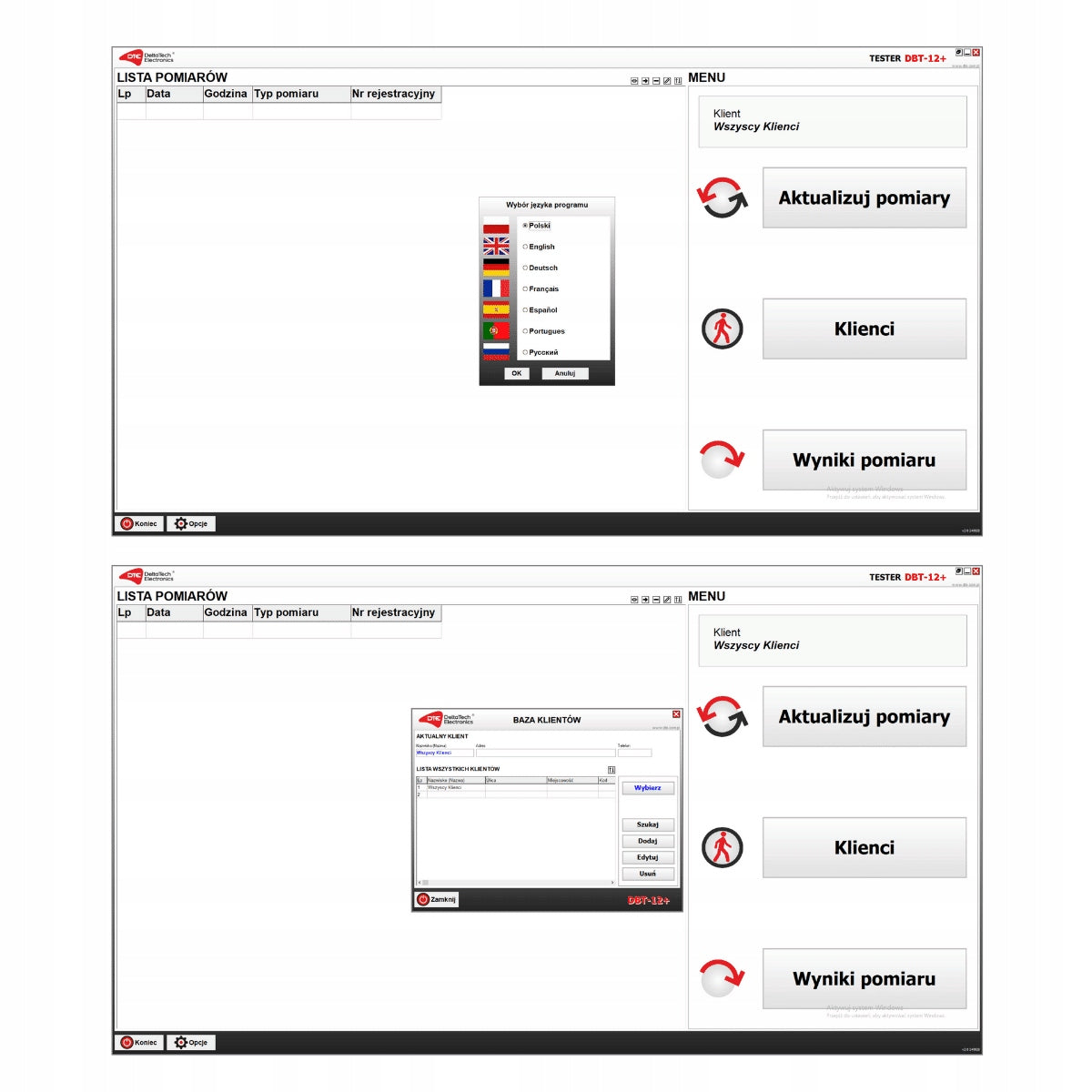

Included PC Software:

• Intuitive PC program for viewing measurement results
• printout of reports
• generating detailed reports in A4 format
• printing on a standard computer printer
• Clear documents for customers and fleets
• remote print order
• Wi Fi connectivity between tester and computer
• Immediate print order after the test is completed
• archiving of measurements
• building the history of all tests performed
• quick access to previous results
• customer database
• keeping customer records
• assigning measurements to a specific vehicle or owner

Additional features of the DBT-12+ tester:

• Voltage recording mode
• long hours of recording of battery voltage changes
• detection of automatic switching on of receivers and leakage
• verification of the battery charging process with a rectifier

Technical parameters:

• types of batteries
• standard lead-acid
• AGM and VRLA
• inrush current measurement standards
• EN
• SAE
• DIN
• IEC
• range of inrush currents from 40 A to 2000 A according to EN standard
• Voltage measurement in the range from 0 V to 50 V
• power supply from the built-in battery
• operating temperature range from 0 to 40 degrees Celsius

Set Contents:

• DBT-12+ device
• measuring cable with crocodile clamps
• Mini USB cable
• 5 V charger

The DBT-12+ battery tester combines accurate battery diagnostics with vehicle installation analysis, and with PC software and voltage recording functions, it becomes a complete tool for professional service technicians and battery sellers.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	DeltaTech Electronics
Parametry	EAN (GTIN)	5906236591037
Parametry	Manufacturer code	DBT-12+
