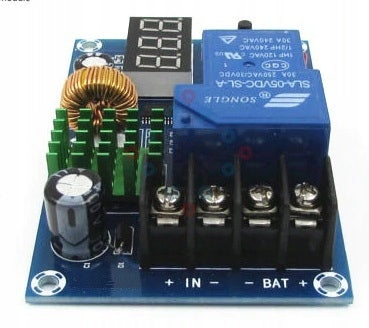

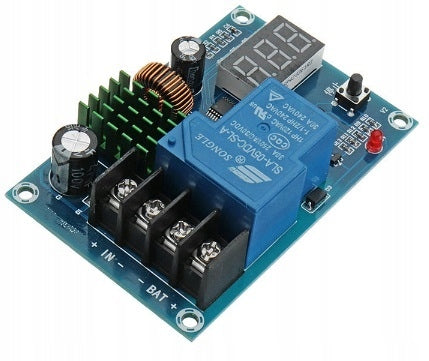

Akumuliatoriaus įkrovimo valdiklis 12–60V 30A

Trumpai apie prekę

Prekė: Akumuliatoriaus įkrovimo valdiklis 12–60V 30A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Dedra
• Modelis: DEPM001

Regulator, battery charging controller 12-48V 30A

Device for controlling the charging process of batteries with a voltage of 12V, 24V, 48V.

The controller is fully automatic, just set two parameters

1. Charger switching voltage
2. Charger off voltage

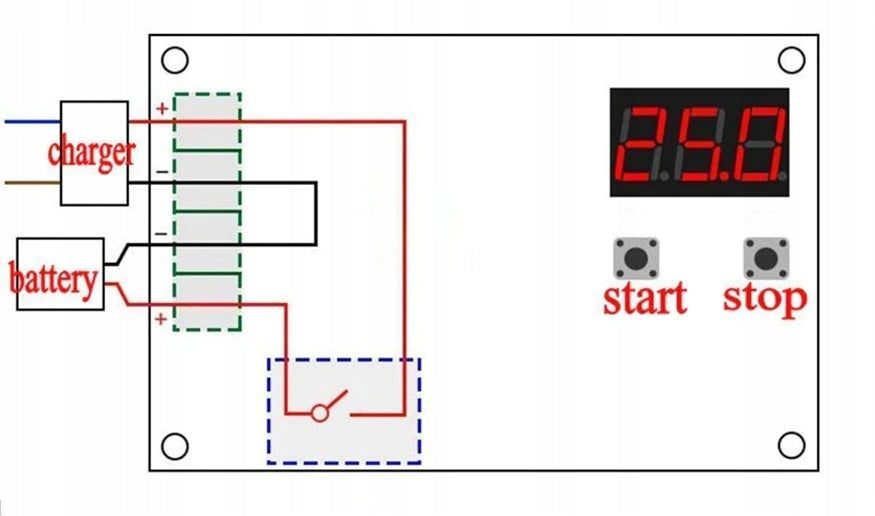

The principle of operation is as follows, if the voltage on the battery falls below the set value, the relay is switched on and the charging process is switched on. When the voltage on the battery reaches the set voltage, the relay is turned off and the charging process is completed.

Thanks to this, the charging process is fully autonomous and will not allow the battery to be overcharged.

The device is equipped with an LED display, which shows the current voltage of the battery.

Changes in switching on and off voltage are made using two buttons on the module.

1. Setting the initial voltage (start charging). Hold the START button for 3 seconds when the display starts flashing with the start/stop button to set the appropriate voltage.
2. Setting the final voltage (end of charging). Hold the STOP button for 3 seconds when the display starts flashing with the start/stop button to set the appropriate voltage.

The status of the charging process is indicated by an LED.

Technical parameters:

• Supply voltage 12-55V
• Support 12, 24, 36, 48V batteries
• Relay with a load capacity of 30A
• Adjustment resolution 0,1 V

Dimensions:

• Length 71 mm
• Height 50 mm
• Depth 25 mm
• Weight approx. 50 g

Application:

• 12V Battery Charger
• 24V Battery Charger
• 48V Battery Charger
