Apraksts
Trumpai apie prekę

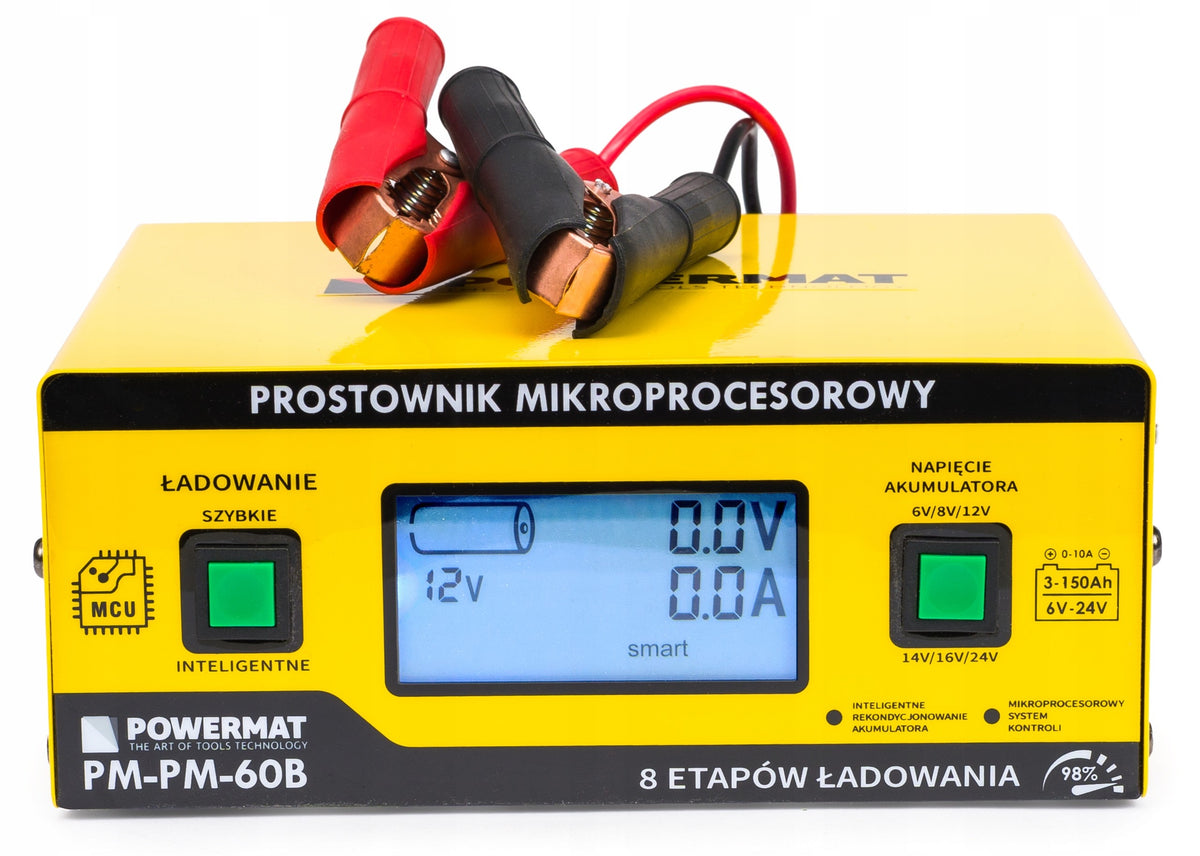

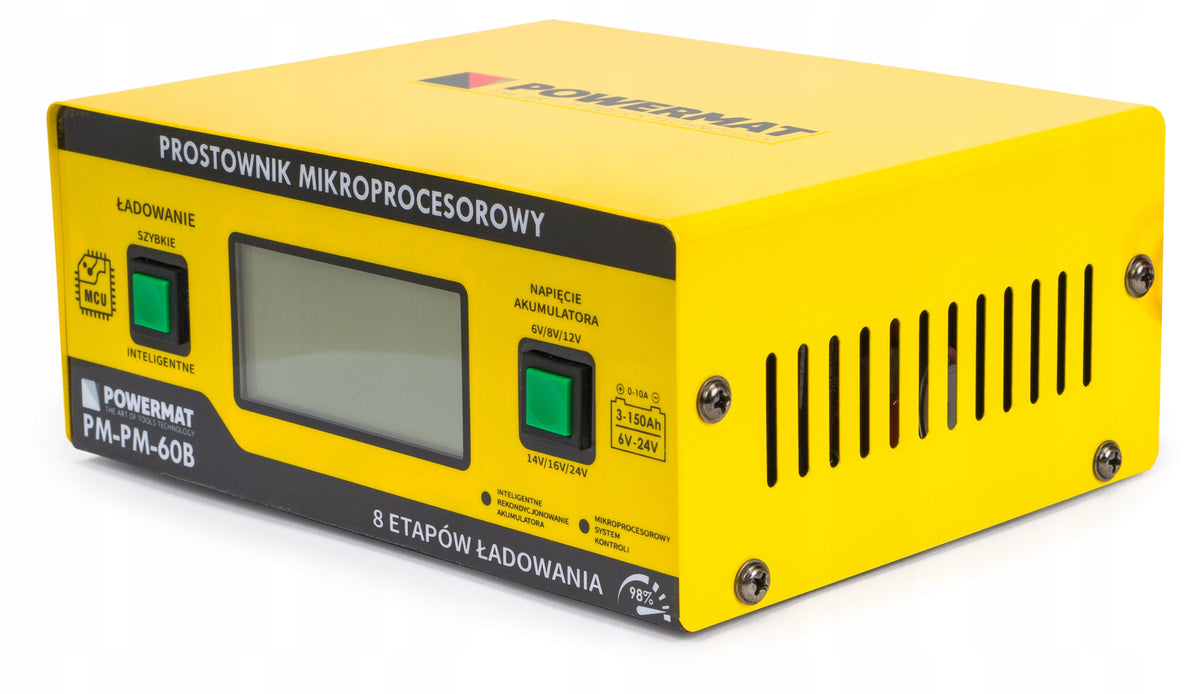

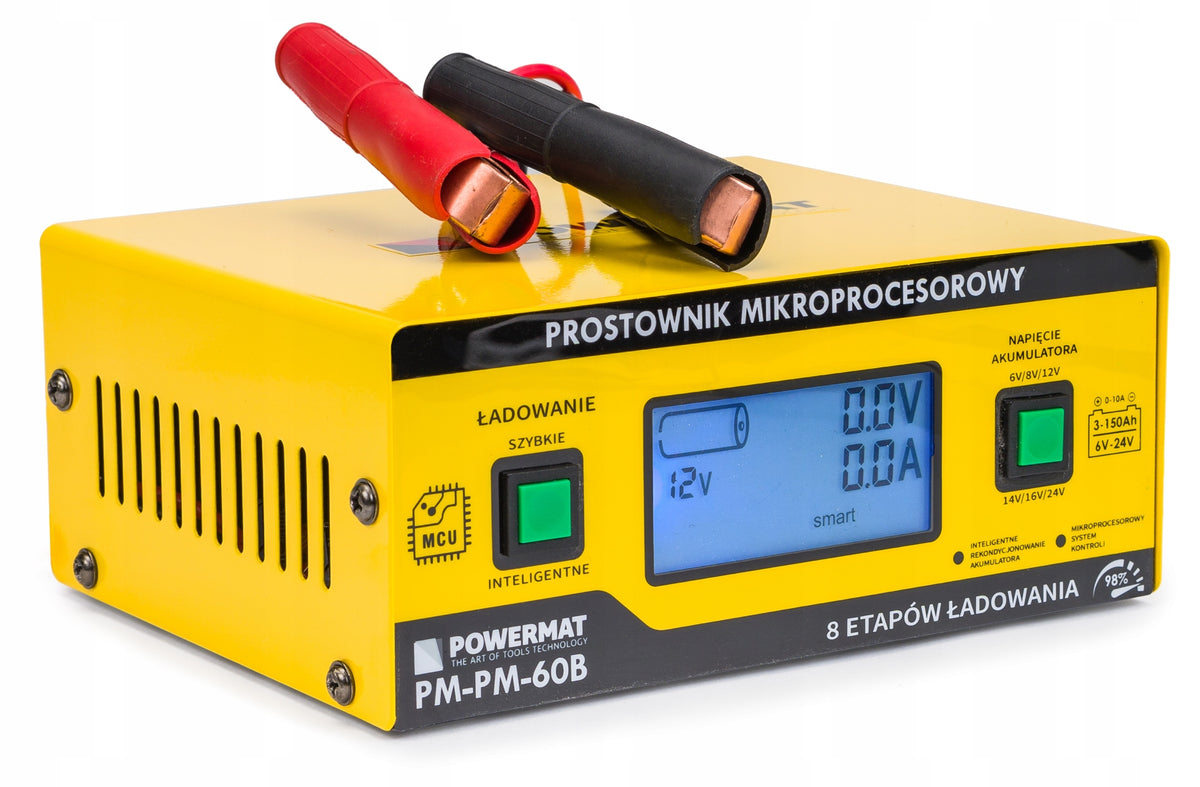

Prekė: Akumuliatoriaus mikroprocesorinis įkroviklis Powermat 6V–24V PM-PM-60B. Kategorija: Baterijų įkrovikliai.
- Gamintojas: Powermat
- Modelis: PM-PM-60B
MCU (MICROCONTROLLER UNIT) TECHNOLOGY ► PWM (PULSE-WIDTH MODULATION) TECHNOLOGY ► LCD DISPLAY
POWERMAT is a manufacturer of power tools, welding equipment and equipment necessary for construction and gardening work. The products offered by it have all the required safety and quality certificates issued by European research units.
More than 25 years of experience in the industry allows the company to offer high quality and reliability at a low price.
TECHNICAL DATA:
- rated voltage: 230V/50 Hz
- supported battery voltages: 6V/8V/12V/14V/16V/24V (pulse dynamic)
- Voltage identification for 12V: 8V - 14,5V
- Voltage identification for 24V: 18V - 29V
- 12V/24V battery capacity: 3Ah - 150Ah
- charging intensity: 0A - 10A
- Operating temperature: -30°C - 50°C
- Efficiency: 98%
- supports batteries: VRLA, WET, GEL, EFB, AGM
- built-in fan controlled by MCU
- Net weight: 0,95kg
- length of power cord: 136cm
- length of wires "+" and "-": 120cm
MCU (Microcontroller Unit) TECHNOLOGY; PWM (Pulse-Width Modulation), LCD.
EQUIPMENT
- rectifier
- original box
- instruction manual
ADVANTAGES OF MICROPROCESSOR CONTROL
- Constant Voltage: Using DC voltage to charge the battery to check that the charging current is not too high, reducing it during the process.
- Constant Current: Indicates that the battery voltage is lower than the set voltage of the charger, but the charger will support the constant charging current of the battery.
- Trickle Charge Modulation: When the battery voltage approaches the rated voltage and the charging current is already low to the set current, it will switch to floating charge modulation mode. This means that the battery is charged, but it is constantly checked for voltage drops and recharged automatically with alternating current.
- Floating Charge Modulation: The mode will maintain the state of full charge of the battery.
8-STEP CHARGING
- STEP 1: DIAGNOSTICS: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier.
- STEP 2: DESULPHURIZATION: recognition of the sulphurized battery, charging with low voltage and high intensity pulsating current allows the sulphate to be removed from the battery plates, thus restoring its initial capacity.
- STEP 3: ANALYSIS: checking whether the battery is not damaged and whether it can accept charging current - prevents charging the damaged battery.
- STEP 4: SOFT START: if the battery is not damaged, a relatively low current charge (about 15%), gradually increasing its value, begins.
- STEP 5: ESSENTIAL CHARGING: constant current maximum charging with a value automatically adjusted depending on the state of charge of the battery, until 80% of the battery capacity is reached.
- STEP 6: FINAL CHARGING: charging with decreasing current and constant voltage until 100% of the battery capacity is reached.
- STEP 7: ANALYSIS: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed.
- STEP 8: PULSING: monitoring the battery voltage and maintaining an optimal charge of 95-100% capacity through charging current pulses.
SAFETY FUNCTIONS
- Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.
- Battery diagnostic function - the rectifier constantly monitors the condition of the battery.
- Overheating protection: When the temperature of the charger exceeds 150°C, the charger will stop charging. When the temperature is reduced to 80°C, or the rectifier turns off for about 10 minutes, after this time you can charge the battery again.
- Short-circuit protection: When a short circuit occurs, the circuit will automatically stop working. This will be manifested by a long beep. Just plug in the charger thoroughly, then it will automatically recharging.
- Reverse-connecting protection: While the terminals (+/-) will be connected by mistake in reverse, the charger will alert you in the form of intermittent long beeps. After the terminals are properly connected, it will be recharged.
MODERN PWM CHARGING TECHNOLOGY WITH MCU
PWM ( Pulse-Width Modulation) – is a method of adjusting a current or voltage signal, with a constant amplitude and frequency, consisting in changing the signal filling. The PWM system powers the device directly or through a low-pass filter smoothing changes in electric current and voltage.
Displaying charging parameters allows additional control of the status of your battery. The large display informs about the current, charging mode and current battery voltage. In addition, you can observe the state of charge in the form of a percentage.
Very high charging efficiency at positive temperatures. Using advanced control of charging processes, the efficiency of the rectifier is 98%, which makes it incomparable to traditional types of rectifiers without this type of technology.
TECHNICAL DATA
- Brand: POWERMAT
- Model: PM-PM-60B
- rated voltage: 230V/50 Hz
- supported battery voltages: 6V/8V/12V/14V/16V/24V (pulse dynamic)
- Voltage identification for 12V: 8V - 14,5V
- Voltage identification for 24V: 18V - 29V
- 12V/24V battery capacity: 3Ah - 150Ah
- charging intensity: 0A - 10A
- Operating temperature: -30°C - 50°C
- Efficiency: 98%
- supports batteries: VRLA, WET, GEL, EFB, AGM
- built-in fan controlled by MCU
- Net weight: 0,95kg
- length of power cord: 136cm
- length of wires "+" and "-": 120cm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Model | PM-PM-60B |
| Parametry | Brand | Powermat |
| Parametry | Maximum amperage | 10 A |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | EAN (GTIN) | 5902565277123 |
| Parametry | Batteries included | no |
