Akumuliatoriaus stebėtuvas su Bluetooth, 12V/24V

Trumpai apie prekę

Prekė: Akumuliatoriaus stebėtuvas su Bluetooth, 12V/24V. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 43637

➖Symbol 43637➖

The KLF140 is compatible with all 12V-120V batteries

The KL-F140 professional battery monitor is a new type of meter that can measure various physical parameters of the battery, such as voltage, current, power, charging and discharging capacity, watt-hours and time.

The smartphone/tablet mobile app allows you to quickly check battery information, is available for free for Android and iOS and allows you to i.a. :

• Receiving battery status notifications
• Real-time checking of battery parameters
• receiving alerts about irregularities

The device provides safety and comfort, it will alert you when the parameters of your battery start to deviate from the norm or when the battery charging system stops working, you will see it all in the application.

➖FEATURES:➖

• automatically recognizes and detects current in both charging and discharging directions. When charging, the signal color is green; When discharge, the signal color is blue
• suitable for various car batteries, AGM gel batteries but also ternary lithium batteries, lead batteries, phosphate batteries, etc. (as long as the battery is within the voltage measurement range)
• The meter can additionally be used to protect against surges, too low voltage, excessive current, excessive power supply and external overheating protection. When the value is outside the protection value range, the output state of the meter is turned off (use it with a relay) to prevent damage to the battery (disconnects the battery). Protection recovery time and delay time can be set, which is suitable for different occasions.
• The current measuring shunt and screws are made of pure copper, which has good electrical conductivity and low power consumption. On standby does not consume too much battery power
• operation of the device is carried out using a smartphone application, connection is carried out via bluetooth transmission (downloadable application from the PLAY STORE for Android and APPSTORE for iOS)
• protection: protection against surges, too low voltage, excessive current, excessive power supply and external protection against overheating
• The product can accurately measure parameters such as voltage, current, battery capacity, power, power consumption, ambient temperature, battery life, charging time and total battery capacity
• The current measuring shunt supports a maximum current of up to 400A
• modes of operation with own or external power supply
• supported voltages from 10V to 120V DC (depending on the set mode)
• LED indicator on the device

https://www.youtube.com/watch?v=C5G0iR-kUr8

➖The price is for 1 set. ➖

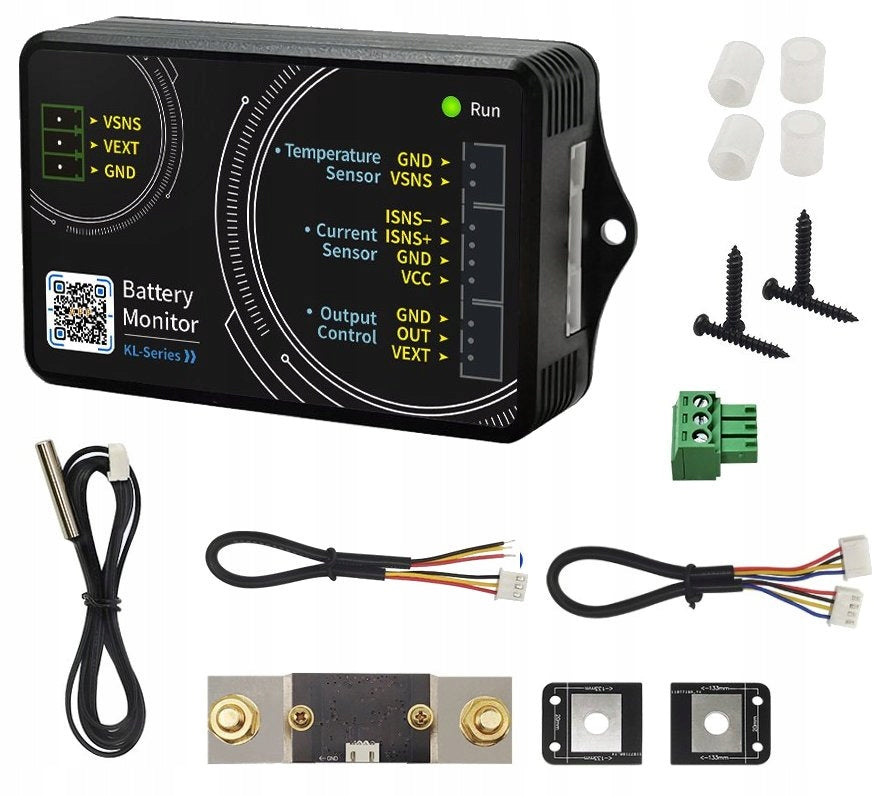

➖The set includes:➖

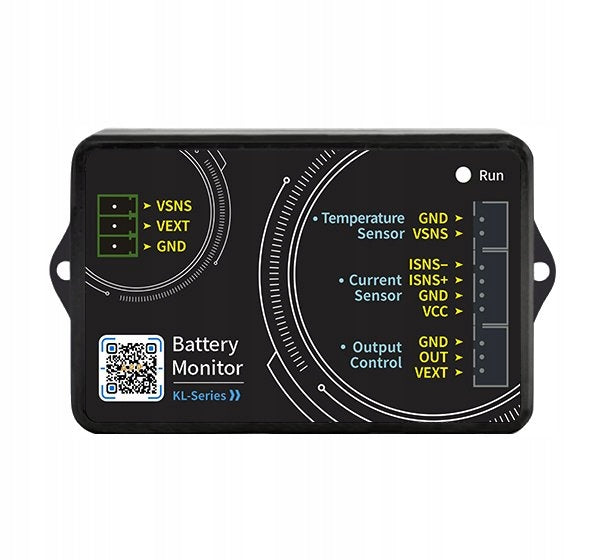

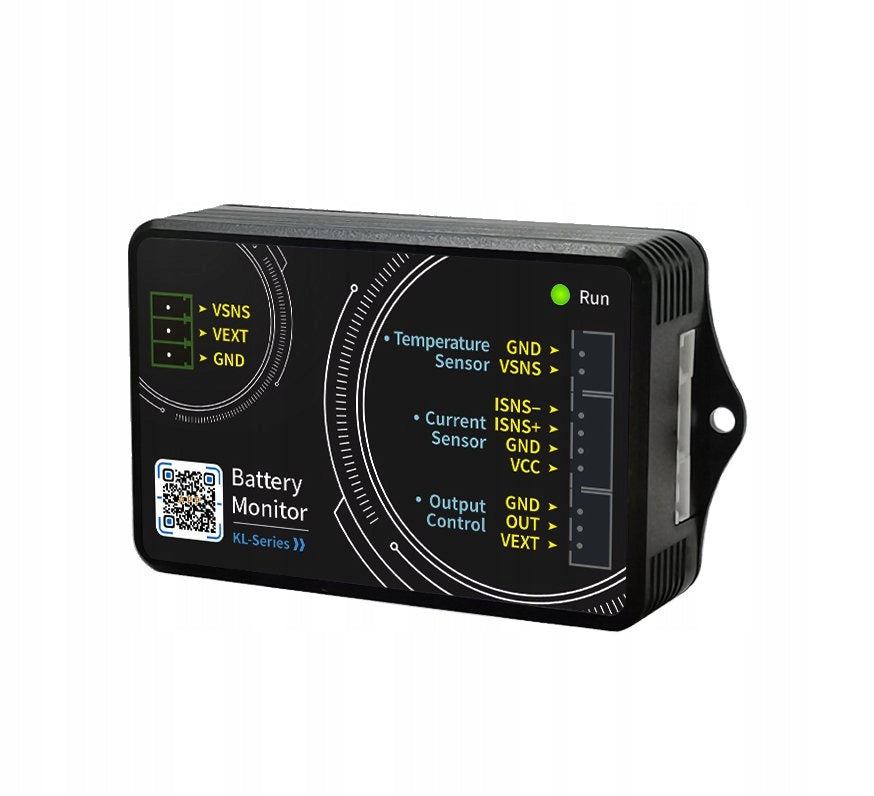

• Main module of the meter x1 (photo. 1)
• Compatible with shunt module x1 (photo. 2)
• Connection plates for shunt x2 (photo. 4)
• Temperature probe x1 (photo. 5)
• Connection cables x2 (photo. 3 and 7)
• Distances to screws x4 (photo. 9)
• Screws x4 (photo. 8)
• Connection cube x1 (photo. 6)
• Instruction in English

➖Switch to 2W➖

• mode with its own power supply

➖Switch to 3W➖

• mode with external power supply

➖Switch to 3W➖

• mode with external power supply and relay

➖Ability to work with different types of cells➖

➖Convenient control via smartphone app (iOS and Android)➖

➖Automatic detection of direction➖

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	EAN (GTIN)	0609500685689
Parametry	Manufacturer code	43637
