Akumuliatoriaus testeris TK-200, 12V/24V, profesionalus, išmanus

Trumpai apie prekę

Prekė: Akumuliatoriaus testeris TK-200, 12V/24V, profesionalus, išmanus. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 5905408391918

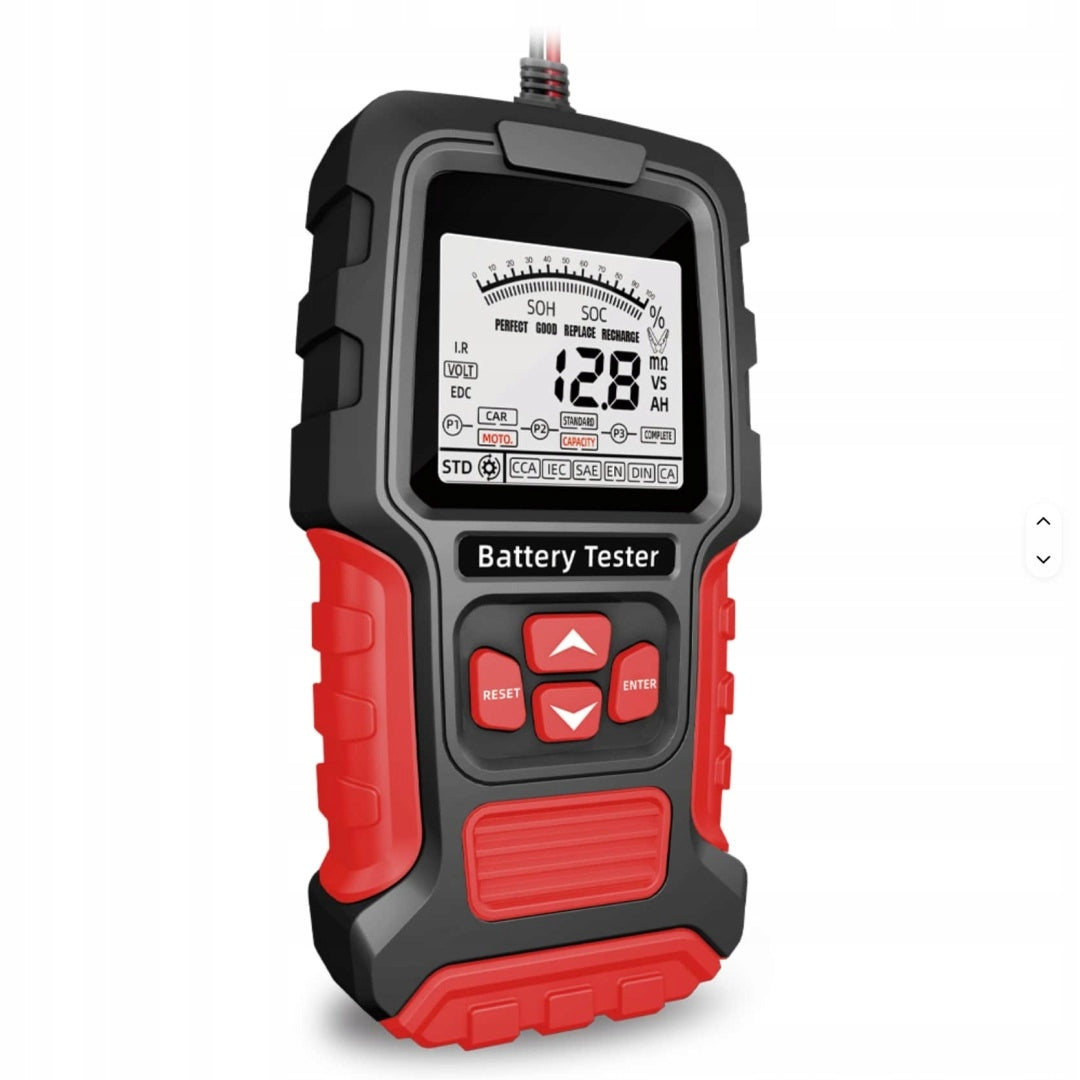

Smart Battery Tester TK-200

Professional tester

12V/24V batteries

Meet the Smart Battery Tester TK-200 – a reliable device that will allow you to check the condition of the battery in your car, motorcycle, truck or construction machine in seconds.

It is a smart 12V and 24V battery tester, thanks to which you will avoid unexpected failures and expensive visits to the workshop.

Why choose Smart Battery Tester TK-200

Easy to use – intuitive menu and 4 buttons (ENTER, RESET)

Readable LCD screen 2,7” – all parameters visible in one place

Wide measuring range – from 3Ah to 250Ah

Support for all types of 12V and 24V batteries: AGM, GEL, EFB, VRLA, STD

Without additional power – works without batteries, draws electricity from the tested battery

Reverse polarity and overvoltage protection

Compact and robust – ideal for car storage

Tester functions

Smart Battery Tester TK-200 performs full battery diagnostic, displaying key parameters:

SOH (State of Health) – battery health

SOC (State of Charge) – charge level

IR (Internal Resistance) – Internal Resistance

VOLT – current battery voltage

CCA / EN / DIN / IEC – inrush current according to the selected standard

Thanks to this, in a few seconds you will find out whether the battery is functional, needs to be recharged or suitable for replacement.

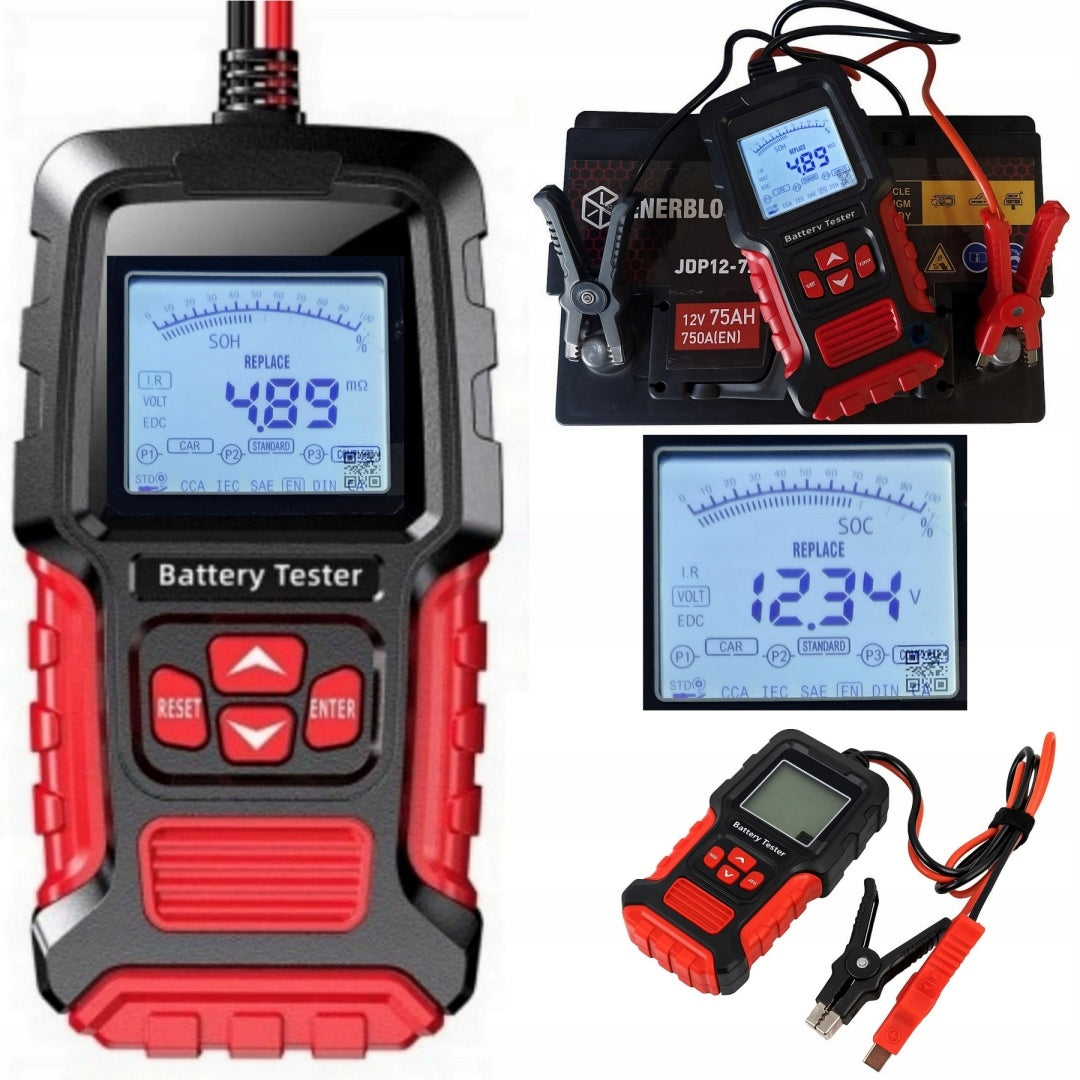

How to use the tester (simple step-by-step instructions)

1. Connect the tester to the battery
2. Red wire to positive pole (+)
3. Black wire to negative pole (–)
4. Select battery type (AGM, GEL, STD, EFB, VRLA)
5. Select the test standard (CCA, EN, DIN, IEC, etc. ) – according to the marking on the battery housing
6. Start the test – press ENTER In a few seconds you will get the result: voltage, SOH, SOC, resistance and battery status assessment.

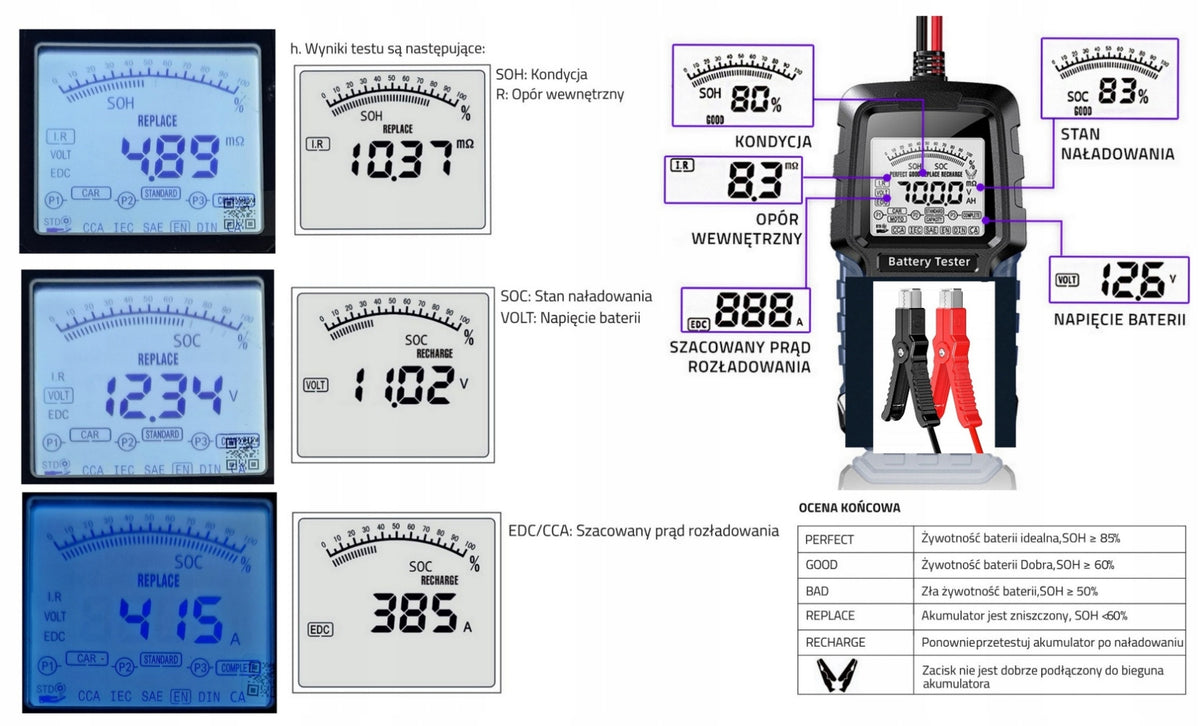

7. Interpret the results
8. SOH > 85% → battery in excellent condition
9. SOH 60 – 85% → good condition, recommended inspection
10. SOH < 60% → replace or recharge the battery

Smart Battery Tester TK-200

Safety and quality

The TK-200 battery tester is designed with reliability and user protection in mind. It is equipped with:

Protection against reverse connection of wires,

Surge protection up to 60 V,

Indication of poor contact (informs about incorrect connection),

Robust, shockproof and high temperature housing made of ABS plastic.

Comprehensive application

Ideal for testing batteries in:

passenger cars,

motorcycles,

trucks,

construction and agricultural machinery.

Note: The tester is not designed for lithium batteries.

Technical parameters:

• Parameter: Value
• Model: Smart Battery Tester TK-200
• Voltage range: 8 V – 30 V DC
• Supported batteries: AGM, GEL, VRLA, EFB, STD
• Capacity range: 3 Ah – 250 Ah
• Test standards: SAE, DIN, EN, IEC, JIS, CA
• Screen: 2,7″ LCD, backlit
• Power supply: from the tested battery (no internal battery)
• Cable length: approx. 65 cm
• Housing material: ABS, fire retardant
• Dimensions: 170 × 90 × 35 mm
• Weight: 0,36 kg
• Working temperature: –20°C to +60°C
