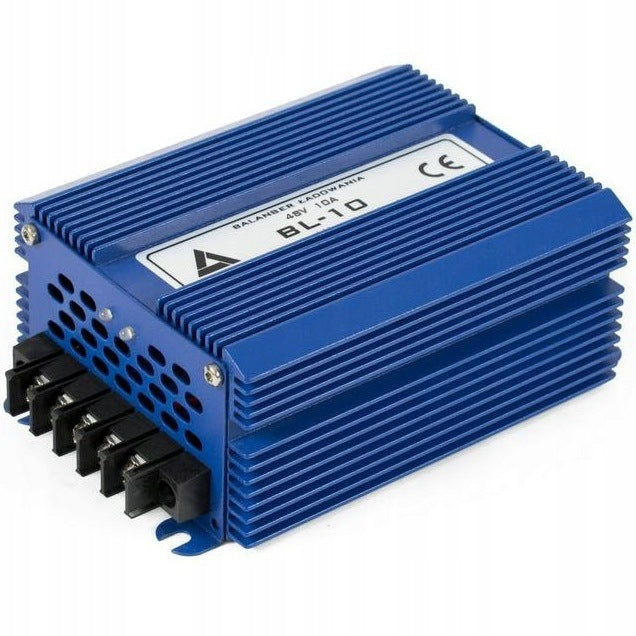

Akumuliatorių balansatorius AZO 24V 10A

Trumpai apie prekę

Prekė: Akumuliatorių balansatorius AZO 24V 10A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: AZO Digital
• Modelis: BL-10 48V

The 48V charging balancer, also commonly known as the voltage equalizer, is a device used to maintain at the same level the voltages of 24 V batteries connected to each other in a serial system.

Thanks to this, individual batteries of the system are protected against overcharging, which in the case of lead-acid batteries can lead to excessive gassing as well as against uneven discharge, which can lead to sulphation, which in both cases may result in permanent damage to the batteries.

The principle of operation consists in independent measurement of the voltages of two 24V batteries connected in a 48V bank, determining the middle point of such a series of batteries and transferring energy from a higher voltage battery to a lower voltage battery.

• The device operates in the entire range of voltages acceptable for the battery, always trying to maintain equal voltage values on them.
• In the entire voltage range and both during charging and discharging of batteries, the balancer compensates for the difference in battery capacity so that the charging and discharging process takes place optimally.
• With large differences in battery charge in all conditions, it guarantees the transfer of energy from a more charged battery to a less charged one so that the voltages on them are equal.
• Thanks to its high current capacity, it is perfect for both batteries with capacities up to 100 Ah - BL-5 version (compensates for charging and discharging current up to 5A) and above 100Ah BL-10 version (compensates up to 10A).

• Supply Voltage: 30 ÷ 60 VDC
• Balanced voltage range: 36 ÷ 60 VDC
• Maximum balancing current: 10 A
• Overload protection: 11 A
• Fuse: 15 A
• Thermal protection: 70 °C
• No-load current consumption: 13 mA
• Output interference: < 50 mV
• Input interference: < 50 mV
• Operating temperature range: -25 to 50 °C
• Alarm connector load capacity: 2 A
• Efficiency: 0,92 %

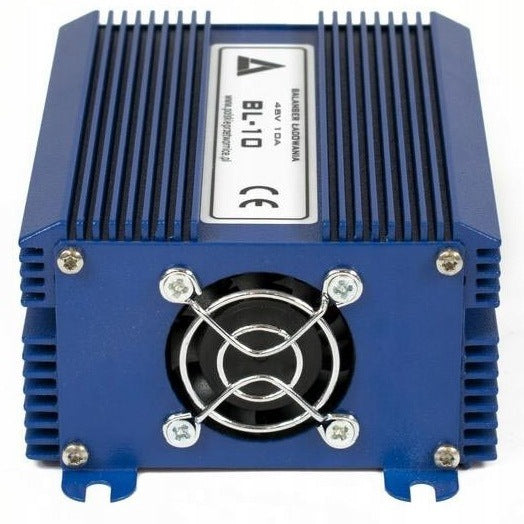

• Cooling: active
• Supported batteries: AGM, GEL, LiFePO4

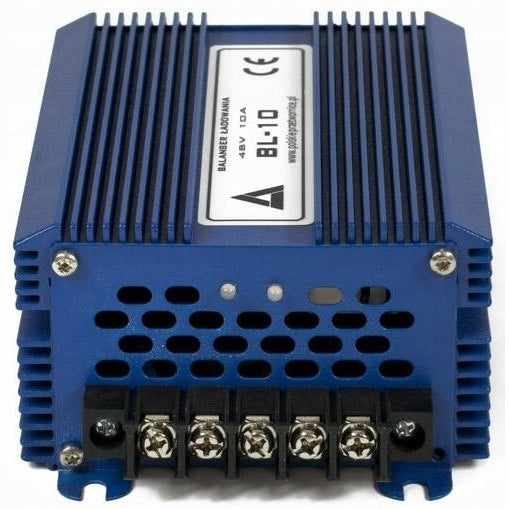

• Leads: 5x screw connector M4
• Housing: aluminium
• Degree of protection: IP21
• Dimensions (L. x sz. x H ): 150 x 95 x 55 [mm]
• Weight: 0,5 kg

AZO Digital is a Polish company engaged in the design, manufacture and implementation of innovative products in the field of electronics and energy.

The company is present in the fields of rail, road and sea transport and for several years has been creating and developing technologies for use in the photovoltaic industry, as well as outdoor and industrial lighting.

All devices offered by AZO Digital are characterized by the best, proprietary technical solutions. Experienced engineering staff of AZO Digital , applying quality standards resulting from the ISO9001:2008 certification, performs device designs corresponding to current market needs.

All manufactured products have the necessary certificates and safety certificates.
