Akumuliatorių talpos testeris DELTABAT 30

Trumpai apie prekę

Prekė: Akumuliatorių talpos testeris DELTABAT 30. Kategorija: Baterijų testeriai.

• Gamintojas: DeltaTech Electronics
• Modelis: DELTABAT-30

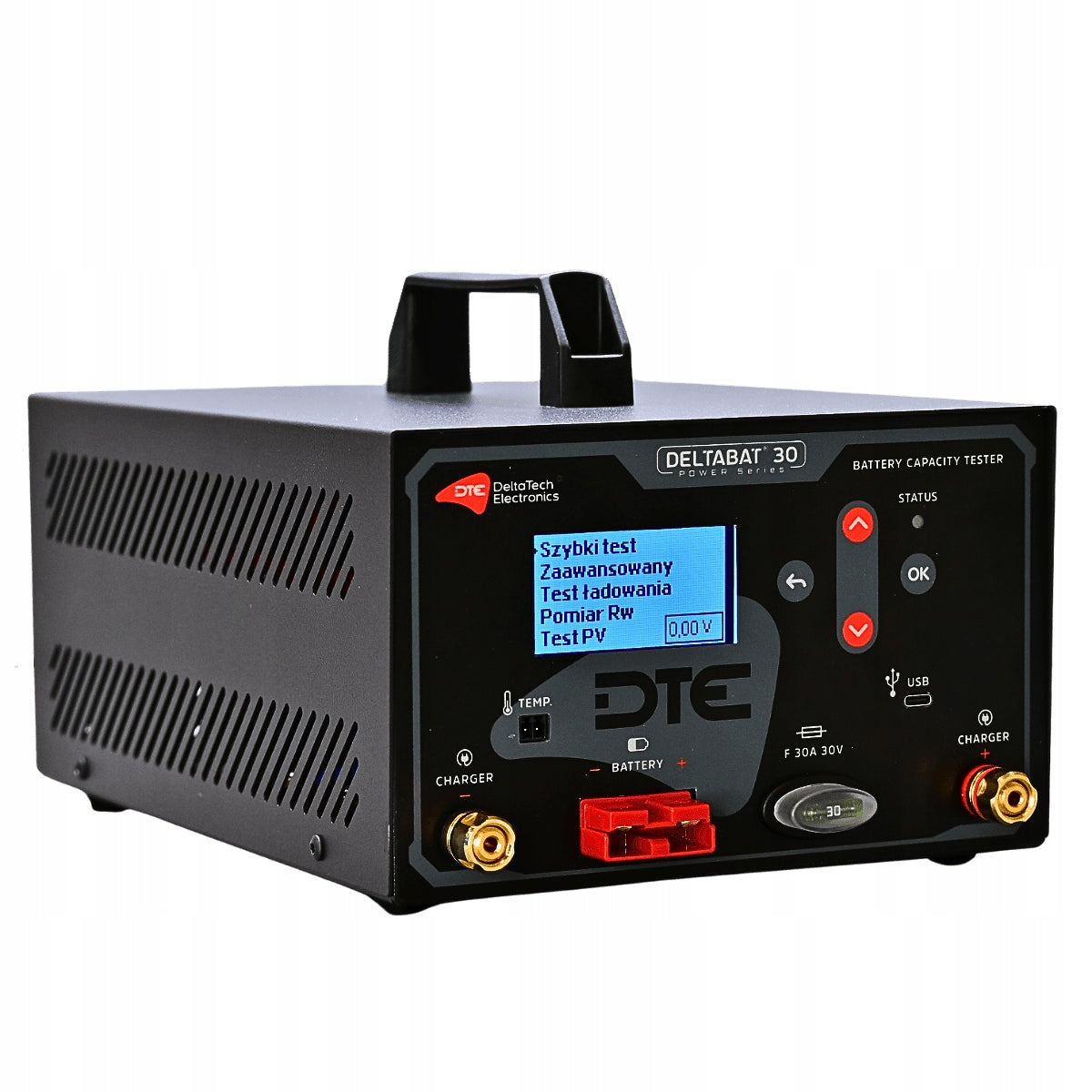

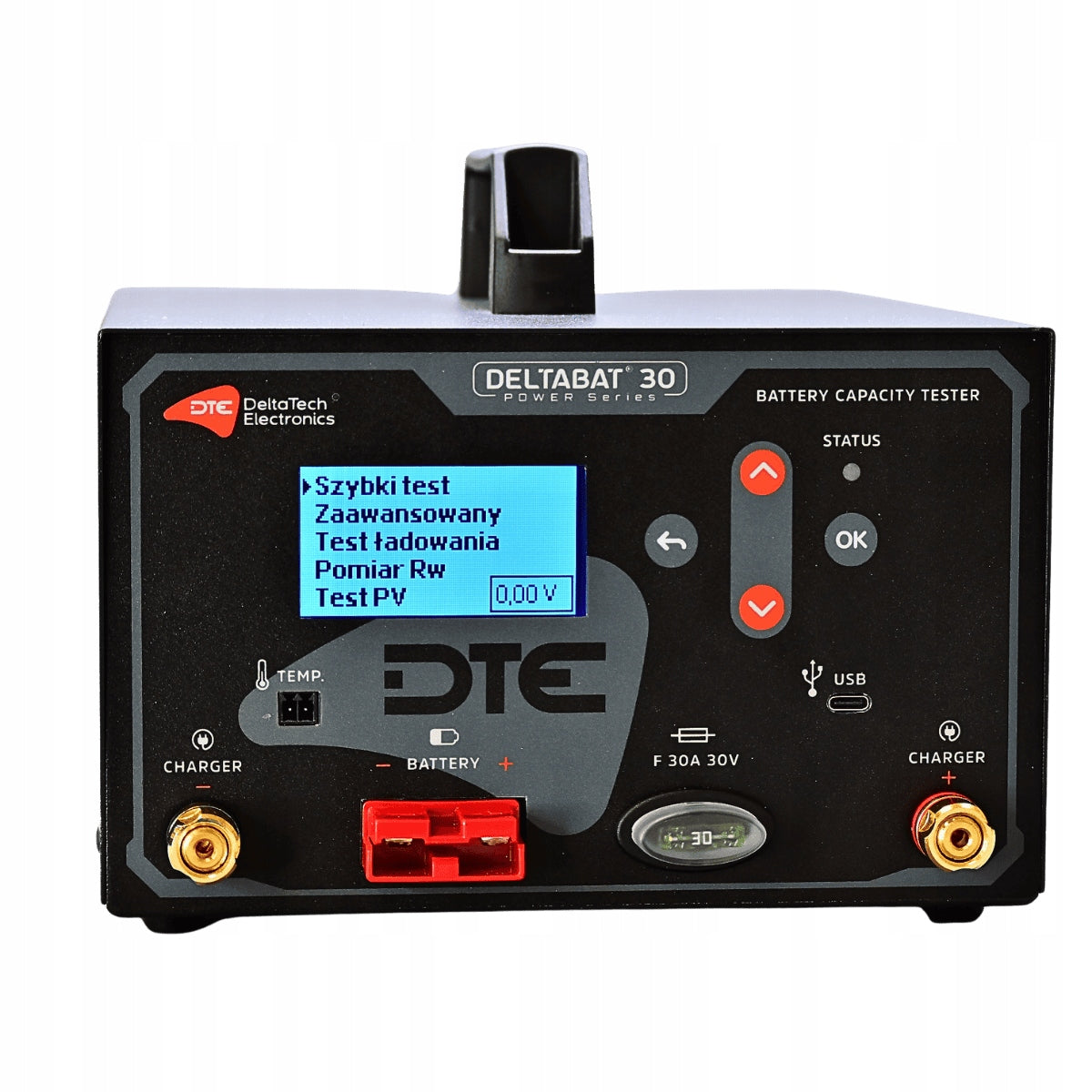

DELTABAT® 30 Battery Capacity Tester

DELTABAT® 30 is a professional capacity tester and discharger for operation with batteries with a voltage from 1 to 30 V. The device is adapted for intensive use in services, energy storage and complaint departments.

Application of DELTABAT® 30:

• Warranty and post-warranty verification of batteries
• objective measurement of the actual capacity at the set current and final voltage
• basis for resolving technical disputes with customers and suppliers
• Energy storage test and UPS
• checking the backup time for the set power of the receiver
• verification that the battery configuration meets the user's requirements
• Quality control of deliveries and production batches
• comparison of the declared capacity with the measured value
• selection of batches before making a purchase decision or shipping to the customer

Key functional features:

• Customizable test parameters
• discharge current from 0,1 A to 30 A
• Discharge power from 1 W to 400 W
• set test completion voltage threshold for a given type of battery, for example 10,5 V for 12 V batteries
• Working modes
• Simplified mode for quick diagnostics with default parameters
• Advanced mode with full configuration of voltage, battery type and discharge conditions
• Cyclic measurement mode up to 10 discharge and charge cycles
• Support for the charging process
• possibility of cooperation with an external charger after the test
• monitoring of the charging process and recording of parameters
• Additional functions
• charging test with an external charger
• battery internal resistance test at constant current
• PV test for testing photovoltaic cells and determining the maximum power point
• Registration and analysis of results
• built-in internal memory for recent measurements
• Exporting data via USB to a computer application
• Generating reports in PDF format
• preview of the latest results on the LCD display of the device
• Remote software update
• Firmware update from a computer connected to the Internet
• the ability to extend the functions of the device without having to replace it
• Industrial housing
• reinforced metal construction
• adaptation to long-term work in a workshop environment

Operating parameters of DELTABAT® 30:

• voltage of tested batteries from 1 V to 30 V
• discharge current from 0,1 A to 30 A
• Discharge power from 1 W to 400 W
• charging current from external charger up to about 15 A

Power and communication:

• Power supply for the device
• AC adapter with voltage from 6 V to 24 V
• power supply from the tested battery at a discharge voltage of at least 6 V
• power from USB Type-C port during data transfer or update
• Data management
• recording measurements in the device’s own memory
• Reading data via a computer application via USB or Wi Fi network
• Export of reports in PDF format

Supported battery types:

• batteries and traction cells
• lead-acid SLI batteries
• EFB batteries with reinforced design
• AGM batteries
• gel batteries
• Li Ion, LiPo, LiFePO4 lithium batteries
• NiCd nickel cadmium batteries
• sodium ion batteries Na Ion

DELTABAT®® 30 dimensions and weight:

• length approximately 321 mm
• height approximately 170 mm
• width approximately 212 mm

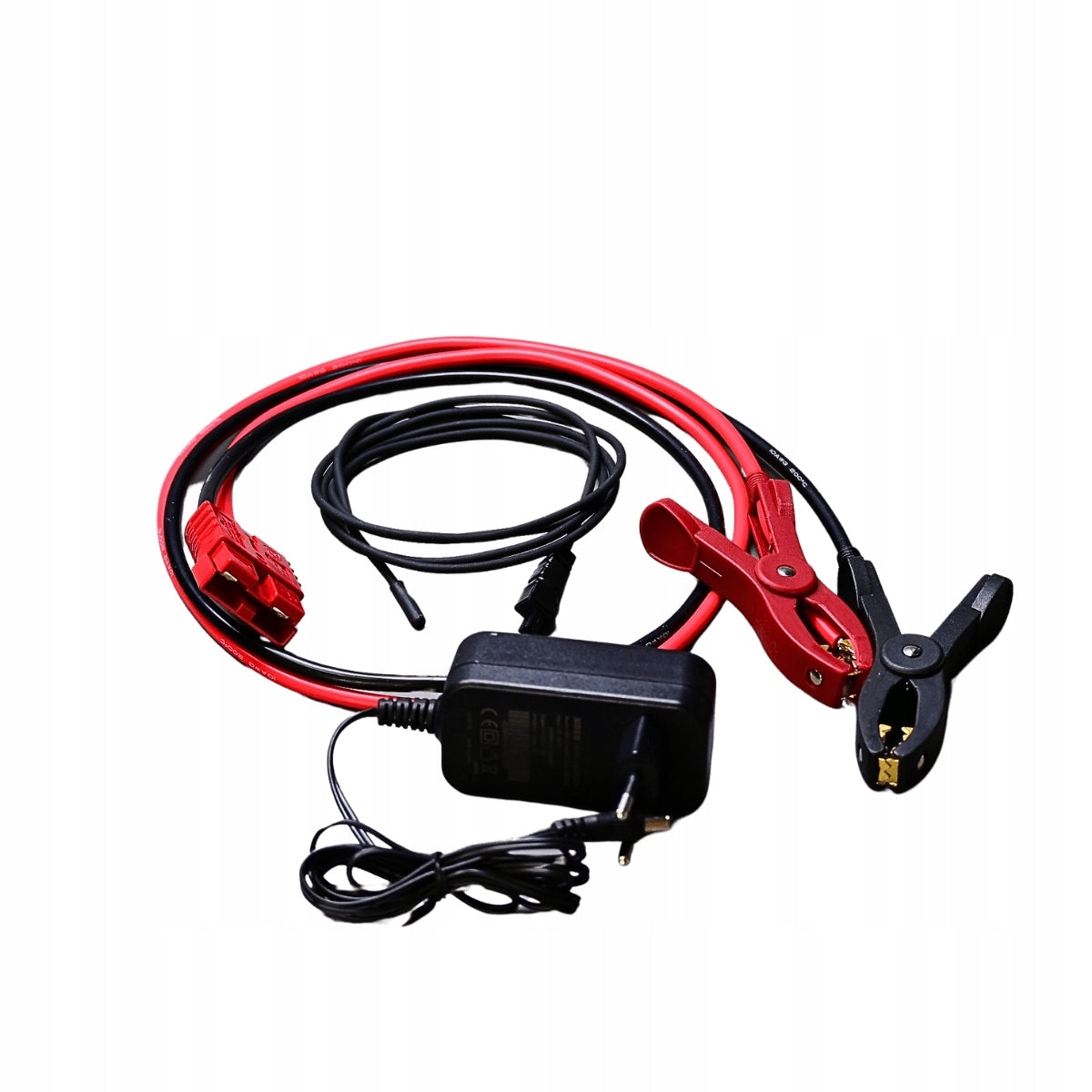

• length of measuring wires approximately 1050 mm
• weight of the device about 4,4 kg

Why you should introduce DELTABAT®® 30 to the service:

• allows you to check the actual capacity of the battery before problems occur in the vehicle or installation
• eliminates complaints based on incomplete or cursory diagnostics
• provides objective documentation of cell parameters in the form of reports
• enables fast test in simplified mode and precise tests in advanced mode
• Integrates with the POWER DeltaTech Electronics line of devices, including DBT 12+, BLT600S QR and BLT150T

Don't wait for the first signs of battery wear. Introduce DELTABAT® 30 to your service and gain a diagnostic advantage when working with fleets, energy storage and demanding individual customers.
