Akumuliatorių talpos testeris EBC-A20, 85W, LCD ekranas, ličio baterijoms

Trumpai apie prekę

Prekė: Akumuliatorių talpos testeris EBC-A20, 85W, LCD ekranas, ličio baterijoms. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 7017046

Our tester battery capacity is an extremely precise device designed do control the condition of batteries. Whether you're a professional electronics engineer or a passionate DIY electronics enthusiast, this will be the perfect choice for you. It has extensive functions, supports charging and discharging, and allows you to precisely check the capacity of the battery to make sure it is working in good condition. Choose it as a reliable partner do battery control now!

Application

It can be used do test the capacity of lithium/lead acid batteries.

Specification

• Model: EBC-A20
• Material: Iron
• Process: Spraying
• Color: Broken White
• Shape: Rectangular
• Display Type: LCD
• Computer connection: USB cable do TTL
• Total power: 85 W
• Power supply: DC 19 V-20 V, current above 3,5 A
• Voltage setting: 0,00-30 V, minimum step 0,01 V (maximum 18 V when charging)
• Current setting:
• Discharge: 0,1 A-20 A, minimum 0,01 A (automatic current limitation when power consumption is exceeded)Charging
• Current: 0,1 A–5 A, min. 0,01 A (automatic current limitation when power consumption is exceeded)
• 3 modes: DSC-CC (direct current discharge), DSC-CP (constant power consumption), CHG-CV (constant voltage and constant current charging)
• Test voltage: 0,0 – 4,5 V (low voltage), accuracy do 0,003 V
• 4,5 V to 30 V (high voltage), accuracy do 0,01 V
• Test current: 0,1 to 20 A, accuracy do 0,01 A
• Capacity test accuracy: 10 Ah / 0,001 Ah, 10 A–100 A / above 0,01 A, 100 A / 0,1 A

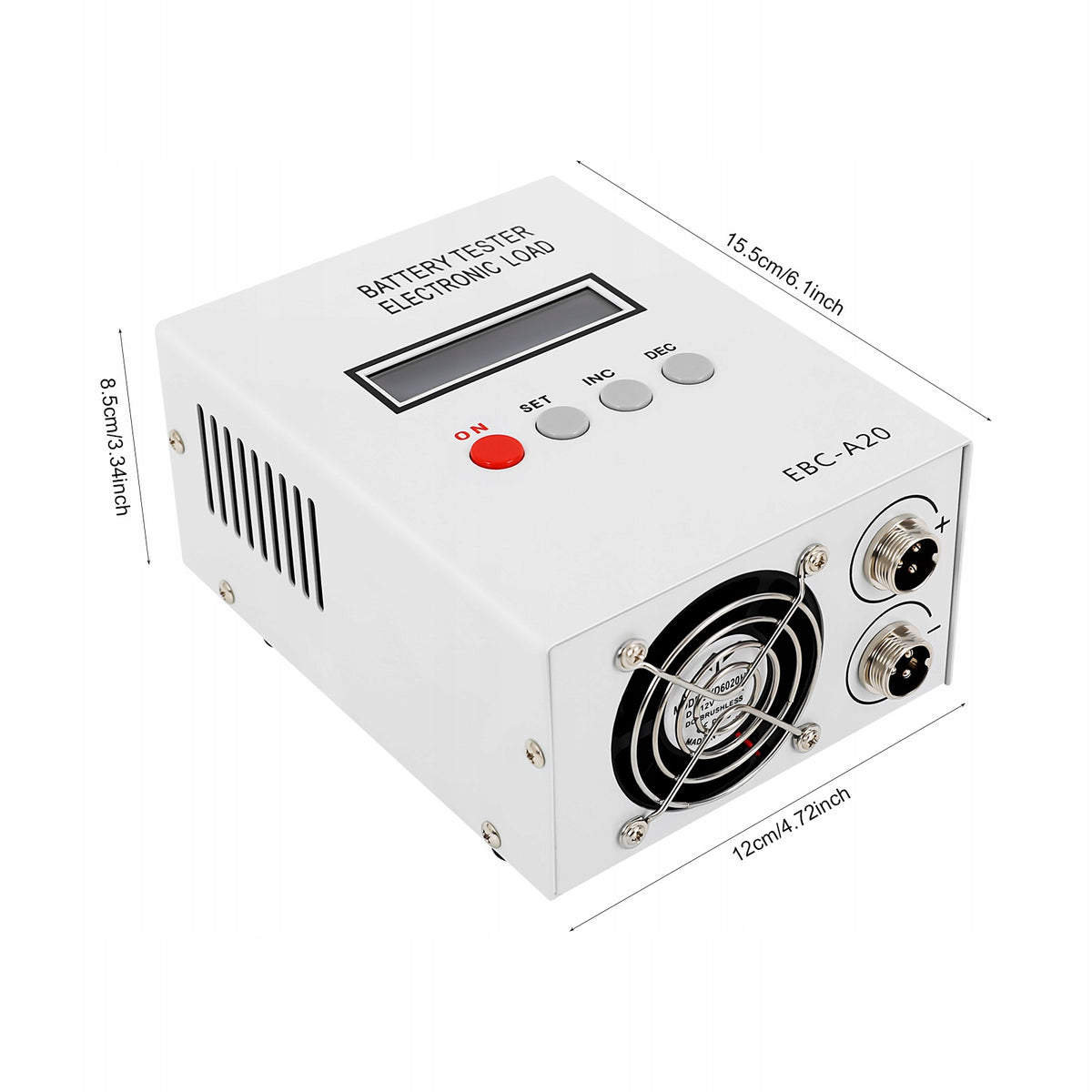

• Product Size: 12*15,5*8,5 cm/4,72*6,1*3,34 inch
• Package Dimensions: 28*25*14 cm/11,02*9,84*5,51 inch
• Masa: 1,74 kg/3,84 lb
• Masa: 1,65 kg/3,64 lb

Details

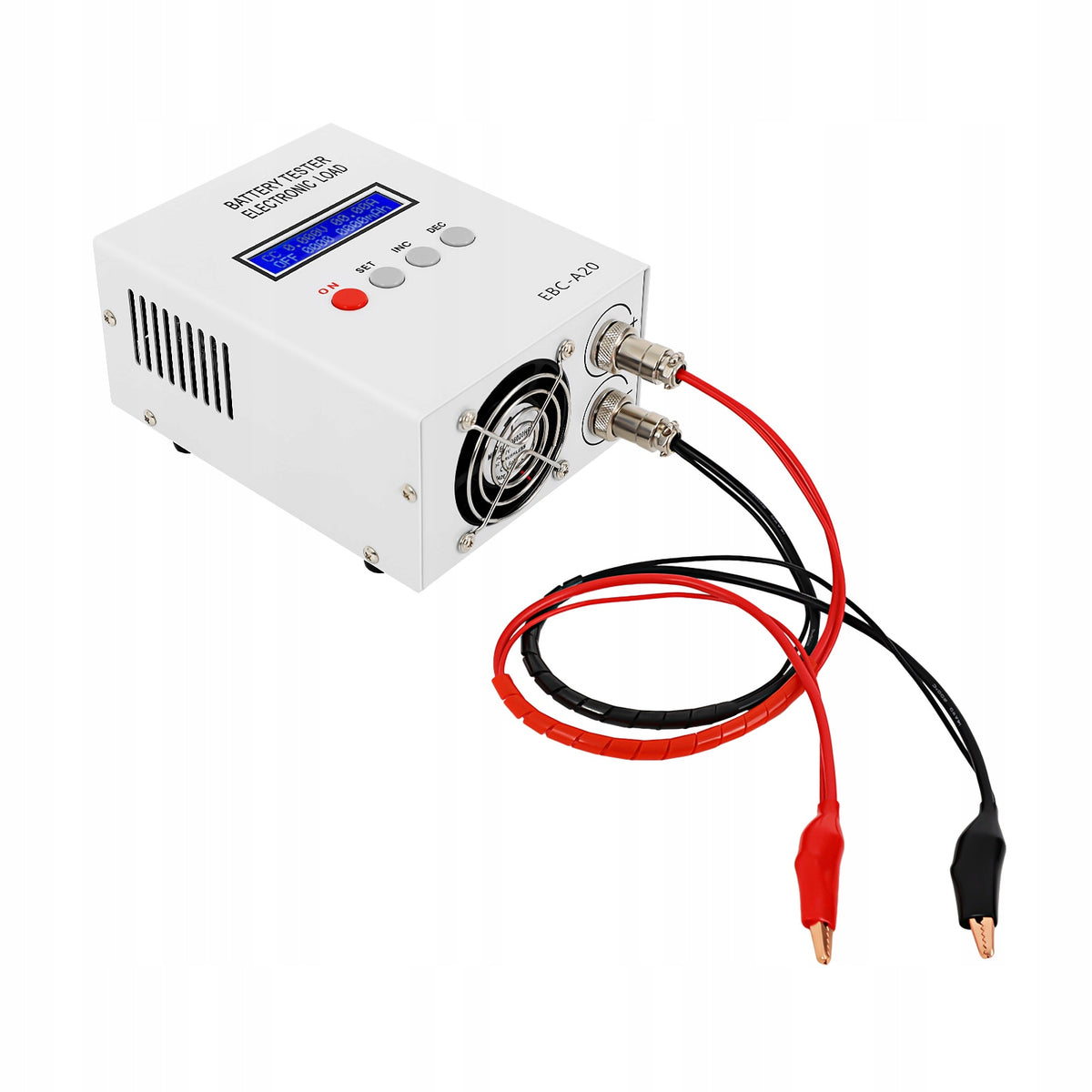

• Practical cables: Allow for convenient and stable connections, making it easy to use.
• LCD Display: It can display important data such as voltage, current, capacity, time and power consumption in real time, so you can clearly understand the situation during battery test.

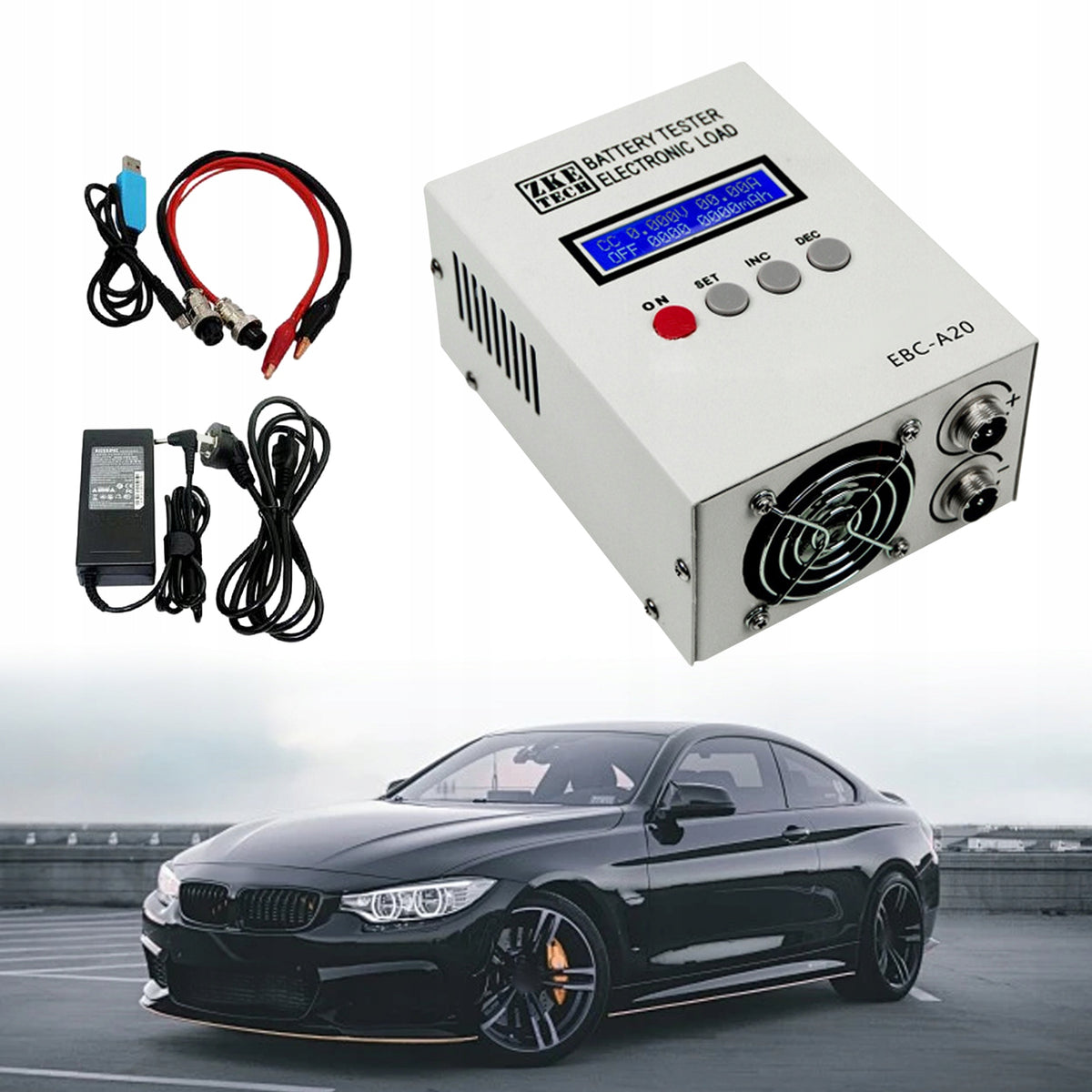

Content of the package:

• 1 x Tester battery capacity
• 1 x Power Cord
• 1 x USB Cable
• 1 pair of test clips
• 1 x Adapter

Note

1. Be careful and avoid moisture and water during use and handling.

2. Remember not to replace the positive and negative poles and always use the tester within the allowed range.

3. This model does not support charging and testing NiMH, NiCd batteries. 4. Please take into account the slight color difference caused by the shooting light and the manual measurement error of 1-3 cm.
