Akumuliatorių talpos testeris ir įkroviklis

Trumpai apie prekę

Prekė: Akumuliatorių talpos testeris ir įkroviklis. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: EBC-A40L

The device we offer is high-end modern equipment that allows convenient testing, charging and discharging of batteries and accumulators.

The most important advantages:

• high accuracy of measurement
• clear LCD screen displaying parameters
• possibility of charging multiple batteries at the same time
• universality applications
• possibility of connecting the tester to the computer via USB cable
• possibility of writing measurement data to a spreadsheet
• generating real-time voltage and current graphs
• compact size

Wide functionality

The device allows you to automatically charge and discharge the batteries, as well as test them.

Basic functions:

• battery and battery capacity test (including NiMH, NiCd, LiFe and Pb) as well as single cell capacity test
• Test of portable Power Bank batteries
• DC power supply performance test
• charging batteries or battery packs up to 22V
• charging NiMH, NiCd, LiFe and Pb batteries
• CC-CV custom charging
• CC discharge
• CP discharge
• automatic mode: charging-unloading-charging in capacity tests

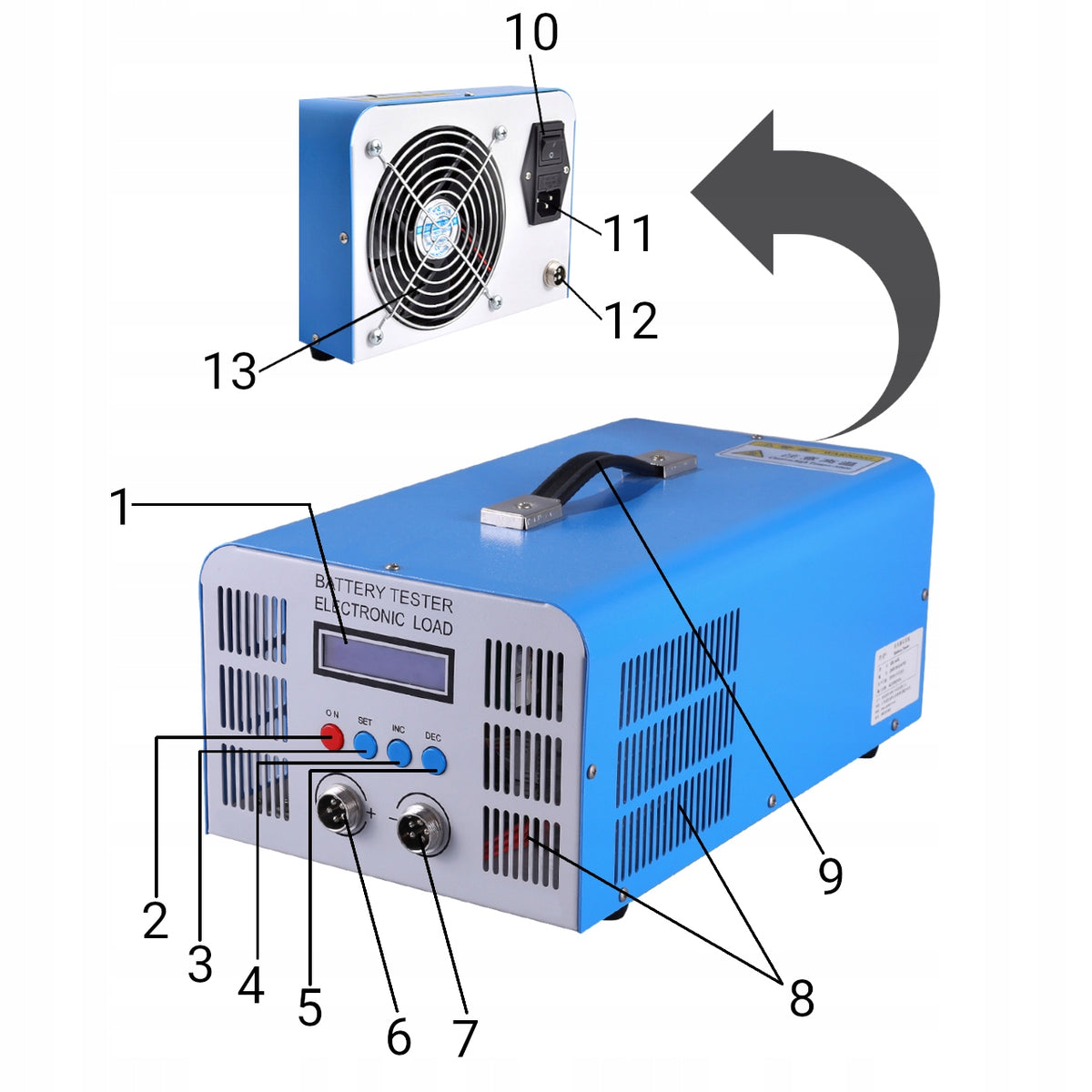

Construction of the device:

1. LCD screen
2. ON - start button of the device
3. SET - Settings button
4. INC - button to reduce parameters
5. DEC - button to increase parameters
6. "+" - socket
7. "-" - socket
8. Ventilation holes
9. Holder for carrying the device
10. Power switch
11. Power cable socket
12. TTL-USB cable socket for data transfer to PC
13. Fan

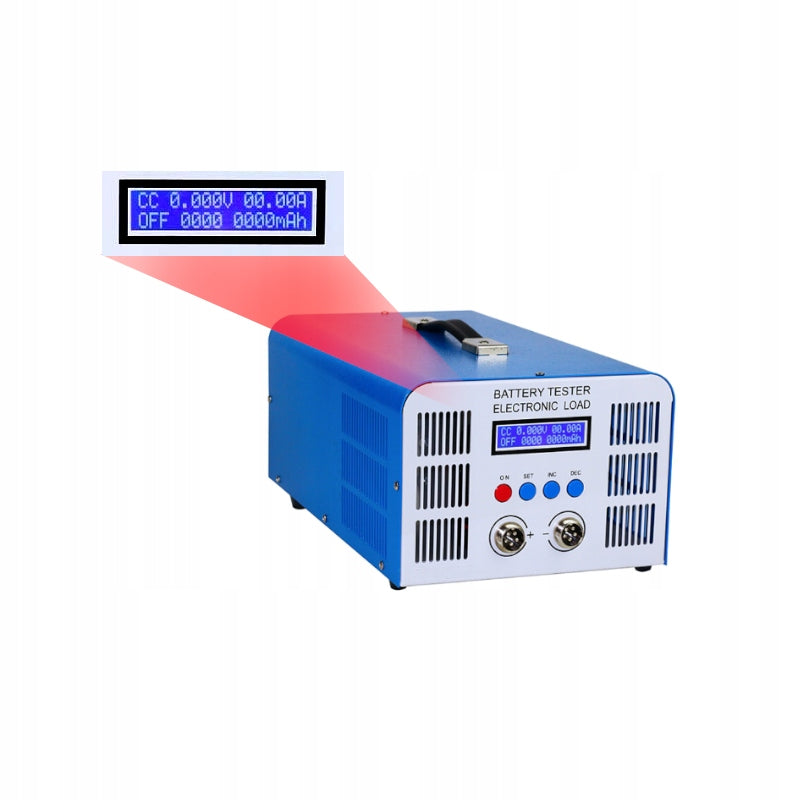

LCD screen

Clear LCD screen displaying all parameters in real time:

• tension
• current
• time
• capacity
• power
• energy

Software for computer

With EB Tester Software you can save the measurement data of the device in a file. csv, draw voltage and current graphs over time, as well as archive the collected data.

Automation of cell test

In addition, you can program the automation of the cell or battery test.

Example scenario:

1. Charge the battery up to 3,65V with 20A current
2. Wait an hour
3. Discharge the battery to 2,5V with 40A current
4. Wait an hour
5. Do 10 cycles

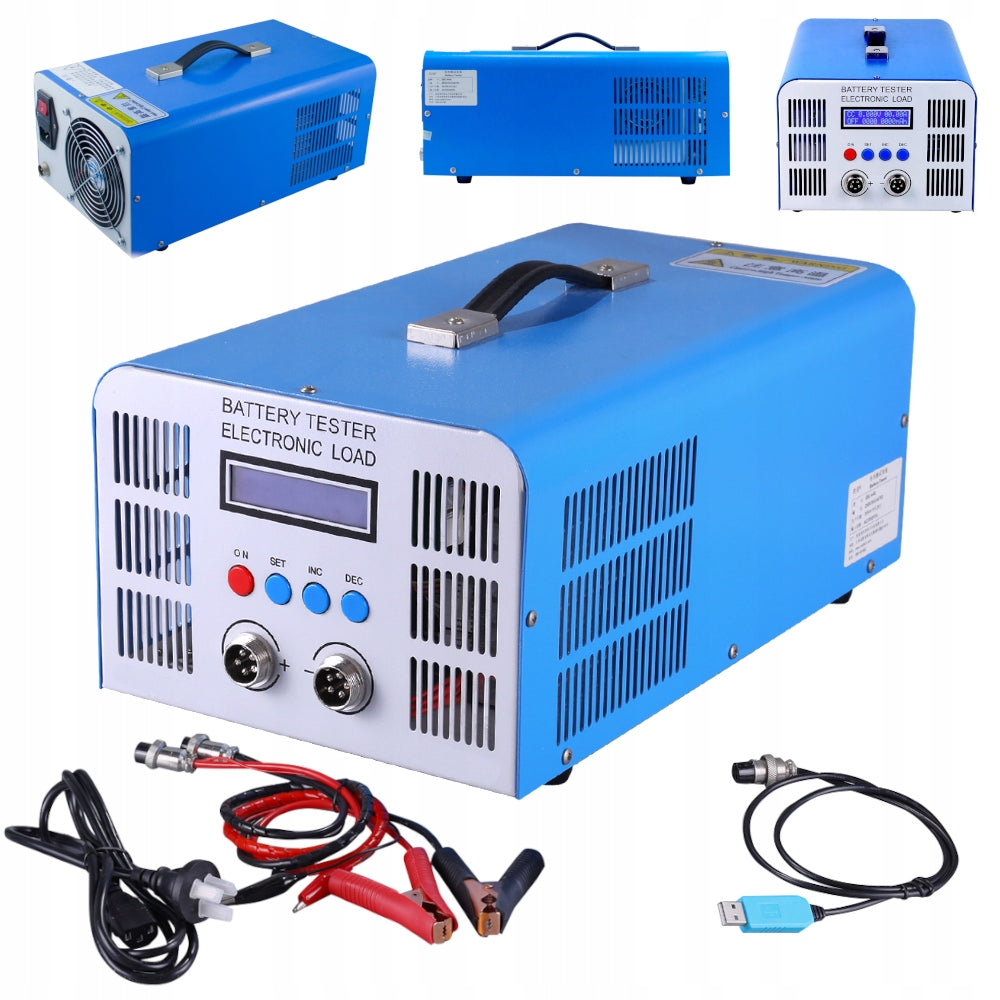

Set Contents:

1. EBC-A40L Tester
2. Battery Connection Cables
3. USB-TTL cable for connection to a computer
4. Power cable

Technical specification:

• model: EBC-A40L
• Power supply: AC200-240V
• Voltage setting range: 0-5V
• current setting range for charging: 0.01-40.00A
• range of current settings for discharge: 0.1-40A
• Charging mode standard: NiMH, NiCd, LiPo, LiFe and Pb batteries
• CHG-CV charging mode: the intensity and voltage can be set at a constant voltage (for the battery) during discharge
• DSC-CP discharge mode: constant power battery discharge, DC power supply power or power supply system testing
• DSC-CC discharge mode: constant current battery discharge, battery capacity or DC power supply current testing
• auto-loading/unloading mode: "charging-unloading-charging" cycle in capacity tests
• Voltage accuracy: 0.2% ± 0.003V
• intensity accuracy: 0.2% ± 0.01A
• maximum discharge power: 200W
• weight: 5,4kg
• dimensions: 35x20x14,5cm

Sample graph of LiFEPO4 cell charging waveform - 304Ah

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	Product weight with unit packaging	7 kg
Parametry	EAN (GTIN)	5905068085417
Parametry	Manufacturer code	EBC-A40L
