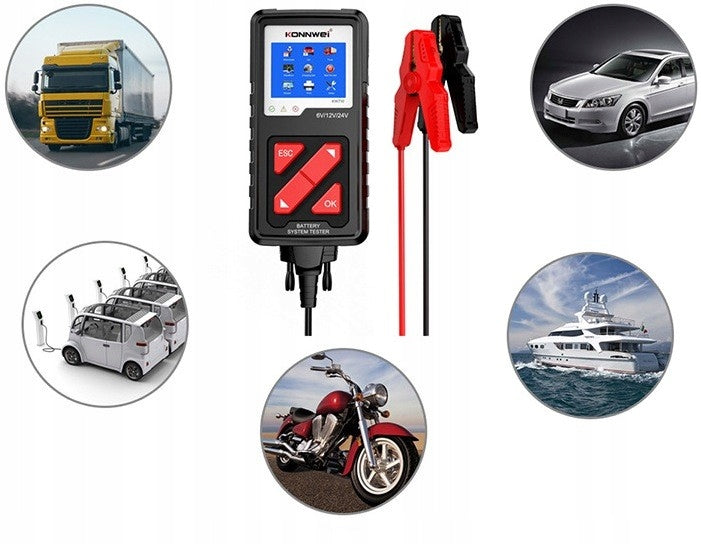

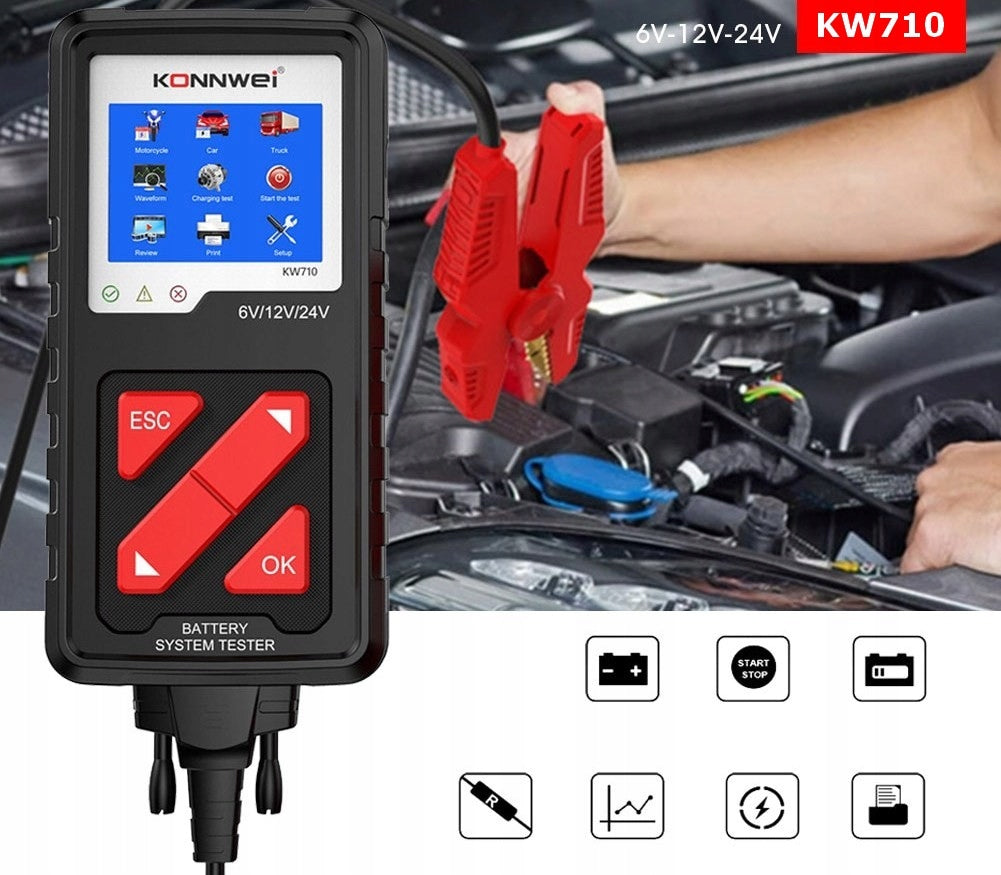

Akumuliatorių testeris 6V/12V/24V, 2–220Ah

Trumpai apie prekę

Prekė: Akumuliatorių testeris 6V/12V/24V, 2–220Ah. Kategorija: Baterijų testeriai.

• Gamintojas: Konnwei
• Modelis: KW710 j.Polski

The tester is compatible with the following batteries:

• Acid/Lead (Regular/Regular batteries)
• Flat/plate AGM
• Spiral AGM
• Gel
• EFB

Testing 6V 12V 24V batteries

12 languages available including POLISH (English, Spanish, German, French, Italian, Russian, Portuguese, Dutch, Japanese, Chinese, Korean).

The KONNWEI KW710 battery tester allows you to measure:

• voltage and % battery charge / battery test
• inrush current / crank test
• alternator operation / charging test
• internal resistance/resistance of the battery

• CCA 100-2000
• JIS 26A17--245H52
• DIN 100-1400
• IEC 100-1400
• EN 100-2000
• SAE 100-2000
• BCI 100-2000
• MCA 100-2000
• CA 100-2000

Additional functionalities of the KONNWEI KW710:

• Possibility of updating by the manufacturer
• Viewing and saving performed tests
• Printing of performed tests via USB cable connected to the computer
• Preview of parameters in the form of a graphical chart

If you are looking for a device with the ability to test batteries after specifying only the battery capacity 'Ah' (ampere-hours), without specifying the starting power 'A' (amperes), you must purchase a different Tester than the one offered at this auction. The absence of the 'A' cranking power stated on the battery label really precludes the use of this tester for batteries used in UPS, alarm control panels, energy storage, photovoltaic panels, battery toys, etc.

In this case, one solution remains to buy a battery tester:

• 24DIAG B670 (6V 12V 24V) or 24DIAG B870 (6V 12V 24V with the option of printing measurements) (available at our Allegro auctions).

These testers are the only ones in this price range that have the option of the so-called Quick Test after giving only the battery capacity (Ah ampere-hours) without giving the starting power (A amps). In addition, they have a very wide 'Ah' range of tested batteries from 2Ah to 220-300Ah, which allows testing even very small batteries.

Specification:

1. Operating Environment Temperature: 0*C to 50*C
2. Storage temperature: -20*C to 70*C
3. Housing material: acid-resistant ABS plastic
4. Battery capacity measurement range: 2Ah-220Ah
5. Voltage/Application: 6V 12V 24V
6. Input voltage: 5V~30V

Battery condition measurement results in %:

• SOC - battery state of charge
• SOH - degree of battery wear

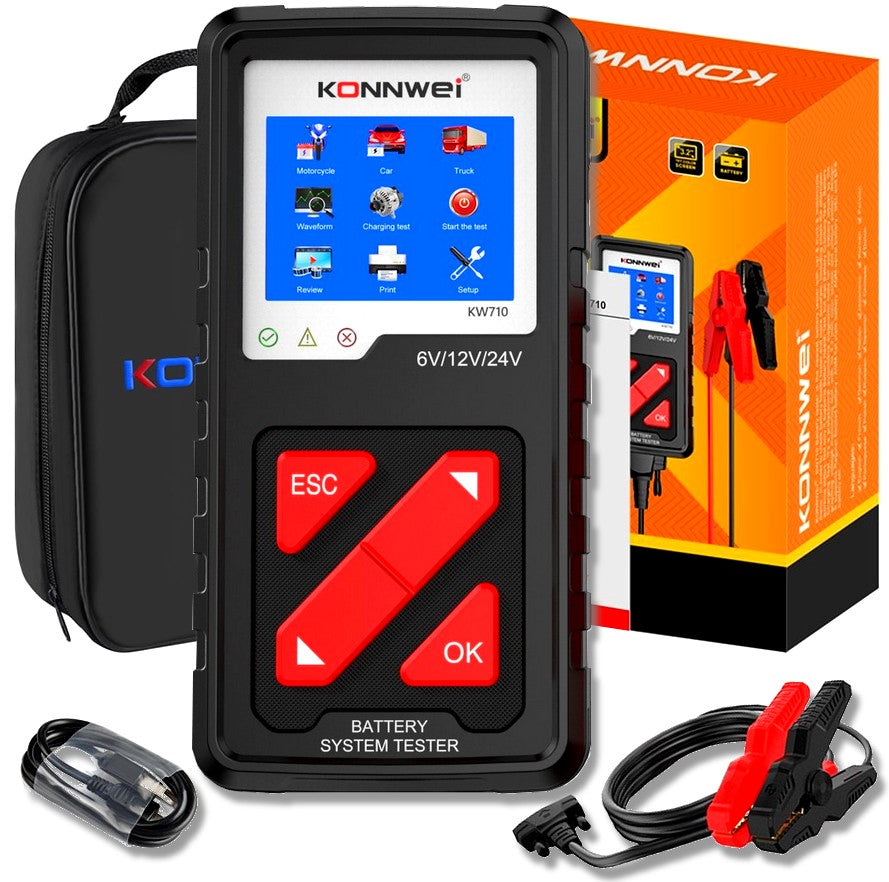

The kit includes:

1. KONNWEI KW710 tester
2. Measuring cable with crocodile clips (solid)
3. USB cable for updating and printing
4. Fabric pouch for the measuring device
5. English User Manual (paper version)
6. User manual in Polish (electronic version)
7. Original packaging (cardboard)

There is no need for additional batteries and accumulators to power the device, because it draws power directly from the tested car battery.

Cable connection:

• red (+)
• black (-)

Thanks to advanced electronics, this device has capabilities comparable to expensive professional workshop testers. And even better.

1. The device works as soon as it is connected to the tested power source.
2. Detects bad batteries.
3. Protection against wrong polarity connection . Wrong connection will not damage the tester/battery/car .
4. Direct battery test with charging dips. There is no need to fully charge the battery before testing .
5. The battery test is mainly focused on the analysis of service life by calculating its current capacity and degree of wear. Thanks to it, you can assess whether the battery needs to be replaced.
6. Thanks to the test, you will assess whether the battery supplies the car with the right current when starting and running the engine.
7. The charging test allows you to analyze the vehicle's charging system to verify that the voltage in the electrical system is correct.

1. Simple and easy to use
2. Test the battery inside and outside the vehicle (menu selection)
3. Large readable 3" color LCD display
4. Test results based on JIS, EN, DIN, SAE and IEC standards
5. Testing the vehicle starting system : starting time, voltage and condition
6. Vehicle charging system test: load voltage, unload voltage
7. AH range: 2-220AH

• height: 20.4 cm
• width: 10.3 cm
• thickness: 3.6 cm
• length of measuring cables: 270cm

• A SURE GUARANTEE
• TECHNICAL ASSISTANCE
• QUALITY GOODS
• POST-WARRANTY SERVICE IN POLAND

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Konnwei
Parametry	Rated voltage	12 V
Parametry	Product weight with unit packaging	0.99 kg
Parametry	EAN (GTIN)	5904954300573
Parametry	Manufacturer code	KW710 j.Polski
