Akumuliatorių testeris 6V–72V su ličio spausdintuvu

Trumpai apie prekę

Prekė: Akumuliatorių testeris 6V–72V su ličio spausdintuvu. Kategorija: Baterijų testeriai.

• Gamintojas: Autool
• Modelis: BT880 0-80V DRUKOWANIE Lithium 30-300Ah

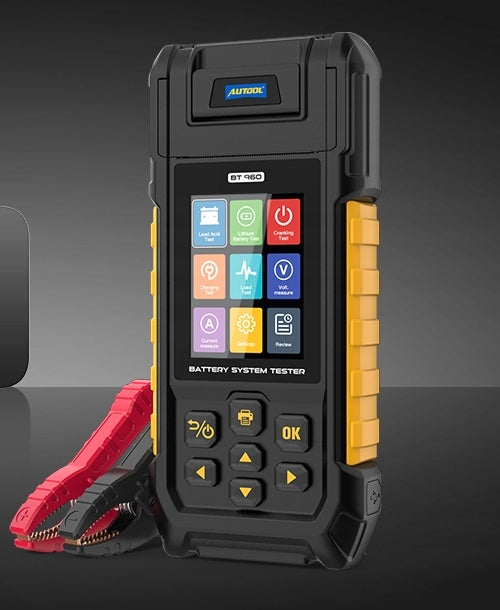

AUTOOL BT960 - Professional Car Battery System Tester – Diagnose and Save with Precision!

**Did you know that battery failure is one of the most common causes of car breakdown? Don’t risk expensive visits to the workshop! With the AUTOOL BT960 you can check the battery status yourself in seconds – quickly, accurately and without specialized equipment. This advanced tester is a must-have for any amateur mechanic or professional. It supports lead-acid and lithium batteries, tests start-up, charging and leaks – all on a 3,2-inch color HD display.

Presentation of the device:

https://www.youtube.com/watch?v=Lg1r0xgDnmI

https://www.youtube.com/watch?v=8U8f4MEfJ_Q

7 Advanced Test Functions in One Device:

• Lead-acid battery test: Measures voltage, resistance, cold starting current (CCA), remaining capacity (SOC) and service life. Supports types: conventional flooded, AGM flat plate, AGM spiral, EFB flooded, GEL.
• Lithium Battery Test: A revolutionary feature for modern cars! Supports lithium-iron, polymer, ternary and more. Displays voltage, current, resistance and SOC for cells from 3,6V to 51,8V (up to 14 cells).
• Start Test (Cranking Test): Checks the performance of the starter – monitors the voltage during engine start-up (min. 9,6V). Wait only 15 seconds!
• Charging Test: Evaluates the charging system – measures min./max. voltage after starting the engine (standard: approx. 14,4V).
• Load Test: Simulates the maximum load (turn on all electrical devices) – ideal for detecting weak points.
• Voltage measurement: Oscilloscopic real-time view of the voltage wave (RMS, min., max.)
• Current measurement: DC from 0 to 10A with zero and hold function – plus leakage detection (leakage) for longer battery life!

If you are looking for a device with the ability to test batteries after specifying the same capacity of the battery 'Ah' (ampere-hours), without specifying the starting power 'A' (amps) you need to purchase a different Tester than offered in this auction. The lack of the specified starting power 'A' stated on the battery label actually excludes the use of this tester for batteries used in emergency UPS power supplies, control panels, energy storage, photovoltaic control panels, battery toys, etc.

In this case, one solution remains to purchase a battery tester:

• 24DIAG B670 (6V 12V 24V) or 24DIAG B870 (6V 12V 24V with option to print measurements) (available at our allegro auctions).

These testers are the only ones in this price range that have the so-called option. Quick Test after specifying the battery capacity itself (Ah ampere-hours) without specifying the starting power (A amperes). In addition, they have a very wide range of 'Ah' tested batteries from 2Ah to 220-300Ah, which allows you to test even very small batteries.

Why is AUTOOL BT960 your best choice?

• CURRENT and Temperature Leak Monitoring: Detects hidden power leaks, saving energy and prolonging battery life. Real-time temperature monitoring for precise results (optimally 20-25°C).
• Built-in Thermal Printer: Print results on site! Add registration number, date or VIN. Requires >8V battery or external 5V/1A power supply – professionalism in your hands!
• Safety in First Place: Reverse polarity protection (no risk of damage), insulated test clips and anti-leakage features. Test even dead batteries without pre-charging!

Technical Specifications – Professional Quality in Compact Form

• Voltage Measurement Range: 0-80V (supports 6V, 12V, 24V, 36V, 48V, 60V, 72V systems – from motorcycles to trucks! ).
• Current Range: 0-10A.
• Battery Standards: CCA (30-2000), IEC (30-2500), EN (30-3000), DIN (30-2500), JIS (28A19R-N135, 30-2500), GB (30-300AH).
• Display: 3,2-inch HD color screen – readable from all angles.
• Power supply: 4 AAA batteries (4-6V, not included) or TYPE-C (5V/1A) – portable like never before!
• Working Temperature: -20°C to 50°C – works in all conditions.
• Languages: 14 options, including Polish! Easy operation for everyone.
• Additions: Up to 14 test history with dates, adjustable sleep time (e.g. 3 min), backlight, battery specification table in the help menu.

AUTOOL BT980 has a thermal printer, thanks to which:

• you will issue a physical printout of the test to the client,
• you attach the report to the service protocol,
• You will increase the professionalism of services.

The printer does not require ink – only thermal paper.

Perfect for:

• car workshops,
• battery services,
• mobile diagnosticians,
• fleets of vehicles,
• points of sale of batteries.

The tester is fast, resistant and precise – ready for intensive, everyday work.

Compatibility – Fits Everything!

Ideal for cars, vans, trucks and motorcycles. Supports parallel batteries (disconnect the negative pole for single test). Test 12V/24V startup and charging systems – from classic to hybrids with lithium batteries.

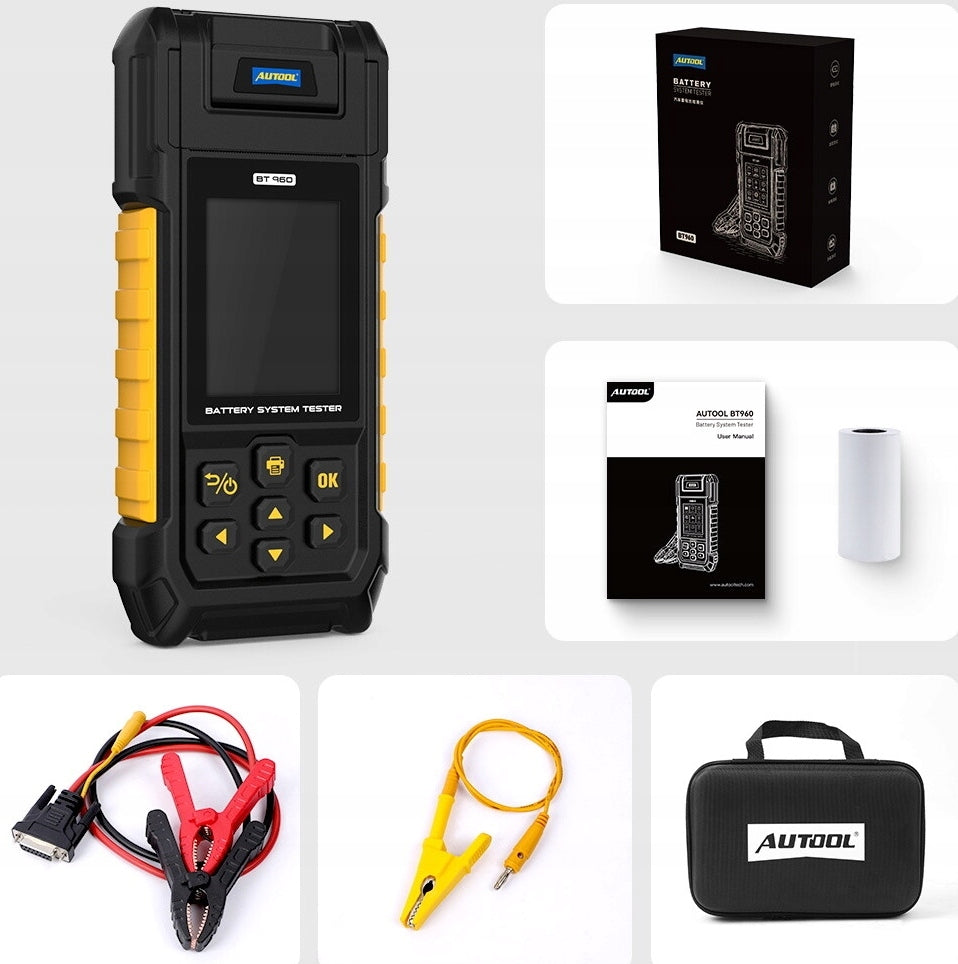

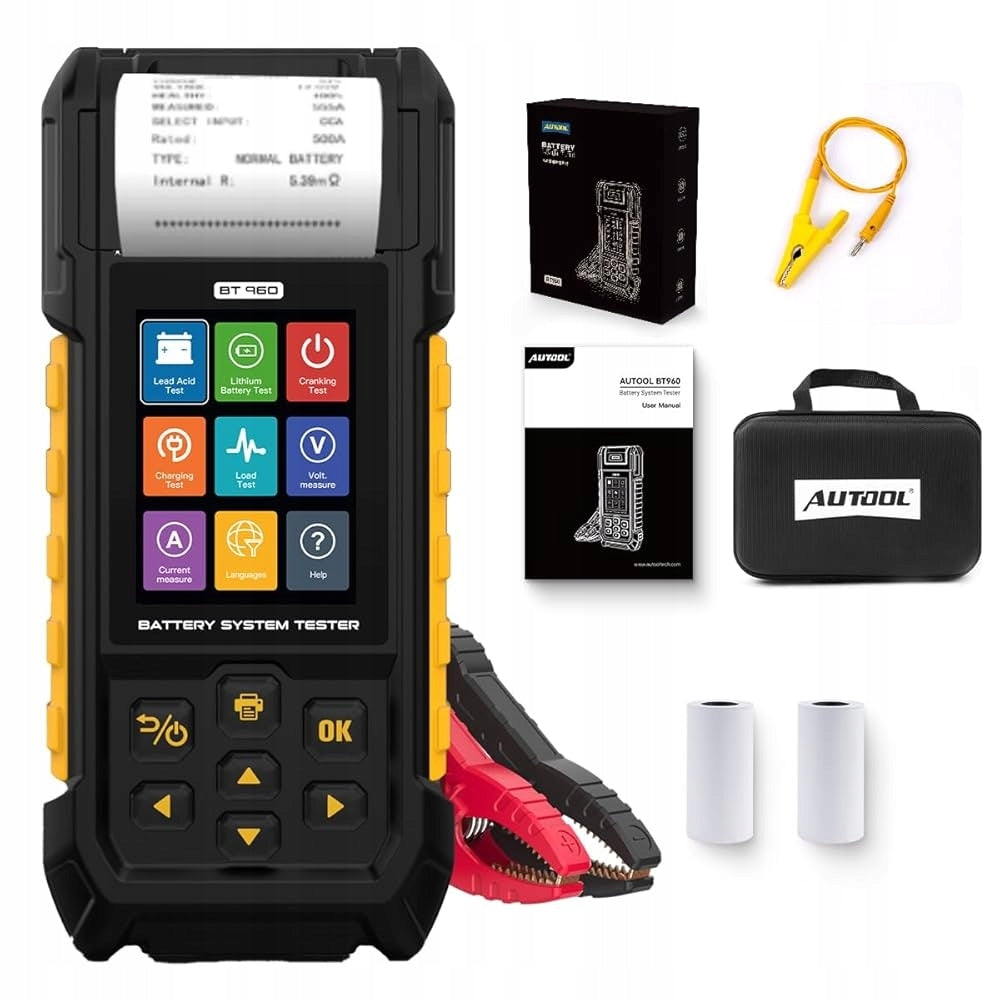

What will you find in the set?

• AUTOOL BT960 tester with built-in printer.
• Insulated test clips (red and black).
• TYPE-C cable for external power supply.
• Chamber for 4 AAA batteries.
• User manual (in English).

Presentation of the device:

https://www.youtube.com/watch?v=Lg1r0xgDnmI

https://www.youtube.com/watch?v=8U8f4MEfJ_Q

Cable connection:

• red (+)
• black (-)

• comprehensive diagnostics of electrical installations,
• fast and accurate results,
• built-in printer = professional customer service,
• operation of batteries for passenger cars, vans and trucks,
• device designed for professional use.

• CERTAIN GUARANTEE
• TECHNICAL SUPPORT
• GOODS OF ADEQUATE QUALITY
• POST-WARRANTY SERVICE in Poland
