Apraksts
Trumpai apie prekę
Prekė: Akumuliatorių testeris AGM, GEL, LiFePO4 įtampai matuoti. Kategorija: Baterijų testeriai.
- Gamintojas: Inerge
- Modelis: TAC-DC-CA-01

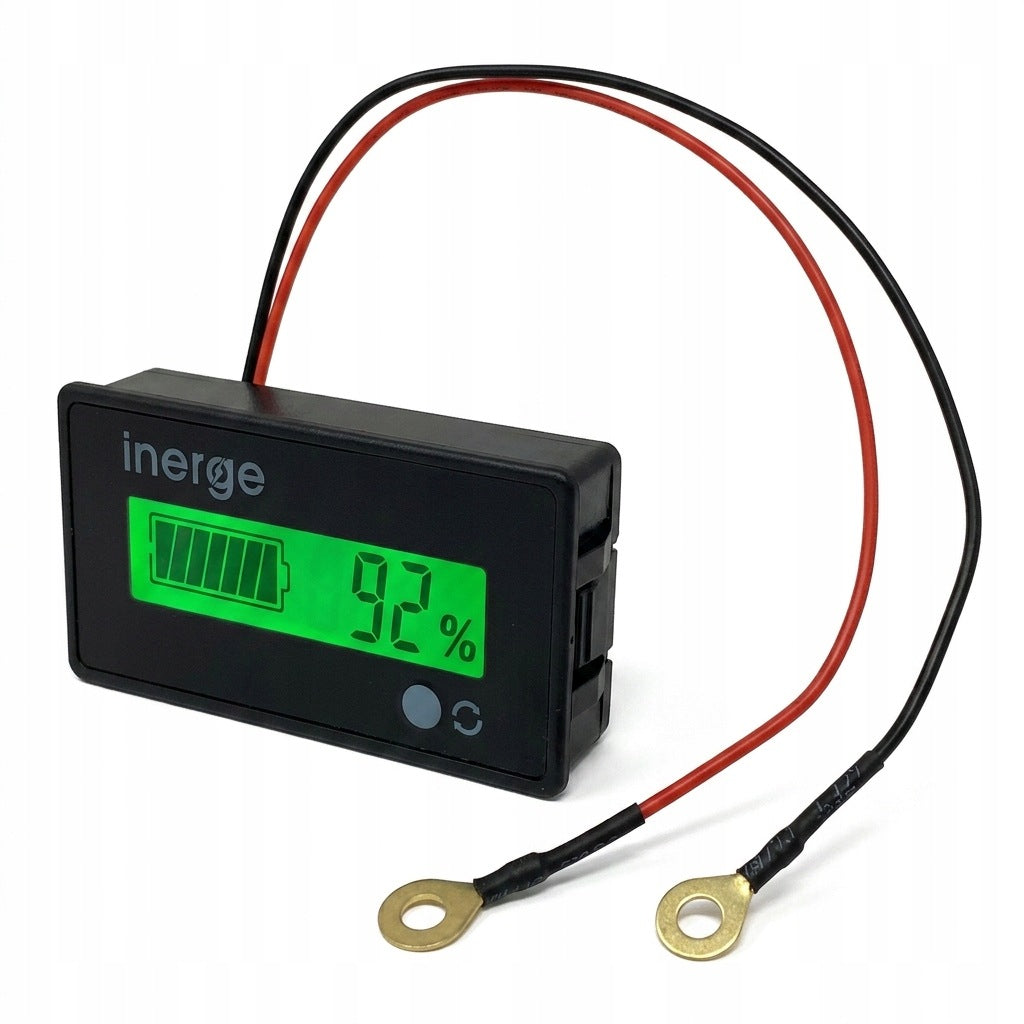

TESTER BATTERY VOLTAGE METER AGM GEL LiFePO4
Supported types of batteries:
- AGM
- GEL
- LiFePO4
- Li-ION - Lithium-ion

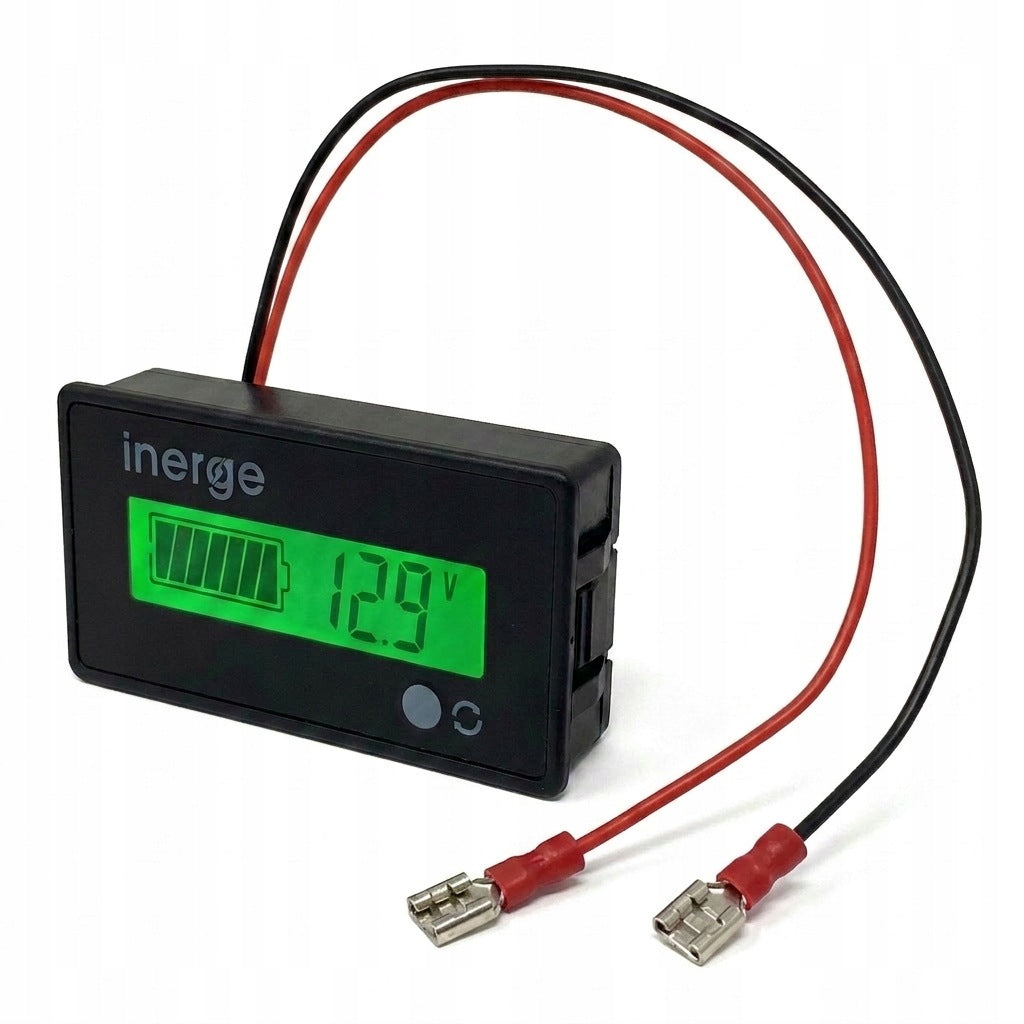

The TAC-DC-CA-01 battery tester is a meter for battery level and cell voltage. The indicator is suitable for lithium batteries with a voltage of 3.2V, lithium iron phosphate with a voltage of 3.7V and lead-acid batteries with a voltage of 12V, 24V, 36V, 48V. Dedicated for lithium-ion (Li-ION) battery packs connected in series (3 to 15 cells). The indicator should be programmed for the appropriate technology of the cells used (Li-ION, Pb) their quantity in the package, as well as the battery voltage (Pb).
- Measuring range: DC 7.4V-105V
- Refresh Rate: 100ms/time
- Measurement accuracy: 1% (1 digit)
- Minimum resolution: 0,01A
- Operating Current: 5mA
- Operating temperature range: -20°C ~ 85°C
- Operating humidity range: 5%-100% RH
- Display Screen: LCD
- Material: ABS plastic
- External dimensions: 61.3 x 33.3 x13.5mm
- Display Dimensions: 11 x 43mm
- Connection cable length: JST plug straight 2-pin, raster 2,0mm with 30cm cable
- Indicator hole size: 58,5 x 28,5mm
- Weight ~120g
User manual of the tester in the additional information tab.
- Faston 187 - T1 flat connector
- Faston 250 - T2 flat connector
- eye connector M6
- eye connector M8
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Inerge |
| Parametry | Rated voltage | 12 V |
| Parametry | Product weight with unit packaging | 0.12 kg |
| Parametry | EAN (GTIN) | 5905036260594 |
| Parametry | Manufacturer code | TAC-DC-CA-01 |
