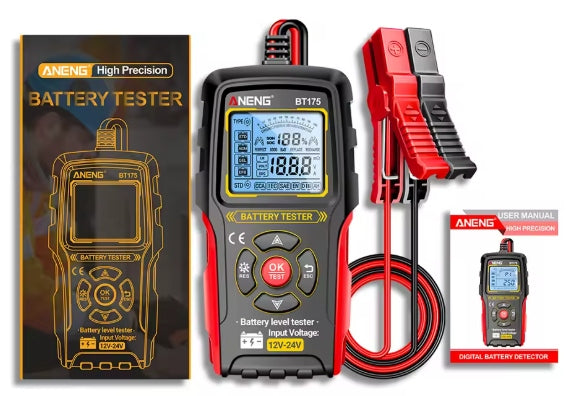

Akumuliatorių testeris ANENG BT175, 12V/24V, LCD ekranas

Trumpai apie prekę

Prekė: Akumuliatorių testeris ANENG BT175, 12V/24V, LCD ekranas. Kategorija: Baterijų testeriai.

• Gamintojas: Aneng
• Modelis: BT175

The ANENG BT175 battery tester is a highly advanced diagnostic device designed for car mechanics, service technicians and demanding drivers. This tool is used to precisely and instantly test the health status, charge level, internal resistance and voltage of lead-acid batteries operating in 12V and 24V installations. The device supports a wide range of international measurement standards, including CCA, IEC, SAE, EN, DIN, and AH, making it a versatile solution for testing batteries in passenger cars, trucks, motorcycles, electric vehicles, and forklifts. The meter allows for an accurate assessment of the starting capacity and overall life of STD, AGM, GEL and EFB cells, providing real-time key data necessary to assess the condition of the power supply system.

The construction of the BT175 is based on a robust, reinforced plastic housing, which is equipped with an integrated, fold-out kickstand for easy stationary work. The front of the device is occupied by a large, extremely readable LCD screen with bright backlight, providing excellent visibility of results even in the most difficult lighting conditions, such as darkened workshops or garages. The tester is distinguished by the fact that it does not require additional battery power – it draws energy directly from the tested battery, which makes it always ready to work in the field. The safety and reliability of measurements are ensured by high-quality insulated crocodile clamps with a strong compression to prevent slipping, and the system is enriched with an intelligent warning function in the event of poor contact between wires and poles. Intuitive interface with clear navigation buttons allows for trouble-free and quick configuration of parameters before proceeding with the test.

Key specification

- Brand: ANENG

- Model: BT175

- Supported installation voltages: 12V/24V

- Operating voltage range: 8V - 36V

- Battery type supported: Lead-acid (STD, AGM, GEL, EFB)

- Measurement standards: CCA, IEC, SAE, EN, DIN, AH

- Range of accurate CCA measurement: 50 - 1999

- Rapid capacity measurement range: 3 AH - 200 AH

- High-resolution LCD display screen with backlight

- Power supply: taken directly from the tested battery

- Length of integrated wires: 62.5 cm

- Clamp jaw opening: 2.8 cm

- Operating temperature: -10°C to 50°C

- Dimensions: 16.3 x 8.5 x 3.7 cm

- Weight of the device: 270 g

- Key features of the meter:

= Battery Health Assessment (SOH)

= Charge Level Assessment (SOC)

= Measurement of internal resistance

= Detection of discharge current and voltage

= Reminder of poor contact of wires with clamps

Technical specification:

Operating parameters:

• Voltage range: 8 V – 36 V
• Operating temperature: -10°C – 50°C

Supported batteries:

• 12V/24V batteries (lead-acid)
• Note: The device does not support lithium batteries

Scope of application:

• Passenger cars
• Motorcycles
• Electric vehicles
• Forklifts
• Other vehicles with lead-acid batteries

Measurement parameters:

• Accurate CCA measurement: 50 – 1999
• Fast capacity measurement: 3 Ah – 200 Ah

Types of batteries:

• STD
• AGM
• GEL
• EFB

Test standards:

• CCA
• IEC
• SAE
• EN
• DIN
• AH

Test functions:

• Voltage measurement
• Inrush current measurement
• Measurement of internal resistance
• Assessment of battery level
• Assessment of remaining battery life

Technical specification:

Functions and equipment:

• Reminder of poor terminal contact: yes
• Integrated measuring wires: yes
• Bright screen with backlight: yes
• Rear fold-out kickstand: yes

Technical parameters:

• Opening of crocodile clamps: 2,8 cm
• Length of measuring wires: 62,5 cm
• Weight: 270 g

Power supply:

• Power supply: without battery (device powered directly from the tested battery)

The set includes

- 1 x ANENG BT175 battery tester with integrated cables

- 1 x User Manual

- 1 x Original packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Aneng
Parametry	Rated voltage	24 V
Parametry	EAN (GTIN)	5905567121968
Parametry	Manufacturer code	BT175
