Akumuliatorių testeris AUTOOL BT360, 12V, SOH/SOC matuoklis

Trumpai apie prekę

Prekė: Akumuliatorių testeris AUTOOL BT360, 12V, SOH/SOC matuoklis. Kategorija: Baterijų testeriai.

• Gamintojas: Autool
• Modelis: BT360

The latest model!!

The tester is compatible with batteries:

• Acid/Lead (regular)
• AGM flat
• AGM spiral
• Gel
• EFB

14 languages available including Polish (English, German, Portuguese, Spanish, French, Italian, Russian, Turkish, Thai, Korean, Chinese, Japanese)

The AUTOOL BT360 battery tester allows you to measure:

• battery voltage
• start-up current
• internal resistance of the battery
• Alternative operation

• CCA 100-2400
• JIS 26A17--245H52
• DIN 100-2200
• IEC 100-2200
• EN 100-1400
• SAE 100-2400
• GB 30-220Ah
• BCI 100-2400
• MCA 100-2400
• CA 100-2400

1. Battery Test
2. Startup test
3. Charging Test

Specification:

1. Working environment Temperature: -10*C to 50*C
2. Housing material: acid-resistant ABS plastic
3. Battery capacity measurement range: 2Ah-300Ah
4. Voltage/Application: 12V
5. Input voltage: 8V~20V

Results of battery status measurement in %:

• SOC - battery charge status
• SOH - degree of battery consumption

If you are looking for a device with the ability to test batteries after specifying the same capacity of the battery 'Ah' (ampere-hours), without specifying the starting power 'A' (amps) you need to purchase a different Tester than offered in this auction. The lack of the specified starting power 'A' stated on the battery label actually excludes the use of this tester for batteries used in emergency UPS power supplies, control panels, energy storage, photovoltaic control panels, battery toys, etc.

In this case, one solution remains to purchase a battery tester:

• 24DIAG B440 (6V 12V) or 24DIAG B670 (6V 12V 24V) (available at our allegro auctions).

These testers are the only ones in this price range that have the so-called option. Quick Test after specifying the battery capacity itself (Ah ampere-hours) without specifying the starting power (A amperes). In addition, they have a very wide range of 'Ah' tested batteries from 2Ah to 300Ah, which allows you to test even very small batteries.

The set includes:

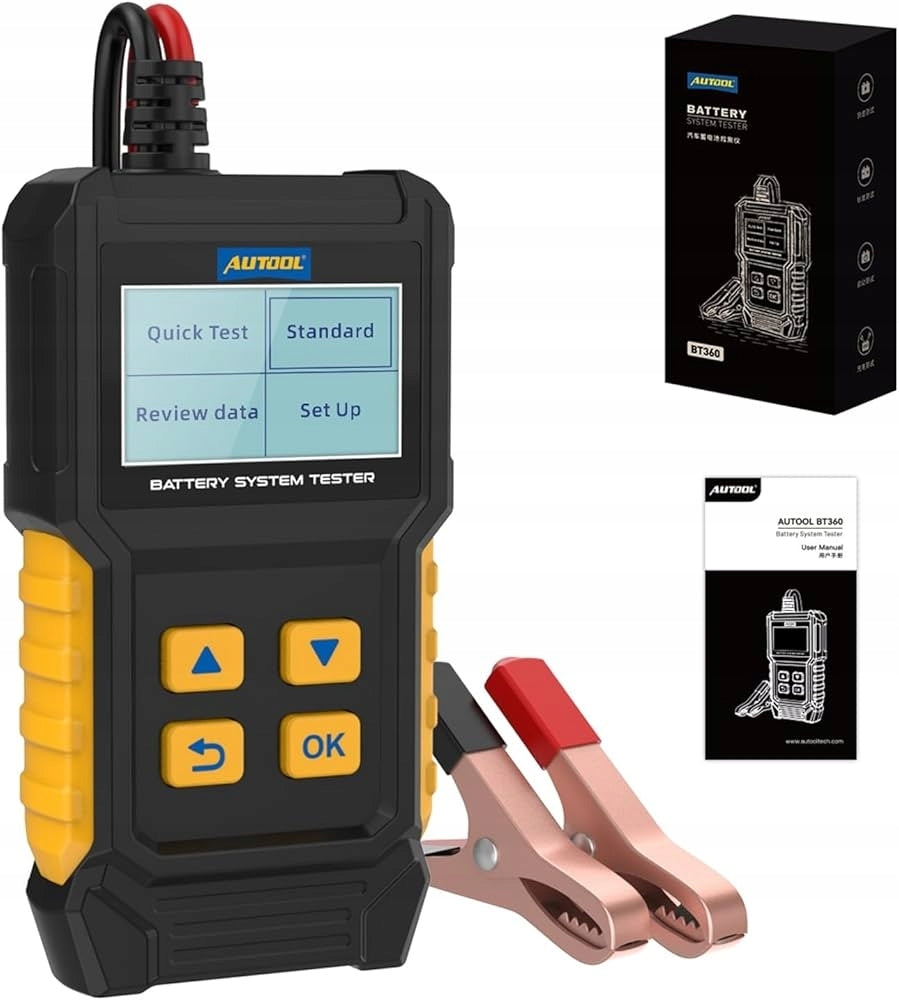

1. AUTOOL BT360 tester
2. User manual.
3. Original packaging

No additional batteries and accumulators are needed to power the device, as it draws power from the buckles directly from the tested car battery.

Cable connection:

• red (+)
• black (-)

This device, thanks to advanced electronics, has capabilities comparable to expensive professional workshop testers. And even better.

1. The device works immediately after connecting to the tested power source.
2. Detects bad batteries.
3. Protection against poor pole connection. Poor connection will not break the tester/battery/car.
4. Direct battery test with charging drops. There is no need to fully charge the battery before testing.
5. The battery test is mainly aimed at analyzing the service life when calculating its current capacity and the degree of wear. This will help you determine if the battery needs to be replaced.
6. Thanks to the test, you will assess whether the battery powers the car with the right current at start-up and engine operation.
7. The charging test enables the analysis of the charging system in the vehicle to check whether the voltage in the electrical system is correct.

1. Simple and easy to use
2. Test the battery inside and outside the vehicle
3. Large readable 2,4'' LCD display
4. Test results based on JIS, EN, DIN, SAE and IEC standards
5. Vehicle start-up system testing: start-up time, voltage and condition
6. Vehicle charging system test: load voltage, unloaded voltage
7. Range AH: 2-300AH

• Height: 14 cm
• Width: 7,5 cm
• thickness: 3 cm
• length of measuring cables: 55cm
