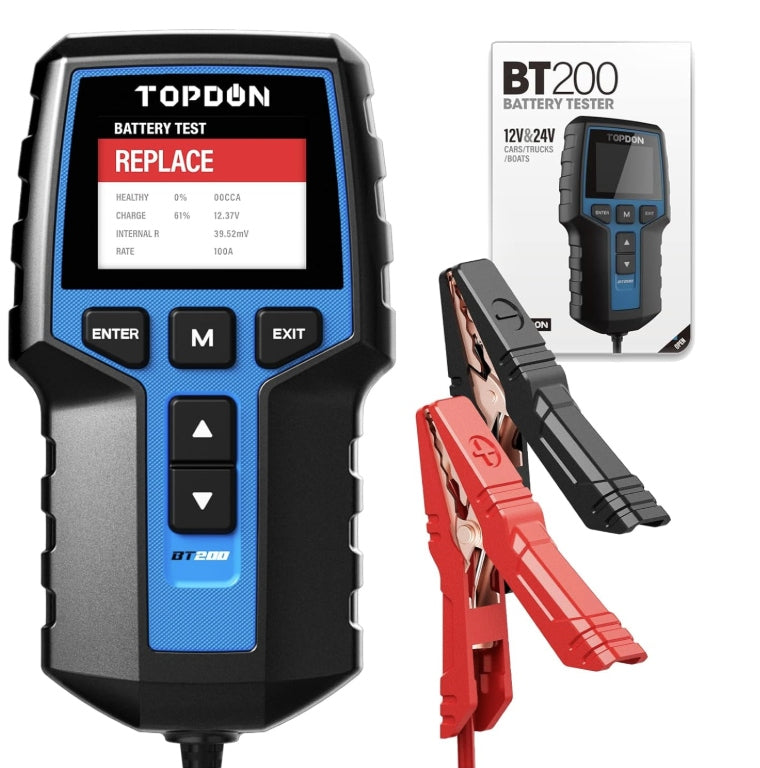

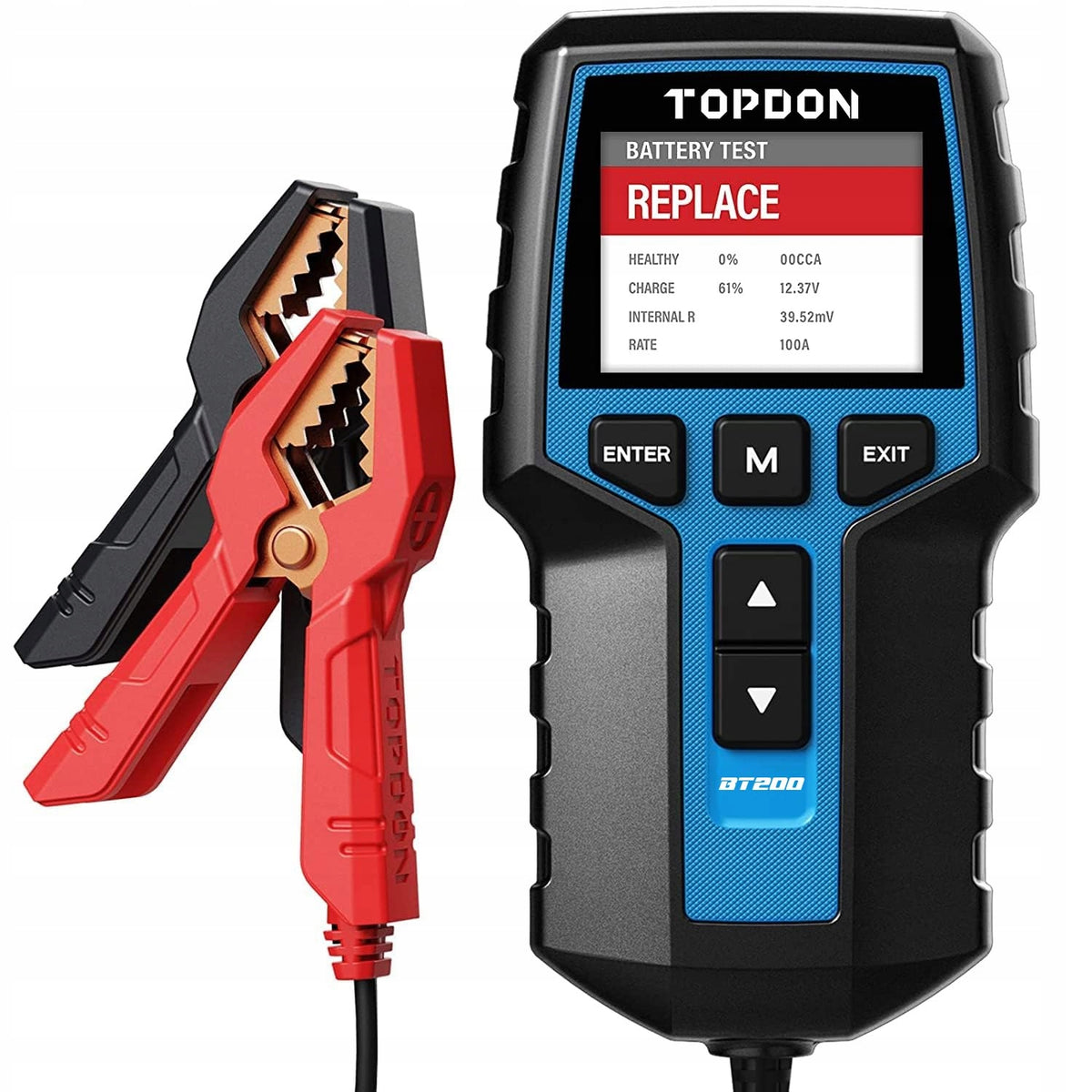

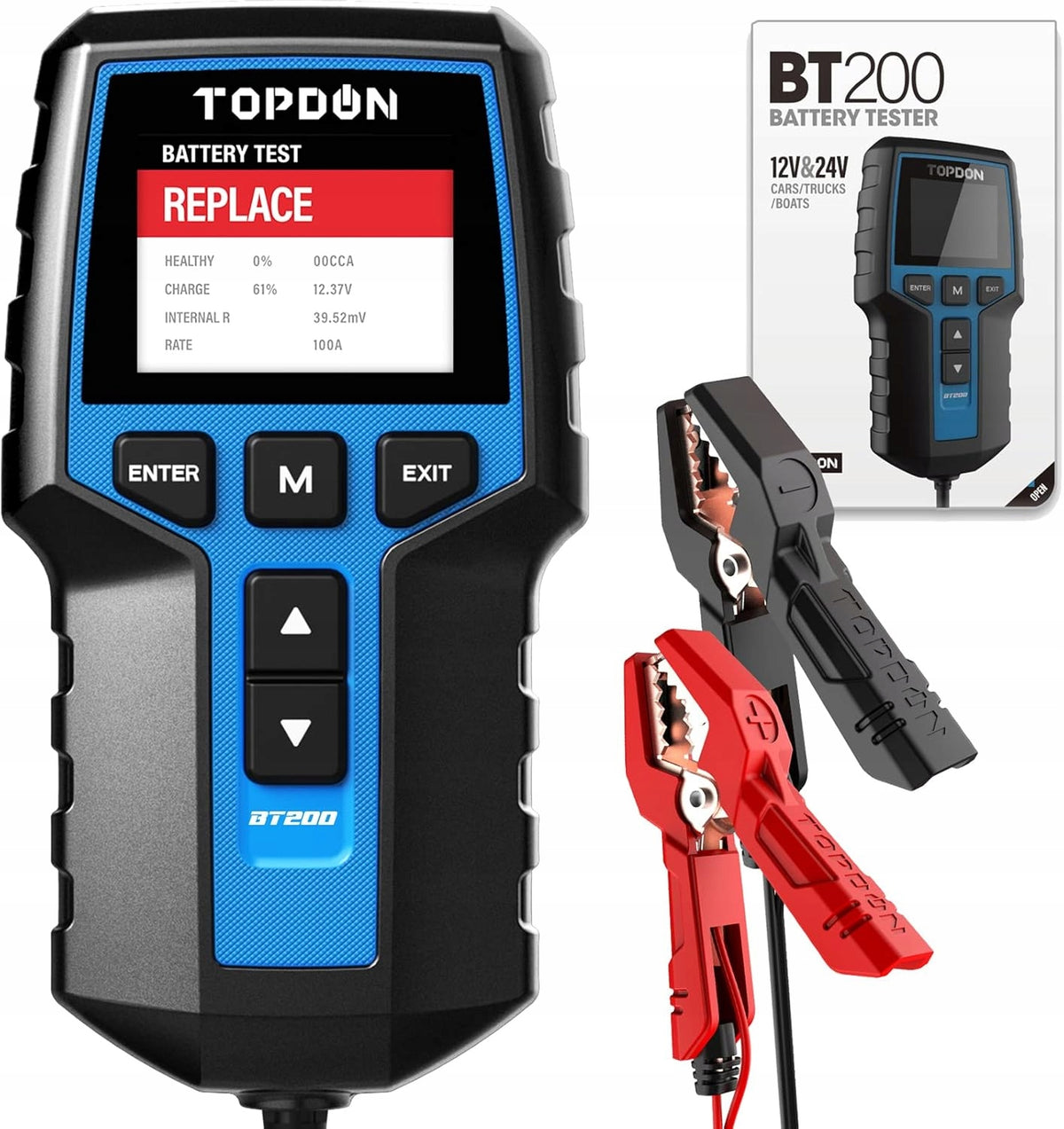

Akumuliatorių testeris TOPDON BT200, 12V/24V, 100–2000 CCA

Trumpai apie prekę

Prekė: Akumuliatorių testeris TOPDON BT200, 12V/24V, 100–2000 CCA. Kategorija: Baterijų testeriai.

• Gamintojas: Topdon
• Modelis: 0810139302933

Topdon BT200 is a professional, manual 12V and 24V battery tester, designed as a fast and precise diagnostic tool for mechanics and individual users. The device allows you to quickly assess the health of the battery, the efficiency of the starting system and the efficiency of charging the alternator without having to remove the battery from the vehicle.

By using advanced conductance measurement technology, the BT200 delivers accurate results in real time, eliminating measurement errors typical of traditional load testers. It is a durable and intuitive device that, thanks to its color LCD display and clear interface, facilitates daily control of electrical systems in passenger cars, motorcycles, boats and trucks.

The BT200 (TD5213004) offers a comprehensive overview of the vehicle's electrical condition:

• Battery Test: Analyzes health status (SOH), state of charge (SOC), internal resistance, and actual inrush current (CCA). It supports lead-acid batteries (Regular Flooded), AGM (flat and spiral), gel (GEL) and EFB.
• Start Test: Measures the voltage and time it takes for the starter to start the engine, allowing you to detect signs of electric motor wear or weaken contacts.
• Charging Test: Verifies the operation of the alternator under load and without load, checking the stability of the voltage and rectifier diodes, which prevents overcharging or undercharging of the battery.

The device has been designed to make the interpretation of data simple even for amateurs:

• Color LCD Display: The clear 2.4 inch screen presents the results graphically and textually, making it easier to work in dark garages.
• Quick Verification System: In addition to accurate numerical values, the tester displays legible statuses (e.g. “Good Battery”, “Replace”), which allows you to quickly decide on further service steps.
• Support 12V and 24V: The versatility of the device allows diagnostics of both standard passenger cars, as well as large trucks or agricultural machinery using 24V installations.

Safety and Reliability of Structure

• Non-invasive protection: The tester does not draw electricity from the battery during the test, which guarantees safety for sensitive electronic modules in modern cars.
• Multi-level Protection: Built-in protection against reverse polarity, spark and surge protection protects the device and vehicle installation against operator errors.
• Solid Clamps: Reinforced, fully insulated copper clamps provide excellent conductivity and durability during intensive use.

Technical Specification

• Feature: Detailed Specification
• Model: BT200 (TD5213004)
• Voltage Range: 9V - 30V DC
• Measuring range: 100 - 2000 CCA
• Measuring standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
• Display: 2.4-inch color LCD
• Power Supply: Directly from the vehicle under test
• Working temperature: from -20°C to +50°C

Package Includes:

The BT200 kit is handy and ready for immediate use:

• Topdon BT200 Battery Tester.
• User Manual.
• Original Protective Packaging.
