Akumuliatorių testeris YATO YT-83114, 12V, elektroninis

Trumpai apie prekę

Prekė: Akumuliatorių testeris YATO YT-83114, 12V, elektroninis. Kategorija: Baterijų testeriai.

• Gamintojas: Yato
• Modelis: YT-83114

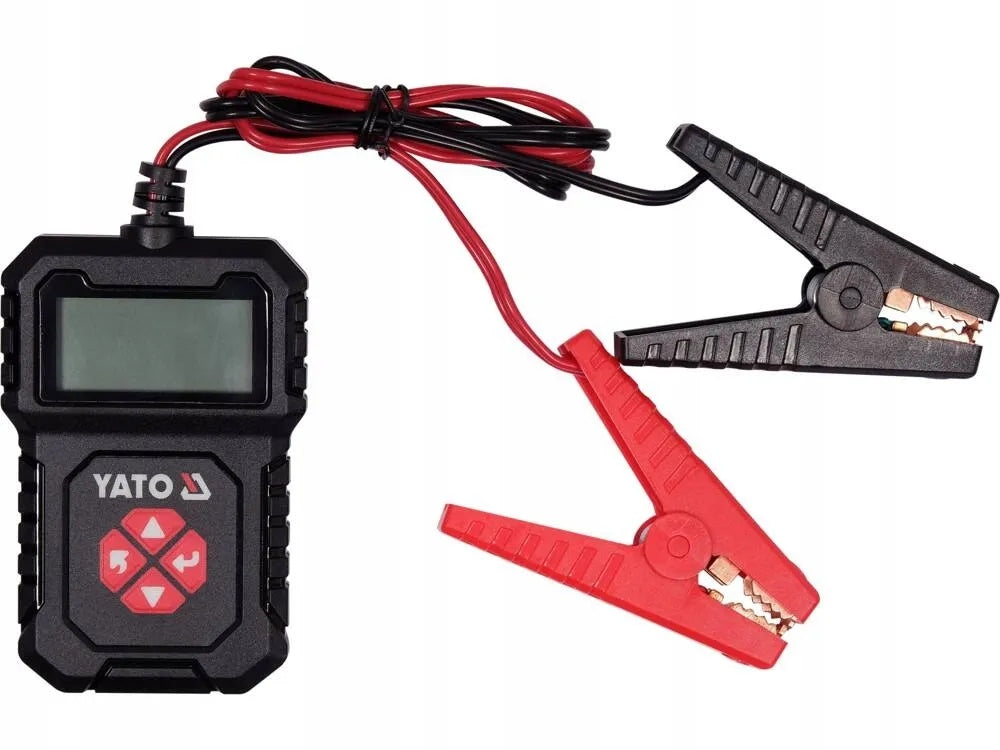

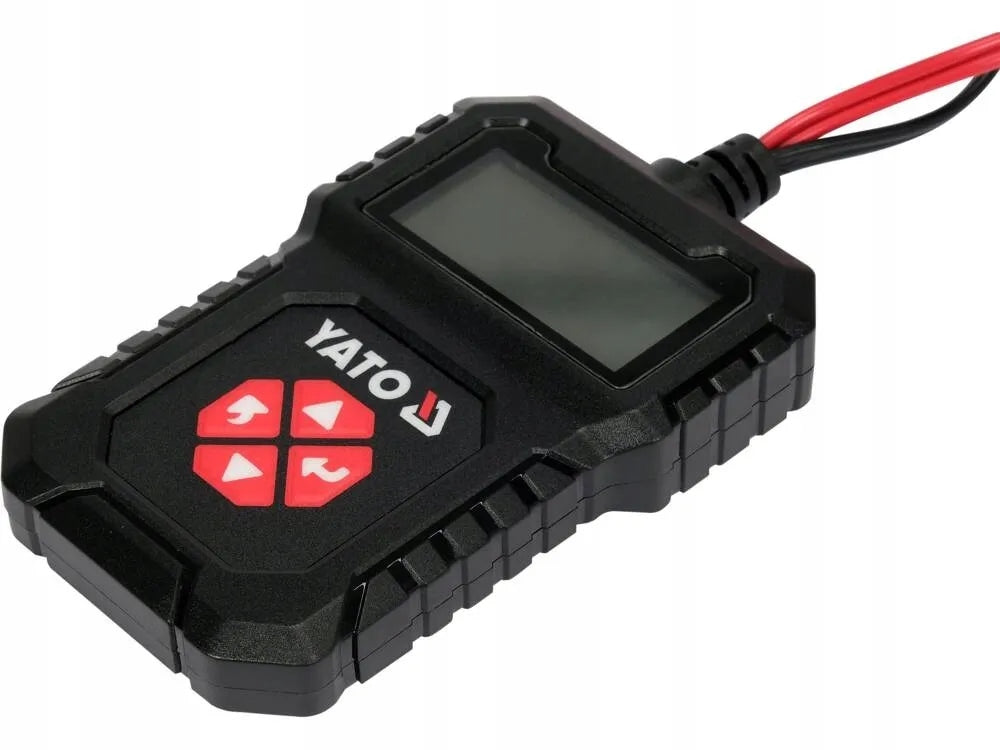

YT-83114 ELECTRONIC 12V BATTERY TESTER WITH LCD DISPLAY (100-2000 A CCA)

Advanced microprocessor battery tester YATO YT-83114 is a professional diagnostic instrument dedicated to comprehensive control of electrical installations of vehicles with a voltage of 12 V. The device allows you to instantly determine the state of battery charge (SOC),degree of internal wear (SOH) and precise diagnostics of the efficiency of the starting system (starter) and alternator (charging system).

Thanks to the extended inrush current measurement range (from 100 to 2000 A CCA), the tester can handle the diagnostics of motorcycle, passenger, delivery and heavy construction and agricultural machinery. The YT-83114 works with all commonly used battery technologies, including traditional lead-acid, deep discharge (Gel/GEL), glass mats (AGM) and high-life batteries used in cars with a Start-Stop system (EFB).

Compatibility with battery technologies

• Lead-acid (WET): Standard maintenance and maintenance-free batteries with liquid electrolyte.
• EFB (Enhanced Flooded Battery): Improved lead-acid batteries with extended cycle life, used in basic vehicles with Start-Stop systems or vehicles with a large number of current receivers.
• AGM (Absorbed Glass Mat): Advanced batteries in which the electrolyte is trapped in fiberglass mats, dedicated to extensive microhybrid systems (recovery of energy from braking).
• Gel (GEL/VRLA): Structures with electrolyte in the form of concentrated silica gel, highly resistant to deep discharges and tilts.

Supported international measurement standards

The tester calculates and converts the results based on the most popular global industrial and automotive standards:

• CCA / SAE: American cold start current standard (test range 100 - 2000 A)
• EN: European standard (test range 100 - 2000 A)

The device also fully supports measurement procedures according to the following standards: DIN (German standard), IEC (international electrotechnical commission) and JIS (Japanese industrial standard).

Main advantages and unique functionalities

• Advanced start-up and charging test: The tester is not limited to static voltage test only. It monitors voltage drops when turning the starter and measures the level of voltage generated by the alternator under load and without, also checking the ripple of rectifier diodes.

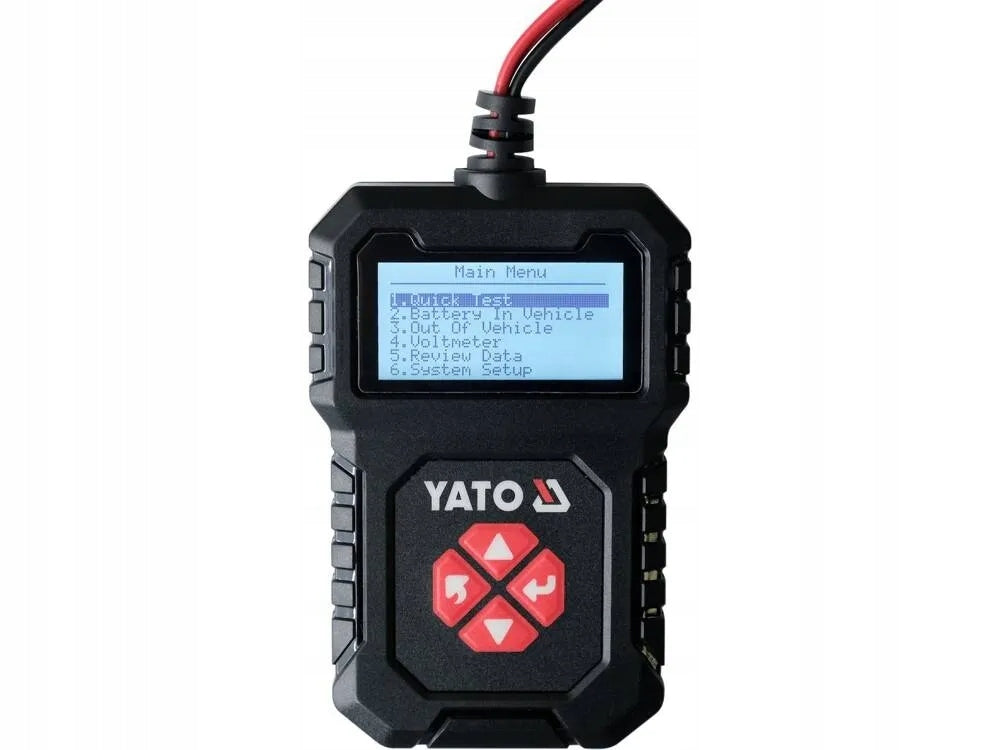

• Intuitive LCD display: The large screen space allows you to display clear charts, text messages and percentage status indicators (SOH) and battery charge rate (SOC), which eliminates interpretation guesswork.
• Resistance to extreme temperatures: A wide operating temperature range (from -10°C) enables precise winter diagnostics – that is, at a time when batteries most often fail due to a decrease in their electrical capacity.
• Measurement memory (Data Hold/Storage): The results archiving function allows the mechanic to save parameters before charging and after charging in order to present a reliable diagnostic report to the service client.

Technical parameters and specification

• Brand: Yato
• Product operator in the EU: TOYA S.A.
• Product Series: GRE
• Rated voltage of the system: 12 V d.c.
• Wide input voltage range: 8 - 30 V d.c.
• Inrush current measurement range (CCA): 100 - 2000 A
• Indicator/display type: Large, monochrome LCD screen for excellent text readability
• Power supply of the device: Downloaded directly from the test object (no need to replace internal batteries)
• Built-in internal memory: Yes (enables recording, storage and subsequent analysis of results)
• Available interface menu languages: English, German, French, Spanish, Danish
• Working temperature range: -10 ~ +60 °C (allows for comfortable work in winter conditions)
• Storage temperature: -20 ~ +70 °C
• Net weight of the device: 0.21 kg
• Catalog symbol: YT-83114

Operational and health and safety recommendations

Test preparation tips: To get the most accurate result, the battery posts (poles) must be perfectly clean. Any traces of tarnish, snow, rust or grease should be removed with a special brush for cleaning the klem. The transition resistance at the dirty contact can drastically underestimate the measured inrush current of the CCA. When testing the battery directly in the vehicle, make sure that the motor and all current receivers (radio, air conditioning, indoor lighting) are turned off.

Operational safety: Personal protective equipment, including safety glasses and work gloves, should be used when working with acid batteries to prevent accidental contact with the electrolyte. Measurements must not be made near sources of fire, sparks or sparked electrical equipment. The tester housing has a protection class adapted to workshop work, but the LCD screen should be protected from direct flooding with oil, brake fluid or water.

YATO is a valued brand by specialists, designed for car workshops, construction, finishing and gardening. The assortment includes battery, electric, combustion, pneumatic and manual tools, as well as health and safety articles. High-quality materials, a wide range of parameters and applied solutions have won the recognition of DIY professionals and users.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Yato
Parametry	Rated voltage	12 V
Parametry	Product weight with unit packaging	0.21 kg
Parametry	EAN (GTIN)	5906083094736
Parametry	Manufacturer code	YT-83114
