Eļļas sildītājs Ekonair BHC 30, 30 kW

Trumpai apie prekę

Prekė: Alyvos šildytuvas Ekonair BHC 30, 30 kW. Kategorija: Oro šildytuvai.

• Gamintojas: Ekonair
• Modelis: BHC 30

BHC 30 is a high pressure oil heater with a capacity of approx. 30 kW, exchanger designed for rapid heating of well-ventilated rooms such as: construction sites, factories, warehouses, shops, halls, greenhouses, livestock rooms. They can be used to heat entire facilities as well as selected places.

The heater has a fuel pump and a nozzle from the Danish company Danfoss.

The BHC 30 oil heater has a closed combustion chamber and exhaust chimney. Thanks to this, it provides 100% clean warm air without exhaust fumes.

Fuel is light fuel or diesel oil.

We provide full warranty and post-warranty service.

We are a direct importer of heaters

CHARACTERISTIC:

• non-heating housing made of powder coated sheet
• Automatically cooled combustion chamber with heat exchanger made of stainless steel
• Flame control with photocell
• thermostat to protect against overheating
• built-in fuel tank with level indicator
• fuel filter, fuel pump filter, air filter
• Danfoss high-pressure fuel pump
• Danfoss fuel nozzle
• thermostat for room temperature control (5-55°C)
• large and legible displays indicating the ambient temperature of the heater and the set temperature
• convenient handle for easy transport
• large wheels for trouble-free mobility of the device
• efficient fan

ADVANTAGES:

• simple operation and maintenance
• rapid heating of rooms
• clean and warm air at the outlet of the heater, without the presence of exhaust fumes
• thanks to large wheels and convenient handle easy transport
• large and legible displays indicating ambient temperature and set temperature
• possibility of connecting an external thermostat to adjust the temperature in the room
• possibility of connecting air ducts for distribution of warm air

APPLICATION:

In well-ventilated areas

• industrial, warehouse, production and tent halls
• construction sites
• rooms during finishing works.
• diagnostic stations
• workshops
• car washes
• livestock premises (pigs, cowsheds, chicken coops, stables)
• greenhouses
• for drying agricultural products (cereals, vegetables)
• for defrosting installations

TECHNICAL DATA:

Power (kW) - 29

Air flow (m³/h) - 780

Fuel consumption (kg/h) - 2,4

Cap. fuel tank (lit. ) - 56

Voltage (V/Hz) - 230/50

Fan power (W) - 300

Exhaust outlet diameter (mm) - 120

Air outlet diameter (mm )- 220

Net weight (kg) - 34,4

Gross weight (kg) - 37,8

Dimensions (mm):

- Length 1100

- Width 490

- Height 750

Shipping type Pallet shipping

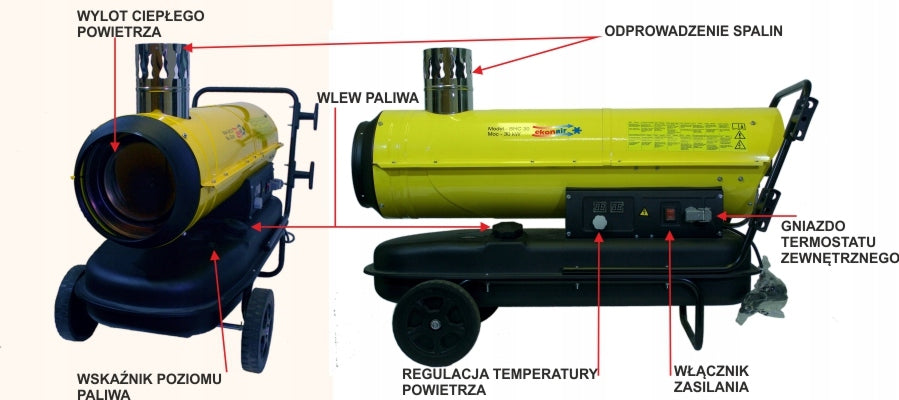

SCHEME OF CONSTRUCTION OF OIL HEATER

Specifications
