Anglies arba ekogriežlių granulių perkėlimo transporteris

Trumpai apie prekę

Prekė: Anglies arba ekogriežlių granulių perkėlimo transporteris. Kategorija: Keltuvai.

• Gamintojas: no brand
• Modelis: WW
• Galia: 1000 W

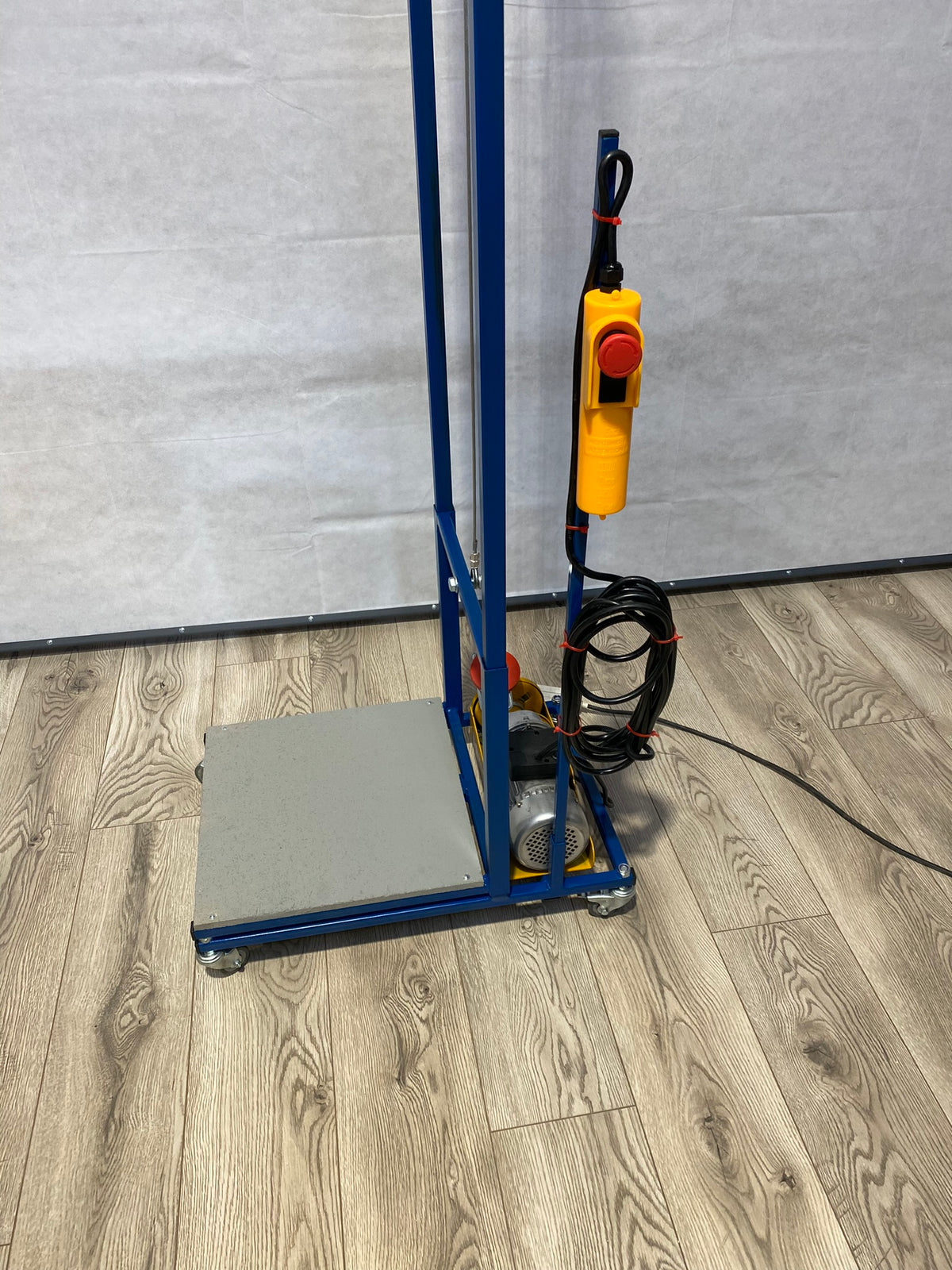

Elevator designed for transporting and loading coal, eco-peas, pellets, etc.

You are not able to carry heavy bags or want more convenience when operating the boiler, this elevator is for you!

Control by remote control up-down with the possibility of protection against accidental start-up.

The elevator design allows you to easily attach the remote control to the right or left side of the elevator, so that the user can customize it and have the greatest convenience.

The lift has swivel casters for safety with brake.

It is equipped with a limit safety switch that can be set on its own so that the elevator stops exactly at the set height (e.g. height of the feeder basket).

It also has a limit switch in the lower position.

Any content posted on this website (texts, photos, etc. ) are subject to legal protection under the provisions of the Act of 4 February 1994 on Copyright and Related Rights (consolidated text of 2006, Journal of Laws No. No 90, item. 631 from late. zm. ).

Without the permission of the author, m.in is prohibited. reproduction, copying, reprinting, storage or inny benefiting from the processing by any electronic means, both in whole and in part.

Further dissemination as referred to in Article 25(1) shall be prohibited. 1 point b of the Act of 4 February 1994 on Copyright and Related Rights.

How to use:

Take the elevator to the pile of bags lift the platform to the appropriate height, transfer the bag (push) to the platform, for safety lower the bag, then drive to the boiler, pick up the bag and pour into the tray.

Parameters of the device:

Width 50 cm

Depth 70 cm

Construction height about 200 cm (max 210cm - depends on the type of wheels)

Lifting height adjustable up to max 160 cm

Note - if the height of the lift structure is reduced, its lifting height is also reduced accordingly

Loading platform 43cm x 43cm

Drive 230V

Lifting capacity according to the regulations 35kg (solid device - is capable of lifting 100kg)

Weight 20kg

The device has a CE Declaration of Conformity

Note – are you less than 210cm tall in the boiler room? - it's no problem the construction is so made that you can shorten it to any height on your own!

All you need is a metal ball or angle grinder.

If you tell us the height of your boiler room when you buy, we will do it for you.

Note - if the height of the lift structure is reduced, its lifting height is also reduced accordingly

The lift can be freely modified according to the customer’s needs.

The device is quite versatile and can be used for various purposes.

We have been producing all kinds of elevators since 2001.

The lift has swivel casters for safety with brake.

Video with the work of the elevator - paste into the browser:

https://youtube.com/shorts/w71AWix0Uuo?feature=share
