Aizsargvārti durvīm un kāpnēm, 75–110 cm

Trumpai apie prekę

Prekė: Apsauginiai varteliai durims ir laiptams, 75–110 cm. Kategorija: Vartai.

• Gamintojas: MalPlay
• Modelis: 115261
• Spalva: white
• Medžiaga: metal

✅ The most important features of the product:

• Wide mounting range 75-110 cm – the gate can be adjusted to different widths of passages and door openings
• 2 extensions of 14 cm included – allow you to increase the width of the structure without having to buy additional elements
• Height 76 cm – a sufficiently high structure designed to protect the space from access by a small child
• Expansion mounting without drilling – quick installation between stable surfaces without the need for holes
• 4-point clamping system – adjustable pressure elements allow stable attachment of the gate
• Automatic locking system – the wing left at an angle of less than 90° automatically closes
• Opening in both directions – convenient passage through the gate regardless of the side
• Double protection of the opening mechanism – limits the possibility of accidental opening of the gate by the child
• One-handed operation – a convenient solution for everyday use
• Adjustable pressure screws – allow you to precisely adjust the structure to the width of the mounting place
• Stabilizing wall cups – increase the stability of a properly mounted gate
• Solid metal construction – suitable for everyday use at home
• White, universal colors – aesthetically blends with most interiors
• For children up to 24. month of life – as intended by the safety barrier
• For domestic use only
• Compliance with EN 1930:2011 – the product meets the requirements for safety barriers for children

✅ TECHNICAL SPECIFICATIONS

• Brand: MalPlay
• Model: BabyProtect 75-110
• Color: white
• Height: 76 cm
• Total mounting range: 75-110 cm
• Range without extensions: 75-82 cm
• Range with 1 extension (14 cm): 89-96 cm
• Range with 2 extensions (14 cm): 103-110 cm
• Number of extensions: 2 pcs.
• Width of one extension: 14 cm
• Mounting system: pressure-fit
• Number of pressure points: 4
• Drill-free installation: yes - with pressure-fit mounting
• Wall cups: yes
• Adjustable pressure screws: yes
• Two-way opening: yes
• Maximum opening angle: 180°
• Locking system: automatic
• Automatic closing: when the gate is opened less than 90°
• One-handed operation: yes
• Opening mechanism: two-stage
• Construction material: metal + plastic parts
• Intended for: children up to 24 months old
• Type of use: household use only
• Standard: EN 1930:2011
• Other standards indicated in the declaration of conformity: EN 71-2:2020, EN 71-3:2019+A1:2021
• GPSR: Regulation (EU) 2023/988
• Package dimensions: 81 x 74 x 5 cm

✅ FIT TO THE OPENING 75-110 CM

BabyProtect offers several mounting configurations, so you can adjust the width of the structure to a specific place:

• 75-82 cm - gate without extensions
• 89-96 cm - gate + 1 extension 14 cm
• 103-110 cm - gate + 2 extensions of 14 cm

All 2 extensions are already included, so you do not need to purchase additional extensions to take advantage of the full prescribed width range.

✅ EXPANSION ASSEMBLY - WITHOUT DRILLING

The basic way to install BabyProtect is expansion mount.

The design uses 4 adjustable pressure screws - two at the top and bottom of the frame.

They allow you to set the barrier between the mounting surfaces without making holes with standard expansion mounting.

Wall cups are a required element of proper gate installation and should be used according to the instructions.

The gate should be mounted between stable, even and appropriately durable surfaces made of wood or plasterboard.

✅ 4 PRESSURE POINTS

Stabilization of the gate takes place at four points:

• 2 upper points,
• 2 points lower.

Adjustable screws allow you to set the appropriate clamp of the structure.

After installation, check the stability of the gate, and during use regularly control and, if necessary, retighten the fasteners.

✅ AUTOMATIC CLOSING

BabyProtect is equipped with an automatic locking system.

If the wing is left at an angle of less than 90°, the mechanism will automatically close it.

Thanks to this, during everyday use, you do not have to manually close the gate after passing each time.

✅ ROUND-TRIP OPENING

The goal wing can be opened in both directions, so that an adult can pass through it comfortably regardless of the side from which he approaches.

The solution is particularly practical in frequently used passages between rooms.

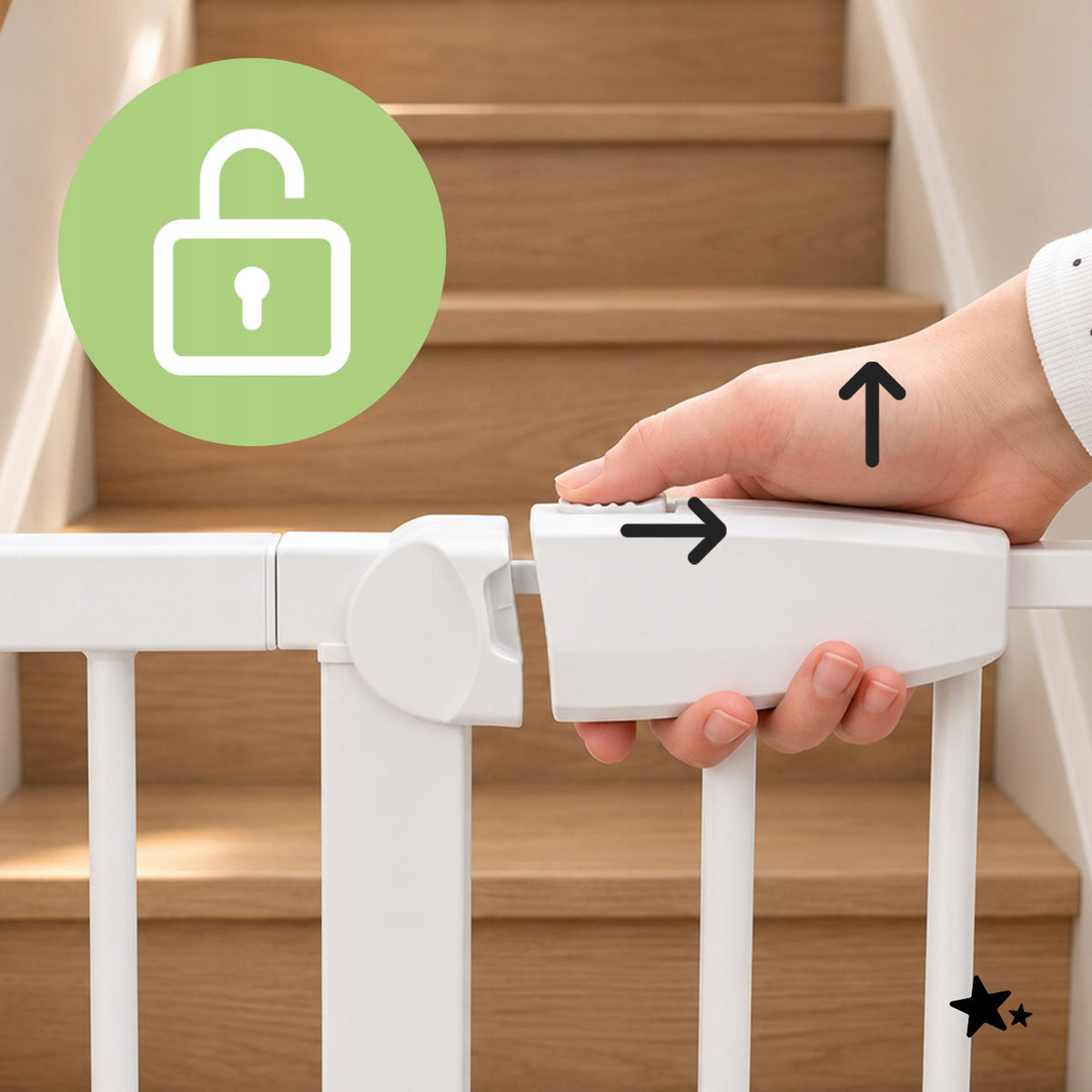

✅ TWO-STAGE OPENING MECHANISM

The design of the lock is designed to limit the possibility of accidental opening of the wing by a small child.

The mechanism requires two actions at the handle before the wing is released.

At the same time, the appropriate design allows an adult to operate the mechanism with one hand.

✅ 2 EXTENSIONS 14 CM INCLUDED

The set includes 2 separate extensions with a width of 14 cm each.

You can install:

• the gate itself,
• gate with one extension,
• gate with both extensions.

Thanks to this, one set supports several different width ranges without having to buy additional elements.

✅ FOR CHILDREN UP TO 24. MONTH OF AGE

The safety barrier is suitable for use by children up to 24 months of age.

BabyProtect helps limit your child’s access to a room or a separate part of the house.

The product is intended for domestic use only.

The barrier should be discontinued if the child is already able to climb or move it.

✅ CLEANING AND INSPECTION

Regularly check:

• stability of the gate,
• correct attachment of pressure screws,
• opening and closing mechanism,
• condition of all structural elements.

For cleaning, use sponge moistened with warm water with the addition of mild detergent.

Do not use abrasives or bleach.

Do not use the gate if any component is damaged, worn out or missing.

✅ IMPORTANT INFORMATION BEFORE ASSEMBLY

After removing the new gate from the package, there may be a visible gap between the snap and the frame.

This is normal and does not damage the product.

The design of the gate obtains the correct setting during expansion assembly and proper adjustment of pressure elements.

Do not cut the safety strap before completing the installation.

✅ COMPLIANCE WITH EN 1930:2011

The BabyProtect 75-110 safety barrier complies with the requirements of EN 1930:2011.

The declaration of conformity of the product shall also indicate:

• EN 71-2:2020
• EN 71-3:2019+A1:2021
• Regulation (EU) 2023/988 on general product safety - GPSR

✅ WARNINGS

WARNING – Read the instructions before installation, as incorrect installation may pose a danger

WARNING – This safety barrier should not be installed in windows

WARNING – Never use without wall suction cups

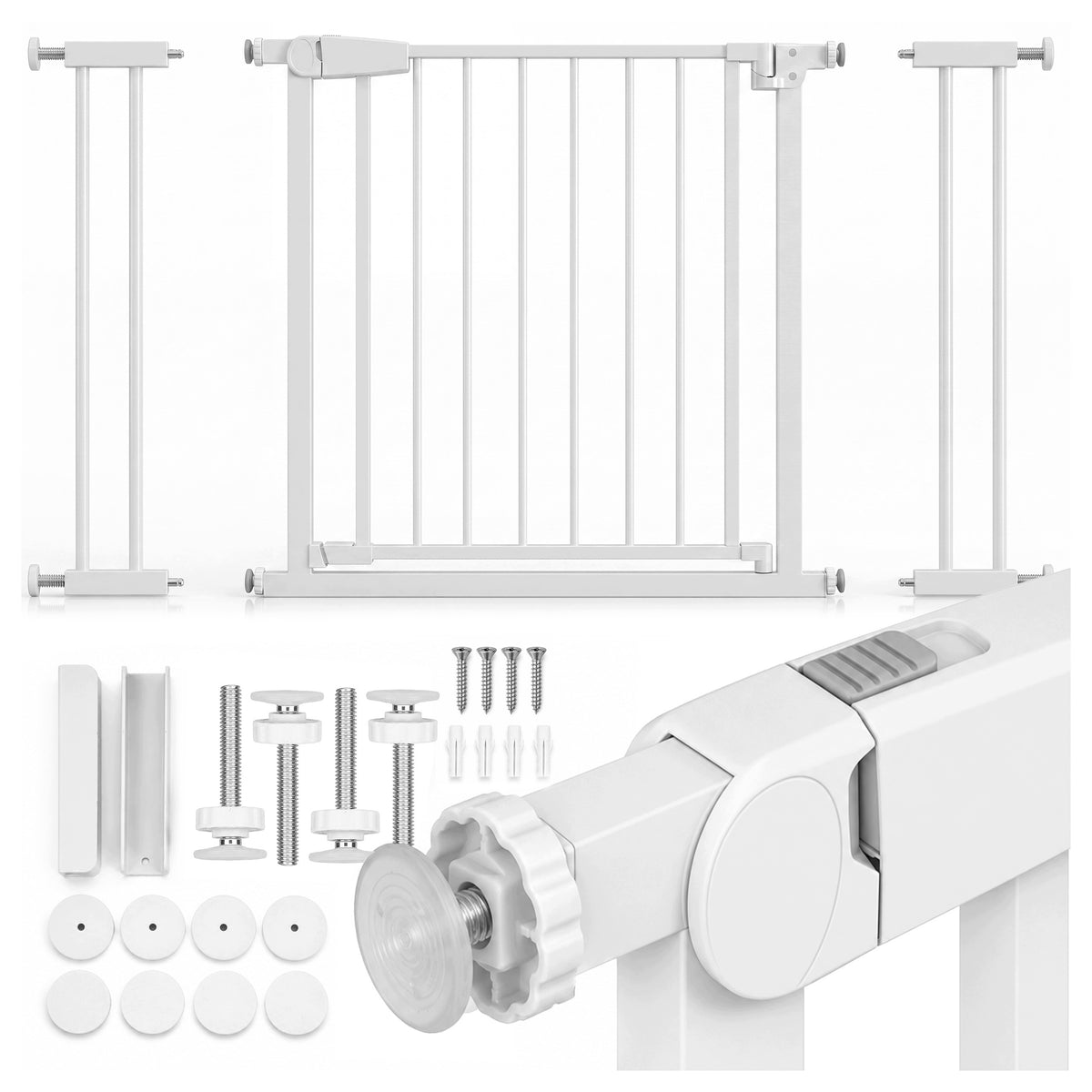

✅ INCLUDED

• MalPlay BabyProtect 75-110 security gateway
• 2x extension 14 cm
• 4x pressure screw
• 4x adjustable wheel
• 4x wall cup
• 4x mounting sticker
• 4x screw
• 4x dowel
• Mounting Wrench
• User manual in Polish, English and German
• Original packaging
