Automagnetola VW Golf 7 2013–2018, 10" Android 15, 4+64 GB, CarPlay, WiFi, AHD kamera

Trumpai apie prekę

Prekė: Automagnetola VW Golf 7 2013–2018, 10" Android 15, 4+64 GB, CarPlay, WiFi, AHD kamera. Kategorija: Radijo grotuvai.

• Gamintojas: no brand
• Modelis: RAH3159

TECHNICAL PARAMETERS

• Operating system: Android 15
• Processor: Quad-Core ARM Cortex-A53
• Graphic layout: Mali-T720 MP2
• RAM: 4 GB
• Internal memory: 64 GB
• Display: 10" LCD with capacitive touch panel
• Screen resolution: 1280 × 800
• Wi-Fi: 2,4 GHz
• Bluetooth: hands-free calling and music playback
• Apple CarPlay: wired and wireless
• Android Auto: wired and wireless
• Mirror Link: supported
• Navigation: GPS
• Radio: FM
• Sound Corrector: EQ
• Split Screen: supported
• Picture-in-Picture: supported
• Audio formats: MP3, FLAC, APE, WMA, WAV, AAC, M4A, AMR, Opus, MID, OGG
• Video formats: AVI, ASF, MP4, MOV, MPG, MPEG-1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP
• System languages: English, Polish, Slovak, Czech, Hungarian, German, French, Italian, Spanish, Portuguese, Russian, Turkish and others
• Control from the steering wheel: operated by CANBUS
• Reversing camera input: AHD 1080P/720P and CVBS
• USB: 2 USB connectors
• Audio outputs: RCA and SUB
• Audio input: AUX
• External microphone: supported
• Amplifier: YD7388
• Working voltage: 9 – 16 V

COMPATIBILITY

• Volkswagen Golf 7: 2013 – 2018

The radio is designed exclusively for the Volkswagen Golf 7 version with a center console corresponding to the compatible example shown in the pictures.

Does not fit Volkswagen Golf 6 or Golf 7 versions with a different console and center panel shape.

Before buying, compare the appearance of the console, the shape of the factory radio and the car connector with the photos presented in the offer.

WIRELESS CARPLAY, ANDROID AUTO AND MIRROR LINK

• The radio supports wireless Apple CarPlay and Android Auto. When you connect a compatible phone, you can use maps, music, calls, messages, and voice assistant right on your device screen.
• The Mirror Link function allows you to display images wired or wirelessly from a compatible smartphone.
• The availability of individual applications and connection methods depends on the phone model and its operating system.

ANDROID 15, 10" SCREEN AND 4+64GB MEMORY

• The large capacitive 10" touchscreen with a resolution of 1280 × 800 provides clear images and convenient navigation, music, calls and applications.
• The quad-core processor and 4 GB of RAM enable efficient use of the basic functions of Android 15.
• 64 GB internal memory provides space for applications, downloaded maps, music and other media files.

WI-FI AND BLUETOOTH

Built-in Wi-Fi allows you to connect the radio to your phone's hotspot or other available wireless network. Once you have access to the internet, you can use compatible apps, online maps and multimedia.

Bluetooth allows you to:

• make phone calls
• Play music from your phone
• synchronize the phone book
• use compatible Bluetooth devices

ONLINE AND OFFLINE GPS NAVIGATION AND SPLIT SCREEN

• The built-in GPS module allows you to use compatible online navigation applications.
• After downloading the appropriate maps, you can also use offline navigation without internet access. The included GPS antenna helps to achieve stable satellite signal reception.
• The split screen function allows you to display two compatible applications at the same time, such as navigation and a music player.

FM/RDS RADIO, SOUND EQUALIZER AND MULTIMEDIA

The built-in tuner supports FM band and RDS function. RDS can display information transmitted by compatible stations, including the station name and current broadcast data.

The built-in EQ allows you to adjust the sound settings to your preference.

The radio also allows you to:

• Playing music via Bluetooth
• Playing files from a USB stick
• Connecting a compatible device via AUX input
• Use of four audio output channels
• Connecting a compatible subwoofer
• use of two USB connectors

REVERSING CAMERA AHD, CANBUS AND STEERING WHEEL CONTROL

• The set includes an AHD reversing camera. The radio supports CVBS and AHD signals at 720P or 1080P resolution.
• When properly connected, the camera image is automatically displayed when the reverse gear is turned on. Auxiliary lines and the ability to change the orientation of the image are also available.
• The included CANBUS module allows the radio to communicate with the installation of a compatible car and support for steering buttons on the steering wheel. The availability of individual functions depends on the vehicle equipment.

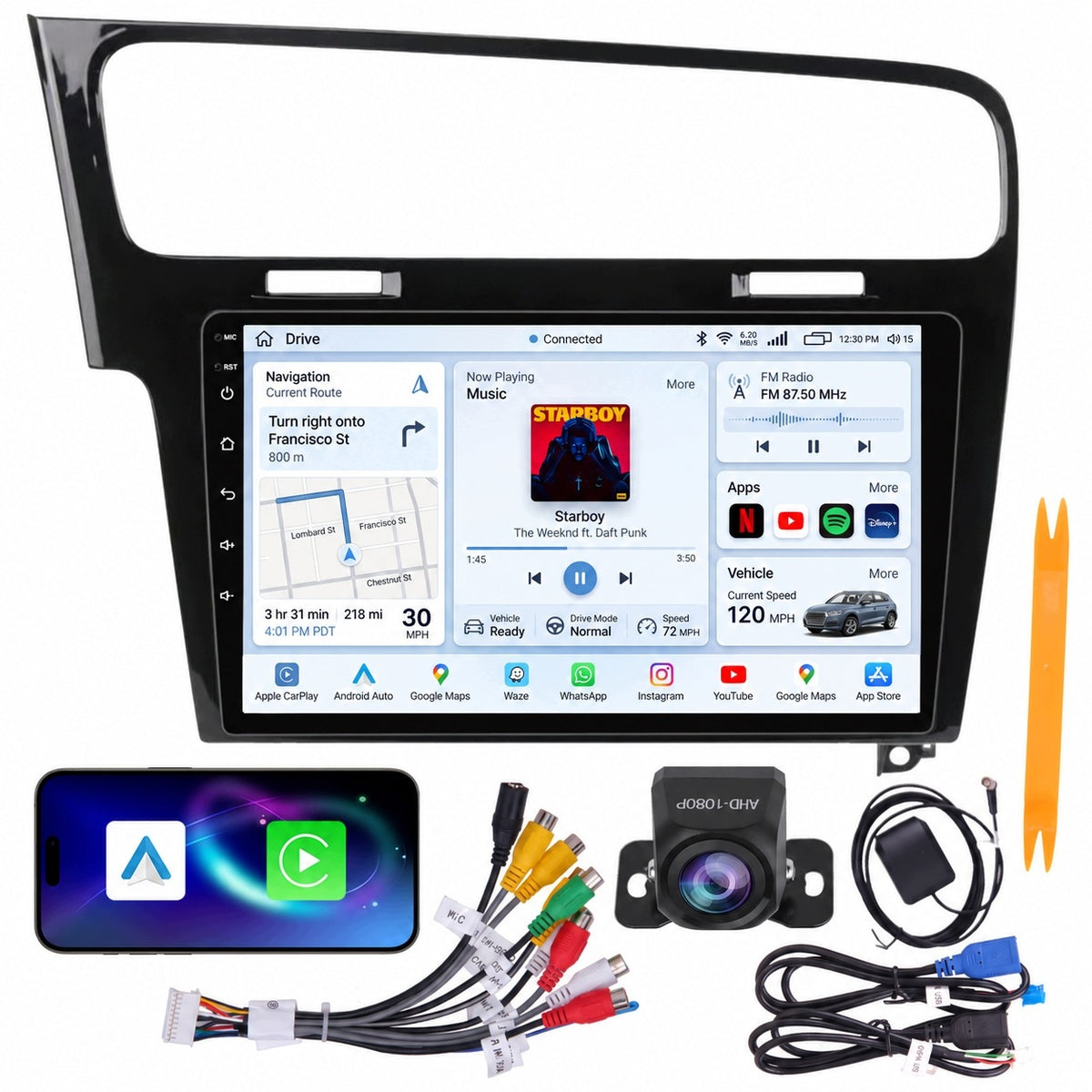

CONTENTS OF THE SET

• Android 15 radio with 10" screen
• dedicated frame for Volkswagen Golf 7
• AHD reversing camera
• CANBUS module
• two dedicated power harnesses
• reversing camera input cable
• RCA cable
• 4-pin USB cable
• 6-pin USB cable
• external microphone
• GPS antenna
• radio antenna adapter
• dismantling tool
• installation instructions

IMPORTANT INFORMATION BEFORE PURCHASE

• The radio is designed for the Volkswagen Golf 7 from 2013 to 2018, whose center console corresponds to the compatible example shown in the photos of the offer.
• Radio does not fit Volkswagen Golf 6. It also does not fit the Golf 7 version with a different console and frame shape. Before buying, you should carefully compare the appearance of the mounting hole and the arrangement of the console elements.
• The CANBUS module is factory connected to a dedicated beam and should not be disconnected during assembly.
• The factory car microphone is not supported. Use the external microphone included in the kit.
• In compatible versions of the car, you can keep the factory reversing camera after connecting the appropriate input cable. However, the original CVBS camera may provide lower quality images than the AHD camera included.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With invoice (excluding VAT)
Parametry	Brand	no brand
Parametry	Kind	accessory
Parametry	Model	RAH3159
Parametry	Product weight	1.8 kg
Parametry	Amplifier power	4x45 W
Parametry	Media played	USB
Parametry	Screen diagonal	10"
Parametry	Installation	2-DIN
Parametry	EAN (GTIN)	7841971127531
Parametry	Manufacturer code	RAH3159
Parametry	Packaging status	original
Parametry	Supported file formats	.aac,.ape,.flac,.mp3,.wav,.wma
Parametry	Radio	RDS information,FM band
Parametry	Functions	touchscreen,sound equalizer,playing music from iPhone/iPod
Parametry	Ports	AUX,RCA pre-out (preamplifier),RCA sub-out (subwoofer),USB
Parametry	Communications	Bluetooth,GPS,Wi-Fi
