Automātiska bīdāmo vārtu darbības ierīce ar tālvadības pulti un WiFi aplikāciju

Trumpai apie prekę

Prekė: Automatinė stumdomų vartų pavara su nuotolinio valdymo pultu ir WiFi programėle. Kategorija: Diskai.

• Gamintojas: Spreest
• Modelis: Napęd do bramy PYM-N2208 WiFi 800KG
• Įtampa: 230 V

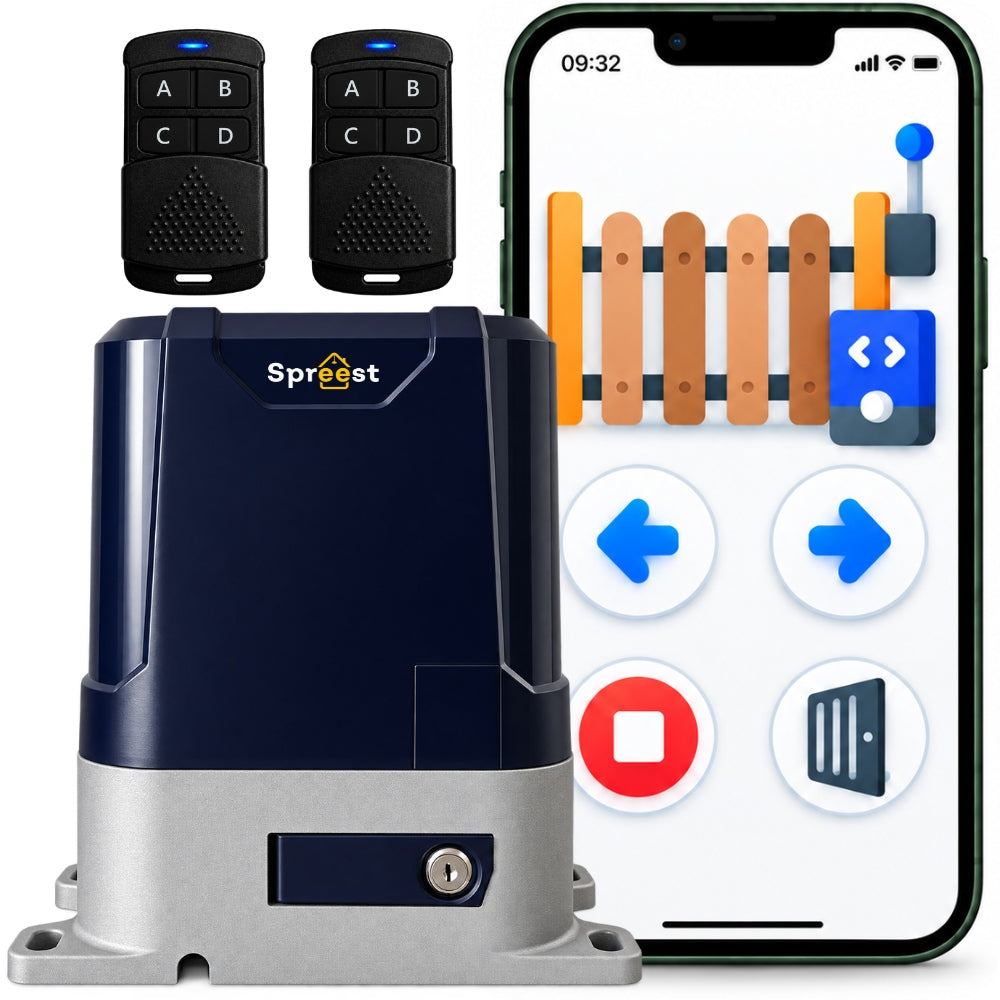

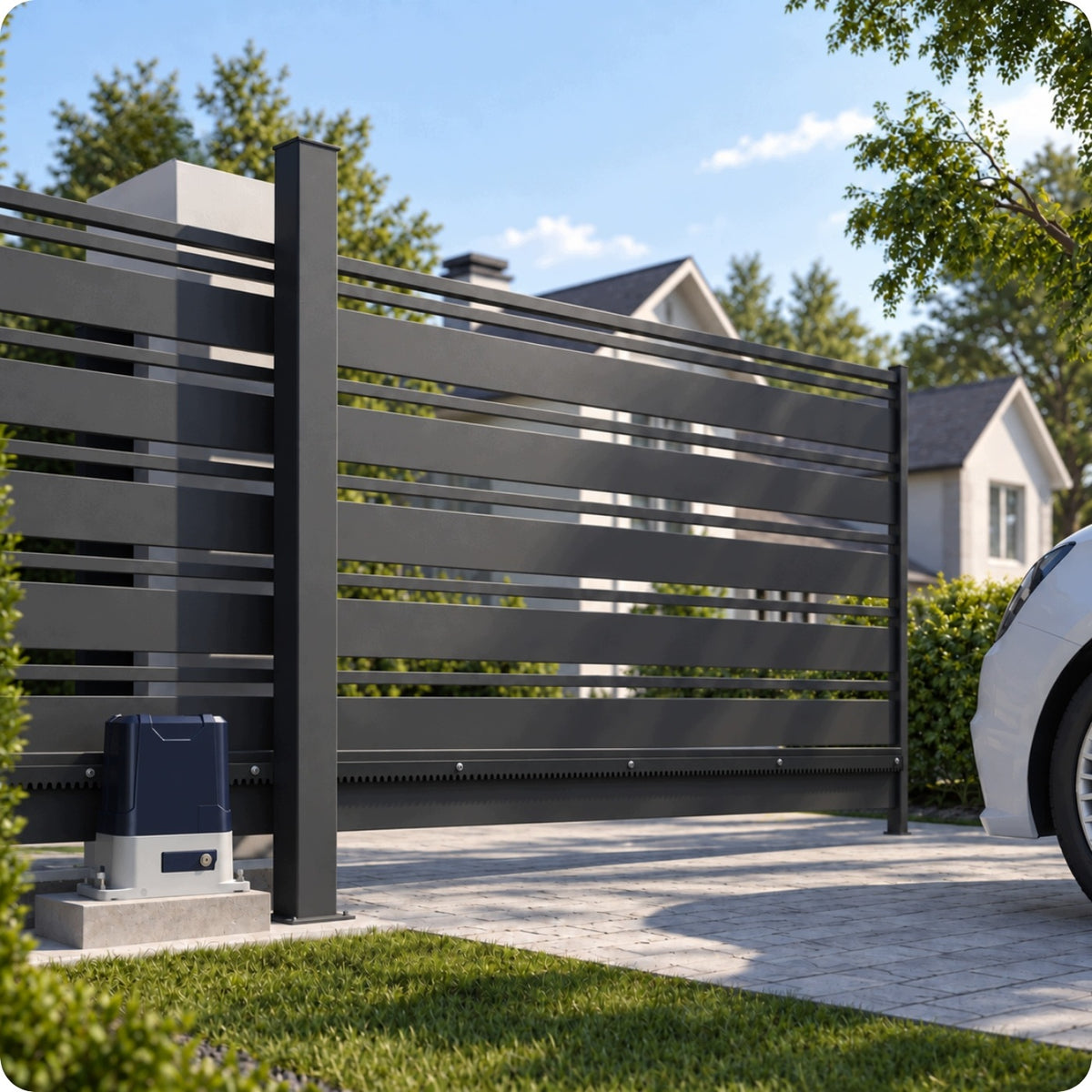

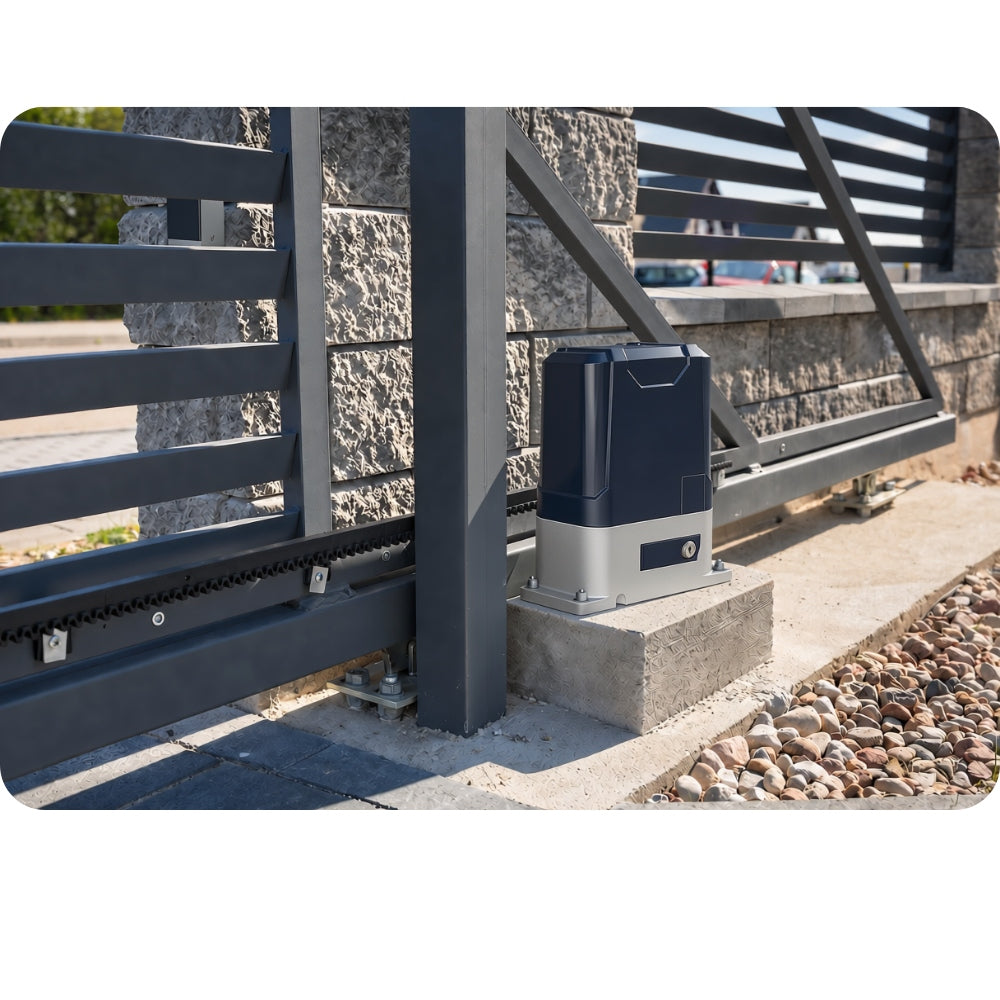

Drive for sliding gate PYM-N2208 WiFi brand Spreest is an automation that allows you to conveniently and safely open and close the sliding gate weighing up to 800 kg, without having to get out of the car or manually unlock the bolt.

The drive works with the smart module, thanks to which you can all configuration, programming remote controls and adjusting operating parameters from the mobile application – without the need to open the controller housing or touch the buttons on the motherboard.

The application allows remote opening and closing of the gate via Wi-Fi or Bluetooth, one-time automatic learning of the road, setting the speed and time of automatic closing and sharing access with other household members.

The set includes 2 remote controls with a range of up to 50 m, limit magnets and a set of mounting accessories, and a robust design with a power of 130 W and a torque of 21 N·m ensures smooth and quiet operation up to 55 dB.

Key features

1. Full programming from the application – The entire drive configuration, setting operating parameters and adding remote controls takes place from the application level, without the need to open the driver and use its buttons.

2. Gate drive up to 800 kg – The 130 W motor with 21 N·m torque provides sufficient force to move heavy gates.

3. Automatic road learning – One-time start of the function allows the drive to independently save the travel time and choose the high and slow speed at the ends.

4. Overload protection – When an obstacle is detected, the drive stops the gate or retracts it according to the response mode selected in the application.

5. Wi-Fi and Bluetooth control – When the device has access to the network, you control the gateway remotely from anywhere, and without the Internet, the application automatically switches to Bluetooth within a range of up to 10 m.

6. Remote control pilots – The set includes 2 remote controls with a range of up to 50 m and variable encoding, and the controller can accommodate up to 128 remote controls.

7. Pedestrian mode – Allows partial opening of the gate, convenient for daily entry and exit without fully extending the sash.

8. Automatic closing – You can set the automatic closing time after full opening in the application or driver menu, in the range of 0 to 99 seconds.

9. Emergency unlock – The included keys allow you to manually unlock the drive and move the gate during a power outage.

10. Connecting external accessories – The drive supports photocells, signal lamp, card reader and induction loop detector, extending the functionality of the system.

Mobile application

• Remote Control – Open and close the gateway from anywhere when the device is connected to a Wi-Fi network.
• Bluetooth control – When there is no internet and the phone is within a range of up to 10 m, the application automatically switches to a Bluetooth connection.
• Automatic learning the way – You can start it with one click in the application, without entering the menu on the control board.
• Working parameter settings – You adjust the speed, automatic closing time, pedestrian mode and overload response.
• Programming remotes and cards – You add and remove RF remotes and USB cards directly from your phone, without opening the driver case.
• Access Sharing – You generate a QR code and share gate control with your family or guests.
• Remote Service Assistance – Remote Assistance allows the installer to remotely diagnose and configure the device after the code is shared.
• Event Log – History of gateway openings and closures made from within the application.
• Gate Schedule – You set the hours for the gate to open and close automatically.

Components of the control board

1. LED Limit Switch Indicator
2. Power supply mechanical switch
3. Function buttons for programming the drive manually DEC/SMART, FUN, INC/START, LEARN
4. Digital display
5. LED State Signal Indicators, Rf, Smart
6. Engine Operation Indicator

Control Board Clamps

1. Clamps 1 and 2 – Lamp – Signal lamp connection, output voltage AC 110 V/220 V.
2. Clamps 3, 4 and 5 – Motor – Connection of sliding gate drive motor cables.
3. Clamps 6 and 7 – Power – AC 110 V/220 V power connection.
4. Clamp 8 – Vcc – DC 12 V output for powering external devices, max. 200 mA.
5. Clamp 9 – Com – Connection to COM or GND terminal.
6. Clamp 10 – Ph – Connection of the photocell.
7. Clamp 11 – Start – One-button control input, controlling the gate in the cycle open – stop – close – stop – open.
8. Clamp 12 – Open – Connect any external device that opens the gate.
9. Clamp 13 – Com – Connection to COM or GND terminal.
10. Clamp 14 – Close – Connect any external device that closes the gate.
11. Clamp 15 – Card – Connect any external device that opens the gate.
12. Clamp 16 – Ped – Input of pedestrian mode signal (gate opening signal).
13. Clamp 17 – Com – Connection to COM or GND terminal.
14. Clamp 18 – ANT – Antenna connection.

Technical specification

• Mobile application: Yes (Android/iOS)
• Power supply: AC 110 V/220 V ±10%, 50 Hz / 60 Hz
• Maximum load (gate weight): 800 kg
• Rated power: 130 W
• Engine speed rating: 1300 rpm. /min
• Output speed: 50 rpm. /min ±10%
• Gate travel speed: 26 cm/s
• Output torque: 21 N·m
• Gear module: M=4
• Number of wheel teeth: Z=16
• Pilot range: ≤50 m
• Working humidity: ≤85%
• Maximum pulling force: 950 N
• Volume: ≤55 dB
• Protection class: B
• Engine operating temperature: -20°C ~ +55°C
• Coding pilots: Dedicated variable code
• Capacity of remote control memory: Max. 128 pcs.
• Color: Navy Blue and Silver
• Dimensions: 27 x 17 x 29 cm
• Net weight: 8.4 kg

The set includes

• 1x Drive for sliding gate PYM-N2208
• 1x Drive Base Plate
• 4x Mounting screw for ground
• 1x Set of adjustment screws
• 2x Limit magnet (blue and red) with magnetic limit switch
• 2x Remote control
• 2x Emergency Unlock Key
• 1x User Manual

Link to the user manual in Polish: https://hackmd.io/@spreest-manuals/B1PLgvFOGx

Link to the instruction manual in Czech:

Link to the instruction manual in Slovak:

Link to the instruction manual in Hungarian:

• EAN: 5906168048418
• Manufacturer code: Drive for sliding gate PYM-N2208 WiFi 800KG
• Model: PYM-N2208 WiFi 800KG
• Brand: Spreest
• Condition: New
• Packaging condition: Original

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Spreest
Parametry	Drive type	for sliding gates
Parametry	Maximum wing weight	800 kg
Parametry	Supply voltage	230 V
Parametry	Engine power	130 W
Parametry	Manufacturer code	Napęd do bramy PYM-N2208 WiFi 800KG
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Set contents	drive,remote control,unlock key,control unit,magnetic limit switches,mounting kit with plate,mounting elements
Parametry	Additional features	mobile application control function,automatic closing function,obstacle detection function,controlled from intercom,gate function,key switch opening function
