Automātiskā vārtu piedziņa Came BX STRONG BX708AGS ar SPACE FULL enkoderi, piemērota vārtiem līdz 800 kg, ar KEY WIFI

Trumpai apie prekę

Prekė: Automatinio vartų pavara Came BX STRONG BX708AGS su SPACE FULL enkoderiu, tinka vartams iki 800 kg, su KEY WIFI. Kategorija: Diskai.

• Gamintojas: Came
• Modelis: BX708AGS_PRO_2SP
• Įtampa: 230 V

The CAME BX STRONG set is a ready-made automation set with accessories designed for sliding gates weighing up to 800kg and up to 14 m in length.

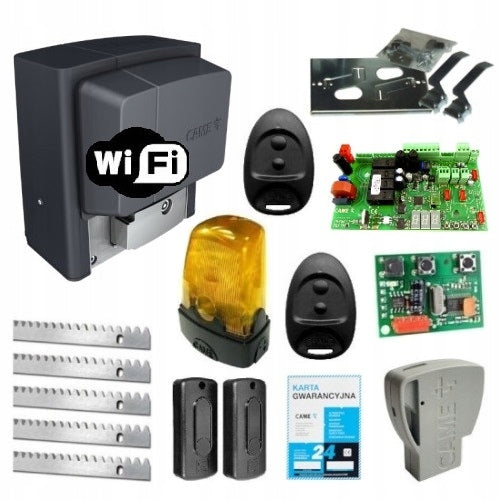

THE SET INCLUDES:

• Self-braking drive BX708AGS 230V with built-in control panel ZBX7N with encoder
• AF43SP Frequency Card
• WiFi / Bluetooth CAME KEY module
• 2 x SPACE SP2 2-channel remote control with variable code, 433,92MHz
• Set of DIR10 photocells (transmitter + receiver), range up to 10 m
• Signal lamp KIARO KLED 230V
• 5 x Galvanized Metal Gear Strip (1mb)
• 2 x Universal key for disengagement of the drive
• Capacitor 20 µF 450V
• Mechanical limit stops
• Mounting base with mounting accessories
• Instructions for installation, use and maintenance
• Programming instructions for the control panel

The BX series is automation designed with your safety in mind! Heavier gates require increased control and safety parameters, which is why BX actuators are equipped with an encoder that constantly monitors the operation of the gate. It is a reliable solution for use in both private homes and intensive use.

The built-in ZBX7N control panel has been modernized - its advantage is even an easier programming process with 4 buttons and an LED display, which was missing in the previous version. In addition, it has many additional functions, available as separate modules, which can be connected directly to the board, m.in.:

• R700/R800 interfaces for connecting proximity readers or code keyboards
• "Energy Saving" module (RGP1) for lower consumption in standby mode (up to 0,5 W! )
• RSE module for coupled mode, which allows easy installation and configuration of two automatic devices with the "master & slave" function and allows connectivity with the CAME Connect system (description below)
• RIO System 2.0 - wireless security system enabling installation of all devices for control and protection by radio communication, without the need for cables

BX drives are now compatible with CAME Connect - this innovative system allows you to manage devices through a web portal, where they can be monitored, using a dedicated application, from any mobile device, such as a smartphone or tablet.

CAME Connect is a technology that revolutionizes the lifestyle - it provides comfort and safety at home and outdoors! Under control at any time!

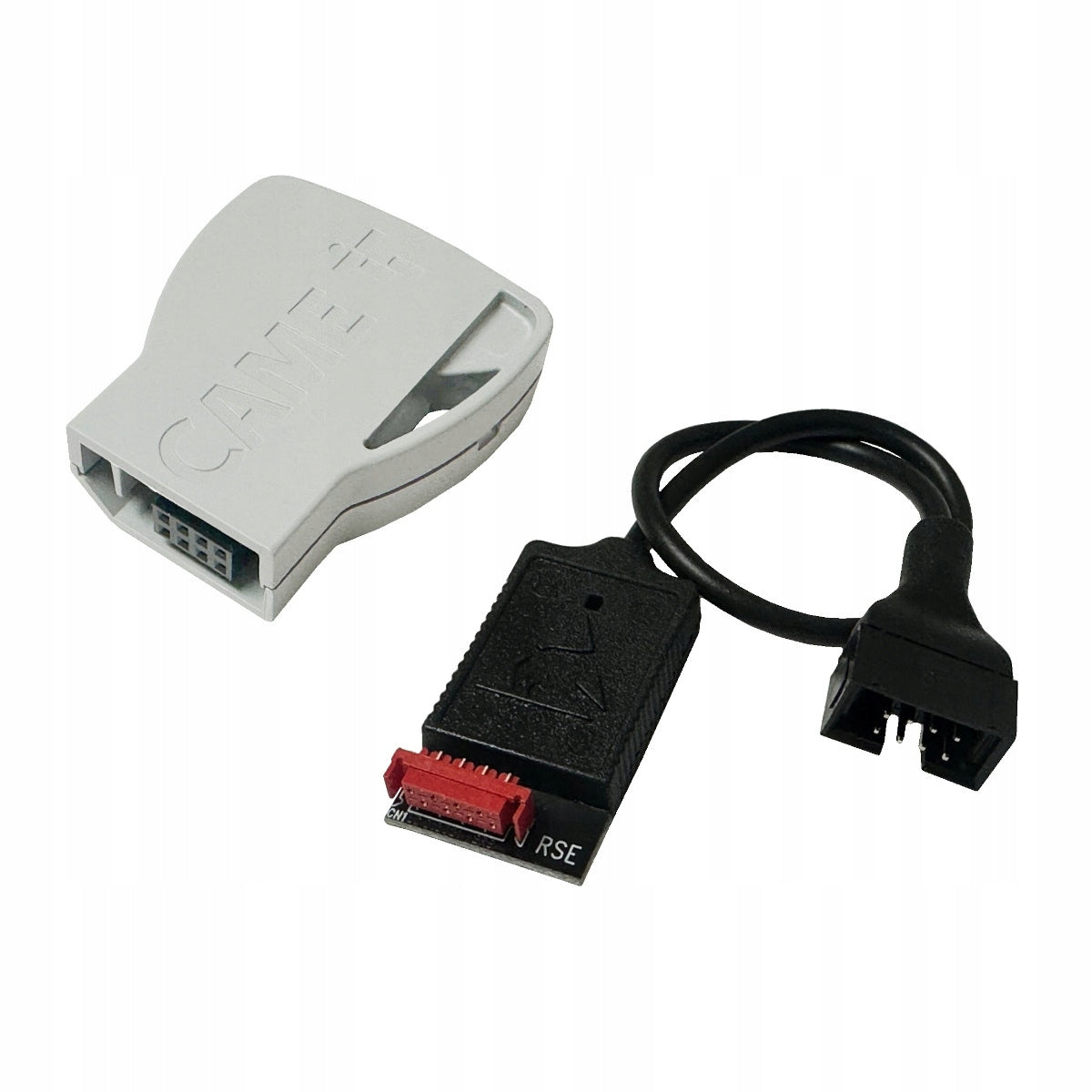

WIFI /BLUETOOTH gateway that allows you to control the device directly.

FEATURES AND FUNCTIONS OF KEY WIFI:

• Ability to open the gate from anywhere in the world
• Preview the status of the gateway (open/closed) on your Android or IOS smartphone using the free CAME Automation app
• Remote opening for courier, postman, neighbor, ambulance, cleaning services
• Authorizing other users to use the gateway by authorization
• Schedules, i.e. opening / closing the gate at the set time
• Managing users and schedules through the browser (CAME Connect)
• Change parameters at set time (e.g. turning on auto-closing at night)

• Motor power supply: 230V
• Power supply for control panel: 230V
• Standby power consumption: 2,4 W
• Max. Power consumption: 530 W
• Pulling force: 800 N
• Travel speed: 10 m/min
• Working cycle: 30%
• Max. Gate weight: 800 kg
• Operating temperature: -20°C to +55°C
• Thermal protection of the engine: 150°C
• Degree of protection: IP 44
• Device Class: I
• Dimensions (Sz x W x Head): 300 x 307,5 x 241,5 mm
• Actuator weight: 15 kg

• possibility of reprogramming the I/O function of the control panel or function parameters before shipment
• possibility of preconfiguration (preconfiguration) of the set, e.g. installation of the radio receiver and programming of the remote control(s)
• the ability to create a personalized set by matching the radio path to already used remote controls
• telephone technical support of a licensed installer

Original product CAME, originating from the official distribution channel.

CAME is one of the leading manufacturers of automation for gates, parking barriers, access control systems, automatic posts, home automation and many other products. It is one of the most experienced companies in the world – it has been operating on the market for over 45 years. Focused on innovation and the highest quality with a view to the benefits for customers. The devices of this company allow you to create the so-called. A smart home is a place that many families dream of.
