Automatinis akumuliatoriaus įkroviklis CTEK MXS 5, 12V

Trumpai apie prekę

Prekė: Automatinis akumuliatoriaus įkroviklis CTEK MXS 5, 12V. Kategorija: Baterijų įkrovikliai.

• Gamintojas: CTEK
• Modelis: MXS 5.0

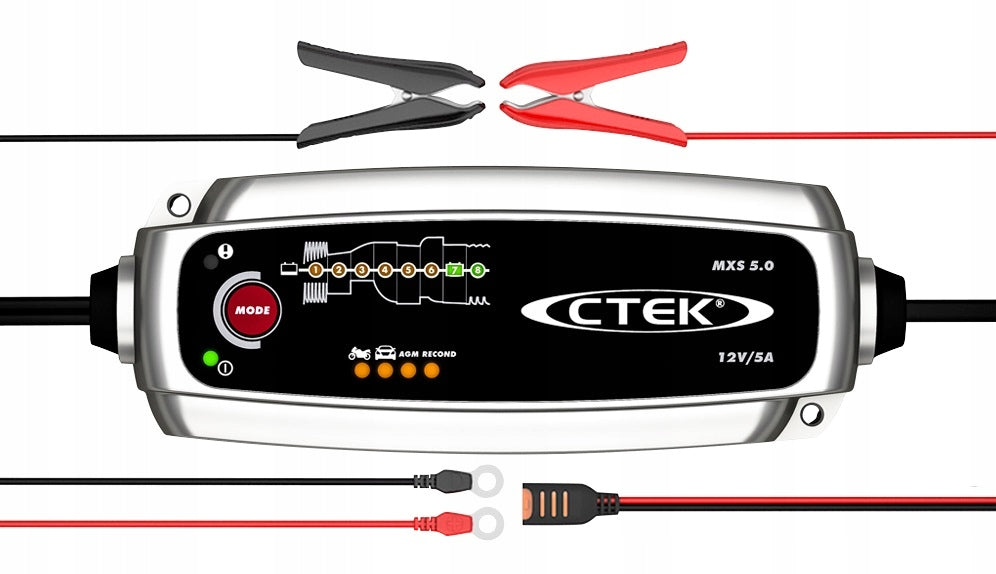

• CHARGER CTEK MXS 5.0
• COMFORT CONNECT CONNECTOR - EYELET M6
• CLAMP FITTING - CROCODILES
• INSTRUCTION in Polish (AT THE BOTTOM IN THE ATTACHMENT)
• MATERIAL COVER

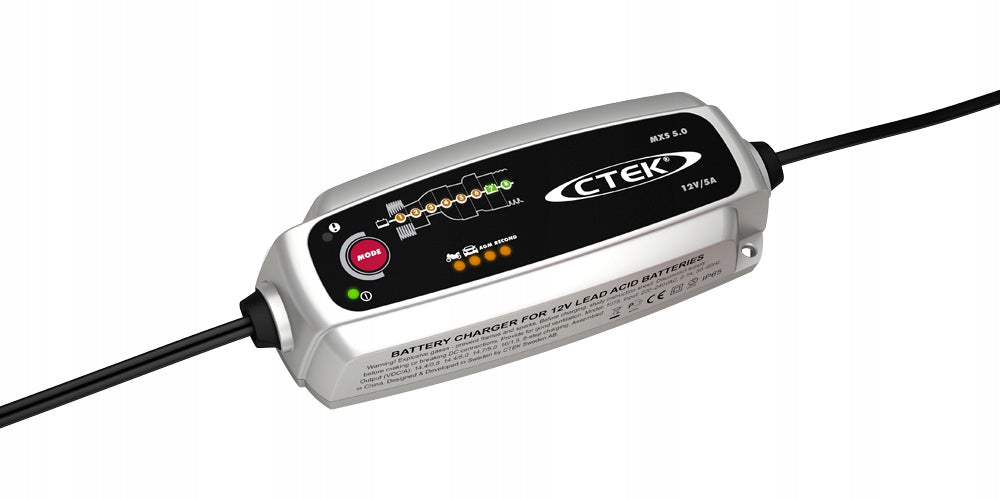

CTEK MXS 5.0

MXS 5.0 is a technologically advanced device equipped with microprocessor control with built-in automatic temperature compensation system.

The features of the MXS 5.0 charger solve a wide range of battery problems, making the device perfect for demanding users. The MXS 5.0 is equipped with features including battery technical condition diagnostics, which provides the ability to determine whether the battery is capable of receiving and maintaining charge, patented automatic desulphurisation technology, and a one-of-a-kind regeneration function that allows you to restore deeply discharged batteries with delaminated electrolyte to standby.

The AGM option is perfect for maximizing the performance and lifespan of most Stop-Start vehicles.

The built-in temperature compensation system guarantees excellent charging efficiency even in extremely difficult conditions.

The patented maintenance-pulse charging function makes the MXS 5.0 an ideal solution for long-term maintenance charging needs.

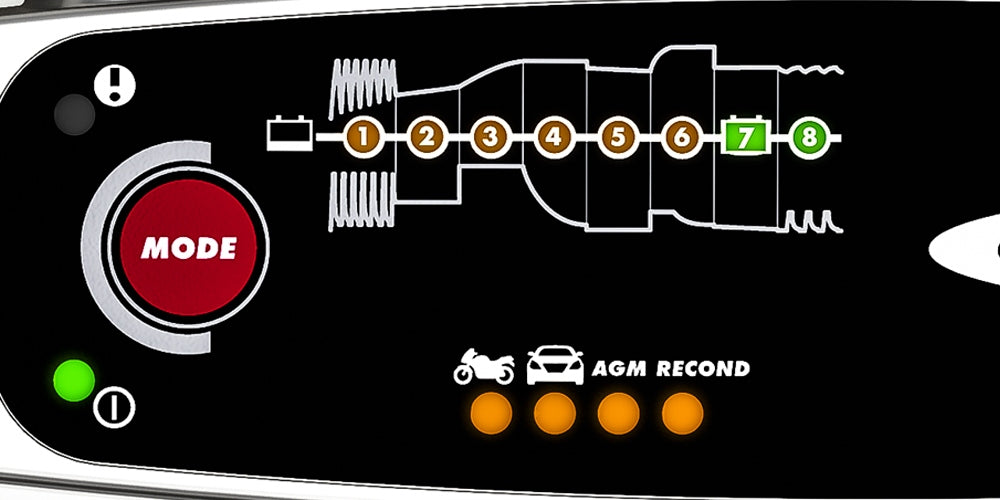

With clear LED light indications, you can easily keep track of the entire battery testing, charging, and maintenance process.

The device supports a wide range of all types of lead-acid batteries with capacities from 1,2 Ah to 110 Ah with an additional maintenance charging function for 160 Ah batteries. It has a splash-proof and dustproof housing (IP65). The MXS 5.0 charger is easy and safe to use, protects the vehicle's electronic systems, does not cause sparks, has protection against polarity reversal and short circuits.

Complete battery operation – a unique, patented system for restoring operational readiness, charging and maintenance of all types of lead-acid batteries, ensuring maximization of their efficiency and service life.

Ease and safety of use – user safety guarantees protection against sparks and polarity reversal. The electrical systems of the vehicle are protected by the production of voltage of an exceptionally high level of quality and current characterized by the absence of surges or impulse spikes. No need to disconnect the battery from the vehicle while charging.

“Just plug in” – the connection action is extremely simple to do. Then just select the program and mode of operation, and the charger will do all the rest.

Temperature compensation – built-in automatic charging voltage compensation system depending on the ambient temperature guarantees excellent charging efficiency even in extremely low or high temperatures.

Extending battery life – The unique features of the CTEK chargers ensure that the reliability, performance and battery life are maximized.

The patented 8-step charging program includes battery health testing, restoration, charging and maintenance to guarantee maximum battery life and performance. Thanks to the RECOND function, it is possible to regenerate deeply discharged batteries with stratified electrolyte. The Maintenance Charging Function provides excellent battery support during periods when it is not in use.

1 STAGE 1 DESULPHATION (DESULFURIZATION)

The pulsating voltage removes sulfates from the battery lead plates, restoring the battery capacity.

2 STAGE 2 SOFT START (MILD START)

Check whether the battery can accept the charge. Charging begins if the battery is working.

3 STAGE 3 BULK (MAXIMUM CURRENT CHARGING)

Maximum current charging until about 80% of the battery capacity is reached.

4 STAGE 4 ABSORPTION (ABSORPTION CHARGE),

BATTERY READY TO WORK Charging with decreasing current to maximize charge up to 100% of battery capacity.

5 STAGE 5 ANALYSE (ANALYSIS)

Checking whether the battery can hold the charge. Batteries that are unable to hold a charge may need to be replaced.

6 STAGE 6 RECOND (REGENERATION)

Regeneration function for deeply discharged batteries.

7 STAGE 7 FLOAT (MAINTENANCE CHARGE),

FULLY CHARGED BATTERY

Maintaining the battery voltage at maximum level by delivering a constant voltage charge.

8 STAGE 8 PULSE (PULSE CHARGING), MAINTENANCE CHARGING

Keeping the battery at 95-100% capacity. The charger monitors the battery voltage and gives a charging pulse when there is a need to maintain a full battery charge.

• Charging voltage: 14,4/14,7/15,8 V
• Charging current: Max. 5 A
• Charger type: Unique fully automatic 8 stage charging process
• Battery type: 12 V lead-acid batteries
• Battery capacity: 1,2-110 Ah, maintenance charging up to 160 Ah
• Insulation: IP65 (splashproof and dustproof)
• Power cable plug: EU standard
