Automatinis akumuliatoriaus įkroviklis eXtreme SBC-61238, 6V/12V, 4A, su LCD

Trumpai apie prekę

Prekė: Automatinis akumuliatoriaus įkroviklis eXtreme SBC-61238, 6V/12V, 4A, su LCD. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Extreme
• Modelis: SBC-61238

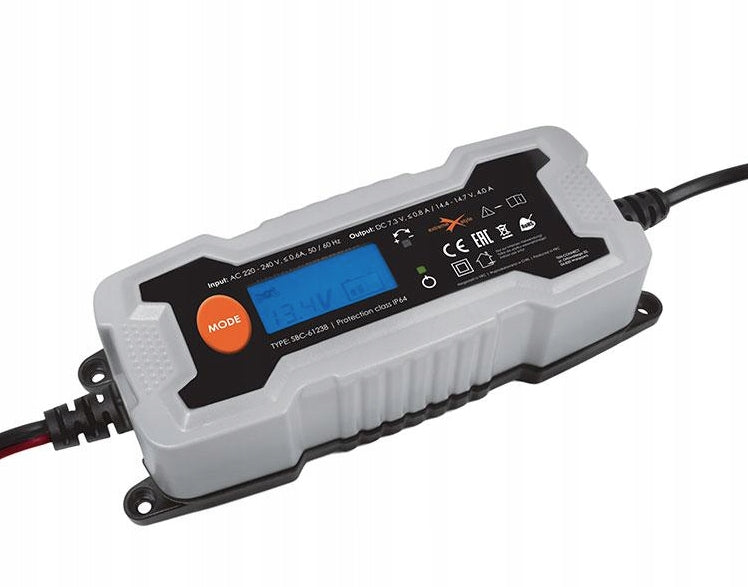

Smart Battery Charger eXtremestyle® SBC-61238

The modern microprocessor charger eXtreme SBC-61238 is a device that combines safety, efficiency and intelligent functions. When fully charged, it automatically enters voltage monitoring mode – protecting the battery from overcharging and loss of capacity.

Universal application

The rectifier works with 6 V and 12 V batteries of the following types: VRLA, AGM, VLA, SLA, EFB, WET, GEL, LEAD-ACID.

Ideally suited for:

• passenger cars and vans,
• motorcycles, scooters, quads,
• Golf carts and seasonal vehicles.

Key features and safeguards

• Automatic control of the charging process and automatic resumption after voltage drop.
• winter mode – efficient charging at low temperature.
• reactivation (resuscitation) mode – revives deeply discharged batteries.
• Overheating, overload and reverse polarity protection system.
• SAE connector with interchangeable tips: crocodiles and eyelet terminals.
• Wall mounting thanks to holes in the housing.

8-step charging process

1. Diagnostics – analysis of battery status and connections.
2. Sulfurization – removing sulphates from plates, restoring capacity.
3. Soft start – safety control before proper charging.
4. Primary charging – fast filling up to 80 % of capacity.
5. Final charging – full charge of the battery.
6. Analysis – voltage level test after charging.
7. Support – constant voltage maintaining a full charge.

Why it is worth

The eXtremestyle® SBC-61238 equals the effectiveness of professional workshop equipment, while ensuring simple operation and maximum safety. Regular use allows you to extend the life of the battery and keep it in excellent condition for years

The SBC-61238 smart battery charger from eXtreme® is an advanced microprocessor-controlled device - when fully charged, it automatically turns off, switching to voltage monitoring mode - 100% safe for any battery.

The SBC-61238 rectifier by eXtremestyle® works with various 6 and 12 V batteries of the following types: VRLA, AGM, VLA, SLA, EFB, WET, GEL, LEAD-ACID.

These types of batteries are used in various vehicles, e.g. passenger cars, trucks, motorcycles, scooters, quads or golf carts.

The eXtremestyle® charger is equipped with innovative solutions and protections:

• automatic and reliable control of battery charge - after reaching a certain voltage, or automatic drop in charging current;
• monitoring the voltage after charging - automatic resumption of charging in the event of a voltage drop on the battery;
• charger eliminates the phenomenon of sulphation of batteries, which may arise during charging;
• "winter" mode - guarantees full and efficient charging of the battery, even at very low ambient temperature;
• "reactivation/resuscitation" mode - a special charging mode - in the case of extremely discharged batteries, the charger uses a limited charging current with single pulses until a safe voltage is reached that allows for faster charging - the charger itself decides on the need to use this mode;
• detachable cable equipped with a quick-connect SAE type, allows you to adjust the charger to your needs, standard equipment includes crocodile tips and eyelet terminals;
• charger equipped with a set of protection against short circuits, against incorrect connection of poles, against overheating, overloading, overcharging, etc.

The effectiveness of our charger is comparable to the charging process in leading professional devices (even many times more expensive) - using a smart charger does not adversely affect the operation of the battery, on the contrary, extends its service life!

The eXtremestyle® SBC-61238 rectifier has a SAE connector to which crocodiles or eyelet terminals can be connected depending on the needs. Installing eyelet terminals permanently in the vehicle makes it easy and quick to connect the rectifier from the electrical system.

CHARGING STAGES:

The 8-stage charging process ensures optimal charging parameters:

• STEP 1: DIAGNOSTICS: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier
• STEP 2: DESULPHURIZATION: recognition of the sulphurized battery, charging with low voltage and high intensity pulsating current allows the sulphate to be removed from the battery plates, so that its initial capacity is restored
• STEP 3: SOFT START: checking whether the battery is not damaged and whether it can accept charging current (prevents charging of the damaged battery); if the battery is not damaged, charging begins gradually increasing the charging current
• STEP 4: ESSENTIAL CHARGING: constant current maximum charging with a value automatically adjustable depending on the state of charge of the battery, until 80% of the battery capacity is reached
• STEP 5: FINAL CHARGING: charging with decreasing current and constant voltage to reach 100% battery capacity
• STEP 6: ANALYSIS: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed
• STEP 7: MAINTENANCE: keeping the battery charged at maximum level by charging with constant voltage current
• STEP 8: PULSING: monitoring the battery voltage and maintaining an optimal charge of 95-100% capacity through charging current pulses

Specially prepared holes on the bottom of the housing of the SBC-61238 rectifier allow you to screw it to a wall or other flat surface.

Specification of rectifier SBC-61238

• Compatible batteries - 6 V / 12 V | VRLA, AGM, VLA, SLA, WET, GEL, LEAD-ACID
• Supported Capacity - 6 V: 1.2 - 14 Ah | 12 V: 1.2 - 120 Ah
• Input - AC 220 - 240 V, ≤ 0.6A, 50 / 60 Hz
• Output - DC 7.3 V, ≤ 0.8 A / 14.4 - 14.7 V, ≤ 4.0 A
• Efficiency - 75 - 80%
• Operating temperature - -10 - 40°C
• Weight - 532 g
