Automatinis akumuliatoriaus įkroviklis su LCD, 12V, 6A

Trumpai apie prekę

Prekė: Automatinis akumuliatoriaus įkroviklis su LCD, 12V, 6A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Vorfal
• Modelis: V05352

AUTOMATIC SMART RECTIFIER BATTERY CHARGER LCD 12V 6A

V05352

PRODUCT DESCRIPTION:

• Modern automatic microprocessor rectifier 12V 6A designed for safe and efficient charging of batteries used in cars, motorcycles and many other devices. Intelligent electronics automatically recognize the status of the battery and select the appropriate charging parameters, making the process fast, safe and fully automated.
• The device generates charging current up to 6A, which allows for efficient charging of batteries with a capacity of from 4Ah to 100Ah. Thanks to this, the rectifier will work both in passenger vehicles and in smaller devices powered by a 12V battery.
• The advanced microprocessor controls the entire charging process and protects the battery from overcharging, overheating or reverse pole connection. The rectifier can also be used for batteries with the Start & Stop system, which require a stable and controlled charging process.
• The easy-to-read LCD display allows you to constantly view operating parameters such as voltage, charging intensity or battery level.

TECHNICAL SPECIFICATION:

• Battery life: 4 – 100 Ah
• Power supply: 100 – 240 V, 50/60 Hz
• Output voltage: 12 V
• Output current: 6 A
• Output voltage DC: 13,8 – 15,5 V
• Maximum power: 100 W
• Dimensions: 146 × 81 × 60 mm
• Weight: 400 g
• Length of power cable: 150 cm
• Length of charging cables: 65 cm

MOST IMPORTANT FEATURES:

• Microprocessor controlled automatic charging
• Charging current up to 6A for fast battery charging
• Easy-to-read LCD display showing operating parameters
• Support for batteries used in Start & Stop systems
• Battery regeneration function
• Automatic adjustment of charging parameters
• Robust housing made of durable ABS plastic
• Built-in cooling fan for stable operation of the device

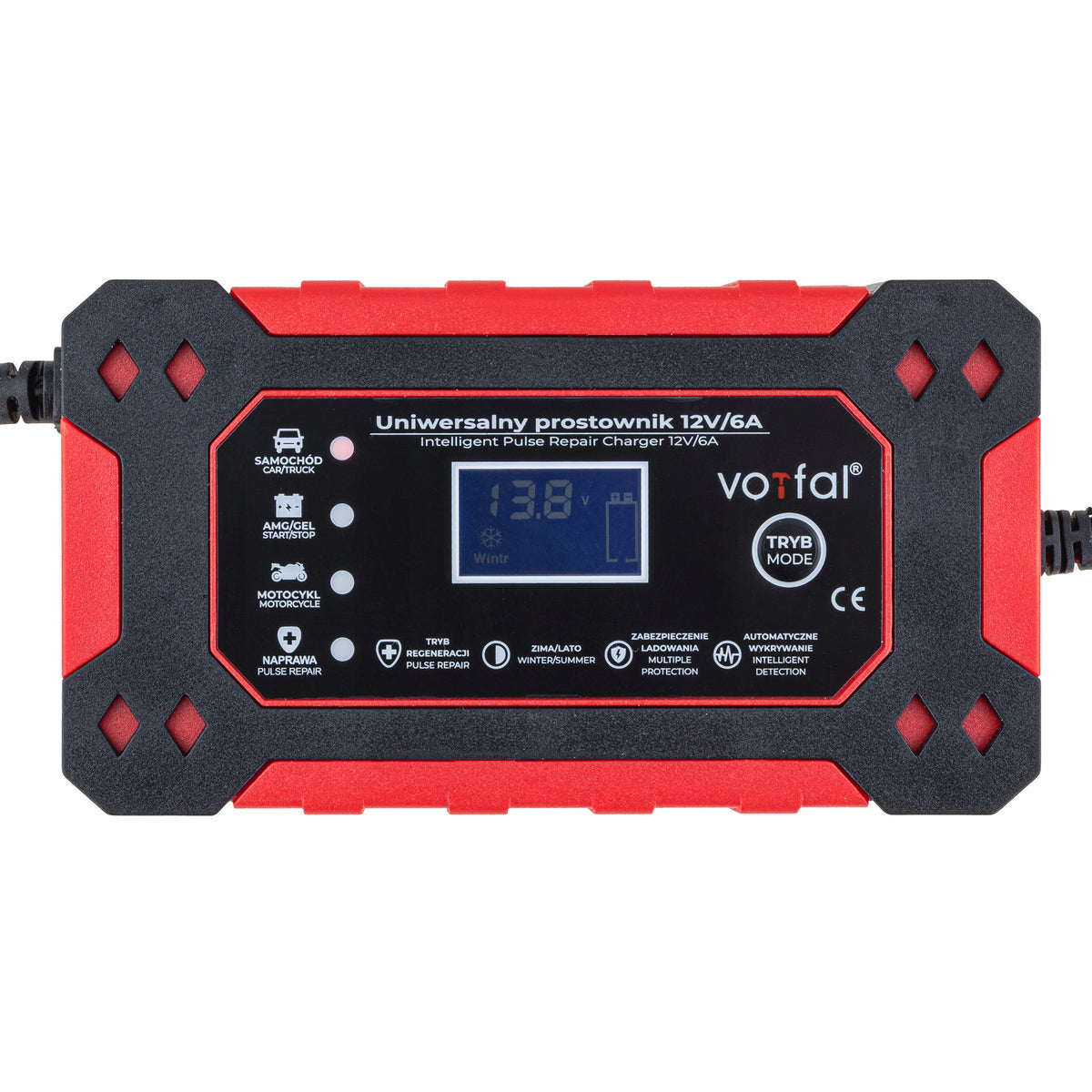

READABLE LCD DISPLAY:

The LCD display provides the user with the most important information about the operation of the device, such as:

• Operating temperature of the device
• Battery voltage expressed in volts
• Charging intensity expressed in amperes
• Information about full battery charge
• Battery regeneration mode
• Information about incorrect connection with klem
• Battery level indicator

BATTERY REGENERATION MODE:

• The rectifier has a special battery repair mode that helps restore the efficiency of the battery with reduced efficiency.
• The regeneration function supports the restoration of the internal structure of the battery, which can significantly extend its service life.
• Thanks to this, it is possible to continue using the battery without having to replace it immediately.

FOUR OPERATING MODES:

The rectifier allows you to choose one of four charging modes that can be set with one button:

• charging the car
• charging a standard battery
• charging the motorcycle
• battery regeneration mode

SUMMER AND WINTER MODE:

The device automatically adjusts the charging parameters to the ambient temperature:

• above 29°C summer mode is activated
• below 11°C winter mode is activated
• Thanks to this, the charging process remains optimal even in difficult weather conditions.

SECURITY:

The built-in microprocessor monitors the operation of the device and protects the battery and the user from dangerous situations.

Security system includes:

• Short circuit protection
• Overload protection
• Overheating protection
• Overvoltage protection
• Protection against reverse connection of the klem
• Protection against too low and too high voltage

In addition, the device is equipped with an efficient cooling system with a built-in fan.

APPLICATION:

The charger is designed for charging batteries:

• SLA
• VRLA
• AGM
• Gel
• Lead-acid
• With liquid electrolyte

Used in, among others:

• Passenger cars
• Trucks
• Motorcycles
• Boats
• Forklifts
• Lawnmowers
• Electric toys
• Alarm systems
• Emergency power supplies
• Other devices using 12v batteries

HOW TO CORRECTLY CONNECT THE CHARGER:

1. Connect the red clamp to the positive (+) terminal of the battery.
2. Connect the black clamp to the negative (-) terminal of the battery.
3. Plug the device into an electrical outlet to begin the charging process.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	V05352
Parametry	Brand	Vorfal
Parametry	Maximum amperage	6 A
Parametry	EAN (GTIN)	5905475668999
Parametry	Batteries included	no
Parametry	Packaging status	original
