Automatinis akumuliatorių įkroviklis, 12V/24V, 8A

Trumpai apie prekę

Prekė: Automatinis akumuliatorių įkroviklis, 12V/24V, 8A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Black
• Modelis: BATTERY CHARGER SERIES

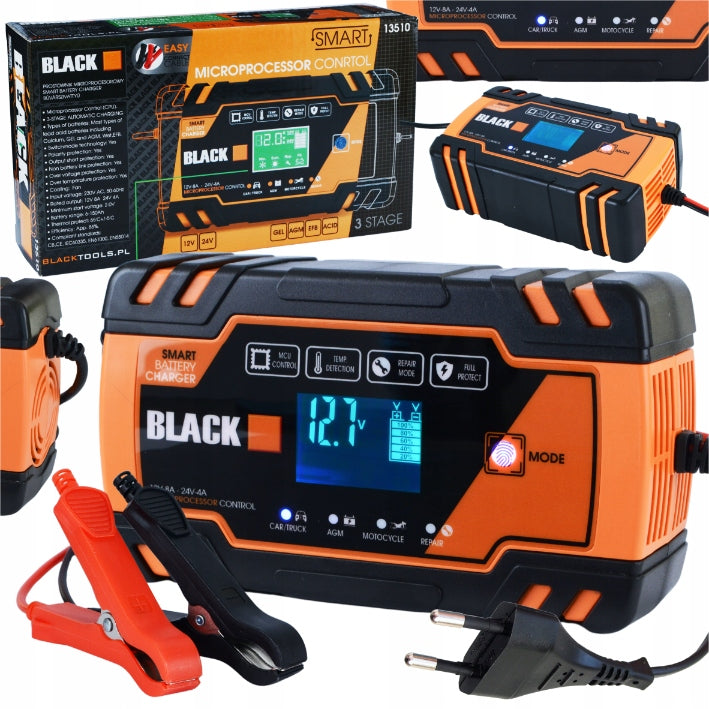

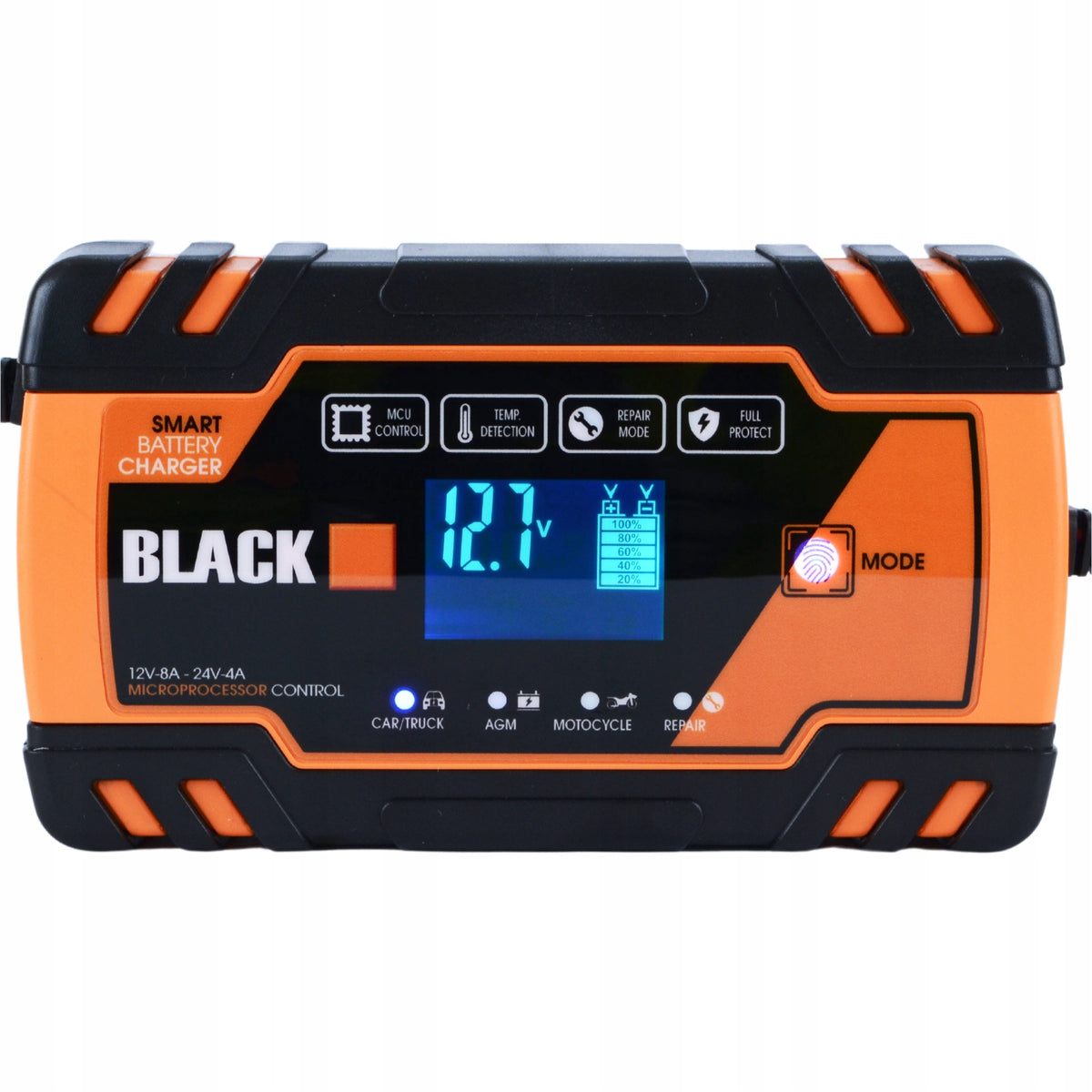

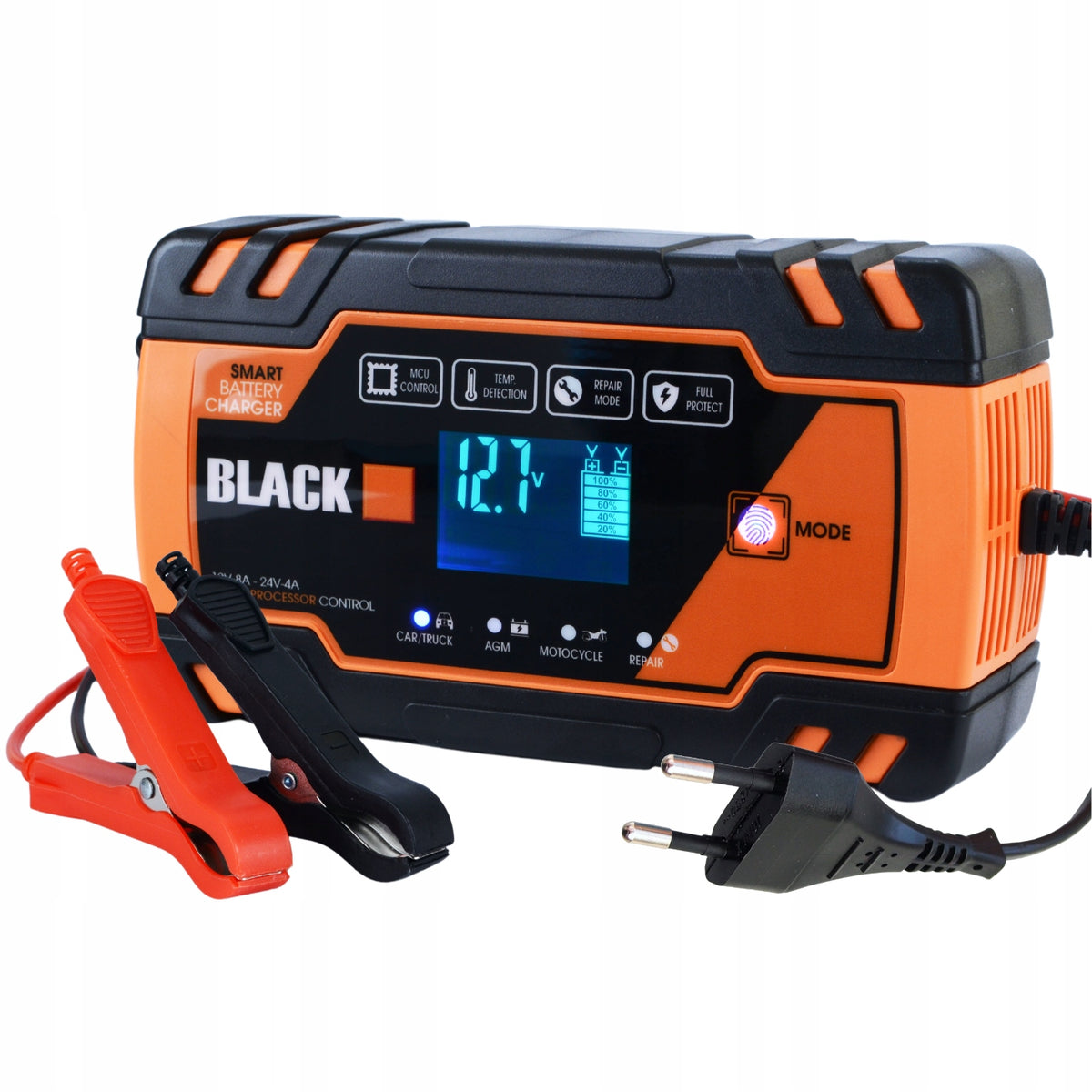

AUTOMATIC RECTIFIER, MICROPROCESSOR FOR 12V AND 24V BATTERIES. MODEL (13510) BY BLACK

The product "CAR AUTOMATIC RECTIFIER BLACK (13510) FOR 12V 24V BATTERIES", is a reliable tool for charging 12V and 24V vehicle batteries. Thanks to advanced microprocessor technology and 4 selectable operating modes, it is an excellent solution not only for daily battery charging, but also for repairing, diagnosing and maintaining the battery in good condition. Safety of use and wide application for various types of batteries make the BLACK rectifier an indispensable support for car and motorcycle owners.

TECHNICAL DATA

• brand: BLACK
• Model: 13510
• microprocessor control (MCU)
• rated voltage: 230V / 50-60 Hz
• supported battery voltages: 12V / 24V
• 12V battery capacity: 6Ah - 150Ah
• charging intensity: 12V-8A MAX , 24V 4A MAX
• Operating temperature: -5°C - 65°C
• Efficiency: ~85%
• minimum initial voltage 2V
• supports batteries: MOST TYPES OF LEAD-ACID BATTERIES, SLA, VRLA, WET, GEL, EFB, AGM

CHARACTERISTICS

• LCD display
• length of power cord: 1m
• length of wires "+" and "-": 60cm
• dimensions: 17cm x 10cm x 6cm
• built-in fan
• Net weight: 0,7kg
• protection against bad polarity: YES
• Short circuit protection: YES
• Overvoltage protection: YES
• Overheating protection: YES

4 SELECTABLE OPERATING MODES

• CAR/TRUCK (fast charging)

Mode for charging large batteries

12V max 8A

24V max 4A

The rectifier is also suitable for charging batteries of cars equipped with a start/stop system

• AGM

AGM battery charging mode for AGM and calcium batteries

• MOTOCYCLE (slow charging)

Motorcycle battery charging mode 12v max. up to 1,5A

• REPAIR

Repair mode (duration up to 24 hours). Advanced recovery mode, battery repair. Thanks to him we can, for example. repair sulphurized; deeply discharged battery or keep in good working order battery stored, unused after season.

Attention!! Not all batteries can be recovered/repaired! The mode should only be used for motorcycle and car batteries!

SECURITY

• Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.
• Battery diagnostic function - the rectifier constantly monitors the condition of the battery.
• Overheating protection: When the temperature of the charger exceeds 65°C, the charger will stop charging.
• Short-circuit protection: When a short circuit occurs, the circuit will automatically stop working.
• Reverse-connecting protection: While the terminals (+/-) will be connected by mistake in reverse, the charger will alert you in the form of displaying the message "ERO"

• rectifier
• original box
• operating instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	BATTERY CHARGER SERIES
Parametry	Brand	Black
Parametry	Maximum amperage	8 A
Parametry	Product weight with unit packaging	0.7 kg
Parametry	EAN (GTIN)	5905427502692
Parametry	Batteries included	no
Parametry	Packaging status	original
