Automatinis automobilio akumuliatoriaus įkroviklis 12V/24V 8A su remonto funkcija

Trumpai apie prekę

Prekė: Automatinis automobilio akumuliatoriaus įkroviklis 12V/24V 8A su remonto funkcija. Kategorija: Baterijų įkrovikliai.

• Gamintojas: GAT
• Modelis: 00050F1 PROSTOWNIK DO AUTA NAPRAWA AKUMULATORÓW

Intelligent microprocessor rectifier designed for charging and maintenance of 12V and 24V batteries. The automatically controls the charging process, selects the appropriate operating parameters and displays the most important information on a clear LCD screen.

The model offers maximum charging current 8A for 12V and 4A installations for 24V installations. It will work in both the home garage and the workshop.

• Product: Automatic microprocessor rectifier
• Condition: Factory new
• Model: Foxsur FBC122408D
• Input voltage: 100 - 240V
• Output voltage: 12V 8A, 24V 4A
• Power: Max 130W
• Overvoltage protection: Yes
• Overheating protection: Yes
• Reverse polarity protection: Yes
• Output short circuit protection: Yes
• Protection against connection without battery: Yes
• Dimensions (L. x width x H ): 170 x 98 x 58 mm
• Product code: 00050F1

• Support for 12V i 24V batteries
• Maximum charging current 12V – 8A / 24V – 4A
• Automatic control of the charging process
• Pulse regeneration function REPAIR
• Readable LCD display
• Car / Truck Mode
• AGM mode
• Motorcycle mode
• Automatic temperature detection
• Protections rectifier and battery
• Simple one-button operation MODE

Battery Charger can be used for charging batteries found in, among others:

• Passenger cars
• Vans
• Trucks
• Vehicles with a 24V system
• Motorcycles
• Scooters
• ATVs
• Boats
• Lawnmowers
• Garden machinery
• Other vehicles equipped with a compatible 12V or 24V battery.

The device is suitable for most battery types, including calcium, gel, AGM, and wet batteries. It can also help in regenerating discharged and sulfated batteries.

✔ CAR / TRUCK

Basic mode designed for charging car, van and truck batteries.

✔ AGM

The program is suitable for AGM batteries and similar sealed lead-acid batteries.

✔ MOTORCYCLE

The mode is designed for smaller batteries used in motorcycles, scooters and other small vehicles.

✔ REPAIR

Pulse regeneration mode designed for older, long-unused or heavily discharged batteries. It can help reduce the effects of sulphation and improve the battery's ability to receive charge.

‼ Notea: The REPAIR function supports regeneration, but does not guarantee repair of a mechanically damaged, compact or completely worn battery.

When properly connected, the device controls the charging process and adjusts the parameters to the battery status. The user does not have to manually adjust the voltage or amperage.

Enough:

1. connect the red terminal to the positive pole “+”,
2. connect the black terminal to the negative pole “–” or the corresponding mass point,
3. connect the device to a 230 V socket,
4. Select the correct mode with the MODE button.

The charging process is done automatically.

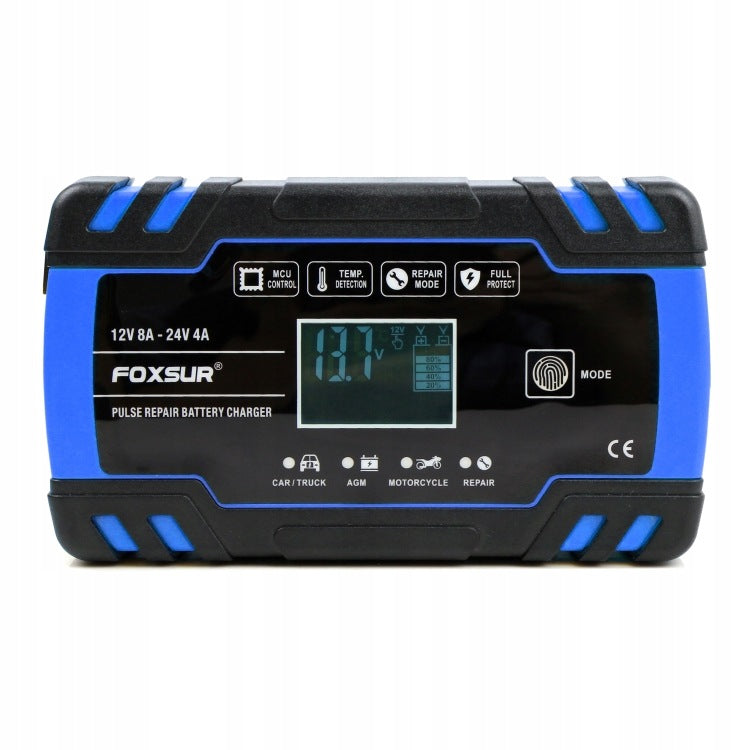

The screen allows you to conveniently control the operation of the device. Depending on the charging stage, it can present, among others:

• battery voltage,
• charging current,
• temperature,
• level of charge,
• selected mode of operation,
• information about the charging process.

The device is equipped with solutions that protect during everyday use, including against:

✔ reverse connection of terminals,

✔ short circuit,

✔ overheating,

✔ overload,

✔ overvoltage,

✔ overcharging of the battery.

• Voltage of supported batteries: 12 V / 24 V
• Maximum charging current 12 V: 8 A
• Maximum charging current 24 V: 4 A
• Power supply: 230 V AC
• Supported battery types: AGM, gel (GEL), calcium, lead-acid, wet, acidic, EFB batteries
• Working modes: CAR/TRUCK, AGM, MOTORCYCLE, REPAIR
• Control: MODE button
• Display: LCD
• Clamps: isolated crocodiles
• Cooling: active

After charging:

✔ disconnect the rectifier from the 230 V socket,

✔ remove the black clamp “–”,

✔ remove the red “+” clamp.

The rectifier should be used in a dry and well-ventilated place, away from fire, sparks and high temperature sources.

Specifications
