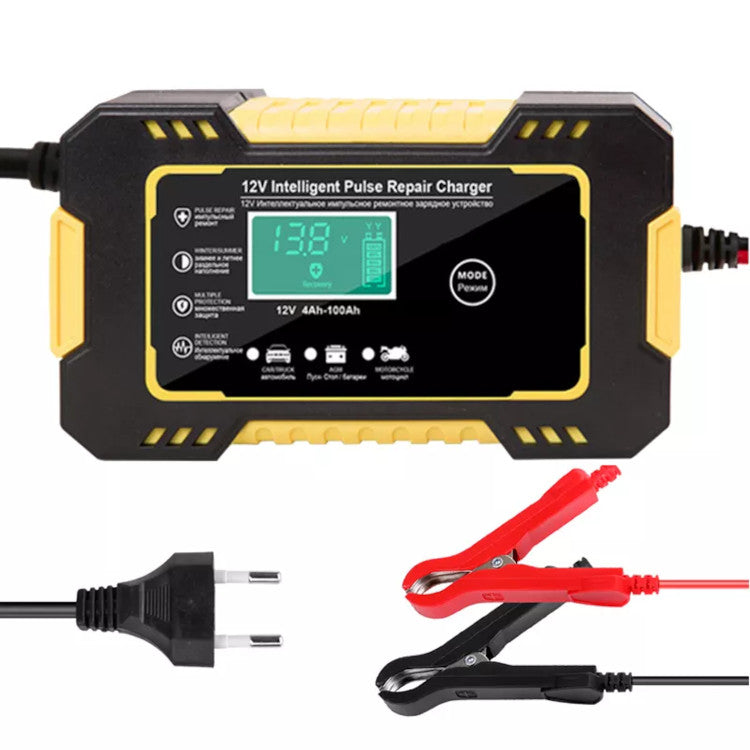

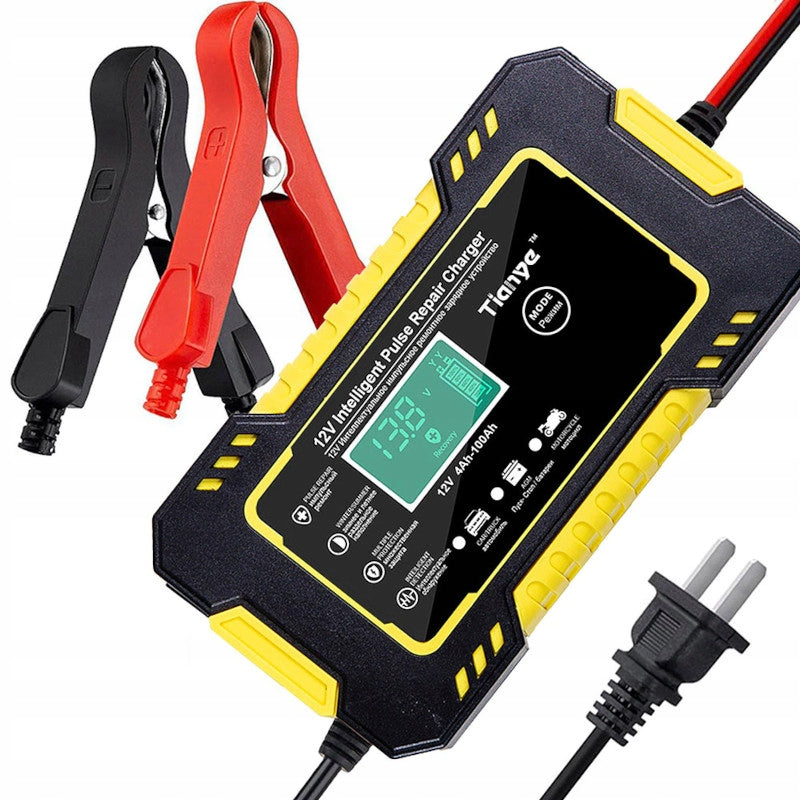

Automatinis automobilio akumuliatoriaus įkroviklis 12V 6A

Trumpai apie prekę

Prekė: Automatinis automobilio akumuliatoriaus įkroviklis 12V 6A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Magnum

Professional rectifier for charging 12V batteries of cars, motorcycles, agricultural vehicles or boats.

Designed for 4-100 Ah lead-acid batteries, lithium batteries are not suitable.

Small size and extremely simple operation make the rectifier great for home use.

✅ ONE BUTTON – THREE OPERATING MODES

One-button rectifier control. We choose the appropriate mode of operation (car, AGM Start-Stop battery, motorcycle).

The rectifier has a special operating mode, designed to charge batteries for cars with a START / STOP engine. More and more cars have the function of turning off the engine during standstill. The batteries installed in them require a special way of charging.

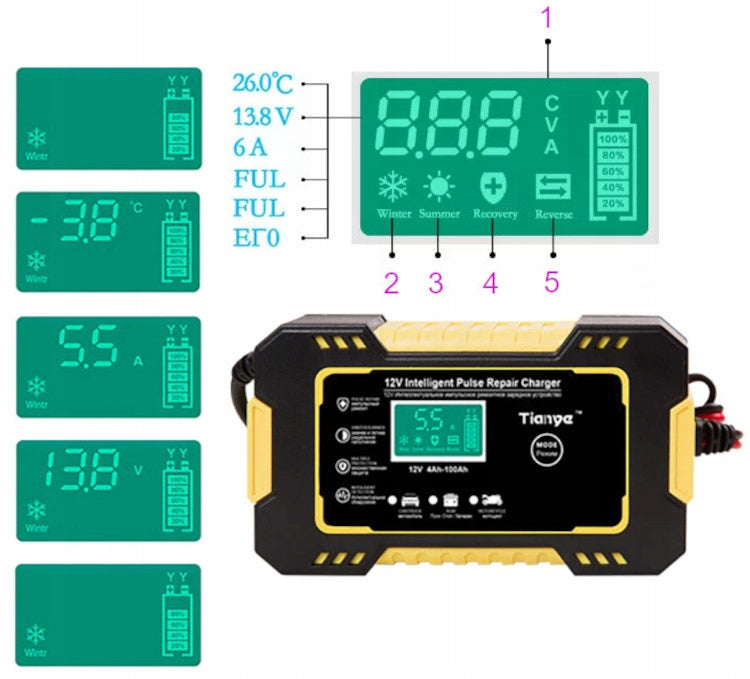

✅ EASY-TO-READ DISPLAY

The display indicates the most important parameters of the charging process:

• Battery charge level
• Current battery voltage
• Charging current
• Temperature
• Activated "PUL" repair mode
• Notification of full charge "FULL"
• Disabling the “OFF” rectifier
• Detected charging anomalies, e.g. incorrectly connected terminals
• Season designation (summer/winter)

✅ SMART MICROPROCESSOR

The device is controlled by a microprocessor, which automatically turns off charging when the battery is fully charged, keeping the battery ready. It has the function of maintaining a constant pulse current, stops when fully charged and prevents overcharging and discharge.

✅ MANY SAFEGUARDS

The rectifier has a number of protections providing protection against:

• Reverse polarity
• short-circuit
• overvoltage
• Low voltage
• Overcurrent
• Overheating
• Feedback
• Electrical shock

✅ BATTERY REPAIR FUNCTION

The rectifier has a special function "Battery repair", which is used in the situation of complete discharge of the battery. The device uses high and low frequency pulse technology in this mode, which gives a good effect of repairing and activating a very heavily discharged battery. We use this function when charging completely discharged batteries or those that have been idle for a long time and cannot be charged with other rectifiers.

✅ SUMMER AND WINTER MODE

The rectifier automatically detects the ambient temperature and selects the appropriate charging voltage (summer mode and winter mode). In the case of winter mode - the charging voltage is slightly higher.

✅ SOLID WORKMANSHIP

The core of the wires is made of pure copper ensuring stable current performance.

The “crocodile” clamps are durable, frost-resistant and durable, as well as safe to use.

✅ ALUMINUM HEAT SINK

The installed heat sink effectively receives the heat accumulated during charging from the microprocessor.

✅ SILENT FAN

The efficient fan effectively removes the accumulated heat outside the device while providing cooled air to it. This allows you to protect the rectifier from overheating and extend its lifespan.

✅ FIRE RETARDANT COATING

Protects the device from fire.

✅ VERY WIDE APPLICATION

The rectifier can be used to charge batteries:

Cars and trucks

Motorcycles

Agricultural machinery

Yachts

Forklifts

TECHNICAL SPECIFICATION

Product Model: SN20

Product size: 150 x 85 x 62 mm.

Net weight: 400 g.

Color: yellow or red (subject to availability)

Output cable length: 65 cm,

length of the input cable: 90 cm.

Input voltage: AC 110 - 220 V (50 - 60 Hz).

Output voltage: DC 13,8 - 15,5 V.

Output current: 6A (max. ).

CONNECTION INSTRUCTIONS

1. Connect the red crocodile to the “+” electrode
2. Connect the black crocodile to the electrode "-"
3. When properly connected, battery parameters will appear on the rectifier screen.
4. In case of incorrect connection, the following inscription will appear on the display: reverse conection - then you need to replace the crocodile connections
5. Insert plug into 220 V power supply
6. Select the MODE mode of operation of the rectifier
7. When charging is finished on the display, the battery is full 100%.
8. For better charging, you can leave the battery connected to the charger for another hour
9. We disconnect the device in reverse order: first we pull the plug from the contact, then we disconnect the black crocodile, and finally the red one.

INCLUDED

Rectifier/charger

User manual

Original packaging

Specifications
