Automātiska divu vārtu komplekts NX300, 2 x 3 m, 600 kg, WiFi, SW300, 4 pultis, lampa

Trumpai apie prekę

Prekė: Automatinių dvivėrių vartų komplektas NX300, 2 x 3 m, 600 kg, WiFi, SW300, 4 pulteliai, lempa. Kategorija: Diskai.

• Gamintojas: Delmar
• Modelis: NX300WiFi_1
• Įtampa: 24 V

You are viewing the offer of the swing gate drive of the company dealing with the assembly of drives for 22 years. Usefully, unlike other companies only selling them, you can count on real support during assembly and during use. We have warranty and post-warranty service with components for each actuator in our warehouse.

Please watch the video showing the function of the new EGA-18A control panel:

https://youtu.be/Pp3_-A5dryk?si=Ue5wSTd2suPKlYSD

and read the instructions in the PDF placed under the offer. We are also happy to answer your questions.

AUTOMATIC DOUBLE-LEAF SINGLE GATE DRIVE

with 4 remote controls, flasher lamp and antenna - JD06

HOME PowerSW300 60W EGA-18 control unit with built-in WiFi SMART and Bluetooth

!!!!!! DIGITALLY PROGRAMMABLE 2 TYPES OF GATES, settings via the phone application!!!!!

The X-House IOT application offering many possibilities is available in the Play Store.

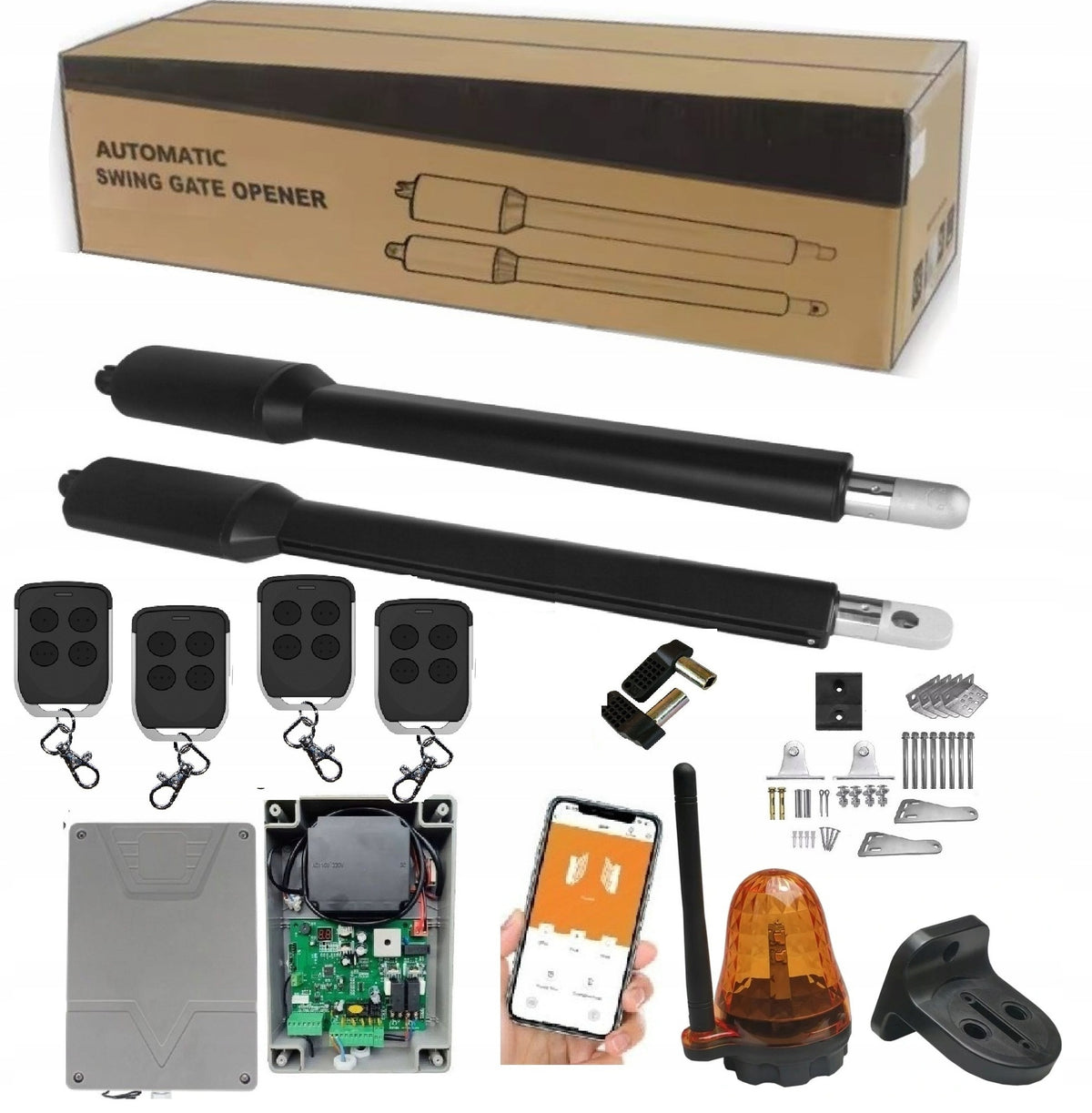

Set with two actuators, 60W control unit, four remote controls, mountings, and a bumper, built-in WiFi

The drive is designed for a weight of 300 kg and a span length of up to 3 m. The variety of mounting options allows for installation on narrow metal posts as well as clinker/brick posts with a hinge embedding depth of up to 19 cm. The advanced control unit allows for full configuration of operating parameters and offers the ability to connect devices such as photocells, a lamp with an antenna, emergency power supply, bell buttons, and induction loops. . Thanks to the large number of well-made galvanized angle brackets with mounting holes, you can install the drive without any problem, even avoiding welding. Well-written instructions or our team will help you with this. Intuitive configuration allows for quick start-up of the drive, and the digital display allows for precise setting of operating parameters. Elegant four-channel remote controls on pendants allow you to control an additional drive np.do a garage. Amperometric and overload protection, as well as an optional infrared barrier, ensure safe operation in all conditions. The use of an LED lamp, thanks to its powerful diodes, ensures that the machine is operating even in sunny weather, and the built-in antenna allows the remote control range to be extended up to 200 m. Home POWER actuators, thanks to the use of metal gears, ensure trouble-free operation for many years, and the use of large drainage holes ensures resistance to weather conditions.

Headquarters functions:

60W control panel version gives the comfort of a smooth start even with wings up to 3m long per span.

The control panel has a special H4 function in the menu for heavy gates.

• Soft start and release of actuator rotations before closing

• Opening function with automatic closing (adjustable time to auto-closing)

• Dual-band overload switch (possibility to set separate thresholds for low and high revolutions)

• Time protection (adjustable max. working cycle time 20-99sec. )

• Cooperation with gates closed "on the tab"

• Gate function (opening only one wing to let pedestrians in)

• Possibility of connecting external bell buttons and additional control devices (domephones, encryptors, gsm modules, etc. )

• Indication of the operating status of the device with LEDs

• Ability to connect 2 pairs of photocells

• Emergency power connector (allows you to permanently connect a 24V battery)

• All operating parameters set digitally using buttons (no potentiometers)

• Fully programmable digital inputs E2,E1,E0 (can be assigned 1 of 10 functions to each input)

• The ability to freely define the functionality of remote controls (the ability to assign 1 of 10 functions for each of the buttons)

• Additional output controlled by the remote control button enabling m.in. control of the electrolock in the gate, lighting, etc.

• Up to 99 remote controls can be programmed

• 230V control panel power supply, 24V actuators

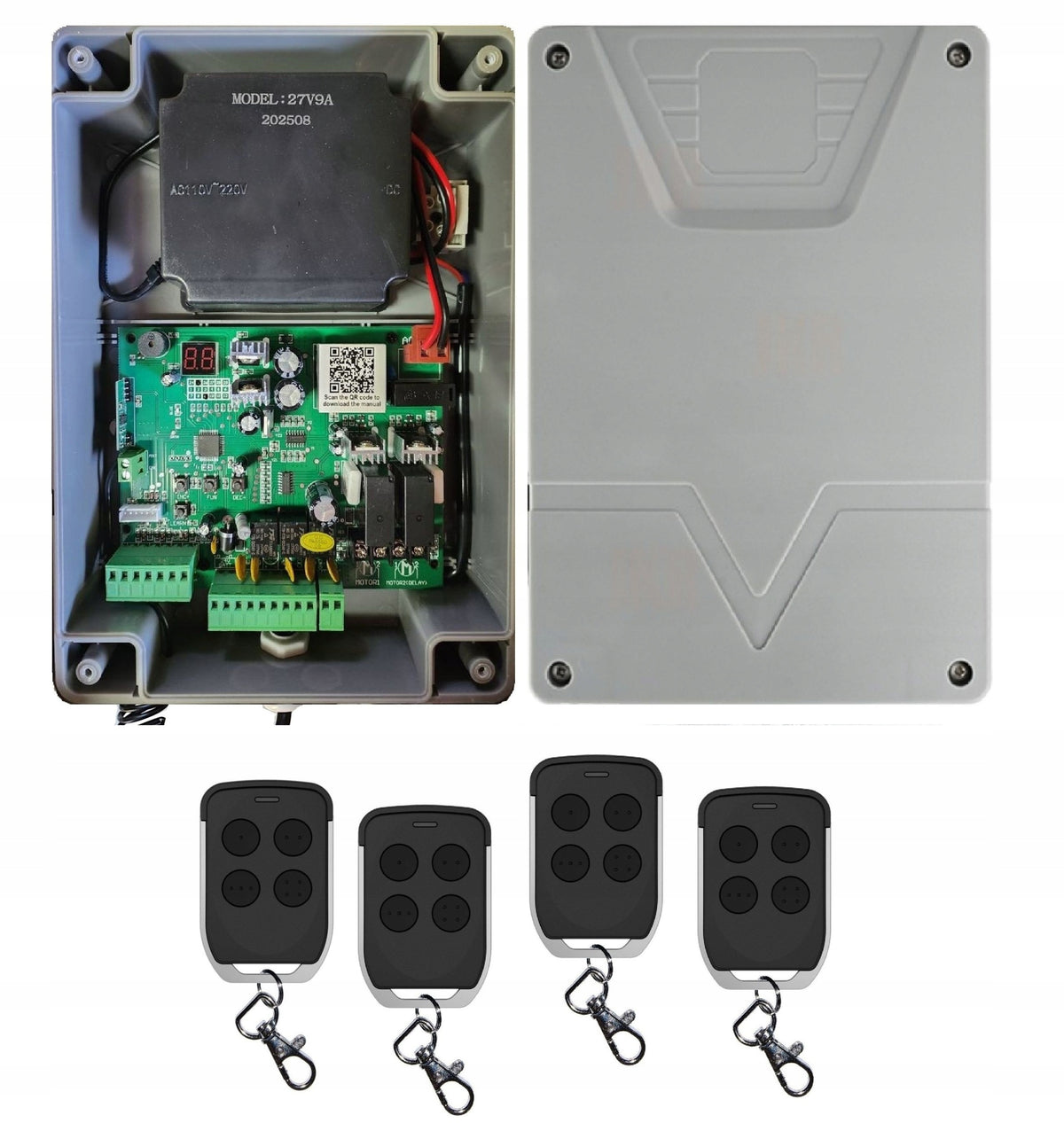

The new EGA-18 SMART control panel has a digital display that allows you to seamlessly program 9 parameters, flash mode, photocells and e-lock, built-in WiFi for the X-House IOT application available in the PLAY store

The control panel has an output for the bell button and other devices to control.

From the remote control, we can give an impulse to the gate electrolock.

Built-in SMART module for the application

XHouse IOT

- a versatile application for managing a smart home, allowing remote control of devices (lighting, cameras, security) from anywhere

. The app offers an intuitive interface, easy hardware addition, integration with Google Assistant/Amazon Echo, and live camera preview. Available on Android and iOS

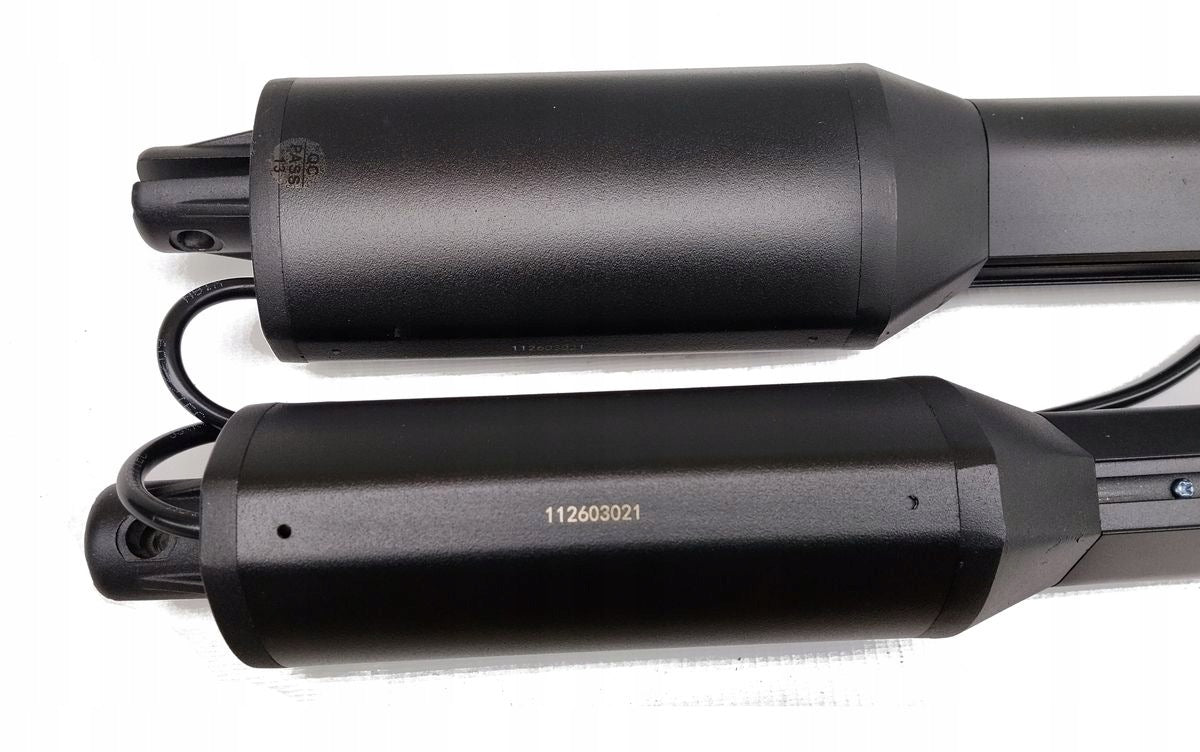

Electromechanical actuators PK-C05-300 is a robust and durable construction that uses a high-quality engine.

Actuators PK-C05-300 will also work where there is not much space next to the gate and the post is narrow. Thanks to the universal multi-position handles included in the set, installation is very simple.

The actuator housing made of aluminum provides high resistance to weather conditions, while the sprockets and gears are made of high-quality brass alloy, which guarantees increased strength and resistance to damage.

The range of motion of actuators during operation is determined by means of an overload switch, i.e. After reaching a certain point (bumper attached to the ground), the control panel disconnects the power supply.

The kit is equipped with solid, multi-position universal mounting brackets, which makes it very easy to install and reduces its time. Universal mounting brackets are perfect for double-leaf gates in virtually any configuration.

After pairing all settings in the X-House app, the entire configuration is available from your phone.

Automatic configuration mode is available in the application, the drive will perform one full cycle and automatically program all parameters.

The application even has open gateway monitoring with programmable alarm time.

The actuators feature an innovative

brushless motor with high-quality bearings.

This is a modern DC motor where traditional brushes are replaced by an electronic controller, eliminating friction, sparking, and component wear.

Key advantages of brushless motors:

• High Efficiency: Reaches 85–90%, resulting in lower energy loss and less heat generation.
• Longer Lifespan: No brushes means the elimination of a key wear-and-tear component.
• Better Power-to-Weight Ratio: Offers higher torque and greater performance in a smaller size.
• Quiet and Smooth Operation: Electronic control ensures precise and quiet performance.

**************************************************************

Home automation, especially for entrance gates, has become the standard. Integrating your gate drive with a Smart Home system provides not only convenience but also increased security and control over your property. Our drive, controlled via the X-House IOT app, can also be integrated into Home Assistant.

Benefits of integrating your

gate drive with a Smart Home system:

1. Manage your gate from anywhere: By integrating the drive with your smart home system, you can control your entrance gate using a smartphone or tablet. No matter where you are, you can open, close, or stop the gate.
2. Increased Security: Receive notifications about gate activity. For example, if the gate is opened unexpectedly, you will receive an instant alert on your mobile device.
3. Smart Scheduling: Program the gate to open and close at specific times of the day. This is useful for welcoming guests or ensuring the gate is closed at night to increase privacy and security.

If you also use a CCTV camera, the application allows you to view and control the drive remotely depending on your needs.

The set comes with two keys to unlock the gate emergency. In the event of an interruption in the supply of electricity, manually unlock (using the included key) the actuators, remove them from the wing and manually open the gate.

The control panel also provides the possibility of ordering an emergency battery power supply, which will open the gate in the event of an interruption in the supply of electricity.

Programming takes place automatically after starting the learning function, you can choose the type of heavy/light gate so that the system adjusts the parameters so that the actuators last as long as possible, with trouble-free operation.

The drive control panel has functions found only in sets of several thousand zlotys.

Thanks to the perfect programming of the operating range, slowdowns, overload values, the life of actuators can be extended up to twice.

A powerful LED lamp with antenna provides a long range of remote controls and good signaling even during the day.

PLEASE REFER TO THE ASSEMBLY INSTRUCTIONS ATTACHED IN THE PDF FILE BELOW THE DESCRIPTION.

4 SM28 remote controls, up to 80m range!!!

The control panel uses a 27V digital transformer

The radio route used in the drive is based on 433,92MHz variable code. This is a safer, longer-range solution.

The control panel housing is equipped with 3 glands. They allow for safe and reliable cable routing through the control panel housing.

The actuators used give the possibility of mounting even on a narrow post. Angles and flat bars are also included, and studs in aluminum covers for mounting the foot and on clinker posts.

After purchase, additional materials such as photos from our installations, copies of the instructions in Polish are sent to the control panel and actuators.

In the set you will find a mounting set consisting of four angles with a width of 8cm,two flat bars ensuring proper weaning from the posts,feet, mounting pins for the front and rear of the actuator,set of bolts and nuts, two unlocking keys,two actuator piston rod mounts on the wing, and long screws to mount the foot,and, possibly with a masonry / clinker post to mount angles.

At our other auctions you will get this kit in all possible configurations, with a lamp, photocells, more remote controls, emergency power supply, etc.

and accessories on compatible coding

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Delmar
Parametry	Product weight with unit packaging	15 kg
Parametry	Drive type	for double-leaf gates
Parametry	Maximum wing weight	300 kg
Parametry	Maximum wing length	3 m
Parametry	Supply voltage	24 V
Parametry	Maximum opening angle	110°
Parametry	Operating temperature	from -20 to 55°C
Parametry	Engine power	40 W
Parametry	Manufacturer code	NX300WiFi_1
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Set contents	control unit,unlock key,mounting elements,drive,remote control,warning light
Parametry	Additional features	automatic closing function,gate function,mobile application control function,controlled from intercom
