Apraksts
Trumpai apie prekę
Prekė: Automobilinė multimedija Nissan Qashqai 2007–2013, 9", 4+64 GB, Android, CarPlay, WiFi, su kamera. Kategorija: Radijo grotuvai.
- Gamintojas: no brand
- Modelis: RAF1714
TECHNICAL PARAMETERS
- Operating system: Android 15
- Processor: Quad-Core ARM Cortex-A7
- RAM: 4 GB
- Internal memory: 64 GB
- Display: 9" LCD with capacitive touch panel
- Screen resolution: 1280 × 800
- Wi-Fi: Wi-Fi 5 Dual Band 2,4 GHz + 5 GHz
- Wi-Fi standard: IEEE 802.11ac
- Bluetooth: hands-free calls, music playback and phone book synchronization
- Apple CarPlay: wired and wireless
- Android Auto: wired and wireless
- Mirror Link: wired and wireless connection
- Navigation: GPS / BDS / GLONASS
- Radio: FM/AM with RDS
- FM range: 65 to 108 MHz
- Sound Corrector: EQ
- Audio formats: MP3, FLAC, APE, WMA, WAV, AAC, M4A, AMR, Opus, MID, OGG
- Video formats: AVI, ASF, MP4, MOV, MPG, MPEG-1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP
- Video decoding: H.264/AVC
- System languages: English, Polish, Slovak, Czech, Hungarian, German, French, Italian, Spanish, Portuguese, Russian, Turkish and others
- Reversing camera input: CVBS and AHD
- USB: 2 USB connectors
- Audio Output: RCA
- Audio input: AUX
- Working voltage: 8 – 16,5 V
- Working temperature: from -30°C to +75°C
- Power consumption after switching off ACC: to 8 mA
- Deep sleep current consumption: to 3 mA
RADIO NAVIGATION ANDROID 15 TO NISSAN QASHQAI J10
COMPATIBILITY
- Nissan Qashqai: 2007–2013
The radio fits cars with a console and factory radio presented as compatible examples 1 and 2.
Before buying, compare the appearance of the center console, factory radio and connectors in the car with the photos presented in the offer.
CARPLAY, ANDROID AUTO, BLUETOOTH AND DUAL BAND WI-FI
The radio supports wireless Apple CarPlay and Android Auto via the Zlink app. Once your phone is connected, you can use compatible maps, music, calls, messages, and voice assistant right on your device screen.
The Mirror Link function allows you to display images from your smartphone wired or wirelessly. Bluetooth allows you to make calls, play music and sync your phone book.
Dual-band Wi-Fi 5 2,4 GHz + 5 GHz allows you to choose the appropriate bandwidth:
- 2,4 GHz: longer range and stable connection
- 5 GHz: faster data transfer and less interference
Wi-Fi 2×2 and MU-MIMO technology supports a stable connection to your phone’s hotspot or other available wireless network.
9" 1280 × 800 SCREEN AND ANDROID 15 SYSTEM
- The large capacitive 9" touchscreen with a resolution of 1280 × 800 provides clear images, clear maps and convenient application and multimedia support.
- Quad-core processor, 4 GB of RAM and 64 GB of internal memory allow you to conveniently use Android 15, navigation applications, music and other radio functions.
- Internal memory allows you to store applications, offline maps, music, videos and other multimedia files.
ONLINE AND OFFLINE GPS NAVIGATION
- The built-in navigation module supports GPS, BDS and GLONASS systems, ensuring stable positioning while driving.
- The radio works with popular online navigation apps. After downloading the appropriate maps, you can also use offline navigation without internet access.
- The included GPS antenna helps to achieve stable satellite signal reception.
AM/FM/RDS RADIO, SOUND EQUALIZER AND STEERING WHEEL CONTROL
The built-in tuner supports AM band, FM band and RDS function. The RDS system can display information transmitted by compatible radio stations, including the station name and information about the current broadcast.
The CD3313 sound processor and EQ allow you to adjust the sound settings to your preferences.
Radio offers:
- AM/FM tuner with RDS
- frequency range FM 65 to 108 MHz
- Adjusting the tone and settings of the equalizer
- AUX input
- RCA outputs
- SUB output for compatible subwoofer
- External microphone input
- Play music from iPhone/iPod
- Playing music via Bluetooth and USB
- operation of buttons on the steering wheel after manual programming
AHD REVERSING CAMERA INCLUDED
- The set includes a AHD reversing camera. The radio supports CVBS signal and analog HD signal, providing clear images when reversing and parking.
- When properly connected, the camera image is automatically displayed when the reverse gear is turned on. In the settings, you can change the image reflection and disable auxiliary lines.
- If the factory car camera does not provide adequate quality or is not compatible, use the AHD camera included in the kit.
MULTIMEDIA AND CONNECTORS
The radio supports a wide range of popular audio and video formats:
- Audio: MP3, FLAC, APE, WMA, WAV, AAC, M4A, AMR, Opus, MID and OGG
- Video: AVI, ASF, MP4, MOV, MPG, MPEG-1/2/4, VOB, MKV, FLV, TS, WMV, RMVB and 3GP
- External memory: USB devices
Two USB connectors allow you to connect your portable memory, phone or compatible accessories. The radio is also equipped with an AUX connector, RCA audio outputs, SUB output for the subwoofer, CVBS/AHD reversing camera input and external microphone input.

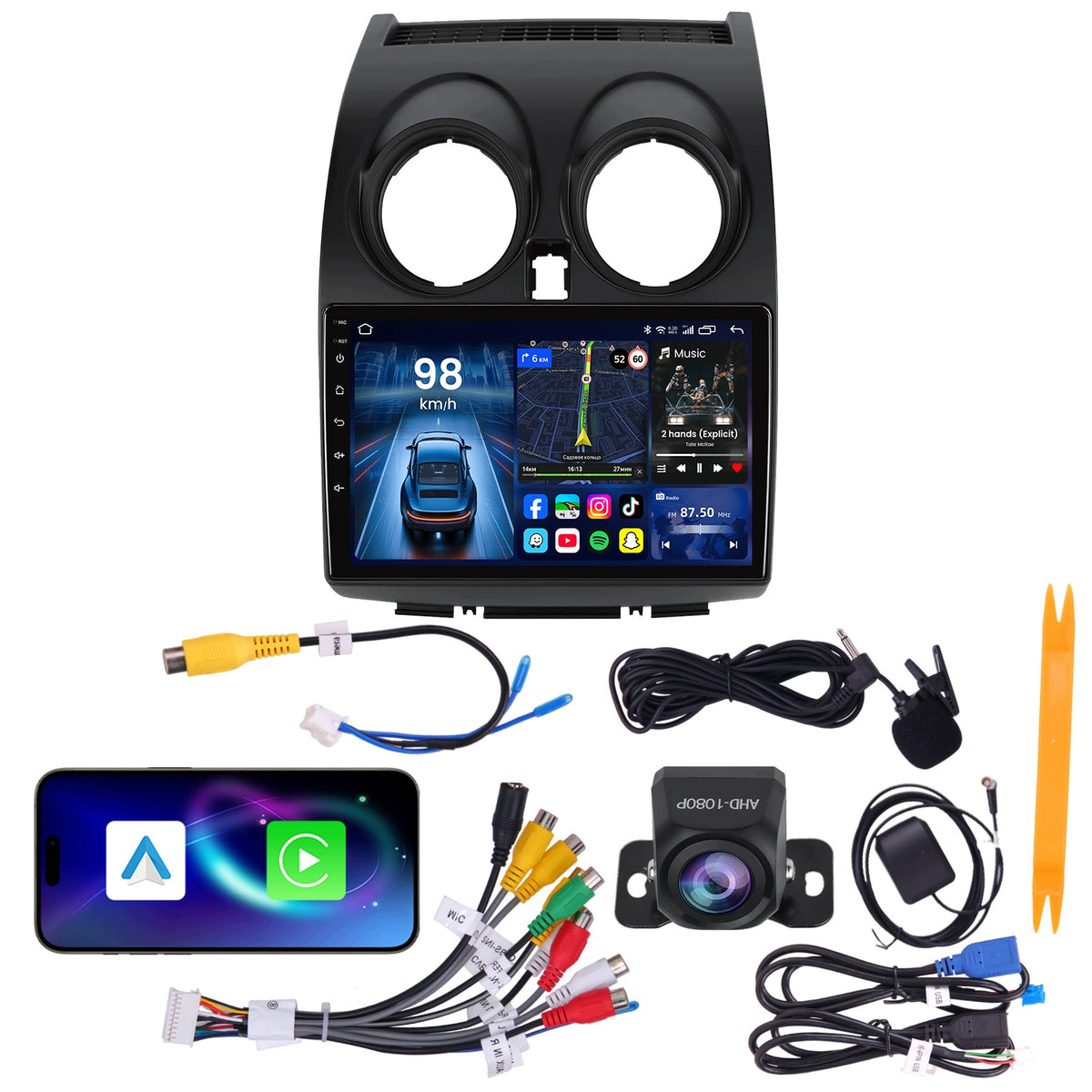

CONTENTS OF THE SET
- Android 15 radio with 9" screen
- dedicated frame for Nissan Qashqai
- AHD reversing camera
- main power beam
- 10-pin reversing camera input cable
- RCA cable
- 4-pin USB cable
- 6-pin USB cable
- external microphone
- GPS antenna
- dismantling tool
- installation instructions
IMPORTANT INFORMATION BEFORE PURCHASE
- The radio is designed for the Nissana Qashqai from 2007 to 2013 with a console corresponding to examples 1 and 2 in the compatibility image.
- Does not match the version with the factory navigation system and console shown as example 3.
- The kit does not use the CANBUS module. The buttons on the steering wheel must be programmed manually. The factory car microphone is not supported — use the external microphone included in the kit.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With invoice (excluding VAT) |
| Parametry | Brand | no brand |
| Parametry | Kind | accessory |
| Parametry | Model | RAF1714 |
| Parametry | Product weight | 1.8 kg |
| Parametry | Amplifier power | 4x45 W |
| Parametry | Media played | USB |
| Parametry | Screen diagonal | 9" |
| Parametry | Installation | 2-DIN |
| Parametry | EAN (GTIN) | 7841971127357 |
| Parametry | Manufacturer code | RAF1714 |
| Parametry | Packaging status | original |
| Parametry | Supported file formats | .aac,.ape,.flac,.mp3,.wav,.wma |
| Parametry | Radio | RDS information,AM band,FM band |
| Parametry | Functions | touchscreen,sound equalizer,playing music from iPhone/iPod |
| Parametry | Ports | AUX,RCA pre-out (preamplifier),RCA sub-out (subwoofer),USB |
| Parametry | Communications | Bluetooth,GPS,Wi-Fi |
