Automobilinis 12V lizdo modulis su kabliu

Trumpai apie prekę

Prekė: Automobilinis 12V lizdo modulis su kabliu. Kategorija: Laidai ir lizdai.

• Gamintojas: no brand

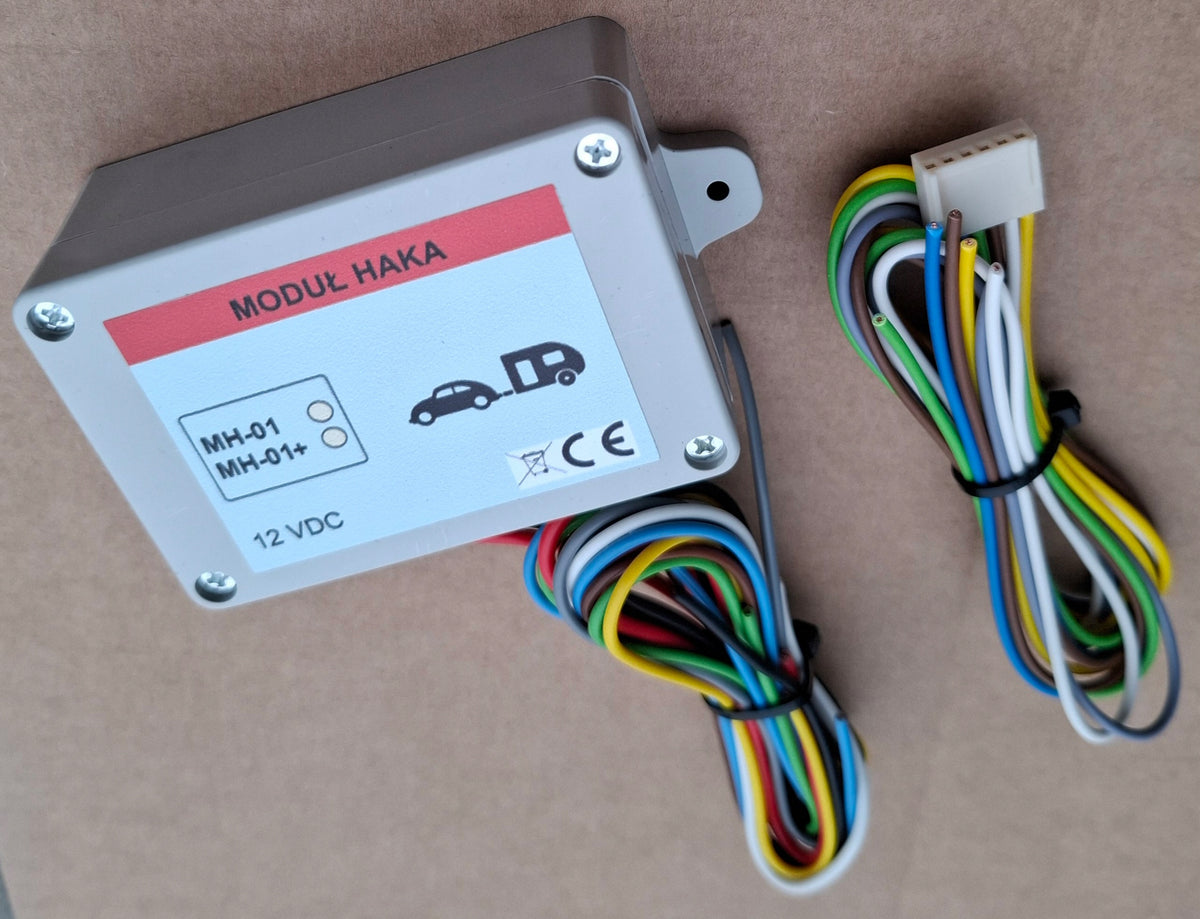

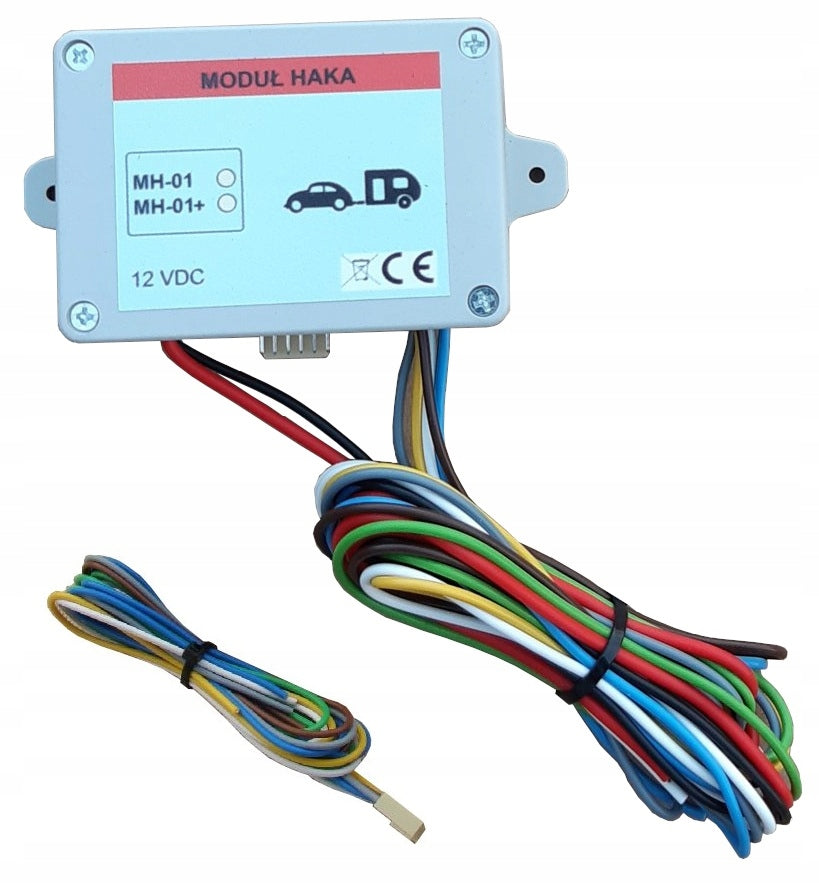

CAR HOOK MODULE MH-01

This is a high quality polish product product.

Note the competitive poor quality Chinese fakes.

.

Simple and effective car hook module for 12V installation (with a minus on the weight) and a typical 7 pin trailer socket.

.

Trailer socket with gasket I add for FREE!

.

.

The module protects the car computer against:

- excessive load on trailer bulbs

- possible short circuits in the electrical system of the trailer

.

The module is not a significant load for the computer because the power consumption of the module is very small: 1-2 mA / input.

.

Socket with gasket is included:

Module designed for 12V installation. Maximum load 5A per output, max total load 15A. The module can be used in CAN installations and installations with LED lighting. Of course, it must be possible to download the +12V signal with the bulb on (e.g. direction indicator or stop) for example at the lamp. The module draws a very small current of 1-2 mA per input so it does not cause lighting errors in the car - a typical even a small 12V 5W bulb draws about 400-500 mA.

.

The module does not work with installations where 2 functions (e.g. Positional and alloy) are realized with a single-fiber bulb via PWM. Works seamlessly with installations where 2 functions (e.g. Position and alloy) are realized with one bulb but 2-fiber.

.

Connecting the module is very simple. It should be installed in a dry place inside the car.

.

Connect the black cable to the mass (-12V) and the red cable to the + battery via a 15A fuse.

.

Next, according to the scheme below - the module has 6 INPUTS (through a convenient connector connected to the module) - they should be properly connected, for example, to the rear lighting bulbs of the car (of course, on the + power side of the bulb).

.

The last step is to connect 6 OUTPUTS (wires coming directly from the module) to the trailer socket.

.

The module is brand new.

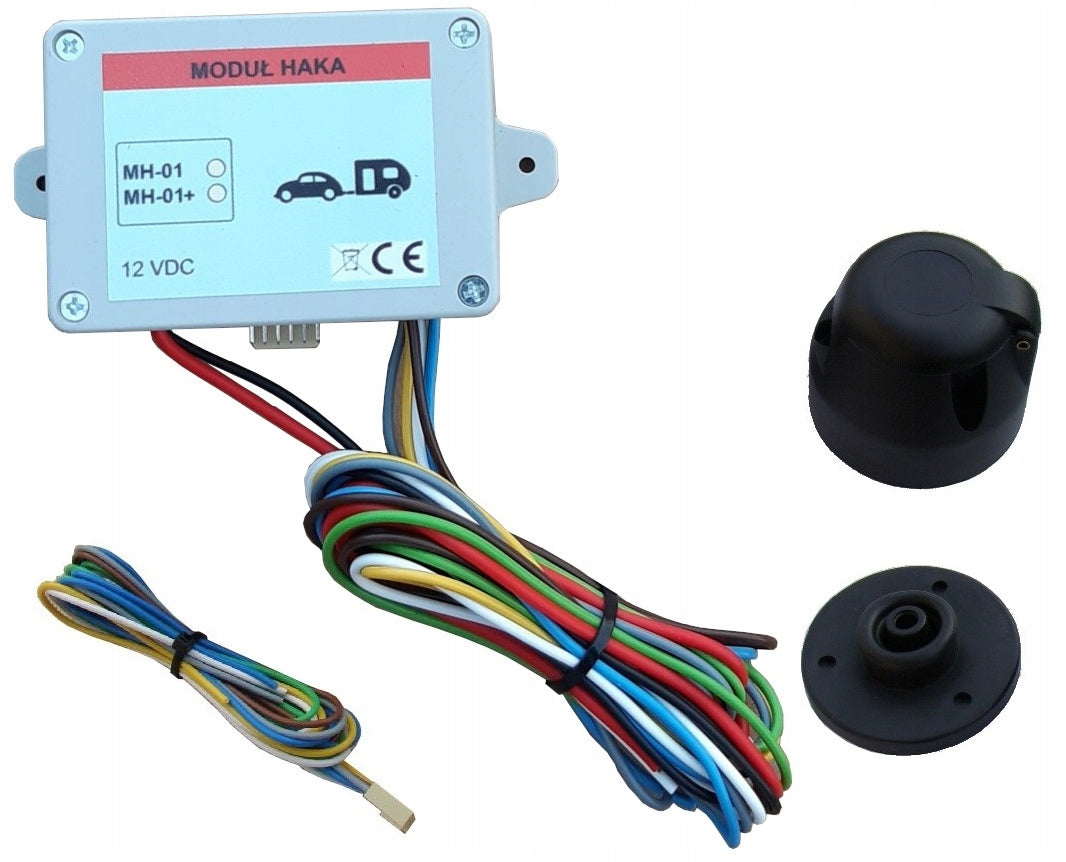

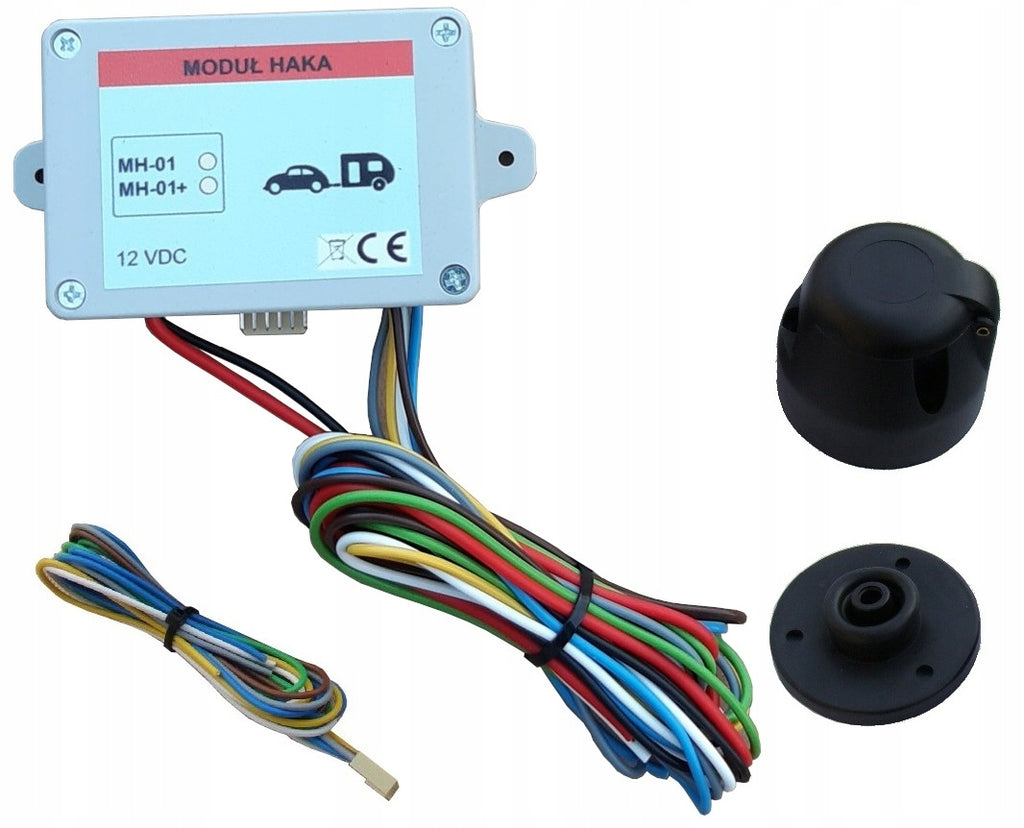

The set includes: module, wiring harness, 7 PIN socket, socket pad.

.

The size of the gray housing is about 11x6 cm, thickness 3,5cm.

.

Specifications
