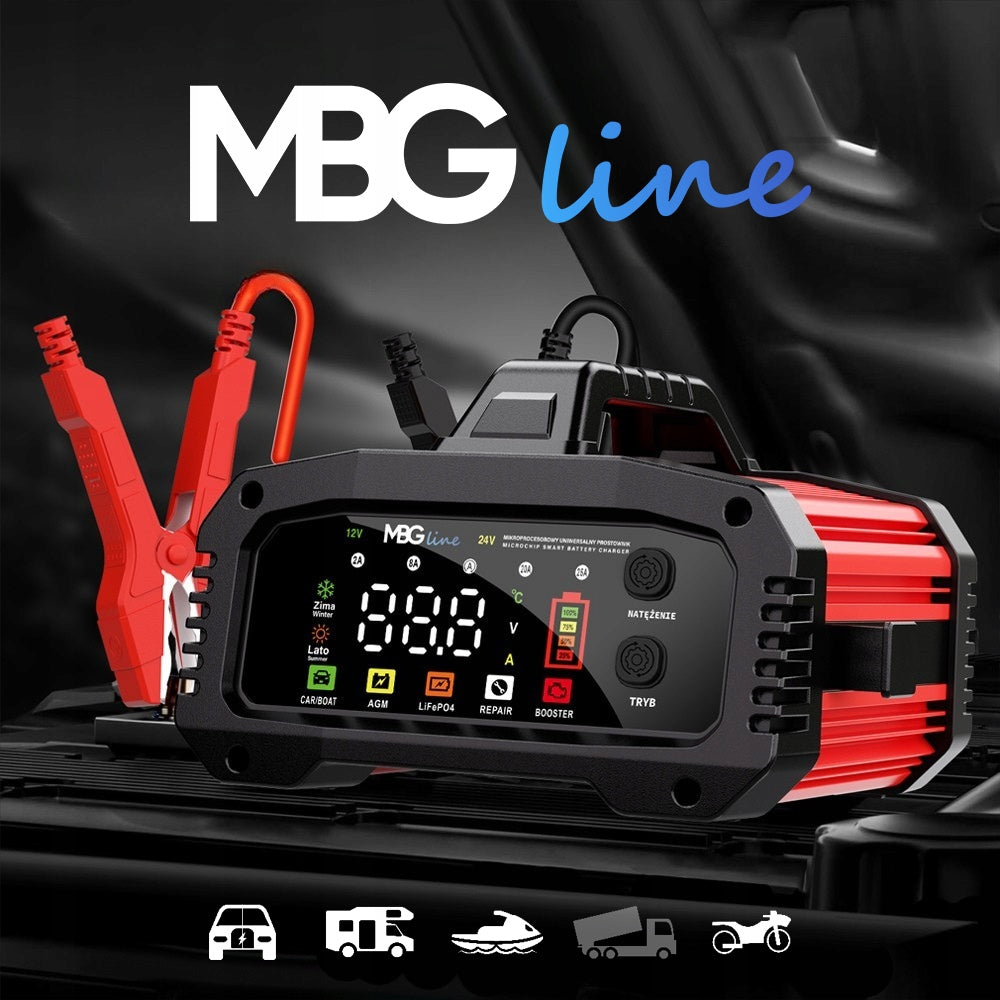

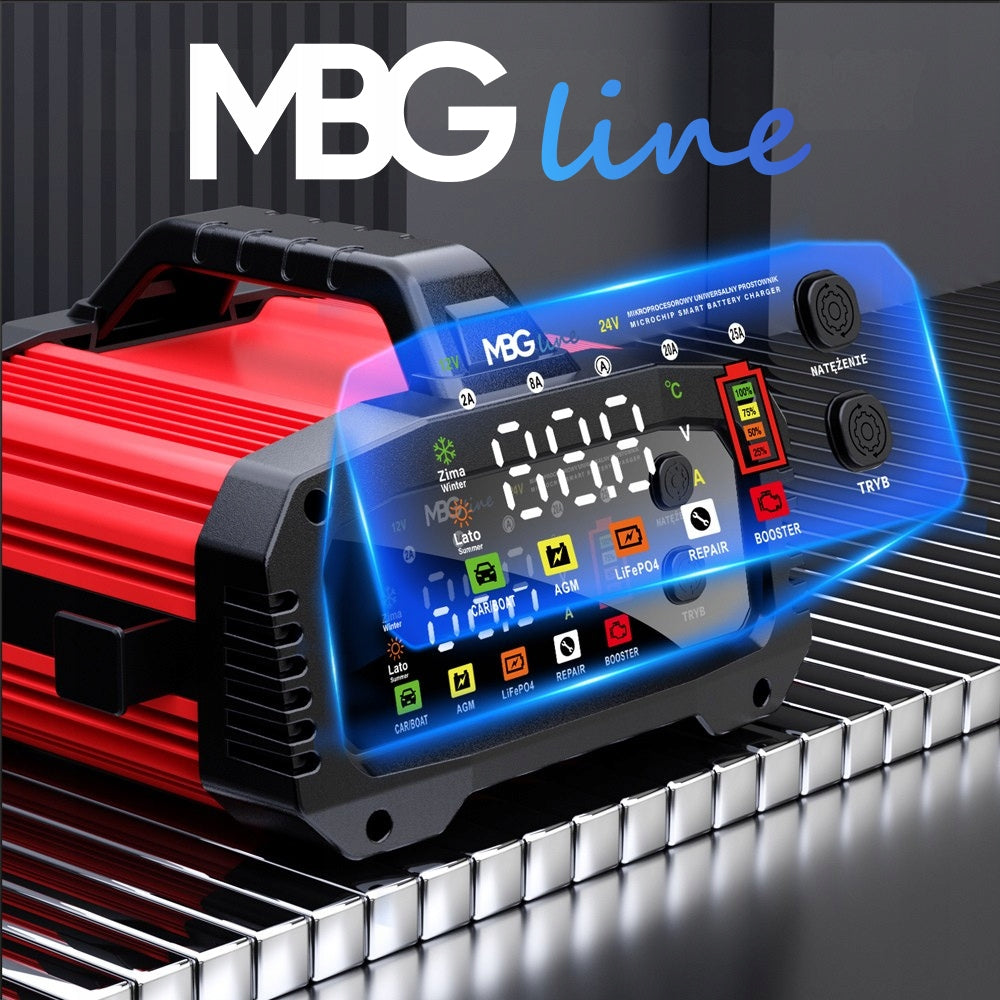

Automobilinis akumuliatoriaus įkroviklis 12V/24V 25A

Trumpai apie prekę

Prekė: Automobilinis akumuliatoriaus įkroviklis 12V/24V 25A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: MBG Line
• Modelis: FPT-250 MAX

⚠ FAST CHARGING ⚠ 12/24V BATTERY REPAIR MODE ⚠ LARGE LCD DISPLAY ⚠ SIMPLE OPERATION ⚠ COMPACT DESIGN

✔ WORKS WITH AGM (START & STOP) BATTERIES

✔ SUITABLE FOR ALL 12V and 24V BATTERIES FROM 6Ah to 400Ah

✔ THE LATEST VERSION OF THE SMART AUTOMATIC RECTIFIER WITH BATTERY REPAIR FUNCTION AND BOOSTER MODE

⭕ MBG line FPT-250 MAX

• Fast charging 12V (25A) and 24V (15A)
• Battery repair mode
• BOOSTER boot mode
• Adjustable workload
• Advanced 8-stage charging mode
• Automatic summer and winter mode
• Modern, backlit LCD screen with high contrast
• Advanced microprocessor control
• Security systems before: overcharging, overvoltage, overheating, short circuit, bad polarity (wrong connection)
• Spark-free clamps for added security
• Compact size, easy to transport
• Battery support from 6 to 400Ah
• Built-in fan
• Universal – for all vehicles with 12V and 24V batteries
• Cover included for easy storage
• Dedicated to lead-acid batteries, LiFePO4, AGM, GEL, SLA, WET, EFB, DEEP DISCHARGE

⭕ It is worth noting that this rectifier reaches a current of up to 25A, which ensures fast charging of all 12V and 24V batteries.

1. Charging current up to 25A
2. Advanced 8 stage charging mode
3. Additional boot mode - BOOSTER
4. Adjustable battery charging intensity

Front panel with a button with which we set the selected option:

1. Car (Car / Boat)
2. AGM (LiFePO4)
3. LiFePO4
4. REPAIR
5. BOOSTER

All the most important information can be easily read from the m.in display:

• Temperature (in degrees C)
• Voltage level on battery (in Volts)
• Intensity level of charging (in Amps)
• Information about damaged battery / bad connection
• Current Summer / Winter
• Recovery Mode / Repair / Booster
• Level of charge expressed as a percentage

Automatically, when the temperature is detected on the screen, the appropriate mode will be highlighted:

Winter mode

When the ambient temperature drops below +10°C, the rectifier automatically increases the charging voltage.

Summer mode

When the ambient temperature exceeds +28°C, the rectifier automatically reduces the charging voltage.

1. Stage: Battery Desulfatation
2. Stage: Charging with soft start
3. Stage: Basic Loading
4. Stage: Absorption Loading
5. Stage: Battery Test
6. Stage: Refreshing charging
7. Stage: Maintenance and maintenance charging
8. Stage: Re-start charge after battery discharged

• Motorcycles
• Scooters
• Quads
• Motorboats
• Boats
• Passenger cars
• Buses
• Commercial vehicles
• Trucks
• Motorhomes
• Tractors
• Agricultural machinery
• Forklifts
• Off-road vehicles (ATV)
• Lawn tractors
• Snowmobiles
• Construction vehicles (e.g. excavators)
• Military vehicles
• Buses
• Golf carts
• Vintage cars
• Fishing boats
• Jet Ski (water scooters)
• Electric vehicles with 12V or 24V batteries

✅ Protection against overheating

✅ Protection against current overload

✅ Protection against electric shock

✅ Protection against short circuit

✅ Protection against reverse connection

✅ Protection against overvoltage

✅ Protection from too low voltage

⭕CAR/BOAT (Car)

This mode ensures optimal charging and maintenance of batteries used in vehicles and boats. Batteries such as:

1. GEL,
2. SLA (Sealed Lead Acid)
3. WET (Wet/flooded batteries)
4. DEEP CYCLE (Deep Discharge Batteries)
5. EFB (Enhanced Flooded Battery)
6. Calcium (Calcium batteries)

⭕AGM (START/STOP)

For AGM batteries, which are increasingly popular batteries used in cars with START/STOP system.

⭕LiFePO4

For LiFePo4 batteries

⭕REPAIR (REGENERATION)

Repair mode (16 hours)

Advanced battery regeneration mode for repairing and storing old, unused or sulfured batteries.

Its operation restores the proper internal structure of the battery, which allows to extend its life.

Use this mode instead of buying a new battery - restore its efficiency and extend its use.

*Not all batteries can be upgraded.

⭕BOOSTER (STARTUP)

This function is only for 12 V batteries. After selecting the “Booster” mode, the charging current can reach the maximum value, and the charging time is 200 s. After 200 seconds, the “on” message will appear on the display, after which you will be able to start the car.

⭕ Setting the charging current

With the Current button we can set the appropriate charging intensity

• 2A-> Batteries with a capacity. 6-40AH
• 8A-> Batteries with a capacity. 30-150AH
• AUTO:A-> Batteries with a capacity. 45-200AH
• 20A-> Batteries with a capacity. 60-300AH
• 25A-> Batteries with a capacity. 75-400AH

1. Connect the clamps according to the designation (red to plus, black to mass)
2. Connect the rectifier to electricity
3. Set the rectifier operating mode

• Power supply: 100-240V / 50-60Hz, max 350W
• Maximum charging current: 25A for 12V batteries, 15A for 24V batteries
• Supported battery voltages: 12V / 24V
• Battery capacity range: 6Ah - 400Ah
• Summer and winter mode (automatic adjustment): YES
• Repair mode (battery regeneration) : YES
• Battery type: lead-acid, LiFePO4, AGM, GEL, SLA, WET, EFB, DEEP DISCHARGE
• Microprocessor: YES- advanced charging process control system
• Screen: Large, backlit LCD screen with high contrast
• Protections: Before overheating, Against reverse polarity, Against short circuits and overloads, Before overcharging
• Clamps: Spark-free, safe to use
• Dimensions: 192*216*125mm
• Weight: 1500g
• Operating conditions: -20°C to +40°C
• Power cord length: ~110cm
• Cable length with clamps:~ 140cm
• Safety Certificates and Standards: CE, RoHS

⭕ MBG line FPT-250 MAX

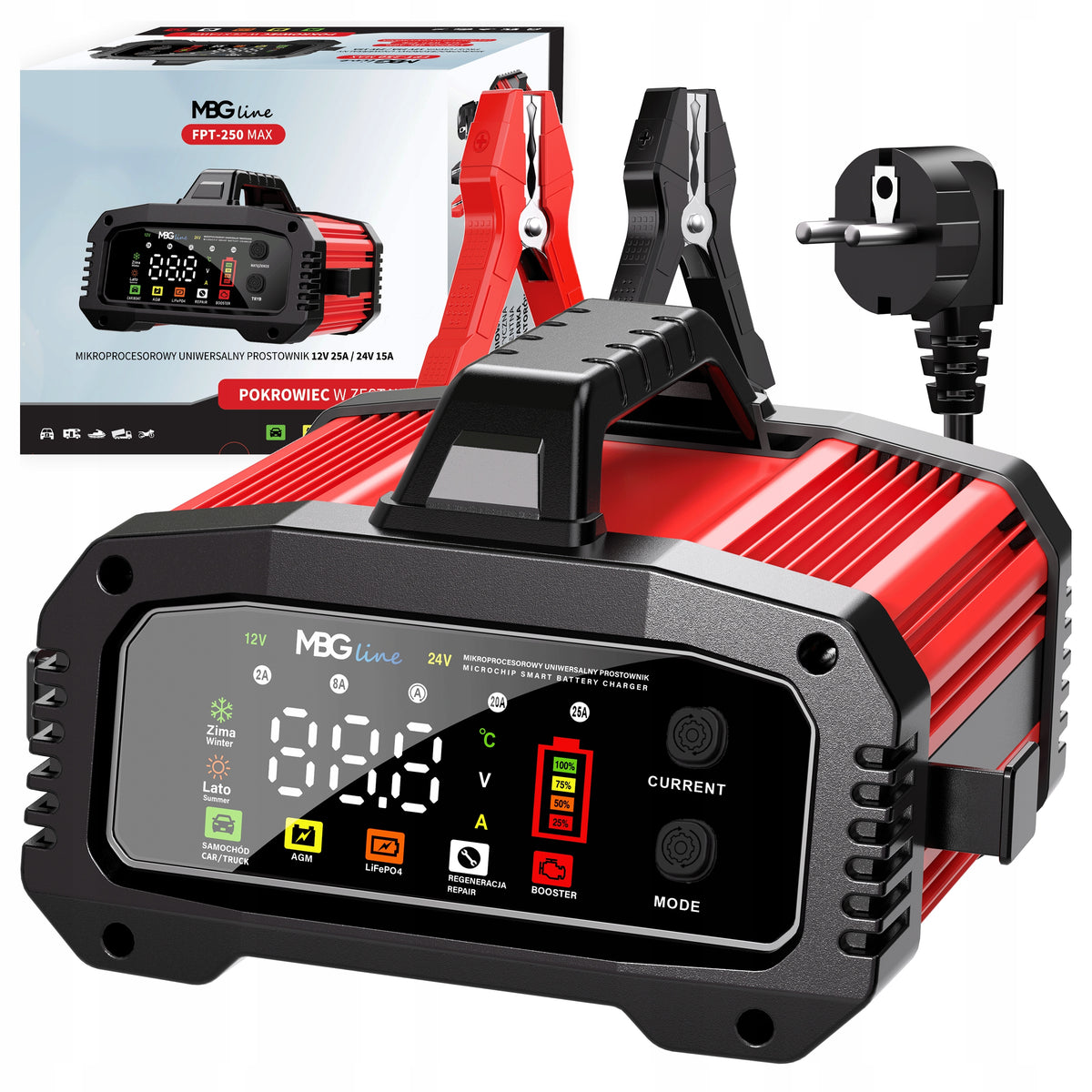

1. Automatic Intelligent Rectifier MBG line FPT-250 MAX
2. Full polish manual in the form of a booklet
3. Cover for device for easy storage
4. Elegant box - perfect for a gift

• Poland Distribution and Service: Guarantee of the highest quality of service and full after-sales support.
• Latest Model 2025/2026: It uses modern technologies, offering better performance and greater efficiency.
• Battery Repair Mode: Innovative function to restore the efficiency of even heavily discharged batteries.
• Fast Charging: Efficient charging of 12V (25A) and 24V (15A) batteries, saving time.
• Automatic Summer and Winter Mode: Adjusting charging parameters to weather conditions for optimal performance.
• Larger LCD Screen: A new, clear display with high contrast and backlighting that makes it easy to read even in difficult lighting conditions.
• Advanced Microprocessor: Precise management of the charging process for maximum efficiency and battery protection.
• All Necessary Protection: Protection against overheating, reverse polarity, short circuits and overloads.
• Compact Size: Easy to store and transport, perfect for use at home or on the road.
• Sparkless Clamps: Maximum safety when connecting the rectifier.
• Universality: Support 6 to 400Ah batteries, ideal for motorcycles, scooters, quads, motorboats, boats, cars, buses and trucks.

Trust proven solutions and ensure your vehicles have a long-lasting and safe battery life!

Specifications
