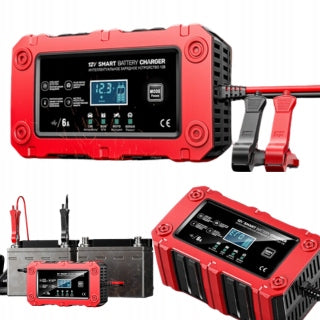

Automobilinis akumuliatoriaus lygintuvas 12V 6A su Start-Stop funkcija

Trumpai apie prekę

Prekė: Automobilinis akumuliatoriaus lygintuvas 12V 6A su Start-Stop funkcija. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Foxsur
• Modelis: Anytech

⭐ The most important features of the product

✅ Microprocessor charger Foxsur BC1206 – automatic charging of 12V batteries

✅ Maximum charging current 6A – fast charging of batteries

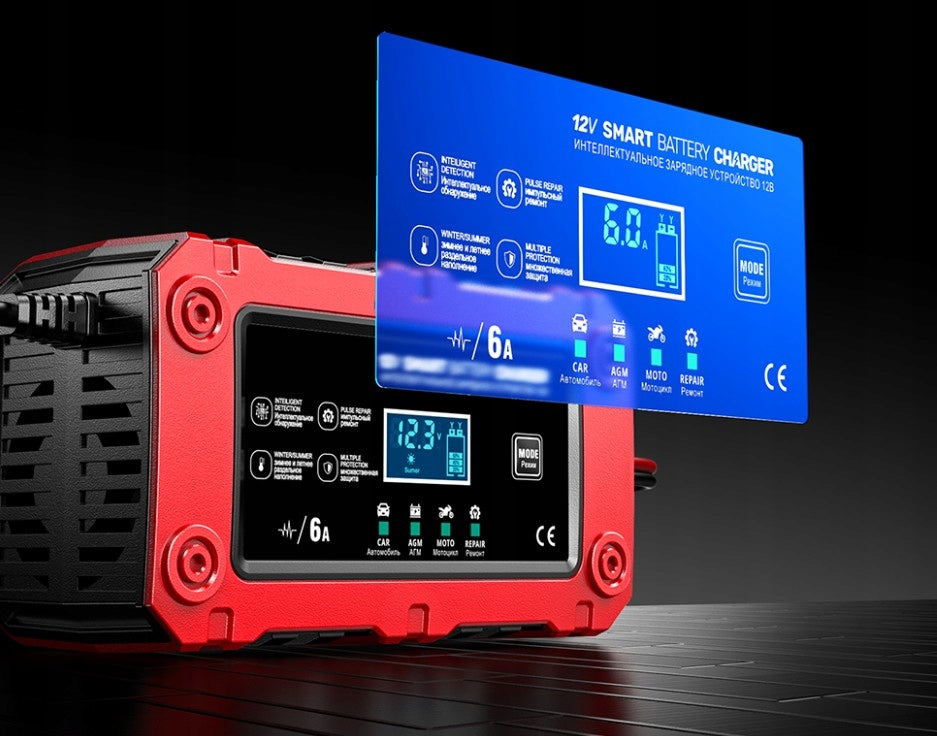

✅ LCD screen – display of charging parameters and battery status

✅ Multifunctional – charging, maintenance, diagnostics

✅ Safe charging – protection against overcharging, reverse polarity and short circuit

✅ Supports lead-acid batteries – ideal for cars, motorcycles, UPSes, etc.

✅ Simple operation – intuitive interface and easy installation

✅ Summer and winter mode – depending on the temperature, the rectifier automatically selects the operating mode

⭐ Why choose Foxsur BC1206

Foxsur BC1206 is a modern microprocessor rectifier that provides fast and safe charging of 12V batteries.

Advanced automatic charging technology adjusts parameters depending on the condition of the battery, which prevents overcharging and prolongs the life of the cells.

Thanks to the LCD display, you can monitor the charging status and battery status on an ongoing basis, which makes the charger extremely convenient and precise to use.

⭐ Application

✅ Charging car batteries 12V

✅ motorcycle and scooter batteries

✅ Batteries for UPS and emergency systems

✅ renewable energy systems (photovoltaics, windmills)

✅ Battery power supply in electronic equipment

✅ Charging portable and recreational batteries

⭐ Application example – Case Study

Problem

In the car workshop, you need to charge various car, motorcycle and UPS batteries in a fast and safe way.

Solution

The use of the Foxsur BC1206 charger to charge all types of 12V batteries in the workshop.

Effect

Fast and safe charging of batteries of different types, battery status control thanks to LCD display.

⭐ Frequently Asked Questions (FAQ)

Does the charger support all 12V batteries?

Yes, it supports lead-acid, gel, EFB, AGM batteries including car, motorcycle and UPS batteries.

Does the charger have a battery maintenance function?

Yes, the Foxsur BC1206 has a maintenance function that prevents overcharging and supports the longevity of the batteries.

How long does it take to charge a 12V 6Ah battery?

Charging time depends on battery capacity, with 6A current, the standard 12V 6Ah battery will charge in about 1 hour.

Does the charger have security?

Yes, it has protection against overcharging, reverse polarity and short circuit.

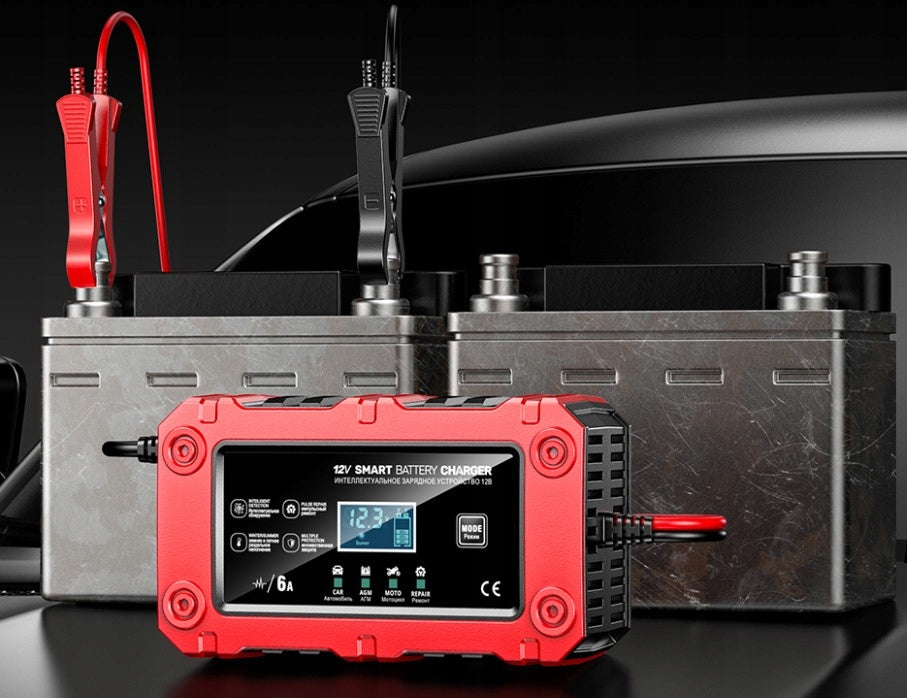

Connection instructions

1. Connect the red crocodile to the electrode +

2. Connect the black crocodile to the electrode -

3. After properly connecting the rectifier - the battery parameters will appear on the display.

4. In case of incorrect connection, the following inscription will appear on the display: reverse conection - then you need to change the crocodile connections

5. Insert plug into 220 V power supply

6. Select the MODE type of rectifier operation

7. When charging is finished on the display, the battery is full 100%.

8. For better charging, you can leave the battery connected to the charger for another hour

9. We disconnect the device in reverse order: first we pull the plug from the contact, then we disconnect the black crocodile, and finally the red one.

⭐ Technical specification

✅ Model: Foxsur BC1206

✅ Type: Microprocessor rectifier 12V 6A

✅ Power supply: 230V AC (input)

✅ Charging current: max. 6A

✅ Batteries: 12V lead-acid

✅ Display: LCD – charging status and battery diagnostics

✅ Security: overcharge, reverse polarity, short circuit

✅ Purpose: car, motorcycle, UPS batteries

✅ Dimensions: 170 × 80 × 55 mm

✅ Weight: 0,8 kg

⭐ Important information

Foxsur BC1206 is a microprocessor rectifier designed for 12V batteries.

The charger has built-in protection that protects both the battery and the user from overcharging problems.

Brand new product, covered by the manufacturer's warranty.

⭐ About the manufacturer

Foxsur is a brand known for its high-quality rectifiers and chargers.

The manufacturer provides durability, safety and convenience of use, offering solutions for a wide range of batteries.
