Automobilinis garso stiprintuvas DSP 4x60W, skirtas Android radijui

Trumpai apie prekę

Prekė: Automobilinis garso stiprintuvas DSP 4x60W, skirtas Android radijui. Kategorija: Garsiakalbiai.

• Gamintojas: no brand
• Modelis: SUBWOOFERY

New dimension of sound for multimedia stations

Modern Android radios look great and offer plenty of features, however, their built-in power amplifiers often fail to drive speakers. This dedicated amplifier with lossless sound processor completely changes the factory acoustics. The device unlocks the full potential of the installed sound system, offering pleasant, soft bass, balanced midrange tones and extremely expressive treble. Your favorite music will finally sound the way the creator planned it.

Instant installation without cutting wires

Forget about complicated soldering, reworking installations and the risk of losing your warranty on the car. The system is designed in a fully non-invasive architecture (Plug & Play). Simply remove the main power cube from your Android radio, plug it into the appropriate amplifier socket, and lead the dedicated beam back to the media station. The whole process takes only a moment, is completely safe for the electronics of the vehicle and does not require a visit to a specialist.

Classic technology in an armored housing

At the heart of the system is the proven and valued by audiophiles amplifier architecture in class AB. This solution guarantees a natural, warm sound with a negligible level of distortion, which in this model is below 0,01%. All electronics have been enclosed in an extremely compact – measuring only 12 cm in length – rib housing made of aluminum alloy. This design not only effectively protects sensitive components, but above all acts as a huge heat sink, quickly dissipating heat when working at full power.

Independent acoustic scene control

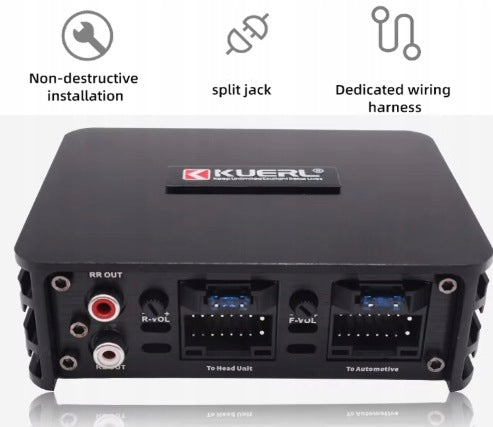

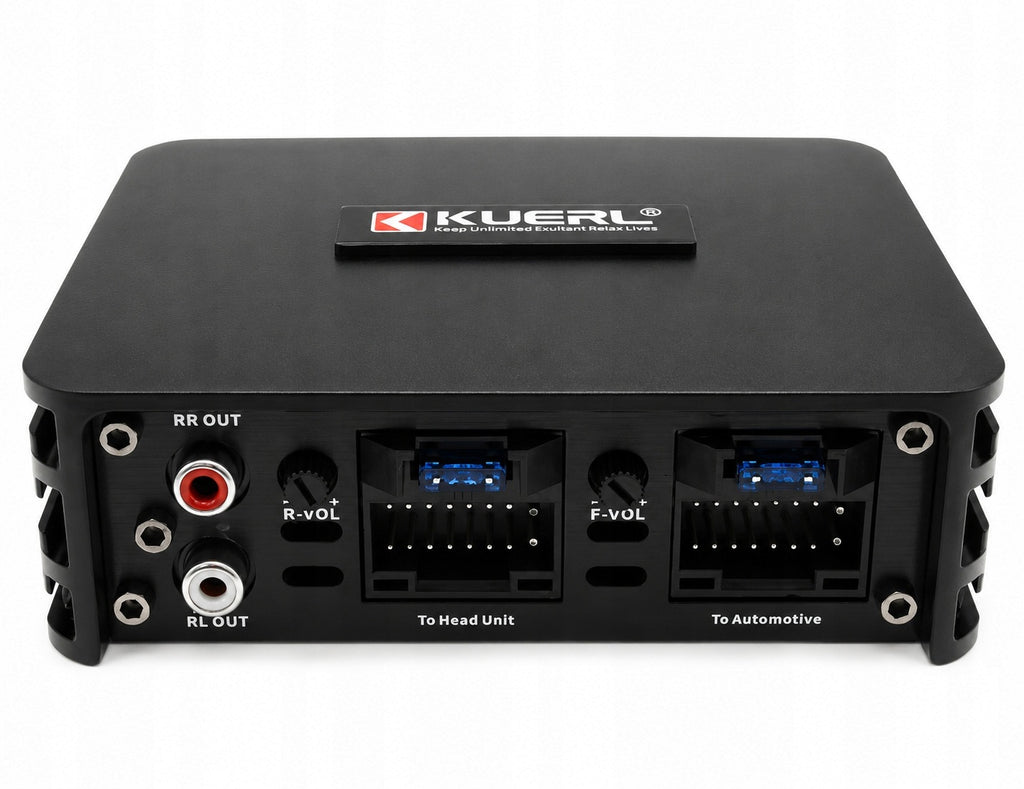

Each interior of the car is characterized by a different propagation of sound waves. In order for the sound to evenly surround the driver and passengers, two independent potentiometers are placed on the front panel of the device. They allow for precise, analogue volume control for the front (F-VOL) and rear (R-VOL) soundstages. Thanks to this, you can easily balance the sound intensity, perfectly matching them to the size of the cabin and the distance from the speakers.

Easy expansion with additional bass

If in the future you decide that your system needs a powerful impact of the lowest registers, the device is fully prepared for this. Dedicated RCA (RR OUT) signal connectors were output on the panel. They allow you to directly connect an external, active subwoofer that will take a clear signal straight from the processor. The expansion of the car audio system becomes simple and does not require investing in additional signal converters.

Technical specification

• Model: K-DSP4 (Kuerl brand)
• Amplifier type: Class AB
• Rated power (RMS): 4 x 60 W
• Maximum power: 320 W
• Impedance: 4 Ω
• Working voltage: 10.5 V – 14.8 V
• Signal sensitivity: > 95 dB
• Distortion level (THD): < 0.01%
• Housing material: Aluminum alloy (heat sink housing)
• Housing dimensions: 120,65 mm (length) x 100 mm (width) x 40 mm (height/thickness)
• Interfaces: Plug & Play connectors (for station and car installation), RCA outputs for subwoofer
• Compatibility: Universal (for non-factory Android media stations)

Contents of the set

• Compact car amplifier DSP 4x60W (model K-DSP4)
• Dedicated separation wiring harness (Plug & Play) for quick installation
