Auto skaņas pastiprinātājs Ground Zero GZUA 4SQ

Trumpai apie prekę

Prekė: Automobilinis garso stiprintuvas Ground Zero GZUA 4SQ. Kategorija: Stiprintuvai.

• Gamintojas: Ground Zero
• Modelis: GZUA 4SQ

4-channel class A/B car amplifier - RMS power: 4 x 115 - 185 W / 2 x 390 W. Sound Quality

The high-quality Ground Zero amplifier from the Uranium GZUA 4SQ series is a four-channel power amplifier with reference ambitions that has undergone a refresh and redesign.

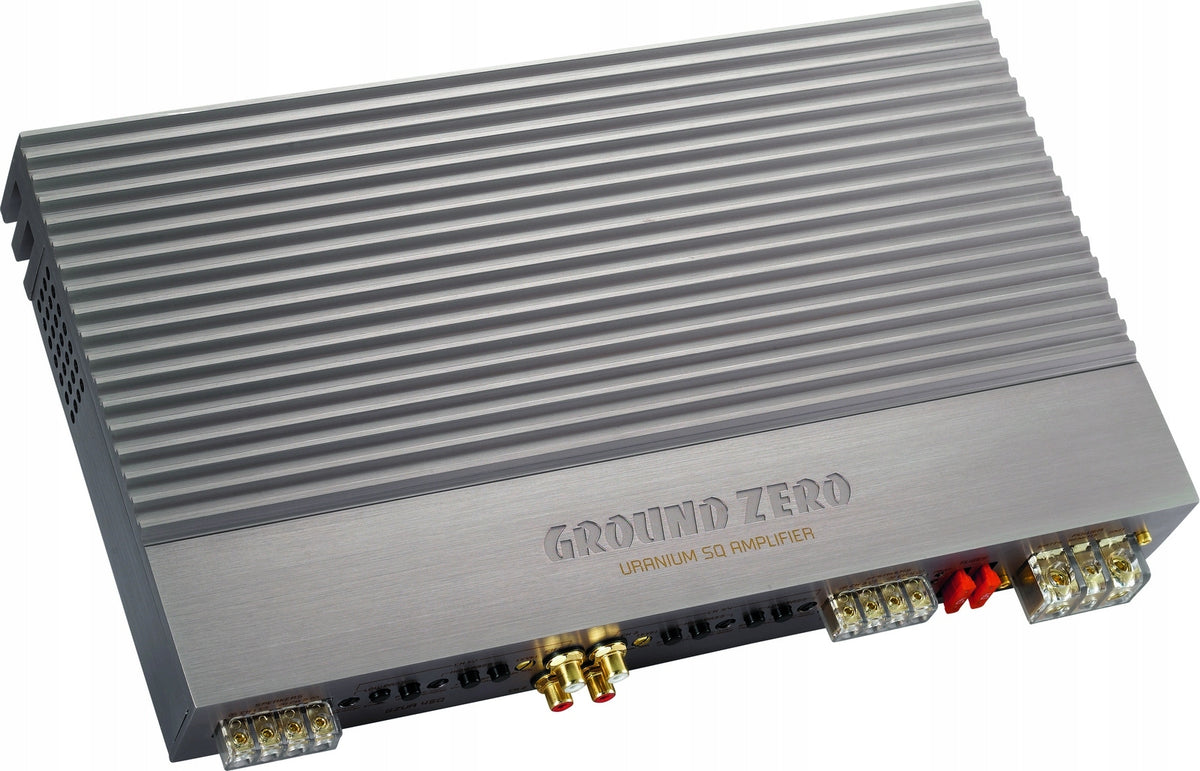

Externally, the new SQ amplifiers - still looks quite similar to its predecessor, but a lot has happened under the titanium-colored anodized housing.

It's only 48mm tall, with an elegant brushed aluminum back, and it just looks great.

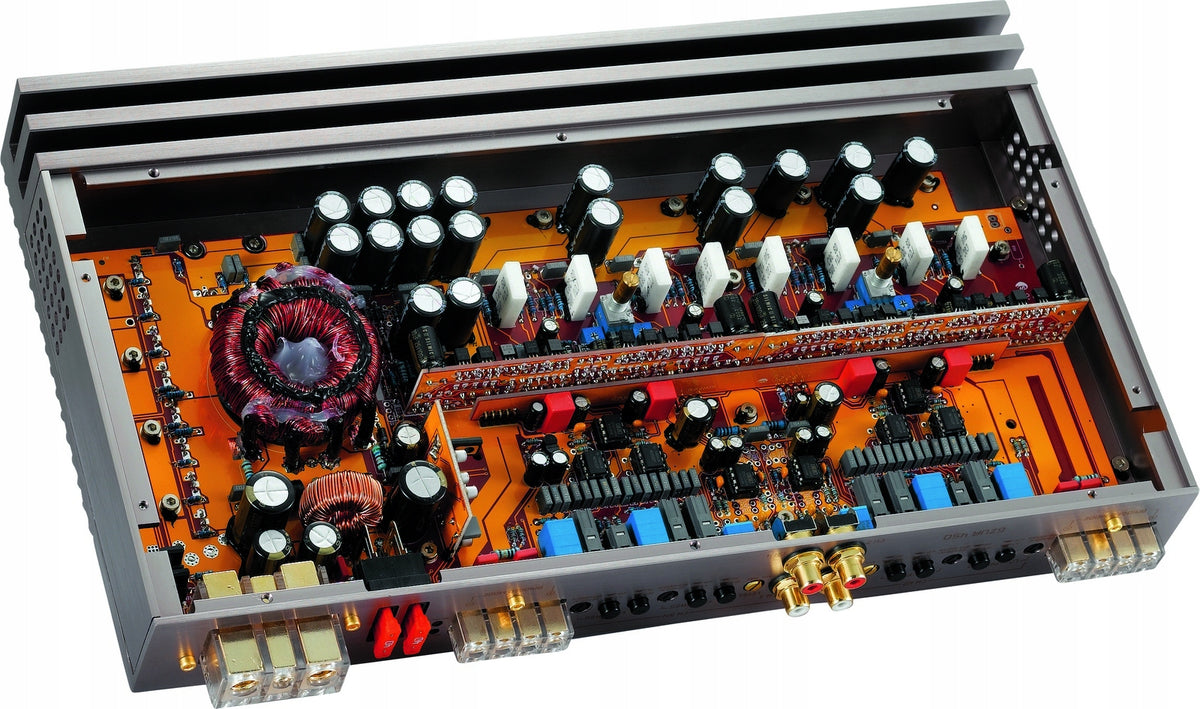

Inside the amplifier you can see many references from the Reference line. These improved new multi-channel amplifiers still use the best Burr-Brown® components for the cleanest signal amplification with the lowest distortion, WIMA® capacitors and many other SQ parts from their predecessors, but that's not all... They feature high-end Sanken ® Darlington power transistors and a massive heatsink for heat dissipation.

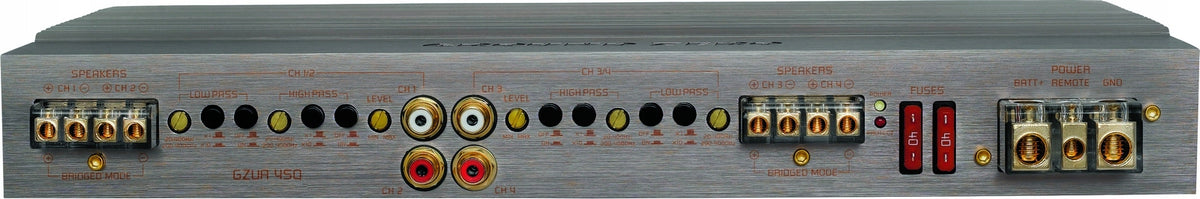

The entire front is full of connection terminals as well as control elements and switches, cinch sockets impress with their elegant design and solid mounting.

In this class, the richness of the controls is not explained by frills, rather only high-pass and low-pass can be set, but they can be turned on and off independently, and thanks to x10 multiplier switches in the range from 20 to 4000 Hz.

Further potentiometers are hidden discreetly on the bottom and are responsible for the bias control that the SQ amplifiers inherited from the Reference series.

Using these potentiometers, you can adjust the gain operating point and thus influence the sound.

GZUA 4SQ sounds both dynamic and musical. It can be very accurate in reproducing music while offering a wonderfully smooth flow of play. The listener has no problem with catching subtleties and, for example, discovering new details in some recordings, but it never sounds analytical or even insightful.

Thanks to the large power reserves, dynamics is also a definite strength of the GZUA 4SQ , thanks to which drum beats or synthesizers suddenly bring a smile to the listener's face. On the other hand, we record very sensitive handling of soft tones, as well as particularly beautiful voices in all shades. If the bias control is turned to Class AB, it feels like the playing is extremely crisp and lively, in the Class A position it gets a bit rounder and more homely - a pleasant sound. The differences are not big, but the bias potentiometers give good setting options.

Model GZUA 4SQ

Uranium model line

Number of channels 4

AB amplifier class

Power RMS into 4 Ohms - 1% THD (CEA Standard CEA-2006-A) 4 x 115 W

Power RMS into 2 Ohms - 1% THD (CEA Standard CEA-2006-A) 4 x 185 W

Power RMS into 4 Ohms - 1% THD (CEA Standard CEA-2006-A) 2 x 390 W

Signal/Noise SNR 110 dB

Damping factor > 800

Distortion THD+N < 0.01%

Frequency response 10Hz - 70kHz (-3dB)

Highpass filter (HP) 20 Hz - 400 Hz / 200 - 4000 Hz (x10)

Lowpass filter (LP) 20 Hz - 400 Hz / 200 - 4000 Hz (x10)

20 Hz - 4000 Hz bandpass filter

Input sensitivity 0.8V - 6V (± 5%)

2 x 40 A fuses

Height 4.8 cm

Width 20.9 cm

Length 36 cm

Works stably at 4/2 Ohms

Adjustable BIAS controller

High-class WIMA® capacitors

Adjustable wideband high pass and low pass filters

Band-passive function with activated LP and HP

Adjustable input sensitivity

Soft, delayed remote on

Thermal protection

Protecting the loudspeakers against short circuits

Overload protection

Fan with temperature sensor

Car amplifier 1 piece

Mounting accessories Yes

Instruction Yes

Warranty card Yes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Ground Zero
Parametry	Model	GZUA 4SQ
Parametry	Number of channels	4-channel
Parametry	Product weight with unit packaging	8 kg
Parametry	Manufacturer code	GZUA 4SQ
Parametry	THD distortion	0.01%
Parametry	Signal-to-noise ratio	110 dB
Parametry	Packaging status	original
