Automobilinis įkroviklis ir paleidėjas 12V/24V DFC-50T

Trumpai apie prekę

Prekė: Automobilinis įkroviklis ir paleidėjas 12V/24V DFC-50T. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Kupczyk
• Modelis: DFC-50T

The Kupczyk DFC-50T battery charging rectifier is designed to charge acid batteries with 12V or 24V current. and for starting passenger cars with gasoline and diesel engines.

The device is equipped and intuitive control panel with a practical tilting (analog) display. On the panel there are convenient switches: 12V/24V, slow and fast charging buttons and a button to start.

In addition, the rectifier has a fuse to protect against overload. An additional advantage is the compact design of the device and a practical carrying handle.

Rectifier for charging 12 and 24 volt acid batteries.

• Single-phase power supply.
• Protection against short-circuit poles, overload and reverse polarity.
• Tilting display of charging current.
• The device has wires with a length of 1,2 m terminated with clamps.

Two degrees of charging:

• normal charging - 1 Degree
• fast charging (boost) -1 Degree

Technical parameters:

• Supply Voltage: 230V/50Hz
• Charging current voltage 12/24 V
• 12V charging current: 20A
• 24V charging current: 30A
• Maximum charging current: 45A
• Battery capacity 12V - 20-150 Ah
• Battery capacity 24V - 30-180 Ah
• Starting current: 130A
• Power consumption: 6,4 kW
• Degree of protection IP20
• Weight 10,3 kg
• Dimensions 315x245x225

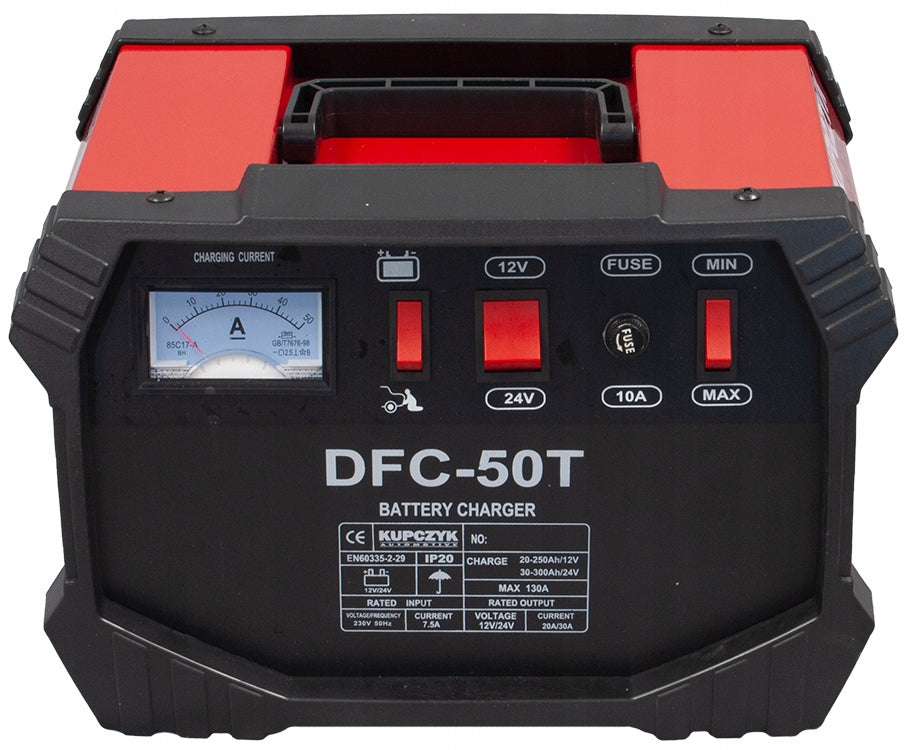

Description of the panel:

1. Charging/Starting Mode Switch
2. Voltage range switch
3. Rectifier power fuse
4. Charging Current Range Switch
5. 230V power cord
6. Cables for connecting the battery: mass (black), current (red)
7. Ammeter
